Create Interactive Web Graphics via 'plotly.js'

Easily translate 'ggplot2' graphs to an interactive web-based version and/or create custom web-based visualizations directly from R. Once uploaded to a 'plotly' account, 'plotly' graphs (and the data behind them) can be viewed and modified in a web browser.


Build Status

An R package for creating interactive web graphics via the open source JavaScript graphing library plotly.js.

Installation

Install from CRAN:

install.packages("plotly")

Or install the latest development version (on GitHub) via devtools:

devtools::install_github("ropensci/plotly")

NOTE: The CRAN version of plotly is designed to work with the CRAN version of ggplot2, but at least for the time being, we recommend using the development versions of both plotly and ggplot2 (devtools::install_github("hadley/ggplot2")).

Getting started

Web-based ggplot2 graphics

If you use ggplot2, ggplotly() converts your static plots to an interactive web-based version!

library(plotly)
g <- ggplot(faithful, aes(x = eruptions, y = waiting)) +
  stat_density_2d(aes(fill = ..level..), geom = "polygon") +
  xlim(1, 6) + ylim(40, 100)
ggplotly(g)

http://i.imgur.com/G1rSArP.gifv

By default, ggplotly() tries to replicate the static ggplot2 version exactly (before any interaction occurs), but sometimes you need greater control over the interactive behavior. The ggplotly() function itself has some convenient "high-level" arguments, such as dynamicTicks, which tells plotly.js to dynamically recompute axes, when appropriate. The style() function also comes in handy for modifying the underlying traces attributes used to generate the plot:

gg <- ggplotly(g, dynamicTicks = "y")
style(gg, hoveron = "points", hoverinfo = "x+y+text", hoverlabel = list(bgcolor = "white"))

http://i.imgur.com/qRvLgea.gifv

Moreover, since ggplotly() returns a plotly object, you can apply essentially any function from the R package on that object. Some useful ones include layout() (for customizing the layout), add_traces() (and its higher-level add_*() siblings, for example add_polygons(), for adding new traces/data), subplot() (for combining multiple plotly objects), and plotly_json() (for inspecting the underlying JSON sent to plotly.js).

The ggplotly() function will also respect some "unofficial" ggplot2 aesthetics, namely text (for customizing the tooltip), frame (for creating animations), and ids (for ensuring sensible smooth transitions).

Using plotly without ggplot2

The plot_ly() function provides a more direct interface to plotly.js so you can leverage more specialized chart types (e.g., parallel coordinates or maps) or even some visualization that the ggplot2 API won't ever support (e.g., surface, mesh, trisurf, or sankey diagrams). The cheatsheet is a nice quick reference for this interface, but the plotly cookbook has more complete overview of the philosophy behind this "non-ggplot2" approach.

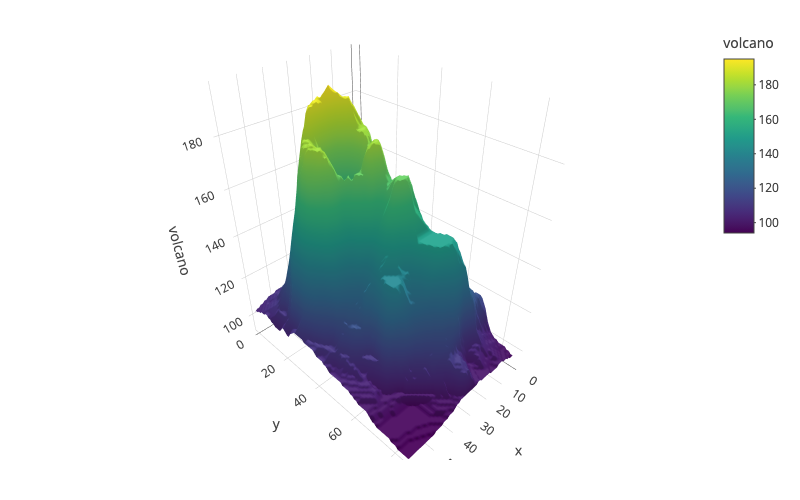

plot_ly(z = ~volcano, type = "surface")

https://plot.ly/~brnvg/1134

Crosstalk support

The R package has special support for linking/highlighting/filtering views that is not (yet) available outside of the R package. This functionality is built upon the crosstalk package, which distinguishes between two event classes: select and filter. The plotly package interprets these classes in the following way:

  1. Select: add new "selection" trace(s) (i.e., graphical marks) and dim the other traces. Some people refer to this as "brushing" or "highlighting".
  2. Filter: retain "selection" trace(s), but remove other traces, and update the layout accordingly. Some people refer to this as "crossfilter" or "drill-down".

The following gif helps to demonstrate the difference -- see here for the code used to generate it.

http://rpubs.com/cpsievert/275511

Like other crosstalk enabled widgets, plotly responds to filter events, but you can't (yet) emit a filter event via direct manipulation of a plotly graph. Unlike (some) other crosstalk enabled widgets, plotly has advanced support for select (a much more broad class than filter) events, like persistent/dynamic brushing, brushing via indirect manipulation, and even ways to completely control the appearance new selection traces. In other words, these "special" brushing features work when linking multiple plotly graphs, but may not when linking to other crosstalk enabled widgets.

To date, this slide deck is the most comprehensive, yet somewhat thorough, walk-through of this framework, but the linking views without shiny chapter of the plotly book provides even more background. There are also numerous demos shipped with the package which provide nice examples (list all the demos via demo(package = "plotly")).

plotly's crosstalk functionality aims to provide tools for interactively exploring subsets of your data with a fixed definition from data to plot. If you need more flexibility, you can always embed crosstalk plots within a larger shiny app, or even access and respond to any plotly event within shiny, but adding shiny into the equation comes with a cost -- the result is no longer standalone HTML (harder to share/host) and linking views requires fairly sophicated knowledge/use of shiny's reactive programming framework.

Learn more

We have lots of examples on https://plot.ly/r/ and https://plot.ly/ggplot2/, but a more comprehensive review is also available at https://cpsievert.github.io/plotly_book/. I also have a number of slide decks that also have useful demos.

Contributing

Please read through our contributing guidelines. Included are directions for opening issues, asking questions, contributing changes to plotly, and our code of conduct.


http://ropensci.org

News

4.7.1

NEW FEATURES & IMPROVEMENTS

  • It is now possible to modify (i.e., update without a full redraw) plotly graphs inside of a shiny app via the new plotlyProxy() and plotlyProxyInvoke() functions. For examples, see plotly_example("shiny", "proxy_relayout") and plotly_example("shiny", "proxy_mapbox"). Closes #580.
  • Added a new plotly_example() function to make it easier to run shiny/rmarkdown examples included with the package under the inst/examples directory.
  • The schema() function now returns the plot schema (rather just printing it), making it easier to acquire/use values from the official plot schema. See help(schema) for an example. Fixes #1038.

CHANGES

BUG FIXES

  • The default sizing in ggplotly() is no longer fixed to the device size inside RStudio. Fixes #1033.
  • Removed use of ArrayBuffer.isView(), which should fix rendering issues on plaforms that don't have a typed array polyfill (e.g., RStudio on Windows). Fixes #1055.
  • event_data("plotly_relayout") no longer fires NULL for any event. Fixes #1039.
  • Fixed a bug when using color with scattermapbox/scattergeo. Fixes #1038.
  • Fixed a highlighting bug when brushing multiple points with marker.color as an array. Fixes #1084.

4.7.0

NEW FEATURES & IMPROVEMENTS

  • Added support for fixed coordinates (i.e., the aspect ratio component of coord_equal(), coord_fixed(), coord_map(), coord_quickmap()).
  • Added support for geom_sf() and coord_sf().
  • The (previously internal) group2NA() function is now exported and its performance has been greatly improved thanks to the new data.table dependency. Essentially any geom conversion that reduces to a polygon/path should see speed improvements. Similarly, any plot_ly() graph that use group_by() in conjunction with add_lines(), add_paths(), add_segments(), etc will also see improvements, especially when there is a large number of groups. For details on the speed improvements, see #1022 and #996 (thanks @msummersgill).
  • The api_create() function gains a new fileopt argument, which is inspired from the fileopt argument in the (deprecated) plotly_POST() function (fixes #976). It currently supports to values: "new" and "overwrite". The default, "overwrite", will overwrite existing file(s) with a matching filename.
  • The filename argument in api_create() now accepts a character vector of length 2, the first string is used to name the plot, and the second is used to name the grid (i.e., data behind the plot).

CHANGES

Bug fixes

  • Fixes numerous problems with coord_flip() (fixes #1012).
  • The typed array polyfill is now included before the plotly.js bundle, which should fix some rendering issues in some browsers, including RStudio (fixes #1010).
  • When creating private plots (via api_create()), both the plot and the data behind the plot are private (fixes #976).
  • Creating a plot with multiple traces (or frames) via (via api_create()) no longer creates multiple grids (fixes #1004).
  • The api_create() function should now create grid references for all data array attributes (fixes #1014).
  • ggplotly() no longer opens an (off-screen) graphics device in RStudio for sizing. It will now correctly use the size of the viewer panel when querying the size of the graphics device.
  • Margins are no longer always set to NULL for pie charts (fixes #1002)
  • Fixed bug when highlight multiple 'simple key' traces (fixes #974).

4.6.0

NEW FEATURES & IMPROVEMENTS

  • Added a significant amount of support for "multiple linked views". For some relatively basic examples, see the demos (the ones prefixed with "highlight" are most relevant) -- demo(package = "plotly"). For a more comprehensive overview, see https://cpsievert.github.io/plotly_book/linking-views-without-shiny.html. For some more complex examples, see https://cpsievert.github.io/pedestrians/
  • Added the highlight() function for configuring selection modes/sequences/options.
  • Added support for animation. For some relatively basic examples, see the examples section of help(animation). For a more thorough overview, see https://cpsievert.github.io/plotly_book/key-frame-animations.html
  • Added a frame argument to plot_ly() for creating animations. Also added the animation_opts(), animation_slider(), and animation_button() functions for configuring animation defaults.
  • Added a new interface to v2 of the REST API. This new interface makes the plotly_POST() and get_figure() functions obsolete (use api_create() and api_download_plot() instead), and thus, are now deprecated, but remain around for backwards-compatibility. For more details, see help(api).
  • Added support for conversion of more ggplot2 geoms via ggplotly(): GeomCol, GeomRug, GeomCrossbar, GeomQuantile, GeomSpoke, GeomDotplot, GeomRasterAnn (i.e., annotation_raster()), and GeomAnnotationMap (i.e., annotation_map()).
  • Added a new function raster2uri() which makes it easier to embed raster objects as images via data URIs. For examples, see help(raster2uri).
  • ggplotly() gains a new argument, dynamicTicks, which allows axis ticks to update upon zoom/pan interactions (fixes #485).
  • Sensible sizing and positioning defaults are now provided for subplots multiple colorbars.
  • R linebreaks are translated to HTML linebreaks (i.e., '\n' translates to '
    ') (fixes #851).
  • Added a plot_dendro() function for a quick and dirty interactive dendrogram with support for hierarchial selection. For more, see -- https://cpsievert.github.io/plotly_book/linking-views-without-shiny.html#nested-selections
  • The export() function gains a selenium argument for rendering/exporting WebGL plots and exporting to 'svg'/'webp' file formats (via the plotly.js function Plotly.downloadImage()).
  • Better type checking of trace attributes will now automatically reduce a single-valued vector to a constant (when appropriate). This is particularly useful for anchoring multiple traces to a single legend entry via legendgroup (see #675, #817, #826).
  • The plotlyOutput() function gains a inline argument which makes it easier to place multiple plots in the same row (in a shiny application).

CHANGES

  • Upgraded to plotly.js v1.26.1 -- https://github.com/plotly/plotly.js/releases/tag/v1.26.1
  • ggplotly() now applies format() to automatically generated hoverinfo. This will allow for finer control over the text displayed (for instance, options(digits = 4) can now be used to choose the number of significant digits used). See #834 for an example.
  • HTMLwidgets.renderValue() should now avoid creating too many active WebGL contexts (thanks @AleksandrIanevski).
  • A TypedArray polyfill is now included by default, and the function remove_typedarray_polyfill() was added to make it easy to remove it. Fixes #824, #717, #825.
  • If no graphics device is already open, ggplotly() now tries to open/close a Cairo graphics device, then a bitmap (png/jpeg) device. If neither is available, it errors. This helps to ensure that a screen device is never opened by ggplotly() (which fixes #829). Furthermore, if width/height is not specified and no graphics device is currently open, a default of 640/480 is used for width/height of the device.

BUG FIXES

  • Placement of bars (in all cases, even when representing a negative count) should now be correct (applies to geom_bar(), geom_histogram(), geom_col()). Fixes #560, #874, #901, #831.
  • Fix for hoverinfo displaying the heights of bars in the translation geom_bar() via ggplotly(). Fixes #557 and #662.
  • embed_notebook() now works in nteract notebooks (see #768).
  • Axis categories are no longer reordered for matrices (see #863).
  • Fix for hoverinfo displaying values after scale transformations (in ggplotly()). Fixes #804.
  • Font faces for axis titles are now translated (in ggplotly()). Fixes #861.

4.5.6

NEW FEATURES

  • Added support for the timezone argument in ggplot2's scale_datetime(). Fixes (#743, thanks @earowang).

CHANGES

  • Now requires a version of ggplot2 higher than 2.1.0 because the new ggproto faceting infrastructure introduced breaking changes.
  • A book icon is added to the mode bar, by default, which links to the plotly book. If you want to remove this icon from a plot p, do config(p, modeBarButtonsToRemove = "Collaborate")
  • Specifying height/width in layout() is now deprecated. Specify in ggplotly() or plot_ly().
  • The ggplotly() function now preserves all information about the layer mapping. This makes it possible to access input/output data from any layer.

BUG FIXES

  • HTMLwidget.resize() used to ignore specified layout.width/layout.height.
  • When height/width are specified in ggplotly(), relative sizes are now translated correctly. Fixes #489 and #510.
  • More careful handling of font when expanding annotation arrays. Fixes #738.
  • Ignore data arrays of non-tidy traces. Fixes #737.
  • When using ggplotly() on a plot with geom_line and group aesthetic wrong tooltip information was shown. Fixes #774.

4.5.5 -- 28 September 2016

NEW FEATURES

  • histogram2d/histogram2dcontour traces now respect the colors argument.

BUG FIX

  • Don't traceify by non-existant levels, fixes #735.

4.5.4 -- 27 September 2016

BUG FIX

  • Only insert missing values to differentiate groups when it's relevant.

4.5.3 -- 27 September 2016

NEW FEATURES

  • The colorbar() function gains a new limits arguments for controlling the colorscale limits.

BUG FIX

  • The z is now required in add_heatmap(). If you want a z to be computed, use add_histogram().

4.5.2 -- 23 September 2016

NEW FEATURES

  • The new argument, split, replaces the old functionality of the now deprecated group argument by creating one trace per value.

BUG FIXES

  • Passing plots to subplot() without a specified color (once again) match the coloring defaults supplied by plotly.js (see #724).

4.5.1 -- 23 September 2016

NEW FEATURES

  • A tibble with a list-column of plotly objects can now be input directly into subplot()

BUG FIXES

  • The colorbar() function now works on colorbars generated via z mapping.

4.5.0 -- 22 September 2016

NEW FEATURES

  • Added the plot_mapbox() and plot_geo() functions, which make it easier to work with the "scattermapbox", "scattergeo", and "choropleth" trace types. See the maps chapter of the plotly book for some examples -- https://cpsievert.github.io/plotly_book/maps.html
  • subplot() now accepts, and correctly scales mapbox objects.
  • Added the add_mesh3d() and add_pie() functions as wrappers around the "mesh3d", and "pie" trace types.

CHANGES

  • The add_scattergeo() and add_choropleth() functions have been deprecated in favor of plot_geo().
  • The add_area(...) function changed it's meaning from add_lines(..., fill = 'tozeroy') to a wrapper around the area trace https://plot.ly/r/reference/#area. This is more consistent with the naming conventions already in place for other add_() functions.
  • add_ribbons() now shows points (instead of fill) on hover.

4.4.5 -- 19 September 2016

NEW FEATURES

  • Added a rangeslider() function to make it easier to add a range slider to the x-axis.
  • Added a colorbar() function to make it easier to modify an automatically generated colorbar.

BUG FIXES

  • Bug fix for data arranging (introduced in 4.4.2).
  • If the same (discrete) variable is mapped to two different aesthetics, redundant text is no longer generated in the legend entries (e.g., plot_ly(mpg, x = ~cty, y = ~hwy, symbol = ~factor(cyl), color = ~factor(cyl)))

4.4.4 -- 15 September 2016

NEW FEATURES

  • Added inherit argument for all add_() functions to avoid inheriting attributes from plot_ly().
  • Added the add_fun() function to add layers to a plot without modifying the original data associated with a plotly object.
  • Added the add_annotations() function to make it easier to add annotations.
  • Added the layerData argument to ggplotly() to make it possible to retrieve the data from a particular ggplot2 layer.

4.4.3 -- 15 September 2016

CHANGES

4.4.2 -- 14 September 2016

BUG FIXES

  • Arrange data by trace index before computing groups, fixes #716.

4.4.1 -- 14 September 2016

BUG FIXES

  • Restrict to atomic vectors when gathering data for training; otherwise, formulas referencing variables that don't exist in the data, but reference a function can cause problems.

4.4.0 -- 13 September 2016

CHANGES

BUG FIXES

  • It is now possible (again) to set/change attributes of autogenerated marker.colorbar.
  • The add_choropleth() previously wasn't relaying the z attribute.
  • Factors were being treated as characters in add_segments() (resulting in incorrect axis category order).
  • No more error in plot_ly() when the number of traces is a multiple of ten.

4.3.7 -- 11 September 2016

BUG FIXES

4.3.6 -- 9 September 2016

CHANGES

BUG FIXES

  • Fix for error handling in add_bars().
  • More careful logic for inferring data variables. Fixes #712

4.3.5 -- 5 September 2016

NEW FEATURES

  • The internal as_widget() function was exported to make it easier to convert a list (adhering to the plotly spec) to a plotly htmlwidget object. This should only be needed when "manually" editing the underlying list object.
  • Warnings about missing attributes now supply information about the relevant trace.

CHANGES

BUG FIXES

  • Get event_data() working with subplots. Fixes #663

4.3.4 -- 31 August 2016

CHANGES

  • Expressions yielding a ggplot2 object can now, once again, be provided to plotlyOutput(). In order to make this possible, ggplotly() now has a method for plotly objects (the identity function), and ggplotly() called on any expression provided to plotlyOutput().

4.3.3 -- 29 August 2016

BUG FIXES

  • Bug fix for translation of ggplot2's geom_text().

4.3.2 -- 26 August 2016

NEW FEATURES

  • The function last_plot() can now be used to retrieve the most recently printed plotly graph. Thanks to this new feature, when plotly_POST() is called with no plotly object supplied, the most recently printed plotly graph is sent to the users plotly account.

4.3.1 -- 23 August 2016

CHANGES

4.3.0 -- 22 August 2016

NEW FEATURES

  • The colors/symbols/linetypes arguments now accept named character vectors. The names specify the domain (i.e., data values) and the values specify the range (i.e., visual encodings). This is mainly useful to ensure a particular (discrete) data value is mapped to a particular visual attribute (yes, this is similar, in spirit, to ggplot2's scale_*_manual()).

CHANGES

  • Symbol and linetype palette defaults are now determined by scales::shape_pal() and scales::linetype_pal().
  • viridis is the default color scale for ordered factors.
  • When mapping a character string to color/symbol/linetype, domain values are sorted alphabetically before scales are applied. Also, when mapping a factor to color/symbol/linetype, domain values are sorted according to their factor levels before scales are applied. This leads to more consistent (categorical axis ordering behaves similarly) and predictable (compared to having values sorted in the order in which they appear) behavior.

BUG FIXES

4.2.1 -- 22 August 2016

BUGFIX

  • alpha is now applied when color isn't specified (fixes #658).

4.2.0 -- 11 August 2016

CHANGES

  • plot_ly() now orders the categories of a discrete x/y axis according the level ordering (if a factor) or alphabetical order (if a character string). Fixes #578.

4.1.1 -- 8 August 2016

CHANGES

4.1.0 -- 27 June 2016

NEW FEATURES

  • ggplotly() gains a new originalData argument which allows one to attach either the original (global) data, or a "scaled"/"trained" version of the data used by ggplot2 to draw the graph (for a quick example, ggplotly(qplot(1:10), originalData = FALSE) %>% plotly_data()).
  • Hoverinfo is now shown for fill, instead of points, for several geoms (geom_polygon()/geom_hex()/geom_rect()/geom_map()).
  • If stat_identity() is used, group domain values are preserved and displayed in hoverinfo.
  • New functions hide_guides()/hide_legend() were added (these work similarly to the existing hide_colorbar()) to simply the hiding of guides (i.e., legends/colorbars).

BUG FIXES

  • Legend titles (annotations) are no longer generated when no legend is displayed (#635, #607)
  • Hoverinfo is no longer displayed if no tooltip variables are present in a layer (#563).
  • Facets with 10 or more columns/rows should now render correctly (#640).
  • x-axis anchors in facet_wrap() should now be correct.

OTHER CHANGES

4.0.2 -- 25 June 2016

BUG FIXES

  • Bug fix for formulas evaluating to a logical vector (#650)

4.0.1 -- 14 June 2016

BUG FIXES

  • Duplicated values of positional attributes are no longer removed (bug was introduced in v4.0.0).

OTHER CHANGES

4.0.0 -- 13 June 2016

BREAKING CHANGES & IMPROVEMENTS:

  • Formulas (instead of plain expressions) are now required when using variable mappings. For example, plot_ly(mtcars, x = wt, y = mpg, color = vs) should now be plot_ly(mtcars, x = ~wt, y = ~mpg, color = ~vs). This is a major breaking change, but it is necessary to ensure that evaluation is correct in all contexts (as a result, evaluate argument is now deprecated as it is no longer needed). It also has the benefit of being easier to program with (i.e., writing your own custom functions that wrap plot_ly()) since it preserves referential transparency. For more details, see the lazyeval vignette
  • The data structure used to represent plotly objects is now an htmlwidget object (instead of a data frame with a special attribute tracking visual mappings). As a result, the as.widget() function has deprecated, and serialization/memory leak problems are no longer an issue. This change also implies that arbitrary data manipulation functions can no longer be intermingled inside a plot pipeline, but plotly methods for dplyr's data manipulation verbs are now provided (see ?plotly_data for examples).
  • The group variable mapping no longer create multiple traces, but instead defines "gaps" within a trace (fixes #418, #381, #577). Groupings should be declared via the new group_by() function (see help(plotly_data) for examples) instead of the group argument (which is now deprecated).
  • plot_ly() now initializes a plotly object (i.e., won't add a scatter trace by default), meaning that something like plot_ly(x = 1:10, y = 1:10) %>% add_trace(y = 10:1) creates one trace, instead of two. That being said, if you manually specify a trace type in plot_ly(), it will add a layer with that trace type (e.g. plot_ly(x = 1:10, y = 1:10, type = "scatter") %>% add_trace(y = 10:1) draws two scatter traces). If no trace type is provided, a sensible type is inferred from the supplied data, and automatically added (i.e., plot_ly(x = rnorm(100)) now creates a histogram).
  • The inherit argument is deprecated. Any arguments/attributes specified in plot_ly() will automatically be passed along to additional traces added via add_trace() (or any of it's add_*() siblings).
  • Aesthetic scaling (e.g., color, symbol, size) is applied at the plot-level, instead of the trace level.
  • Size is no longer automatically included in hovertext (closes #549).

NEW FEATURES & IMPROVEMENTS:

  • Added linetype/linetypes arguments for mapping discrete variables to line types (works very much like the symbol/symbols).
  • Scaling for aesthetics can be avoided via I() (closes #428). This is mainly useful for changing default appearance (e.g. plot_ly(x = 1:10, y = 1:10, color = I("red"))).
  • Symbols and linetypes now recognize pch and lty values (e.g. plot_ly(x = 1:25, y = 1:25, symbol = I(0:24)))
  • A new alpha argument controls the alpha transparency of color (e.g. plot_ly(x = 1:10, y = 1:10, color = I("red"), alpha = 0.1)).
  • Added a sizes argument for controlling the range of marker size scaling.
  • New add_polygons()/add_ribbons()/add_area()/add_segments()/add_lines()/add_markers()/add_paths()/add_text() functions provide a shorthand for common special cases of add_trace().
  • New toWebGL() function for easy conversion from SVG to WebGL.
  • New export() function makes it easy to save plots as png/jpeg/pdf (fixes #311).
  • Misspecified trace/layout attributes produce a warning.
  • New plotly_data() function for returning/inspecting data frame(s) associated with a plotly object.
  • New plotly_json() function for inspecting the data sent to plotly.js (as an R list or JSON).
  • layout() is now a generic function and uses method dispatch to avoid conflicts with graphics::layout() (fixes #464).

OTHER CHANGES:

3.6.5 -- 10 June 2016

IMPROVEMENT:

Multiple rows of facet strips will now be separated by
(i.e., line breaks) instead of ,. See #593.

3.6.4 -- 31 May 2016

BUG FIX:

embed_notebook() will no longer use a '.embed' extension in the iframe src attribute. See #613.

3.6.3 -- 24 May 2016

CHANGES:

Provided a better way of reexporting magrittr::%>%. See #597.

3.6.2 -- 24 May 2016

CHANGES:

Removed unnecessary plyr dependency.

3.6.1 -- 23 May 2016

BUG FIX:

Add a default method for plotly_build. Fixes #592.

3.6.0 -- 16 May 2016

NEW FEATURES & CHANGES:

  • Many improvements to the subplot() function:

    • ggplot2 objects are now officially supported (#520).
    • Several new arguments allow one to synchronize x/y axes (#298), height/width (#376), hide/show x/y axis titles.
    • A list of plots can now be passed to the first argument.
    • A new vignette with examples and more explanation can be accessed via vignette("subplot").
  • ggplotly() is now a generic function with a method for ggmatrix objects.

  • plotly_build() is now a generic function.

BUG FIX:

Column facet strips will no longer be drawn when there is only one column.

3.5.7 -- 13 May 2016

CHANGES:

Better defaults for defaultWidth/defaultHeight in the htmlwidget's sizing policy.

BUG FIX:

Pass knitr options to the named argument options. Fixes #582.

3.5.6 -- 12 May 2016

BUG FIX:

Use .embed suffix in iframe src attribute. Fixes #581.

3.5.5 -- 5 May 2016

CHANGES:

ggplotly() will now use plotly's layout.axisid.title (instead of layout.annotations) for axis titles on non-faceted plots. This will make for a better title placement experience (see #510).

BUG FIX:

Space for interior facet_wrap() strips are now accounted for.

3.5.4 -- 5 May 2016

BUG FIX:

gg2list() now returns an object of class "plotly_built" instead of "plotly" to ensure a sensible print method is invoked.

3.5.3 -- 3 May 2016

CHANGES:

Upgrade to plotlyjs v1.10.1 -- https://github.com/plotly/plotly.js/releases/tag/v1.10.1

3.5.2 -- 2 May 2016

BUG FIX:

Added missing key properties in ggplotly() converter so selections can be accessible via event_data().

3.5.1 -- 26 Apr 2016

CHANGES:

Upgrade to plotlyjs v1.10.0 -- https://github.com/plotly/plotly.js/releases/tag/v1.10.0

Distinguish between "built" (plotly_built) and "non-built" (plotly_hash) plotly objects. See #562

3.5.0 -- 19 Apr 2016

NEW FEATURES:

The toRGB() function will now respect alpha channels in hex color codes and can recursively apply alpha.

CHANGES:

The toRGB() function will always output color codes with an alpha channel (e.g. toRGB('black') is now 'rgba(0,0,0,1)' instead of 'rgb(0,0,0)')

3.4.15 -- 18 Apr 2016

BUGFIX:

The alpha in geom_smooth was incorrectly inheriting from other layers. See #551.

3.4.14 -- 15 Apr 2016

CHANGES:

Upgrade to plotlyjs v1.9.0 -- https://github.com/plotly/plotly.js/releases/tag/v1.9.0

3.4.13 -- 6 Apr 2016

BUGFIX:

In some cases, marker color was inheriting from the marker line color when it shouldn't have. See ##537.

3.4.12 -- 5 Apr 2016

CHANGES:

Upgrade to plotlyjs v1.8.0 -- https://github.com/plotly/plotly.js/releases/tag/v1.8.0

3.4.11 -- 2 Apr 2016

BUGFIX:

Fix bug when altering modebar button defaults

3.4.10 -- 1 Apr 2016

BUGFIX:

Fix a geom_errorbar bug introduced in 3.4.9. See #513.

3.4.9 -- 25 Mar 2016

BUGFIX:

Upgrade to plotlyjs 1.7.0. Fixes #513

3.4.8 -- 23 Mar 2016

BUGFIX:

  • Safeguard against null fields in selections. See #530.

3.4.7 -- 19 Mar 2016

BUGFIX:

  • Added custom CSS which allows plotly to work nicely in ioslides.

3.4.6 -- 17 Mar 2016

NEW FEATURES:

The 'plotly_relayout' event is now accessible via the event_data() function.

Fixed #514.

3.4.5 -- 17 Mar 2016

BUGFIX:

Fixed #514.

3.4.4 -- 17 Mar 2016

BUGFIX:

Show discrete positional values in tooltip (see #515); better GeomTile conversion; pass plot object into layers2traces.

3.4.3 -- 14 Mar 2016

BUGFIX:

Custom facet labeller functions will now translate correctly. See #507.

3.4.2 -- 14 Mar 2016

BUGFIX:

Automatic resizing will now occur only when layout.autosize is true (the default). See #403.

3.4.1 -- 13 Mar 2016

BUGFIX:

Legend titles are now supported.

3.4.0 -- 12 Mar 2016

NEW FEATURES:

  • geom_map() and geom_hex() are now supported.

CHANGES:

  • The default value of the fileopt argument was changed from "new" to "overwrite".

BUGFIX:

  • Made a number of bugfixes/improvements to hoverinfo & conversion of geom_tile()/geom_point().

3.3.1 -- 10 Mar 2016

CHANGES:

  • Changed the mapping argument name to tooltip (which seems like a better name).

BUGFIX:

  • Redundant legend entries are no longer shown.

3.2.1 -- 10 Mar 2016

BUGFIX:

  • Proper formatting for date tooltips.

3.2.0 -- 10 Mar 2016

CHANGES:

  • Legend titles no longer appear in legend entries.
  • Tooltips now reflect aesthetic mappings. This makes it easier to decode data values from a given visual marking.

NEW FEATURES:

  • geom_violin() is now supported.
  • ggplotly() gains a mapping argument to control the set of aesthetics to appears in the tooltip as well as their order.

3.1.0 -- 8 Mar 2016

CHANGES:

  • The "hidden" sharing option in plotly_POST() was renamed to "secret".
  • The default value in the scale argument in plotly_IMAGE() is now 1.

3.0.0 -- 8 Mar 2016

NEW FEATURES:

  • ggplotly() is now about 20x faster (it avoids calling ggplot_build() 20+ times). In some cases, it might be even faster since a lot of other redundant computation is avoided.

CHANGES:

  • Instead of (trying to) translate both major and minor grid lines, we now translate only major grid lines. This generally produces a result closer to the actual ggplot2 result since ggplot2 doesn't draw ticks on minor grid lines.

BUG FIXES:

  • ggplotly() now supports most of scale_()/theme()/guides(). As a result, this fixes a lot of issues (#482, #481, #479, #476, #473, #460, #456, #454, #453, #447, #443, #434, #422, #421, #399, #379, #378, #357, #318, #316, #242, #232, #211, #203, #185, #184, #161). In order to support all of scale_x_() an scale_y_*(), we always use linear axis types, and supply ticktext/tickvals to plotly.js. This has some unfortunate consequences on hoverformatting, which may be addressed in future releases of plotly.js -- https://github.com/plotly/plotly.js/issues/320

2.5.0 -- 1 Mar 2016

NEW FEATURES

CHANGES

The arguments filename, fileopt, world_readable in ggplotly() were removed as they should be provided to plotly_POST() instead.

2.4.4 -- 13 Feb 2016

as.widget() now returns htmlwidget objects untouched. See #449.

2.4.3 -- 11 Feb 2016

Ensure that we always return HTTPS links. Fixes #455

2.4.2 -- 9 Feb 2016

Fix for on-premise domain configuration.

2.4.1 -- 2 Feb 2016

Attach base_url in as.widget() so it works in multiple contexts

2.4.0 -- 1 Feb 2016

  • Pass plot configuration using ... to avoid conflicts in defaults/documentation
  • Upgrade to plotly.js 1.5.1

2.3.4 -- 1 Feb 2016

Added a plotly_api_domain environment variable for configuring the API domain. Fixes #441

2.3.3 -- 27 Jan 2016

Bump axis number for each trace matching a panel number. fixes #318

2.3.2 -- 25 Jan 2016

More accurate list of data_array properties. Fixes #415

2.3.1 -- 25 Jan 2016

More accurate conversion of path width. Fixes #373.

2.3.0 -- 19 Jan 2016

Add sharing argument and deprecate world_readable. Fixes #332

2.2.4 -- 18 Jan 2016

Fix for error in embed_notebook(). See #409.

2.2.3 -- 18 Jan 2016

Fix for geom_vline(). See #402.

2.2.2 -- 18 Jan 2016

Fix bar orientation when we detect geom_bar() + coord_flip() in ggplotly(). Fixes #390.

2.2.1 -- 18 Jan 2016

Search for axis title in scene object. fixes #393.

2.2.0 -- 13 Jan 2016

The default for layout.hovermode is now 'closest' for non-line scatter traces

2.1.3 -- 12 Jan 2016

Fix size and alpha translation for geom_point. Fixes #386

2.1.2 -- 11 Jan 2016

Upgraded to plotlyjs 1.4.1. For a list of changes, see https://github.com/plotly/plotly.js/releases/tag/v1.4.1

2.1.1 -- 11 Jan 2016

Upgraded to plotlyjs 1.4. For a list of changes, see https://github.com/plotly/plotly.js/releases/tag/v1.4.0

2.1.0 -- 29 Dec 2015

plot_ly() now defaults to inherit=FALSE and plotly_build() is now idempotent. Fixes #280 and #277. See #368 for details.

2.0.19 -- 23 Dec 2015

Added as.widget() function for conveniency in converting plotly object to htmlwidget objects. See #294.

2.0.18 -- 22 Dec 2015

Fix #365

2.0.17 -- 22 Dec 2015

Fix #358

2.0.16 -- 18 Dec 2015

Require ggplot2 2.0.0 or higher. For details, see #269.

2.0.15 -- 13 Dec 2015

Fix #346

2.0.14 -- 13 Dec 2015

Fix #212

2.0.13 -- 12 Dec 2015

Fix #286

2.0.12 -- 11 Dec 2015

Fix #221

2.0.11 -- 11 Dec 2015

Fix #250

2.0.10 -- 10 Dec 2015

Fix #225

2.0.9 -- 10 Dec 2015

Fix #333

2.0.8 -- 10 Dec 2015

Fix a bug with geom_segment (see #321 & #228)

2.0.7 -- 10 Dec 2015

Fix #233

2.0.6 -- 2 Dec 2015

Upgrade to plotlyjs 1.1.1. Fixes #319.

2.0.5 -- 1 Dec 2015

Fix for legend names. See #236.

2.0.4 -- 28 Nov 2015

Fix #313.

2.0.3 -- 18 Nov 2015

Fixed bug causing knitr options to be ignored. Also added VignetteBuilder to DESCRIPTION to vignette is available.

2.0.2 -- 17 Nov 2015

Using plotly_build() on a ggplot object should always return a plotly object

2.0.1 -- 17 Nov 2015

Better printing of server figures. Documentation and other fixes for initial CRAN release!

2.0.0 -- 2 Nov 2015

Added a dependency on htmlwidgets and 'offline' plots are now the default. If you want to create a figure on a plotly server, you need to use plotly_POST(). Also added a config() function to control the default appearance of the interactive plot

1.0.10 -- 3 Nov 2015

Fixed #292.

1.0.9 -- 28 Sep 2015

Fixed filename, fileopt arguments in plot_ly. Specifying the same filename will now overwrite the plot if it exists.

1.0.8 -- 14 Sep 2015

Added the plotly_IMAGES() function which interfaces to the images endpoint https://api.plot.ly/v2/#images

Details -> https://github.com/ropensci/plotly/pull/279

1.0.7 -- 26 Aug 2015

See https://github.com/ropensci/plotly/pull/275

1.0.6 -- 25 Aug 2015

Fix a bug with subplot domain calculations (see https://github.com/ropensci/plotly/pull/274)

1.0.5 -- 20 Aug 2015

Fix issue converting plotly offline markdown documents to HTML when using markdown::markdownToHTML

1.0.4 -- 14 Aug 2015

Bug fix for subplot. See #265

1.0.3 -- 7 Aug 2015

Improved legend positioning. See #241

1.0.2 -- 2 Aug 2015

  • last_plot() will now look for the last plotly object; if not found, it will try to find the last ggplot object.
  • Officially added the filename, fileopt, and world_readable arguments to plot_ly() and ggplotly().
  • If plotly offline is not available, the shiny.launch.browser option is changed to open a web brower. See #245.
  • Various namespace/documentation improvements for R CMD check.

1.0.1 -- 2 Aug 2015

Removed the stream() function as it wasn't ready to be included.

1.0.0 -- 31 July 2015

A major reworking of package internals which includes a few backwards incompatible changes.

Major changes include:

(1) New high-level grammar for expressing Plotly graphs from R (see the plot_ly(), add_trace(), layout(), and style() functions). (2) New print methods which make it easier to create, modify, and embed Plotly graphs. (3) Added a subplot() function for putting several graphs on a single page. (4) Added the renderPlotly() and plotlyOutput() functions for embedding plotly graphs in shiny applications. (5) Added offline() function for creating standalone HTML pages via Plotly Offline (see http://purchasing.plot.ly/)

For more details, see the new vignettes with browseVignettes(package = "plotly") and/or the pull request -> https://github.com/ropensci/plotly/pull/226

0.6.3 -- 2 June 2015

Add new tests inspired by the R Cookbook distributions #214

0.6.2 -- 19 May 2015

In geom_bar(stat = "identity"), sum y values if multiple for a given x.

0.6.1 -- 5 May 2015

Add test-cookbook-lines.R and fix bugs that showed up in those tests.

0.6 -- 4 May 2015

Let gg2list() return a figure object (backwards incompatible change).

0.5.29 -- 16 April 2015

geom_density() as filled area chart #202

0.5.28 -- 15 April 2015

Let ggplot handle histogram binning. Fix #198

0.5.27 -- 19 Mar 2015

Reimplement geom_ribbon as a basic polygon. Fix #191. Fix #192.

0.5.26 -- 18 Mar 2015

Implemented geom_rect #178

0.5.25 -- 10 March 2015

Implemented geom_smooth() #183

0.5.24 -- 10 March 2015

Implemented facet_wrap(scales="free") #167

0.5.23 -- 10 March 2015.

geom_ribbon() now respects alpha transparency

0.5.22 -- 2 March 2015.

Fixes for ylim() #171.

0.5.21 -- 23 February 2015.

Fixes for error bars and tick marks.

0.5.20 -- 9 February 2015.

Add alpha transparency to fill conversion. Let geom_area support colour and fill aesthetics.

0.5.19 -- 23 January 2015.

Support class conversion such as as.Date() within ggplot code.

0.5.18 -- 22 January 2015.

Return proper filepath when filename contains directories.

0.5.17 -- 30 December 2014.

Support date-time binning in histograms.

0.5.16 -- 29 December 2014.

Support colour aesthetic in geom_text().

0.5.15 -- 19 December 2014.

Use proper RCurlOptions in get_figure() method.

0.5.14 -- 1 December 2014.

Make layers geom_line + geom_point only one trace in Plotly.

0.5.13 -- 27 November 2014.

Rename translation file and server endpoint parameter to be hip.

0.5.12 -- 12 November 2014.

Improve legend title position.

0.5.11 -- 11 November 2014.

Show legend title.

0.5.10 -- 7 November 2014.

Improve showlegend and fix legend’s x position.

0.5.9 -- 3 November 2014.

Default colours for geom_polygon().

0.5.8 -- 30 October 2014.

Support hline over a factor x range. Default colours for geom_boxplot().

0.5.7 -- 29 October 2014.

Default colours for geom_area() and geom_ribbon().

0.5.6 -- 28 October 2014.

Convert line size faithfully.

0.5.5 -- 24 October 2014.

Support category histograms (with factors).

0.5.4 -- 22 October 2014.

Support conversion of geom_vline().

0.5.3 -- 21 October 2014.

Support conversion of geom_bar() with position_dodge().

0.5.2 -- 18 October 2014.

Support aesthetic shape in geom_path() and, hence, geom_line() (conversion).

0.5.1 -- 15 October 2014.

Do not show zero lines by default (as in ggplot2 plots).

0.5.0 -- 15 October 2014.

From now on, version numbers are meaningful again... Many changes meanwhile, especially support for more geoms.

0.4 -- 7 April 2014.

Re-write geom to trace conversion code.

0.3.8 -- 21 March 2014.

ggplotly takes the last_plot() by default.

Support for ggplotly layout elements title, tickcolor, gridcolor, showlegend, plot_bgcolor, paper_bgcolor, tickangle, axis titles, plot border colors.

0.3.7 -- 14 March 2014.

For ggplotly:

  • if on the command line, open a web browser (as before).

  • if in knitr/Rmd in a chunk with plotly=TRUE, embed the plot.

0.3.6 -- 10 March 2014.

Merge ggplotly code.

0.3.5

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("plotly")

4.7.1 by Carson Sievert, 10 months ago


https://plot.ly/r, https://cpsievert.github.io/plotly_book/, https://github.com/ropensci/plotly


Report a bug at https://github.com/ropensci/plotly/issues


Browse source code at https://github.com/cran/plotly


Authors: Carson Sievert [aut, cre], Chris Parmer [aut], Toby Hocking [aut], Scott Chamberlain [aut], Karthik Ram [aut], Marianne Corvellec [aut], Pedro Despouy [aut], Plotly Technologies Inc. [cph]


Documentation:   PDF Manual


MIT + file LICENSE license


Imports tools, scales, httr, jsonlite, magrittr, digest, viridisLite, base64enc, htmltools, htmlwidgets, tidyr, hexbin, RColorBrewer, dplyr, tibble, lazyeval, crosstalk, purrr, data.table

Depends on ggplot2

Suggests MASS, maps, ggthemes, GGally, testthat, knitr, devtools, shiny, curl, rmarkdown, Rserve, RSclient, Cairo, broom, webshot, listviewer, dendextend, sf, RSelenium, png, IRdisplay


Imported by BETS, BayesianNetwork, ChocoLattes, DEploid, EcoGenetics, GMDH2, LumReader, MendelianRandomization, Modelcharts, NormalizeMets, PCRedux, Plasmidprofiler, RBMRB, RtutoR, SGP, SPOT, SensMap, Seurat, ShinyItemAnalysis, TSstudio, adapr, arulesViz, autoplotly, bridger2, bulletr, colordistance, dartR, dendroTools, eAnalytics, eechidna, enpls, gamm4.test, geoSpectral, geomnet, getTBinR, ggalt, ggenealogy, ggmosaic, ggplotgui, ggquickeda, iMediate, manhattanly, mapfuser, memapp, phenocamr, processmapR, projector, rENA, rPackedBar, refund.shiny, revtools, rrr, rsurface, shinyHeatmaply, smoof, staRdom, teachingApps, themetagenomics, xROI, yuimaGUI.

Depended on by DynNom, cdparcoord, heatmaply, multichull, personalized, vistime.

Suggested by DataVisualizations, Hmisc, KRIG, Luminescence, Rilostat, Rnightlights, WVPlots, colorpatch, flacco, frailtyEM, idbr, lmvar, manipulateWidget, microsamplingDesign, mlbgameday, propr, psycho, rms, rwalkr, toxplot, visdat, xpose.


See at CRAN
