Covariate Balance Tables and Plots

Generate balance tables and plots for covariates of groups preprocessed through matching, weighting or subclassification, for example, using propensity scores. Includes integration with 'MatchIt', 'twang', 'Matching', 'optmatch', 'CBPS', 'ebal', 'WeightIt', 'cem', 'sbw', and 'designmatch' for assessing balance on the output of their preprocessing functions. Users can also specify data for balance assessment not generated through the above packages. Also included are methods for assessing balance in clustered or multiply imputed data sets or data sets with longitudinal treatments.

CRAN_Status_Badge CRAN_Downloads_Badge

Welcome to cobalt, which stands for Covariate Balance Tables (and Plots). cobalt allows users to assess balance on covariate distributions in preprocessed groups generated through weighting, matching, or subclassification, such as by using the propensity score. cobalt’s primary function is bal.tab(), which stands for “balance table”, and essentially replaces (or supplements) the balance assessment tools found in the R packages twang, MatchIt, CBPS, and Matching. To examine how bal.tab() integrates with these packages and others, see the help file for bal.tab() with ?bal.tab, which links to the methods used for each package. Each page has examples of how bal.tab() is used with the package. There are also four vignette detailing the use of cobalt, which can be accessed with browseVignettes("cobalt"): one for basic uses of cobalt, one for the use of cobalt with additional packages, one for the use of cobalt with multiply imputed and/or clustered data, one for the use of cobalt with longitudinal treatments. Currently, cobalt is compatible with output from MatchIt, twang, Matching, optmatch, CBPS, ebal, WeightIt, and designmatch, as well as data not processed through these packages.

Why cobalt?

Most of the major conditioning packages contain functions to assess balance; so why use cobalt at all? cobalt arose out of several desiderata when using these packages: to have standardized measures that were consistent across all conditioning packages, to allow for flexibility in the calculation and display of balance measures, and to incorporate recent methodological recommendations in the assessment of balance. In addition, cobalt has unique plotting capabilities that make use of ggplot2 in R for balance assessment and reporting.

Because conditioning methods are spread across several packages which each have their idiosyncrasies in how they report balance (if at all), comparing the resulting balance from various conditioning methods can be a challenge. cobalt unites these packages by providing a single, flexible tool that intelligently processes output from any of the conditioning packages and provides the user with both useful defaults and customizable options for display and calculation. cobalt also allows for balance assessment on data not generated through any of the conditioning packages. In addition, cobalt has tools for assessing and reporting balance for clustered data sets, data sets generated through multiple imputation, and data sets with a continuous treatment variable, all features that exist in very limited capacities or not at all in other packages.

A large focus in devloping cobalt was to streamline output so that only the most useful, non-redundant, and complete information is displayed, all at the user’s choice. Balance statistics are intuitive, methodologically informed, and simple to interpret. Visual displays of balance reflect the goals of balance assessment rather than being steps removed. While other packages have focused their efforts on processing data, cobalt only assesses balance, and does so particularly well.

New features are being added all the time, following the cutting edge of methodolgocial work on balance assessment. As new packages and methods are developed, cobalt will be ready to integrate them to further our goal of simple, unified balance assessment.

Below are examples of cobalt’s primary functions:

library("cobalt")
library("MatchIt")
data("lalonde", package = "cobalt")

# Nearest neighbor matching with MatchIt
m.out <- matchit(treat ~ age + educ + race + married + nodegree + re74 + re75,
    data = lalonde)

# Checking balance before and after matching:
bal.tab(m.out, m.threshold = 0.1, un = TRUE)
#> Call
#>  matchit(formula = treat ~ age + educ + race + married + nodegree +
#>     re74 + re75, data = lalonde)
#>
#> Balance Measures
#>                 Type Diff.Un Diff.Adj        M.Threshold
#> distance    Distance  1.7941   0.9739
#> age          Contin. -0.3094   0.0718     Balanced, <0.1
#> educ         Contin.  0.0550  -0.1290 Not Balanced, >0.1
#> race_black    Binary  0.6404   0.3730 Not Balanced, >0.1
#> race_hispan   Binary -0.0827  -0.1568 Not Balanced, >0.1
#> race_white    Binary -0.5577  -0.2162 Not Balanced, >0.1
#> married       Binary -0.3236  -0.0216     Balanced, <0.1
#> nodegree      Binary  0.1114   0.0703     Balanced, <0.1
#> re74         Contin. -0.7211  -0.0505     Balanced, <0.1
#> re75         Contin. -0.2903  -0.0257     Balanced, <0.1
#>
#> Balance tally for mean differences
#>                    count
#> Balanced, <0.1         5
#> Not Balanced, >0.1     4
#>
#> Variable with the greatest mean difference
#>    Variable Diff.Adj        M.Threshold
#>  race_black    0.373 Not Balanced, >0.1
#>
#> Sample sizes
#>           Control Treated
#> All           429     185
#> Matched       185     185
#> Unmatched     244       0

# Examining distributional balance with plots:

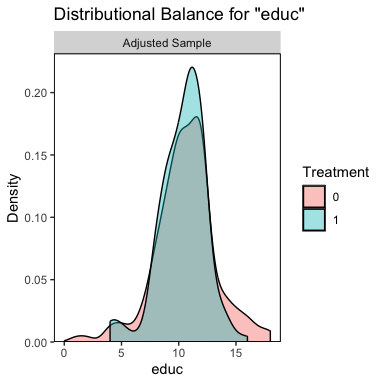

bal.plot(m.out, var.name = "educ")

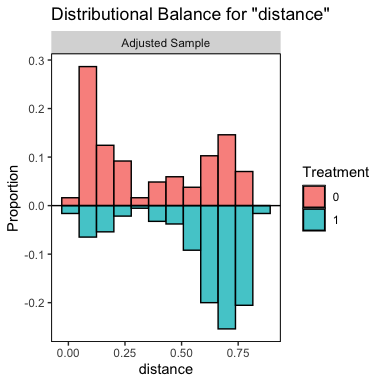

bal.plot(m.out, var.name = "distance", mirror = TRUE, type = "histogram")

# Generating a Love plot to report balance:

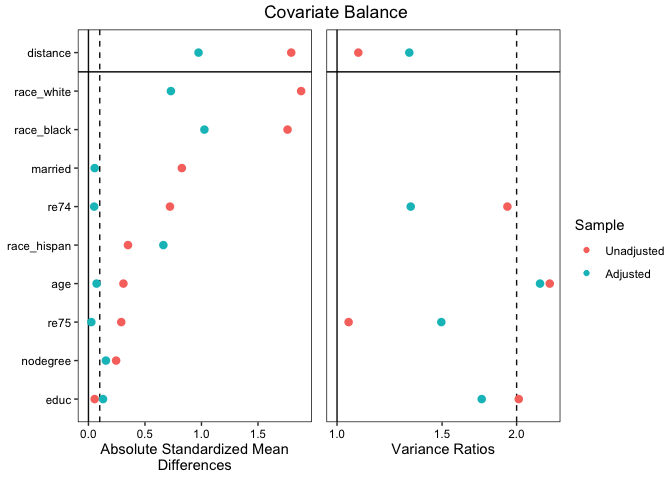

love.plot(bal.tab(m.out), threshold = 0.1, abs = TRUE, var.order = "unadjusted")

Please remember to cite this package when using it to analyze data. For example, in a manuscript, write: “Matching was performed using Matching (Sekhon, 2011), and covariate balance was assessed using cobalt (Greifer, 2018) in R (R Core team, 2018).” Use citation("cobalt") to generate a bibliographic reference for the cobalt package.

News

cobalt News and Updates

Version 3.6.1

  • Fixed bug when installed version of R was earlier than 3.5.0.

Version 3.6.0

  • Added poly argument to bal.tab() to display polynomials of continuous covariates (e.g., squares, cubes, etc.). This used to only be available with the int argument, which also displayed all interactions. Now, the polynomials can be requested seperately. When int = TRUE, squares of the covariates will no longer be displayed; to replicate the old behavior, set int = 2, which is equivalent to int = TRUE, poly = 2.

  • Fixed a bug where using subset would produce an error.

  • Fixed a bug when using multiply imputed data with binary treatments that were factors or characters.

  • Updated the bal.tab documentation to make it easier to navigate to the right page.

  • Small documentation and syntax updates.

  • Added the hidden and undocumented argument center to bal.tab, which, when set to TRUE, centers the covariates at the mean of the entire unadjusted sample prior to computing interactions and polynomials.

  • Added set.cobalt.options function to more easily set the global options that can be used as defaults to some arguments. For example, set.global.options(binary = "std") makes it so that standardized mean difference are always displayed for binary covariates (in the present R session). The options can be retrieved with get.cobalt.options.

Version 3.5.0

  • Several changes to bal.tab() display options (i.e., imbalanced.only, un, disp.means, disp.v.ratio, disp.ks, disp.bal.tab, disp.subclass, and parameters related to the display of balance tables with multinomial treatments, clusters, multiple imputations, and longitudinal treatments). First, the named arguments have been removed from the method-specific functions in order to clean them up and make it easier to add new functions, but they are still available to be specified. Second, a help page devoted just to these functions has been created, which can be accessed with ?options-display. Third, global options for these arguments can be set with options() so they don't need to be typed each time. For example, if you wanted un = TRUE all the time, you could set options(cobalt_un = TRUE) once and not have to include it in the call to bal.tab().

  • Added disp.sds option to display standard deviations for each group in bal.tab(). This works in all the same places disp.means does.

  • Added cluster.fun and imp.fun options to request that only certain functions (e.g., mean or maximum) of the balance statistics are displayed in the summary across clusters/imputations. Previously this option was only available by call print(). These parameters are part of the display options described above, so they are documented in ?options-display and not in the bal.tab help files.

  • Added factor_sep and int_sep options to change the seperators between variable names when factor variables and interactions are displayed. This functionality had been available since version 3.4.0 but was not documented. It is now documented in the new display_options help page.

  • In bal.tab(), continuous and binary can be specified with the global options "cobalt_continuous" and "cobalt_binary", respectively, so that a global setting (e.g., to set binary = "std" to view standardizd mean difference rather than raw differences in proportion for binary variables) can be used instead of specifying the argument each time in the call to bal.tab().

  • Minor updates to f.build() to process inputs more flexibly. The left hand side can now be empty, and the variables on the right hand side can now contain spaces.

  • Fixed a bug when logical treatments were used. Thanks to @victorn1.

  • Fixed a bug that would occur when a variable had only one value. Thanks to @victorn1.

  • Made it so the names of 0/1 and logical variables are not printed with "_1" appended to them. Thanks to @victorn1 for the suggestion.

  • Major updates to the organization of the code and help files. Certain functions have simplified syntax, relying more on ..., and help pages have been shorted and consolidated for some methods. In particular, the code and help documents for the Matching, optmatch, ebal, and designmatch methods of bal.tab() have been consolidated since they all rely on exactly the same syntax.

Version 3.4.1

  • Fixed a bug that would occur when imabalanced.only = TRUE in bal.tab() but all variables were balanced.

  • Fixed a bug where the mean of a binary variable would be displayed as 1 minus its mean.

  • Fixed a bug that would occur when missingness patterns were the same for multiple variables.

  • Fixed a bug that would occur when a distance measure was to be assessed with bal.tab() and there were missing values in the covariates (thanks to Laura Helmkamp).

  • Fixed a bug that would occur when estimand was supplied by the user when using the default method of bal.tab().

  • Fixed a bug where non-standard variable names (like "I(age^2)") would cause an error.

  • Fixed a bug where treatment levels that had different numbers of characters would yield an error.

  • Added disp.means option to bal.tab with continuous treatments.

Version 3.4.0

  • Added default method for bal.tab so it can be used with specially formatted output from other packages (e.g., from optweight). bal.plot should work with these outputs too. This, of course, will never be completely bug-free because infinite inputs are possible and cannot all be processed perfectly. Don't try to break this function :)

  • Fixed some bugs occuring when standardized mean differences are not finite, thanks to Noémie Kiefer.

  • Speed improvements in bal.plot, especially with multiple facets, and in bal.tab.

  • Added new options to bal.plot, including the ability to display histograms rather than densities and mirrored rather than overlapping plots. This makes it possible to make the popular mirrored histogram plot for propensity scores. In addition, it's now easier to change the colors of the components of the plots.

  • Made behavior around binary variables with interactions more like documentation, where interactions with both levels of the variable are present (thanks to @victorn1). Also, replaced _ with * as the delimiter between variable names in interactions. For the old behavior, use int_sep = "_" in bal.tab.

  • Expanded the flexibility of var.names in love.plot so that replacing the name of a variable will replace it everywhere it appears, including interactions. Thanks to @victorn1 for the suggestion.

  • Added var.names function to extract and save variable names from bal.tab objects. This makes it a lot easier to create replacement names for use in love.plot. Thanks to @victorn1 for the suggestion.

  • When weighted correlations are computed for continuous treatments, the denominator of the correlation now uses the unweighted standard deviations. See ?bal.tab for the rationale.

Version 3.3.0

  • Added methods for objects from the designmatch package.

  • Added methods for ps.cont objects from the WeightIt package.

  • Fixed bugs resulting form changes to how formula inputs are handled.

  • Cleaned up some internal functions, also fixing some related bugs

  • Added subset option in all bal.tab() methods (and consequently in bal.plot()) that allows users to specify a subset of the data to assess balance on (i.e., instead of the whole data set). This provides a workaround for methods were the cluster option isn't allowed (e.g., longitudinal treatments) but balance is desired on subsets of the data. However, in most cases, cluster with which.cluster specified makes more sense.

  • Updated help files, in particular, more clearly documenting methods for iptw objects from twang and CBMSM objects from CBPS.

  • Added pretty printing with crayon, inspired by Jacob Long's jtools package

  • Added abs option to bal.tab to display absolute values of statistics, which can be especially helpful for aggregated output. This also affects how love.plot() handles aggregated balance statistics.

Version 3.2.3

  • Added support for data with missing covariates. bal.tab() will produce balanace statistics for the non-missing values and will automatically create a new variable indicating whether the variable is missing or not and produce balance statistics on this variable as well.

  • Fixed a bug when displaying maximum imbalances with subclassification.

  • Fixed a bug where the unadjusted statistics were not displayed when using love.plot() with subclasses. (Thanks to Megha Joshi.)

  • Add the ability to display individual subclass balance using love.plot() with subclasses.

  • Under-the-hood changes to how weightit objects are handled.

  • Objects in the environment are now handled better by bal.tab() with the formula interface. The data argument is now optional if all variables in the formula exist in the environment.

Version 3.2.2

  • Fixed a bug when using get.w() (and bal.tab()) with mnps objects from twang with only one stop method.

  • Fixed a bug when using bal.tab() with twang objects that contained missing covariate values.

  • Fixed a bug when using int = TRUE in bal.tab() with few covariates.

  • Fixed a bug when variable names had special characters.

  • Added ablity to check higher order polynomials by setting int to a number.

  • Changed behavior of bal.tab() with multinomial treatments and s.d.denom = "pooled" to use the pooled standard deviation from the entire sample, not just the paired treatments.

  • Restored some vignettes that required WeightIt.

Version 3.2.1

  • Edits to vignettes and help files to respond to missing packages. Some vignette items may not display if packages are (temporarily) unavailable.

  • Fixed issue with sampling weights in CBPS objects. (Thanks to @kkranker on Github.)

  • Added more support for sampling weights in get.w() and help files.

Version 3.2.0

  • Added support for longitudinal treatments in bal.tab(), bal.plot(), and love.plot(), including output from iptw() in twang, CBMSM() from CBPS, and weightitMSM() from WeightIt.

  • Added a vignette to explain use with longitudinal treatments.

  • Edits to help files.

  • Added ability to change density options in bal.plot().

  • Added support for imp in bal.tab() for weightit objects.

  • Fixed bugs when limited variables were present. (One found and fixed by @sumtxt on Github.)

  • Fixed bug with multiple methods when weights were entered as a list.

Version 3.1.0

  • Added full support for tibbles.

  • Examples for weightit methods in documentation and vignette now work.

  • Improved speed and performance.

  • Added pairwise option for bal.tab() with multinomial treatments.

  • Increased flexibility for displaying balance using love.plot() with clustered or multiply imputed data.

  • Added imbalanced.only and disp.bal.tab options to bal.tab().

  • Fixes to the vignettes. Also, creation of a new vignette to simplify the main one.

Version 3.0.0

  • Added support for multinomial treatments in bal.tab(), including output from CBPS and twang.

  • Added support for weightit objects from WeightIt, including for multinomial treatments.

  • Added support for ebalance.trim objects from ebal.

  • Fixes to the vignette.

  • Fixes to splitfactor() to handle tibbles better.

  • Fixed bug when using bal.tab() with multiply imputed data without adjustment. Fixed bug when using s.weights with the formula method of bal.tab().

Version 2.2.0

  • Added disp.ks and ks.threshold options to bal.tab() to display Kolmogorov-Smirnov statistics before and after preprocessing.

  • Added support for sampling weights, which are applied to both control and treated units, using option s.weights in bal.tab(). Sampling weights are also now compatible with the sampling weights in ps objects from twang; the default is to apply the sampling weights before and after adjustment, mimicking the behavior of bal.table() in twang.

  • Changed behavior of bal.tab() for ps objects to allow displaying balance for more than one stop method at a time, and to default to displaying balance for all available stop methods. The full.stop.method argument in bal.tab() has been renamed stop.method, but full.stop.method still works. get.w() for ps objects has also gone through some changes to be more like twang's get.weights().

  • Added support in bal.tab() and bal.plot() for subclassification with continuous treatments.

  • Added support in splitfactor() and unsplitfactor() for NA values

  • Fixed a bug in love.plot() caused when var.order was specified to be a sample that was not present.

Version 2.1.0

  • Added support in bal.tab(), bal.plot(), and love.plot() for examining balance on multiple weight specifications at a time

  • Added new utilities splitfactor(), unsplitfactor(), and get.w()

  • Added option in bal.plot() to display points sized by weights when treatment and covariate are continuous

  • Added which = "both" option in bal.plot() to simultaneously display plots for both adjusted and unadjusted samples; changed argument syntax to accommodate

  • Allowed bal.plot() to display balance for mutliple clusters and imputations simultaneously

  • Allowed bal.plot() to display balance for mutliple subclasses simultaneously with which.sub

  • Fixes to love.plot() to ensure adjusted points are in front of unadjusted points; changed colors and shape defaults and allowable values

  • Fixed bug where s.d.denom and estimand were not functioning correctly in bal.tab()

  • distance, addl, and weights can now be specified as lists of the usual arguments

Version 2.0.0

  • Added support for matching using the optmatch package or by specifying matching strata.

  • Added full support (bal.tab(), love.plot(), and bal.plot()) for multiply imputed data, including for clustered data sets.

  • Added support for multiple distance measures, including special treatment in love.plot()

  • Adjusted specifications in love.plot() for color and shape of points, and added option to generate a line connecting the points.

  • Adjusted love.plot() display to perform better on Windows.

  • Added capabilties for love.plot() and bal.plot() to display plots for multiple groups at a time

  • Added flexibility to f.build().

  • Updated bal.plot(), giving the capability to view multiple plots for subclassified or clustered data. Multinomial treatments are also supported.

  • Created a new vignette for clustered and multiply imputed data

  • Speed improvements

  • Fixed a bug causing mislabelling of categorical variables

  • Changed calculation of weighted variance to be in line with recommendations; CBPS can now be used with standardized weights

Version 1.3.1

  • Added support for entropy balancing through the ebal package.

  • Changed default color scheme of love.plot() to be black and white and added options for color, shape, and size of points.

  • Added sample size calculations for continuous treatments.

  • Edits to the vignette.

Version 1.3.0

  • Increased capabilities for cluster balance in bal.tab() and love.plot()

  • Increased information and decreased redundancy when assessing balance on interactions

  • Added quick option for bal.tab() to increase speed

  • Added options for print()

  • Bug fixes

  • Speed improvements

  • Edits to the vignette

Version 1.2.0

  • Added support for continuous treatment variables in bal.tab(), bal.plot(), and love.plot()

  • Added balance assessment within and across clusters

  • Other small performance changes to minimize errors and be more intuitive

  • Major revisions and adjustments to the vignette

Version 1.1.0

  • Added a vignette.

  • Fixed error in bal.tab.Match that caused wrong values and and warning messages when used.

  • Added new capabilities to bal.plot, including the ability to view unadjusted sample distributions, categorical variables as such, and the distance measure. Also updated documentation to reflect these changes and make which.sub more focal.

  • Allowed subclasses to be different from simply 1:S by treating them like factors once input is numerical

  • Changed column names in Balance table output to fit more compactly, and updated documentation to reflect these changes.

  • Other small performance changes to minimize errors and be more intuitive.

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.
install.packages("cobalt")

4.3.1 by Noah Greifer, 7 months ago

https://ngreifer.github.io/cobalt/, https://github.com/ngreifer/cobalt

Report a bug at https://github.com/ngreifer/cobalt/issues

Browse source code at https://github.com/cran/cobalt

Authors: Noah Greifer [aut, cre]

Documentation:   PDF Manual

Task views:

GPL (>= 2) license

Imports ggplot2, grid, gtable, gridExtra, rlang, crayon, backports

Suggests MatchIt, WeightIt, twang, Matching, optmatch, ebal, CBPS, designmatch, optweight, mice, MatchThem, cem, mlogit, knitr, rmarkdown

Imported by WeightIt, missDiag, mvGPS.

Suggested by MatchIt, MatchThem, causalCmprsk, optweight.

See at CRAN

R links

R homepage

Download R

Mailing lists

R documentation

R manuals

R FAQs

The R Journal

CRAN links

CRAN homepage

CRAN repository policy

Submit a package

METACRAN stuff

About METACRAN

At github

Report a bug
