A Colour Picker Tool for Shiny and for Selecting Colours in Plots

A colour picker that can be used as an input in Shiny apps or 'Rmarkdown' documents. A Plot Colour Helper tool is available as an 'RStudio' addin, which helps you pick colours to use in your plots. A more generic Colour Picker 'RStudio' addin is also provided to let you select colours for use in your R code.


colourpicker - A Colour Picker Tool for Shiny and for Selecting Colours in Plots

> the MIT license.*

colourpicker gives you a colour picker widget that can be used in different contexts in R.

The most common uses of colourpicker are to use the colourInput() function to create a colour input, or to use the plotHelper() function/RStudio Addin to easily select colours to use in a plot.

Table of contents

As mentioned above, the most useful functions are colourInput() and plotHelper().

  • Click here to view a live interactive demo the colour input.
  • The GIF below shows what the Plot Colour Helper looks like.

colourpicker is available through both CRAN and GitHub:

To install the stable CRAN version:

install.packages("colourpicker")

To install the latest development version from GitHub:

install.packages("devtools")
devtools::install_github("daattali/colourpicker")

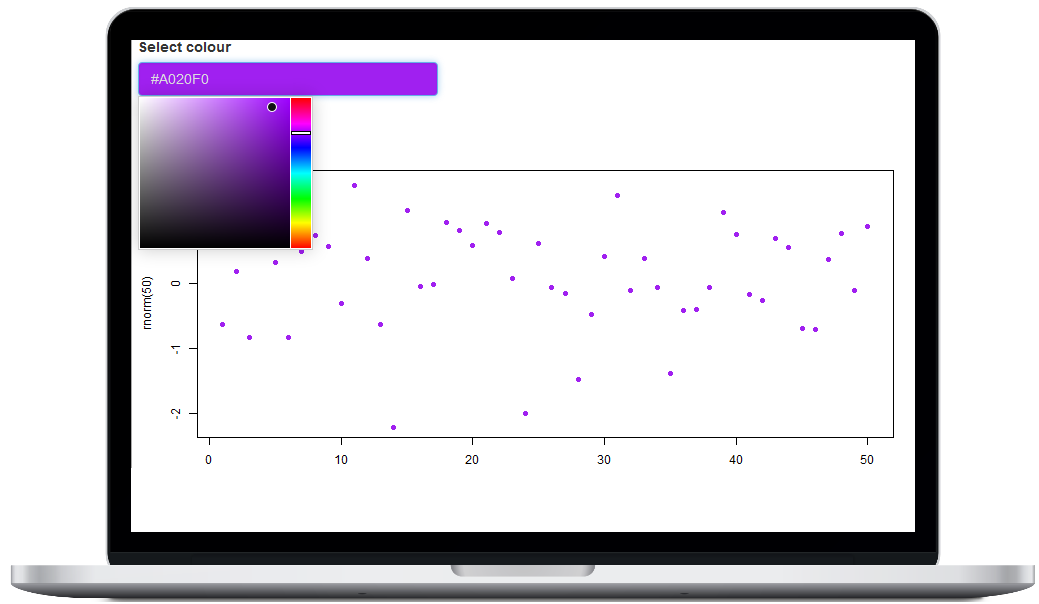

You can use colourInput() to include a colour picker input in Shiny apps (or in R markdown documents). It works just like any other native Shiny input, here is an example:

library(shiny)
shinyApp(
    ui = fluidPage(
        colourInput("col", "Select colour", "purple"),
        plotOutput("plot")
    ),
    server = function(input, output) {
        output$plot <- renderPlot({
            set.seed(1)
            plot(rnorm(50), bg = input$col, col = input$col, pch = 21)
        })
    }
)

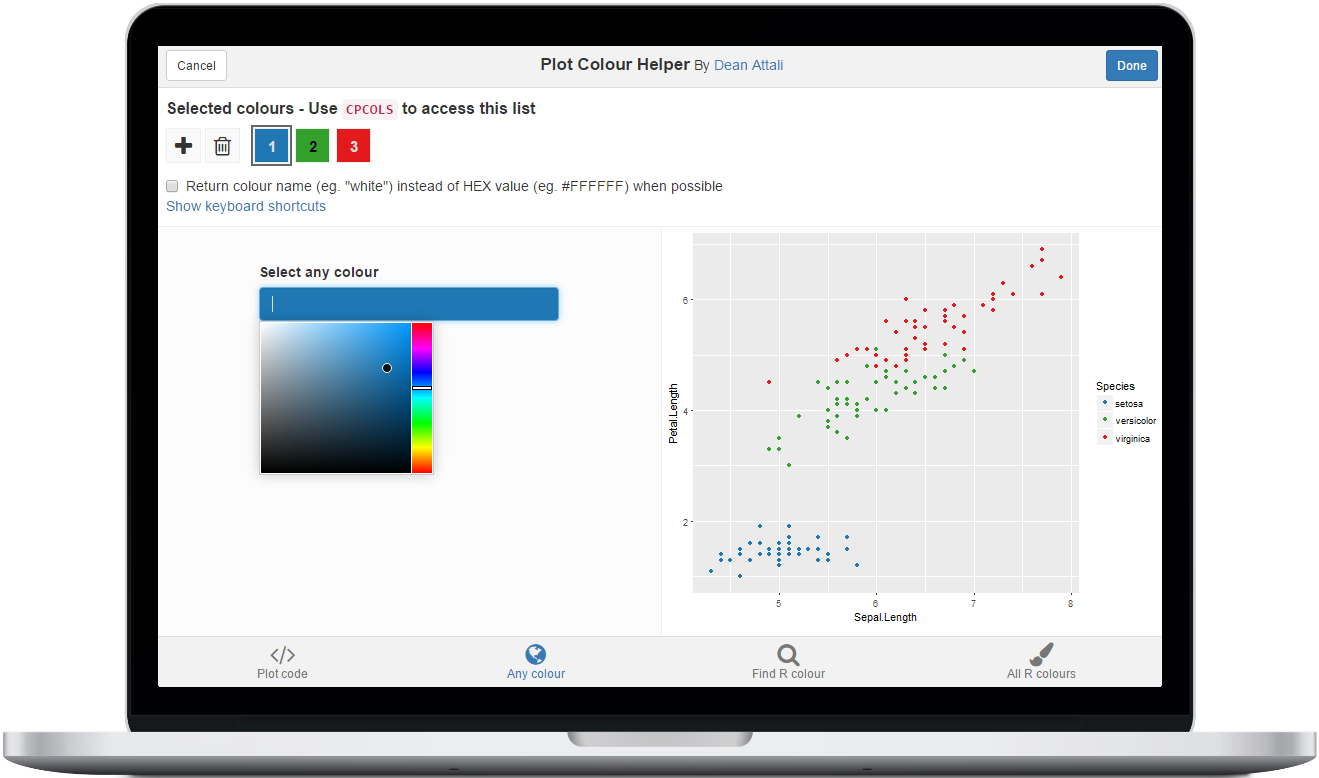

If you've ever had to spend a long time perfecting the colour scheme of a plot, you'd find the Plot Colour Helper handy. It's an RStudio addin that lets you interactively choose colours for your plot while updating your plot in real-time so you can see the colour changes immediately.

To use this tool, either highlight code for a plot and select the addin through the RStudio Addins menu, or call the plotHelper() function. The colours selected will be available as a variable named CPCOLS.

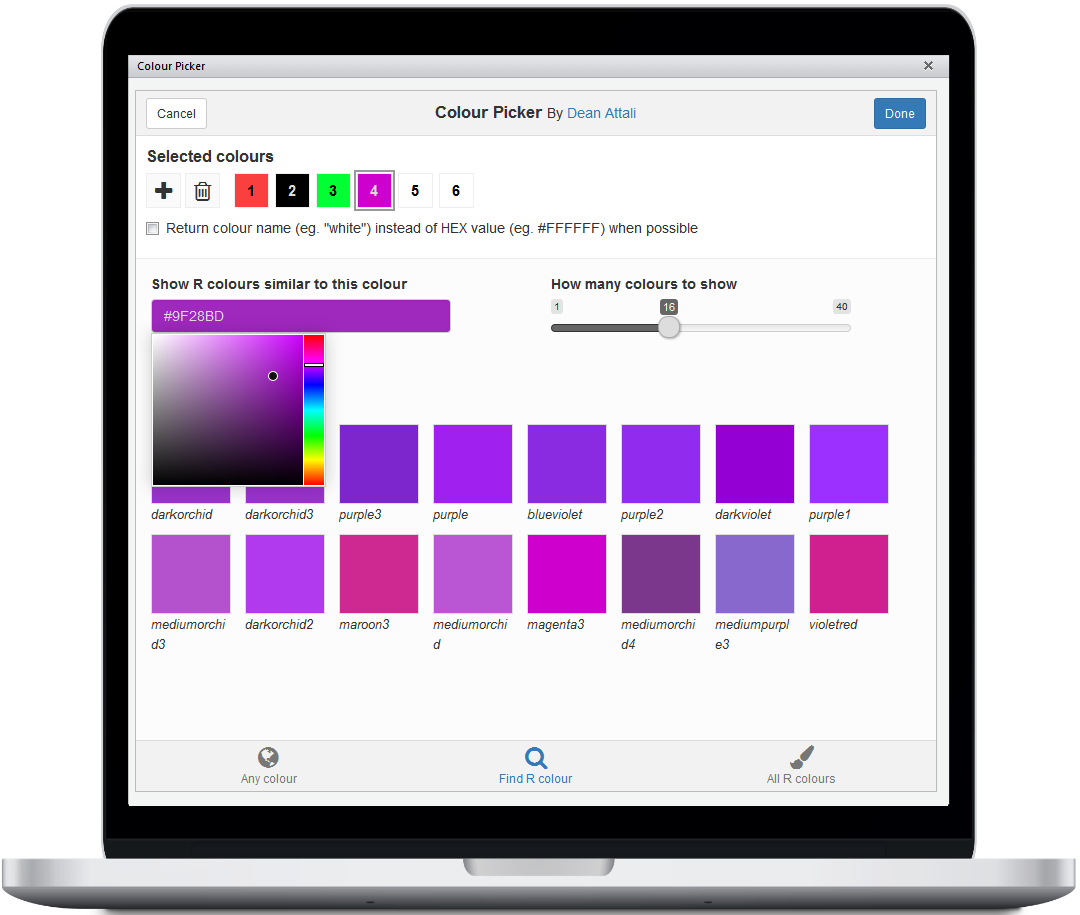

colourpicker also provides a more generic RStudio addin that can be used to select colours and save them as a variable in R. You can either access this tool using the Addins menu or with colourPicker(). You can also watch a short GIF of it an action.

The colour picker input is also available as an 'htmlwidgets' widget using the colourWidget() function. This may not be terribly useful right now since you can use the more powerful colourInput in Shiny apps and Rmarkdown documents, but it may come in handy if you need a widget.

Using colourInput is extremely trivial if you've used Shiny, and it's as easy to use as any other input control. It was implemented to very closely mimic all other Shiny inputs so that using it will feel very familiar. You can add a simple colour input to your Shiny app with colourInput("col", "Select colour", value = "red"). The return value from a colourInput is an uppercase HEX colour, so in the previous example the value of input$col would be #FF0000 (#FF0000 is the HEX value of the colour red). The default value at initialization is white (#FFFFFF).

Since most functions in R that accept colours can also accept the value "transparent", colourInput has an option to allow selecting the "transparent" colour. By default, only real colours can be selected, so you need to use the allowTransparent = TRUE parameter. When this feature is turned on, a checkbox appears inside the input box.

If the user checks the checkbox for "transparent", then the colour input is grayed out and the returned value of the input is transparent. This is the only case when the value returned from a colourInput is not a HEX value. When the checkbox is unchecked, the value of the input will be the last selected colour prior to selecting "transparent".

By default, the text of the checkbox reads "Transparent", but you can change that with the transparentText parameter. For example, it might be more clear to a user to use the word "None" instead of "Transparent". Note that even if you change the checkbox text, the return value will still be transparent since that's the actual colour name in R.

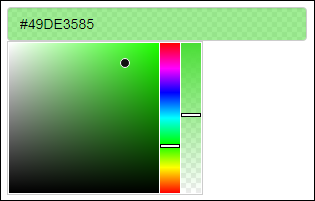

This is what a colour input with transparency enabled looks like

By default, the colour input's background will match the selected colour and the text inside the input field will be the colour's HEX value. If that's too much for you, you can customize the input with the showColour parameter to either only show the text or only show the background colour.

Here is what a colour input with each of the possible values for showColour looks like

As with all other Shiny inputs, colourInput can be updated with the updateColourInput function. Any parameter that can be used in colourInput can be used in updateColourInput. This means that you can start with a basic colour input such as colourInput("col", "Select colour") and completely redesign it with

updateColourInput(session, "col", label = "COLOUR:", value = "orange",
  showColour = "background", allowTransparent = TRUE, transparentText = "None")

This feature is available in shinyjs v0.0.8.0, which is currently only on GitHub and not on CRAN.

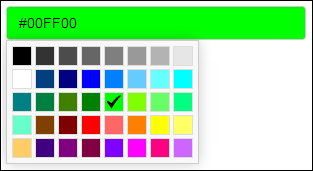

If you want to only allow the user to select a colour from a specific list of colours, rather than any possible HEX colour, you can use the palette = "limited" parameter. By default, the limited palette will contain 40 common colours, but you can supply your own list of colours using the allowedCols parameter. Here is an image of the default limited colour palette.

Specifying a colour to the colour input is made very flexible to allow for easier use. When giving a colour as the value parameter of either colourInput or updateColourInput, there are a few ways to specify a colour:

  • Using a name of an R colour, such as red, gold, blue3, or any other name that R supports (for a full list of R colours, type colours())
  • If transparency is allowed in the colourInput, the value transparent (lowercase) can be used. This will update the UI to check the checkbox.
  • Using a 6-character HEX value, either with or without the leading #. For example, initializing a colourInput with any of the following values will all result in the colour red: ff0000, FF0000, #ff0000.
  • Using a 3-character HEX value, either with or without the leading #. These values will be converted to full HEX values by automatically doubling every character. For example, all the following values would result in the same colour: 1ac, #1Ac, 11aacc.

If you're worried that maybe someone viewing your Shiny app on a phone won't be able to use this input properly - don't you worry. I haven't quite checked every single device out there, but I did spend extra time making sure the colour selection JavaScript works in most devices I could think of. colourInput will work fine in Shiny apps that are viewed on Android cell phones, iPhones, iPads, and even Internet Explorer 8+.

The Plot Colour Helper is available as both a gadget and an RStudio addin. This means that it can be invoked in one of two ways:

  • Highlight code for a plot and select the addin through the Addins menu, or
  • Call the plotHelper(code) function with plot code as the first parameter.

There is a small difference between the two: invoking the addin via plotHelper() will merely return the final colour list as a vector, while using the Addins menu will result in the entire plot code and colour list getting inserted into the document.

The Plot Colour Helper lets you run code for a plot, and select a list of colours. But how does the list of colours get linked to the plot? The colour list is available as a variable called CPCOLS. This means that in order to refer to the colour list, you need to use that variable in your plot code. You can even refer to it more than once if you want to select colours for multiple purposes in the plot:

plotHelper(ggplot(iris, aes(Sepal.Length, Petal.Length)) +
    geom_point(aes(col = Species)) +
    scale_colour_manual(values = CPCOLS[1:3]) +
    theme(panel.background = element_rect(CPCOLS[4])),
    colours = 4)

To more easily access the tool, you can call plotHelper() with no parameters or select the addin without highlighting any code. In that case, the default code in the tool will be initialized as

ggplot(iris, aes(Sepal.Length, Petal.Length)) +
      geom_point(aes(col = Species)) +
      scale_colour_manual(values = CPCOLS)

You can always change the plot code from within the tool.

You can set the initial colour list by providing a vector of colours as the colours parameter to plotHelper() (eg. plotHelper(colours = c("red", "#123ABC"))).

Alternatively, if you don't want to initialize to any particular set of colours, but you want to initialize with a specific number of colours in the list, you can provide an integer as the colours parameter (eg. plotHelper(colours = 2)).

If the colour values are not provided, then a default palette of colours will be used for the initial colours. This palette has 12 colours, and if there are more than 12 colours to support then they will get recycled.

If you don't provide the colours parameter, or if you invoke the tool as an addin, it will attempt to guess how many colours are needed. For example, using the following plot code

ggplot(mtcars, aes(wt, mpg)) +
    geom_point(aes(col = as.factor(am))) +
    scale_colour_manual(values = CPCOLS)

will initialize the tool with 2 colours (because there are 2 am levels), while the following code

ggplot(mtcars, aes(wt, mpg)) +
    geom_point(aes(col = as.factor(cyl))) +
    scale_colour_manual(values = CPCOLS)

will use 3 colours.

There are several keyboard shortcuts available, to make the selection process even simpler. Spacebar to add another colour, Delete to remove the currently selected colour, Left/Right to navigate the colours, and more. You can view the full list of shortcuts by clicking on Show keyboard shortcuts.

When the tool is run as an addin, the final colour list and the code get inserted into the currently selected RStudio document (either the Source panel or the Console panel).

If the tool is called with plotHelper(), then the return value is simply the vector of selected colours. You can assign it into a variable directly - running cols <- plotHelper() will assign the selected colours into cols.

Since the plot code requires you to use the variable name CPCOLS, after closing the plot helper tool, a variable named CPCOLS will be available in the global environment.

The colours returned can either be in HEX format (eg. "#0000FF") or be named (eg. "blue") - you can choose this option inside the tool.

News

colourpicker 0.3

2016-12-05

  • Added an awesome plotHelper() gadget+addin that makes it easy to pick colours in a plot and see in real time the updated plot as you choose new colours (#1)
  • Added keyboard shortcuts for colourPicker() (left/right arrows to navigate the colours, 1-9 to select a colour, spacebar to add a colour...)
  • don't error out if a HEX value containing alpha transparency is passed to a colourInput() (#4 - thanks @ddiez)

colourpicker 0.2.1

2016-10-31

  • Slight changes to colour picker gadget UI

colourpicker 0.2

2016-09-06

  • Fix vignette source to have an output (CRAN reminded me to do this)

colourpicker 0.1.1

2016-08-15

  • upgrade to newer version of JS library that fixed bugs with new jquery
  • add runExample() function to run the example shiny app

colourpicker 0.1

2016-08-11

  • initial version (mostly copied over from shinyjs package)
