Identify Relevant Clinical Codes and Evaluate Their Use

Generate a candidate code list for the Observational Medical Outcomes Partnership (OMOP) common data model based on string matching. For a given search strategy, a candidate code list will be returned.

CodelistGenerator

Installation

You can install CodelistGenerator from CRAN

install.packages("CodelistGenerator")

Or you can also install the development version of CodelistGenerator

install.packages("remotes")
remotes::install_github("darwin-eu/CodelistGenerator")

Example usage

library(dplyr)
library(CDMConnector)
library(CodelistGenerator)

For this example we’ll use the Eunomia dataset (which only contains a subset of the OMOP CDM vocabularies)

requireEunomia()
db <- DBI::dbConnect(duckdb::duckdb(), dbdir = eunomiaDir())
cdm <- cdmFromCon(db,
                  cdmSchema = "main",
                  writeSchema = "main",
                  writePrefix = "cg_")

Exploring the OMOP CDM Vocabulary tables

OMOP CDM vocabularies are frequently updated, and we can identify the version of the vocabulary of our Eunomia data

vocabularyVersion(cdm = cdm)
#> [1] "v5.0 18-JAN-19"

Vocabulary based codelists using CodelistGenerator

CodelistGenerator provides functions to extract code lists based on vocabulary hierarchies. One example is `getDrugIngredientCodes, which we can use, for example, to get the concept IDs used to represent aspirin and diclofenac.

ing <- getDrugIngredientCodes(cdm = cdm,
                       name = c("aspirin", "diclofenac"),
                       nameStyle = "{concept_name}")
ing
#>
#> - aspirin (2 codes)
#> - diclofenac (1 codes)
ing$aspirin
#> [1]  1112807 19059056
ing$diclofenac
#> [1] 1124300

Systematic search using CodelistGenerator

CodelistGenerator can also support systematic searches of the vocabulary tables to support codelist development. A little like the process for a systematic review, the idea is that for a specified search strategy, CodelistGenerator will identify a set of concepts that may be relevant, with these then being screened to remove any irrelevant codes by clinical experts.

We can do a simple search for asthma

asthma_codes1 <- getCandidateCodes(
  cdm = cdm,
  keywords = "asthma",
  domains = "Condition"
)
asthma_codes1 |>
  glimpse()
#> Rows: 2
#> Columns: 6
#> $ concept_id       <int> 317009, 4051466
#> $ found_from       <chr> "From initial search", "From initial search"
#> $ concept_name     <chr> "Asthma", "Childhood asthma"
#> $ domain_id        <chr> "Condition", "Condition"
#> $ vocabulary_id    <chr> "SNOMED", "SNOMED"
#> $ standard_concept <chr> "S", "S"

But perhaps we want to exclude certain concepts as part of the search strategy, in this case we can add these like so

asthma_codes2 <- getCandidateCodes(
  cdm = cdm,
  keywords = "asthma",
  exclude = "childhood",
  domains = "Condition"
)
asthma_codes2 |>
  glimpse()
#> Rows: 1
#> Columns: 6
#> $ concept_id       <int> 317009
#> $ found_from       <chr> "From initial search"
#> $ concept_name     <chr> "Asthma"
#> $ domain_id        <chr> "Condition"
#> $ vocabulary_id    <chr> "SNOMED"
#> $ standard_concept <chr> "S"

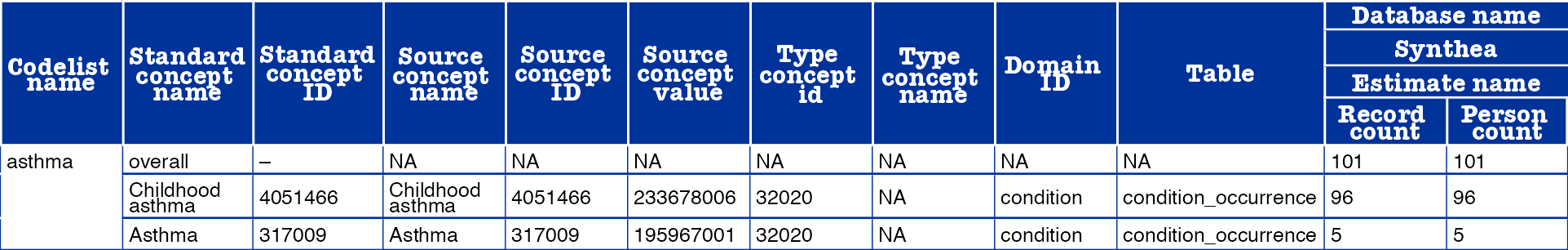

Summarising code use

As well as functions for finding codes, we also have functions to summarise their use. Here for

library(flextable)
asthma_code_use <- summariseCodeUse(list("asthma" = asthma_codes1$concept_id) |>
                                           newCodelist(),
  cdm = cdm
)
tableCodeUse(asthma_code_use, type = "flextable", style = "darwin")
