Fast Histogram Gradient Boosting for Regression, Classification, and Survival Analysis

A fast gradient boosting machine covering four task types with one interface: regression (squared error), binary and multiclass classification (logistic and one-vs-rest), and right-censored survival analysis via Cox (Breslow ties), accelerated failure time (normal location-scale), or piecewise-exponential objectives. Provides native missing-value routing, baseline-hazard estimation and survival-probability prediction for the survival objectives, and deterministic multi-threaded training via 'RcppParallel'. Methods are described in Friedman (2001) .

fastgbm

fastgbm is a fast gradient boosting engine for R, with a compiled (Rcpp + RcppParallel) backend, covering four task types with one interface: regression (squared error), binary and multiclass classification (logistic and one-vs-rest), and right-censored survival analysis (Cox, AFT, or piecewise-exponential objectives). Survival is where the package differentiates itself from general-purpose GBM packages: xgboost has a Cox objective but no baseline-hazard/survival-curve prediction built in, and general-purpose GBM packages don't route missingness natively for survival-specific workflows. fastgbm gives you a single function call that handles training, native missing-value routing, and (for survival objectives) baseline hazard estimation and survival-probability prediction at chosen horizons.

Current scope

• Four task types, one function (fastgbm()):
  • objective = "regression" - squared error;
  • objective = "binary" - logistic classification (0/1 response or two-level factor);
  • objective = "multiclass" - one-vs-rest binary classification (a fastgbm sub-model per class, sharing the same hyperparameters); predict(type = "prob") renormalizes the K binary probabilities to sum to 1, predict(type = "class") is their argmax;
  • objective = "cox" / "aft" / "pexp" - right-censored survival analysis. Cox uses Breslow ties, AFT a normal location-scale error, and pexp (piecewise-exponential) models the hazard jointly over covariates and time via a person-time expansion (the standard Poisson trick), rather than assuming a fixed post-hoc baseline like Cox's Breslow estimator - see vignette("survival", package = "fastgbm").
  • objective can be omitted: it is inferred from y (a survival::Surv response or time/status defaults to "cox"; a 0/1 or two-level-factor y defaults to "binary"; a factor/character y with 3+ levels defaults to "multiclass"; anything else numeric defaults to "regression").
• matrix and formula (y ~ . / Surv(time, status) ~ .) interfaces;
• histogram-based tree growth with native missing-value routing;
• validation-based early stopping (validation = list(x=, y=) for regression/binary, or list(x=, time=, status=) for survival, early_stopping = <patience>) - stops when the held-out loss stops improving and keeps the best-iteration model; see Scientific validity below for why this matters;
• deterministic multi-threaded training (threads = 0L for automatic; identical fitted values regardless of thread count, including with early stopping active);
• baseline hazard estimation and survival-probability prediction at chosen horizons (survival objectives only);
• feature importance, partial dependence (pdp()), and serialization helpers, shared across all four task types.

Remaining work

New objectives (each needs a derived gradient/Hessian, a finite-difference validation pass, and a documented estimand before any code is written, per this project's own rule against undocumented new losses):

• A native K-tree softmax multiclass objective (a single compiled kernel producing all K class scores per round) as an alternative to the current one-vs-rest objective = "multiclass" wrapper.
• RMST-oriented loss - undesigned.
• Royston-Parmar-style flexible spline hazard-surface objective - undesigned; harder than pexp because the spline's hazard derivative w.r.t. log-time would need finite differences of the (non-differentiable) tree ensemble.
• AFT distributions beyond the normal (logistic, extreme value).

Engine / training

• Leaf-wise (grow_policy = "lossguide") tree growth - depth-wise only currently.
• Monotonic and interaction constraints.
• Parallel prediction - only the training split search is parallelized (RcppParallel); prediction is single-threaded.
• An $O(n \log n)$ concordance implementation - the internal C-index helper (fastgbm:::survival_cindex()) is still $O(n^2)$, fine at the sample sizes benchmarked so far but a real bottleneck for larger cohorts.

Explored, tested, but not adopted (results were dataset-dependent, not a universal win - see paper/fastgbm-benchmark.qmd Roadmap for the numbers):

• An mtry-scaled-to-sqrt(p)/p colsample default (helped on higher-p datasets, hurt on low-p ones).
• A bagged-ensemble-of-fastgbm-fits wrapper, bootstrap resampling + averaging, directly borrowing ranger's bagging mechanism (closed the C-index gap to ranger on some datasets, not others).

API-level

• pexp's predict(type = "link"/"response") uses the cumulative hazard at the model's fitted time horizon as a risk score, since there's no single scalar "linear predictor" the way Cox/AFT have one - correct, but coarser and slower to compute than the other two objectives.
• Cross-platform CI (GitHub Actions) now runs R CMD check --as-cran on every push; win-builder/R-hub checks are still pending before an actual CRAN submission, and the GitHub repository is currently private (which will 404 CRAN's URL check until it's made public).

Scientific validity

Every objective's gradient/Hessian has been checked against finite differences of its stated loss, the Cox baseline-hazard estimator has been checked against survival::basehaz(), missing-value and numerical-edge-case behavior is stress-tested, and training is checked to be bit-identical across thread counts (see tests/testthat/test-gradients.R, test-survival-validity.R, test-missing.R, test-safeguards.R, test-parallel.R). This audit found and fixed four real defects in the pre-rename implementation (a sign error in the AFT censored-observation gradient/Hessian, a Breslow baseline hazard whose risk set never shrank over time, a sign error in the AFT concordance score, and a crash in importance()) - see NEWS.md for details. R CMD check is clean (0 errors, 0 warnings).

Build

R CMD build .
R CMD INSTALL fastgbm_0.6.0.tar.gz

Example

library(fastgbm)

# regression
fit_reg <- fastgbm(as.matrix(mtcars[, c("cyl", "disp", "hp", "wt")]), y = mtcars$mpg)
predict(fit_reg, mtcars[1:5, c("cyl", "disp", "hp", "wt")])

# binary classification
fit_bin <- fastgbm(as.matrix(mtcars[, c("mpg", "disp", "hp", "wt")]), y = mtcars$am, objective = "binary")
predict(fit_bin, mtcars[1:5, c("mpg", "disp", "hp", "wt")], type = "response")  # probabilities

# multiclass classification (one-vs-rest)
fit_multi <- fastgbm(as.matrix(iris[, 1:4]), y = iris$Species)
predict(fit_multi, iris[1:5, 1:4], type = "prob")   # per-class probabilities
predict(fit_multi, iris[1:5, 1:4], type = "class")  # predicted class labels

# survival
library(survival)
lung_dat <- na.omit(lung[, c("time", "status", "age", "sex", "ph.ecog")])
fit_surv <- fastgbm(
  as.matrix(lung_dat[, c("age", "sex", "ph.ecog")]),
  time = lung_dat$time,
  status = lung_dat$status,
  objective = "cox"
)
predict(fit_surv, lung_dat[1:5, c("age", "sex", "ph.ecog")], type = "survival", times = c(90, 180, 365))

# formula interface works for all four:
fastgbm(mpg ~ cyl + disp + hp + wt, data = mtcars)
fastgbm(Surv(time, status) ~ age + sex + ph.ecog, data = lung_dat)

See vignette("getting-started", package = "fastgbm"), vignette("regression", package = "fastgbm"), vignette("classification", package = "fastgbm"), and vignette("survival", package = "fastgbm") for more.

Benchmark: fastgbm (all 3 objectives) vs. gbm, xgboost, ranger (6 biostatlab survival datasets)

A reproducible benchmark (inst/benchmarks/run-benchmark.R) compares all three fastgbm objectives (cox, aft, pexp) against gbm, xgboost, and ranger on 6 real survival datasets from the biostatlab package. gbm/xgboost/ranger use a fixed ntrees = 200; each fastgbm arm uses ntrees = 200 as a ceiling with validation-based early stopping active (15% of its training fold held out, patience 20 rounds) - error-analysis diagnostics (inst/benchmarks/error-analysis/) showed test C-index consistently peaked well before 200 rounds without it, and that colsample/subsample resampled at every tree node (like ranger's mtry, not xgboost-style per-tree sampling) further improves both speed and C-index. All arms share max_depth = 5, learning_rate = 0.1, min_node_size = 10, single-threaded, over 10 repeated 70/30 splits; fastgbm uses its subsample = 0.8/colsample = 0.8 defaults. Median training time and Harrell's C-index (fastgbm's best-performing objective per dataset shown, all three reported in the paper):

(bold = fastgbm beats both gbm and xgboost on median C-index)

(training seconds / Harrell's C-index, both medians across 10 repeated 70/30 splits)

Honest summary, not a universal-superiority claim: fastgbm's cox arm is now 5-9x faster to train than gbm/xgboost and 22-45x faster than ranger on every dataset, and beats both gbm and xgboost on median C-index on 4-5 of 6 datasets depending on objective. ranger's discrimination lead narrowed substantially (e.g. breast: gap went from 5.9 points of C-index to 2.0) and, on framingham, cox's median C-index now edges past ranger's (0.757 vs. 0.756) - though not consistently enough across repeated splits to count as a clear win in the paired comparison, and ranger remains ahead on the other five datasets. pexp is markedly slower than cox/aft (it evaluates the ensemble once per time interval, not once per row) and is currently the strongest objective on only one dataset (colon_cancer). See paper/fastgbm-benchmark.qmd (renders to fastgbm-benchmark.pdf) for the full write-up with repeated-split uncertainty, paired win/loss/tie counts, and the threads=1-vs-N parallelism results; inst/benchmarks/benchmark-results.csv / benchmark-summary.csv / parallel-speedup.csv for the raw and aggregated numbers; and inst/benchmarks/session-info.txt for reproducibility metadata.

The earlier single-dataset survival::lung benchmark is still available via tools/benchmark-survival.R / inst/benchmarks/survival-cox-lung.csv.

Benchmark: regression, on Friedman's #1 data-generating process

A second reproducible benchmark (inst/benchmarks/run-benchmark-regression.R) checks the "regression" objective on Friedman's #1 DGP (mlbench::mlbench.friedman1()), the standard synthetic nonlinear-regression benchmark used in the gradient boosting literature:

y = 10*sin(pi*x1*x2) + 20*(x3 - 0.5)^2 + 10*x4 + 5*x5 + eps

with x1-x10 iid Uniform(0, 1) and only x1-x5 entering the mean function (x6-x10 are pure noise). This DGP is useful precisely because the true functional form is known, so both predictive accuracy and whether the model recovers the right shape per feature can be checked, not just average error. Same regime as the survival benchmark: fastgbm vs. gbm/xgboost/ranger, equal ntrees = 200 (ceiling for fastgbm, which uses early stopping)/ max_depth = 5/learning_rate = 0.1/min_node_size = 10, single-threaded, 10 repeated 70/30 splits on n = 2000.

Computational time and accuracy (training seconds / test-set RMSE, both medians across repeats):

fastgbm trains ~1.6-2.3x faster than gbm/xgboost (win/loss/tie 10/0/0 vs. each, paired across repeats) and now beats ranger on median training time (win/loss/tie 7/3/0, fastgbm's own median: 0.087s vs. ranger's 0.102s), while clearly beating ranger on RMSE (10/0/0) and roughly matching xgboost (6/4/0); gbm edges out fastgbm on RMSE here (0/10/0). Consistent with the survival benchmark: fastgbm is not a universal-accuracy win, but it is never far off and is now the fastest of the four on this benchmark, not just competitive -- see "Split-search optimizations" and "Level-wise tree growth" below for what closed (and then reversed) the gap to ranger.

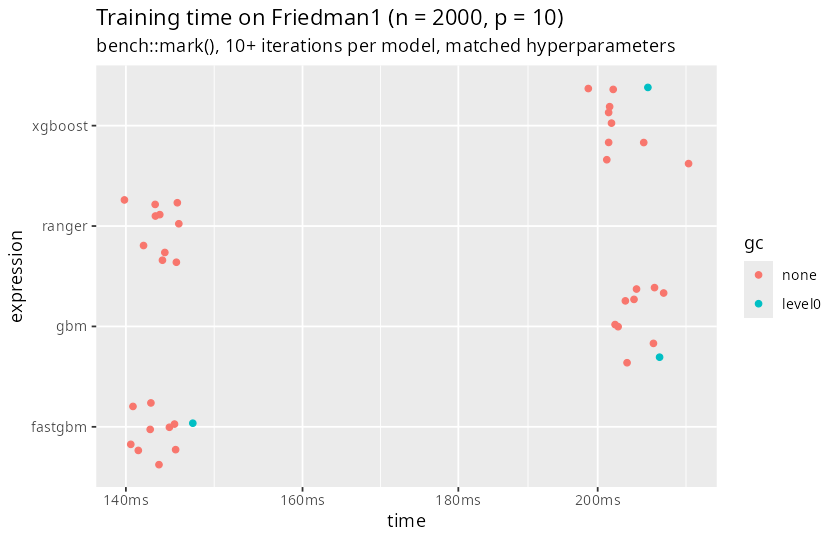

For a closer look at the distribution of training time, not just the median, inst/benchmarks/run-benchmark-exectime.R times all four models (explicitly checked to grow the same ntrees = 200 each, so the comparison is purely about training-algorithm speed) on one fixed 2,000-row Friedman1 draw with bench::mark() (benchr, originally used for this, was archived off CRAN in November 2025; bench is the actively maintained equivalent), which reruns each model until it has collected at least 10 timings:

fastgbm and ranger overlap almost entirely around 141-150ms, both clearly separated from gbm/xgboost's 199-234ms band. See inst/benchmarks/regression-exectime-bench.csv for the full bench::mark() summary (min/median/itr/sec/memory allocation).

Split-search optimizations

Three changes to src/fastgbm.cpp's split search closed, then reversed, the gap to ranger shown above (fastgbm went from training 1.3-1.8x faster than gbm/xgboost but noticeably behind ranger, to now beating all three; see NEWS.md for the exact before/after numbers at each step):

• The per-(node, feature) histogram accumulation used to make two full passes over the node's rows -- one just to find the highest occupied bin, a second to accumulate gradient/hessian sums into an array sized to that bin. Since each feature's bin range is already known globally from the initial binning pass, the array can be sized up front and both the accumulation and the tightest split-loop bound obtained from a single pass instead.
• RcppParallel::parallelFor() was still being dispatched for large-enough nodes even when threads = 1L was requested, paying real thread-pool scheduling overhead for work that only ever ran on one thread. A single explicit thread request now always takes the direct (serial) call path, regardless of node/feature size.
• Every node recomputed its total gradient/Hessian sum (G/H, needed both for the leaf value and the split-gain formula) with a fresh full pass over its rows -- but those exact sums were already produced as a byproduct of the parent's winning split (GL/HL/GR/HR in the histogram scan above). Passing them down instead of recomputing removes a second full pass per node, on top of the split search itself.

The first two changes are exactly behavior-preserving (bit-identical split decisions and benchmark output). The third is not -- it sums the same grad/Hessian values in a different order (histogram-bin order for a child's inherited G/H, vs. row order for a fresh sum), which is a legitimate floating-point reassociation, not a bug, but can occasionally tip a near-tied split threshold and lead to a different-but-equally-valid tree. This was verified directly, not just assumed: a dedicated test (tests/testthat/test-tree-building.R) independently recomputes each leaf's -G/(H+lambda) in R from the actual rows that reach it (with subsample/ colsample fixed at 1 so the true set of rows is unambiguous) and checks it against the compiled value to 1e-10 -- along with the full existing test suite (thread-count-determinism, finite-difference gradient/Hessian checks), all passing.

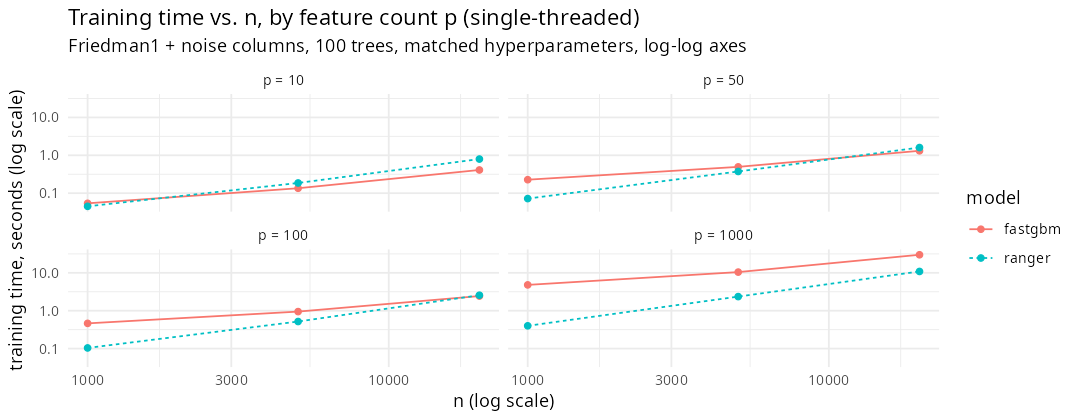

Scaling behavior vs. n, p, and threads

The single n = 2000/p = 10 snapshot above is not the whole story: ranger parallelizes across trees (embarrassingly parallel, since random-forest trees are independent), while fastgbm's boosting is sequential across trees and only parallelizes within a tree's split search -- so how the two compare depends on data shape and thread count, not just one point. inst/benchmarks/run-benchmark-scaling.R sweeps n in {1000, 5000, 20000} and p in {10, 50, 100, 1000} (Friedman1's 10 columns plus pure-noise columns to reach the target p), single-threaded, 100 trees, matched hyperparameters:

Two clear patterns: fastgbm's relative speed improves as n grows (fastgbm/ranger training-time ratio goes from 1.20x at n=1000, p=10 to 0.52x at n=20000, p=10 -- crossing over from slower to faster), but degrades as p grows (1.20x -> 3.15x -> 4.45x -> 12.04x at n=1000 as p goes 10 -> 50 -> 100 -> 1000). The p effect traces to a real, fixable cause, not an engine inefficiency: fastgbm's default colsample = 0.8 searches ~80% of features at every split regardless of p, while ranger's default mtry for regression is p/3 -- at p = 1000 that is 800 features searched per split vs. 333. Setting fastgbm's colsample to match (1/3 here) confirms it: at n = 5000, p = 100, training time drops from 0.98s (colsample = 0.8) to 0.50s (colsample = 1/3), turning a loss to ranger (0.57s) into a win. The trade-off is real too -- colsample = 0.8 was the package's own tuned default for a reason (see ?fastgbm: it gave a small but consistently non-negative C-index gain on the survival benchmark datasets), so this is a speed/accuracy dial, not a free lunch. Note that n growing does not always rescue fastgbm from a high-p disadvantage the way it does at p <= 100: at p = 1000, fastgbm is still ~2.8x slower than ranger even at the largest n tested (n = 20000), the one p in this grid where growing n alone was not enough to close the gap -- colsample tuning matters most exactly here.

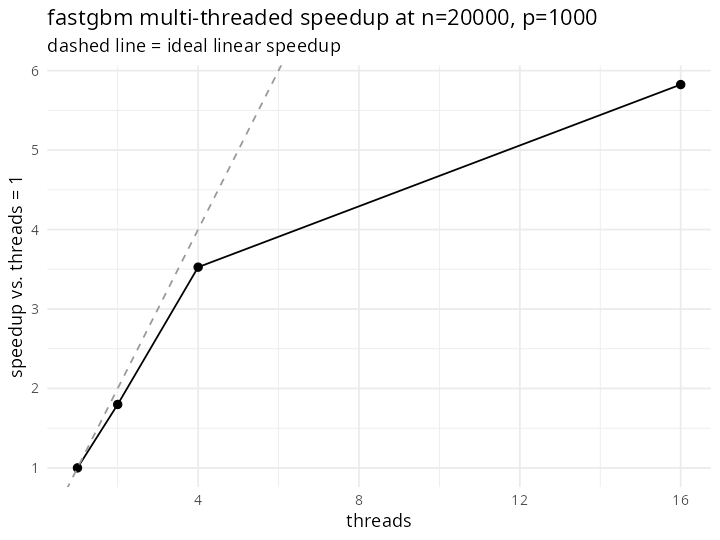

The thread sweep (inst/benchmarks/run-benchmark-scaling.R, at the largest grid point, n = 20000, p = 1000, on a 16-core machine) shows real but sub-linear speedup, as expected for within-tree (not across-tree) parallelism -- and better scaling than the smaller p = 100 grid point used in earlier versions of this section, since a wider colsample-sampled feature set gives the level-wise split search more to parallelize per level:

1.8x at 2 threads, 3.5x at 4 threads, 5.8x at 16 threads (with the level-wise tree-growth engine described further below; the same sweep at p = 100 reached only ~3.0x at 16 threads) -- real, and clearly improved at high p, but still nowhere near the dashed ideal-linear line, and not worth reaching for on small data (threads = 1L already skips parallelFor()'s dispatch overhead entirely; see "Split-search optimizations" above).

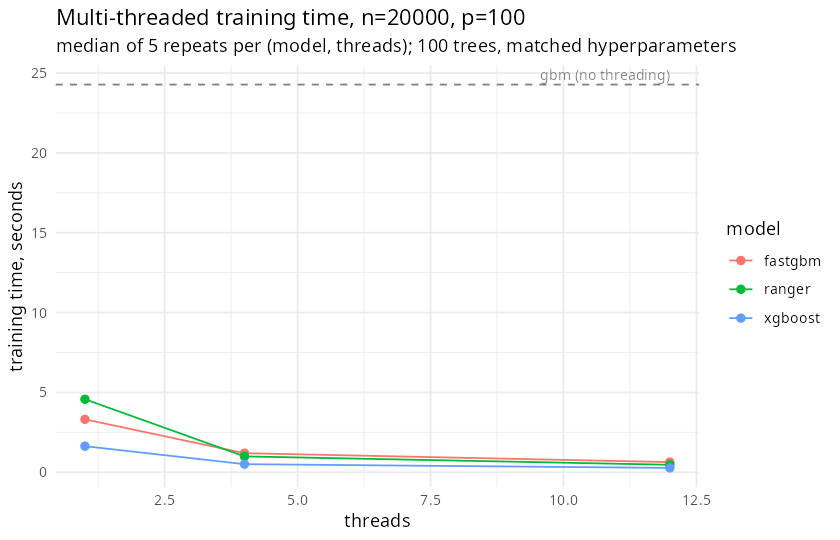

Multi-threaded head-to-head: the single-threaded win does not fully survive

Everything above (including "fastgbm now beats ranger" earlier in this section) was single-threaded. ranger and xgboost also support multi-threading, and each parallelizes completely differently from fastgbm: ranger splits independent trees across threads (embarrassingly parallel), xgboost's histogram build is parallelized more thoroughly across both rows and features, and fastgbm (see "Level-wise tree growth" below) parallelizes the combined split-search workload across every node active at one tree level at a time. inst/benchmarks/run-benchmark-multithreaded.R checks this directly at n = 20000, p = 100 (the largest grid point above), threads in {1, 4, 12}, median of 5 repeats (gbm has no thread-count control for a single fit and is shown only as a fixed single-threaded reference line):

At threads = 1, fastgbm (~3.3s) is faster than ranger (~4.6s), matching the single-threaded story above, though both are behind xgboost (~1.6s) at this large n x p (absolute times here run a bit higher across all models than the scaling-sweep numbers above -- machine load varies between runs; what is stable across repeated runs of this benchmark is the relative ordering and shape of the three speedup curves, which is what matters for the conclusion below). By threads = 12, fastgbm reaches ~5.2x speedup vs. ranger's ~9.7x and xgboost's ~6.0x -- so in absolute terms fastgbm (~0.64s) ends up the slowest of the three at this thread count, behind ranger (~0.47s) and xgboost (~0.27s). The takeaway is not "fastgbm is slow" -- it is that fastgbm's speed advantage is concentrated in the single-/few-threaded regime, because its parallelism has structurally less to work with per dispatch than an entire forest's independent trees or a histogram build parallelized across rows and features both. If your workflow already runs on a many-core machine and wall-clock time is the only thing that matters, ranger/xgboost at a high thread count may still win even where fastgbm wins single-threaded.

Level-wise tree growth

An earlier version of src/fastgbm.cpp parallelized the split search once per node (across that node's own sampled features). That works fine near the root, but a single node's row/feature count shrinks fast with depth, while the fixed cost of dispatching a parallelFor() call does not -- so by a few levels in, most nodes no longer had enough work to make parallel dispatch worthwhile, and multi-threading's benefit tailed off deep in the tree, right where a lot of the total node count actually lives.

build_tree() now grows a tree breadth-first, one full level at a time: every node active at the current depth has its split-search tasks (one per sampled feature) pooled into a single combined batch before any of them run, and that whole batch is what gets parallelized. This keeps the per-dispatch work large even deep in a tree, because each level roughly doubles its node count while roughly halving each node's row count -- the total combined work per level stays close to constant, unlike a single node's shrinking share of it. Verified two ways before trusting it: the existing leaf-value correctness test (independently recomputing -G/(H+lambda) from the actual rows reaching each leaf) and a new multi-threaded-vs-single-threaded identical-tree check both pass (tests/testthat/test-tree-building.R), confirming the new growth order is still exactly correct and still thread-count-deterministic, even though tree structure differs from the earlier depth-first version (it draws colsample subsets in a different, but equally valid, order).

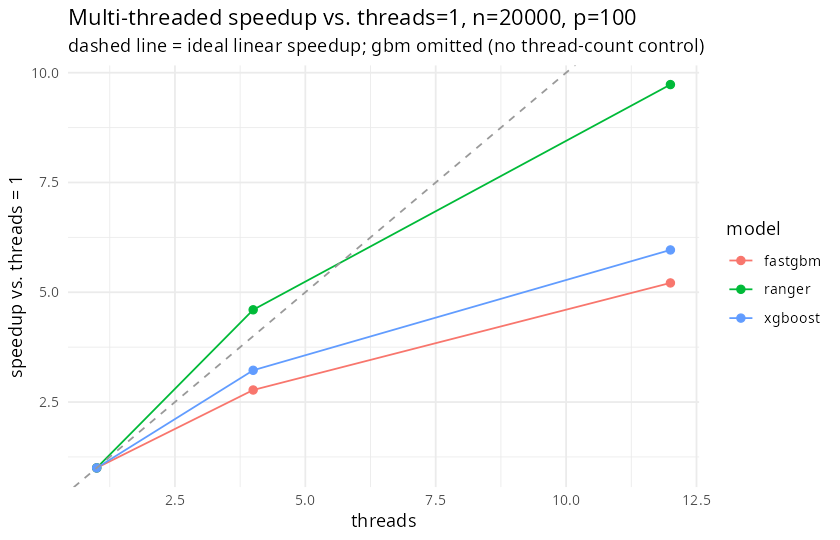

Net effect, same n = 20000, p = 100 setup as the head-to-head above: fastgbm's own speedup improved from ~1.9x/~3.3x (4/12 threads, prior per-node dispatch) to ~2.8x/~5.2x -- a real, measured gain, not just a plausible-sounding idea (a first attempt, increasing parallelFor()'s grain size to reduce per-task scheduling overhead, was tried and measured worse, and was reverted -- see NEWS.md). It narrows the gap to ranger/xgboost's steeper scaling curves without closing it; matching a fully independent per-tree or per-row-block parallelism model would need a larger, different change than tuning the existing within-level split search further.

Tuning tips for runtime, in rough order of expected impact:

1. High p: lower colsample. The single biggest lever found here. Try something in ranger's ballpark (~1/3, or sqrt(p)/p for very wide data) and check whether the accuracy cost is acceptable for your dataset -- it was small-to-neutral on every survival benchmark dataset tested so far, but that is not a guarantee for every dataset.
2. Have many idle cores and n/p large? Try ranger/xgboost at a high thread count too before assuming fastgbm wins. fastgbm's own threads (explicit, or 0L for automatic) still helps in absolute terms -- parallelism pays off once a tree level's combined task count crosses the internal parallelFor() threshold (>= 8 tasks) -- but its speedup curve is flatter than either competitor's even after the level-wise rewrite above (see the head-to-head), so it is not guaranteed to still be the fastest option once every candidate is allowed to use all available cores.
3. Small n: don't expect threading or colsample to matter much. At n = 1000, fixed per-tree overhead (R/C++ call marshaling, tree-object allocation) is a larger share of total time, so the sweep above shows fastgbm closest to (or behind) ranger exactly in this regime, regardless of these settings.
4. Row subsampling (subsample < 1) reduces the rows scanned in every split search roughly linearly -- an orthogonal lever to colsample, stackable with it, at a similar speed/accuracy trade-off (the package default is 0.8, already below 1).
5. Shallower/larger-leaf trees cut total node count, which is what all of the above scales with. max_depth and min_node_size trade tree count for training time roughly like colsample trades feature count for it, just via a different axis (fewer nodes visited vs. less searched per node).

See inst/benchmarks/scaling-benchmark-np.csv/scaling-benchmark-threads.csv for the full numbers behind the n/p/single-model-thread plots, and inst/benchmarks/multithread-benchmark.csv for the multi-threaded head-to-head.

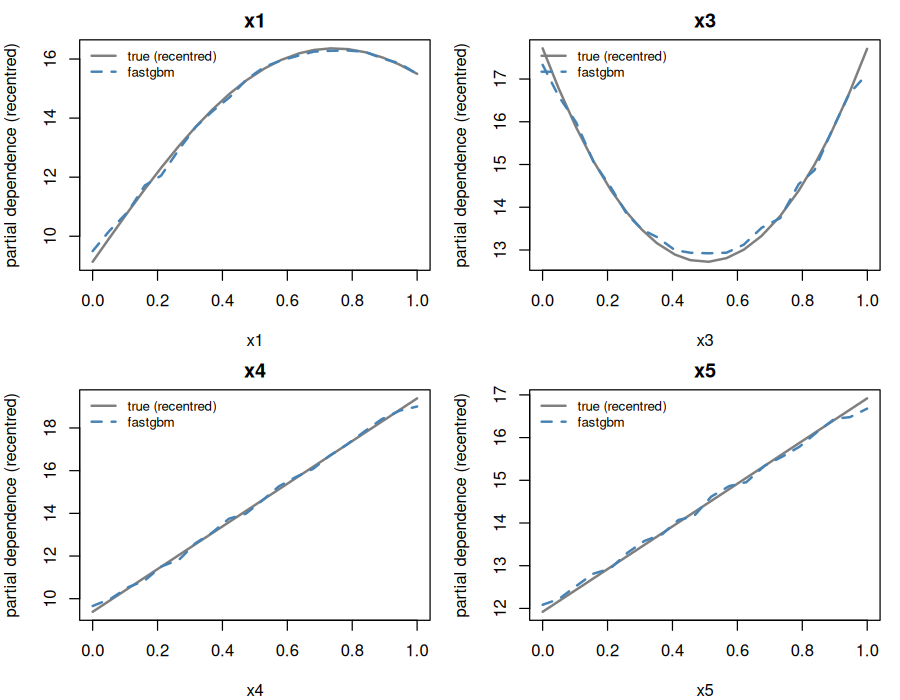

PDP shape recovery: since the true partial dependence of each feature is computable in closed form for this DGP (fixing x_j on a grid and averaging the true mean function over the observed rows), pdp() on the fitted fastgbm model can be checked directly against ground truth rather than just inspected by eye:

fastgbm's partial dependence tracks the true shape closely for all four plotted features: the x1*x2 interaction correctly flattens x1's marginal effect into a shallow hump (not the raw sin curve, since x2 is averaged out), x3's quadratic term is recovered as a clean U-shape, and x4/x5's linear terms are recovered as straight lines. See inst/benchmarks/regression-pdp-data.csv for the underlying numbers and inst/benchmarks/regression-session-info.txt for reproducibility metadata.
