Tools for transport planning with an emphasis on spatial transport
data and non-motorized modes. Enables common transport planning tasks including:
downloading and cleaning transport datasets; creating geographic "desire lines"
from origin-destination (OD) data; route assignment, locally and via
interfaces to routing services such as < https://cyclestreets.net/> and
calculation of route segment attributes such as bearing.
The package implements the 'travel flow aggregration' method
described in Morgan and Lovelace (2020)
stplanr is a package for sustainable transport planning with R.
It provides functions for solving common problems in transport planning and modelling, such as how to best get from point A to point B. The overall aim is to provide a reproducible, transparent and accessible toolkit to help people better understand transport systems and inform policy.
The initial work on the project was funded by the Department of
Transport
(DfT)
as part of the development of the Propensity to Cycle Tool
(PCT). The PCT uses origin-destination data as the
basis of spatial analysis and modelling work to identify where bicycle
paths are most needed. See the package vignette (e.g. via
vignette("introducing-stplanr")
) or an academic paper on the
Propensity to Cycle Tool (PCT)
for more information on how it can be used. This README gives some
basics.
stplanr should be useful to researchers everywhere. The function
route_graphhopper()
, for example, works anywhere in the world using
the graphhopper routing API and
read_table_builder()
reads-in Australian data. We welcome
contributions that make transport research easier worldwide.
Data frames representing flows between origins and destinations must be
combined with geo-referenced zones or points to generate meaningful
analyses and visualisations of ‘flows’ or origin-destination (OD) data.

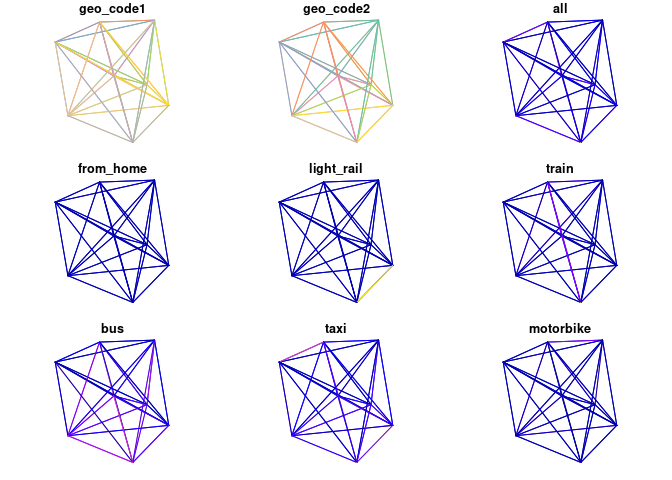

stplanr facilitates this with od2line()
, which takes flow and
geographical data as inputs and outputs spatial data. Some example data
is provided in the package:
library(stplanr)data(cents, flow)
Let’s take a look at this data:
flow[1:3, 1:3] # typical form of flow data#> Area.of.residence Area.of.workplace All#> 920573 E02002361 E02002361 109#> 920575 E02002361 E02002363 38#> 920578 E02002361 E02002367 10cents[1:3,] # points representing origins and destinations#> class : SpatialPointsDataFrame#> features : 3#> extent : -1.546463, -1.511861, 53.8041, 53.81161 (xmin, xmax, ymin, ymax)#> coord. ref. : +init=epsg:4326 +proj=longlat +datum=WGS84 +no_defs +ellps=WGS84 +towgs84=0,0,0#> variables : 4#> names : geo_code, MSOA11NM, percent_fem, avslope#> min values : E02002382, Leeds 053, 0.408759, 2.284782#> max values : E02002393, Leeds 064, 0.458721, 2.856563
These datasets can be combined as follows:
travel_network <- od2line(flow = flow, zones = cents)w <- flow$All / max(flow$All) *10plot(travel_network, lwd = w)
The package can also allocate flows to the road network, e.g. with
CycleStreets.net and the
OpenStreetMap Routing Machine
(OSRM) API interfaces.
These are supported in route_*()
functions such as
route_cyclestreets
and route_osrm()
:

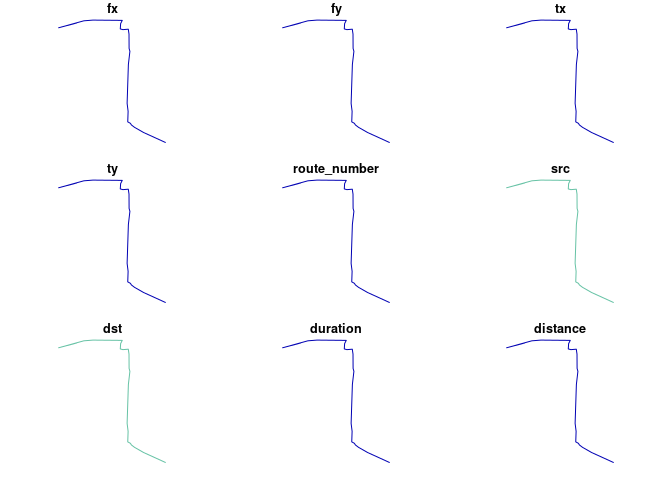

Route functions take lat/lon inputs:
trip <-route_osrm(from = c(-1, 53), to = c(-1.1, 53))
and place names, found using the Google Map API:

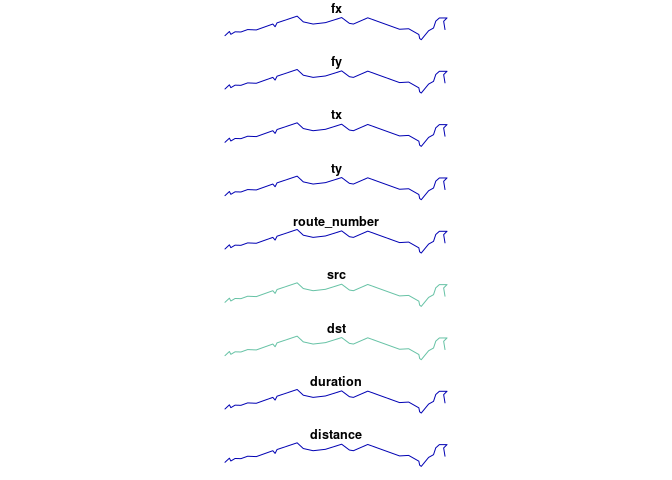

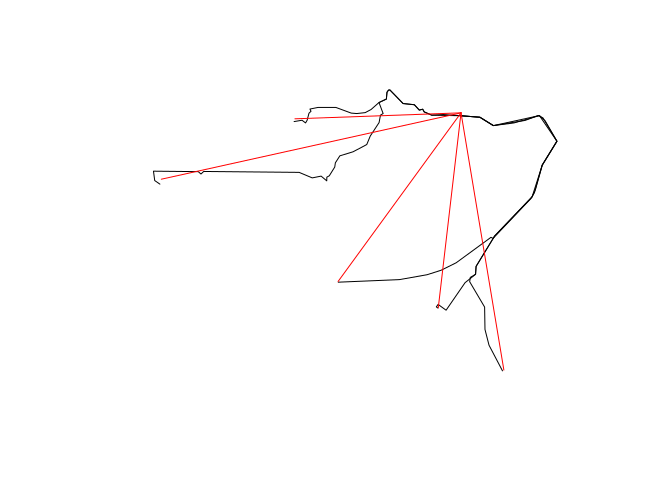

We can replicate this call multiple times using
line2route
.
intrazone <- travel_network$Area.of.residence == travel_network$Area.of.workplacetravel_network <- travel_network[!intrazone,]t_routes <- line2route(travel_network, route_fun = route_osrm)#> Warning in summarise_impl(.data, dots): hybrid evaluation forced for#> `first`. Please use dplyr::first() or library(dplyr) to remove this#> warning.#> Warning in summarise_impl(.data, dots): hybrid evaluation forced for#> `first`. Please use dplyr::first() or library(dplyr) to remove this#> warning.#> Warning in summarise_impl(.data, dots): hybrid evaluation forced for#> `last`. Please use dplyr::last() or library(dplyr) to remove this warning.#> Warning in summarise_impl(.data, dots): hybrid evaluation forced for#> `last`. Please use dplyr::last() or library(dplyr) to remove this warning.plot(t_routes)
Another way to visualise this is with the leaflet package:
library(leaflet)leaflet() %>% addTiles() %>% addPolylines(data = t_routes)
For more examples, example("line2route")
.

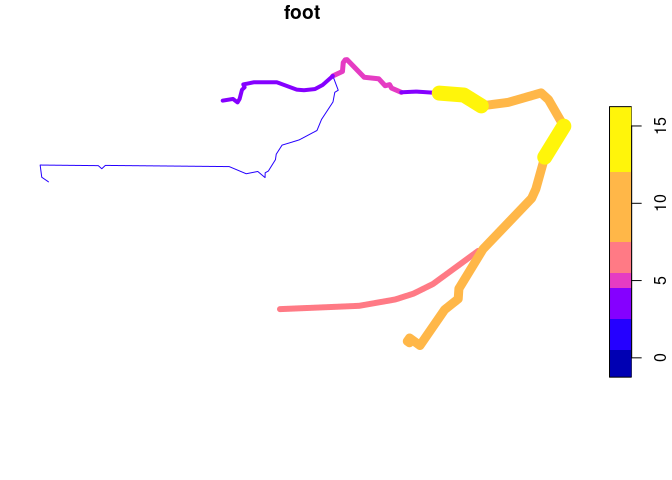

overline
is a function which takes a series of route-allocated lines,
splits them into unique segments and aggregates the values of
overlapping lines. This can represent where there will be most traffic
on the transport system, as illustrated below.
t_routes$All <- travel_network$Allrnet <- overline(t_routes, attrib = "All", fun = sum)lwd <- rnet$All / mean(rnet$All)plot(rnet, lwd = lwd)points(cents)
To install the stable version, use:
install.packages("stplanr")
The development version can be installed using devtools:
# install.packages("devtools") # if not already installeddevtools::install_github("ropensci/stplanr")library(stplanr)
stplanr depends on rgdal, which can be tricky to install.
splanr depends on rgdal which can be installed on Ubuntu, for example, with:
sudo apt install r-cran-rgdal
To install gdal
binaries on other distributions please see here:
http://trac.osgeo.org/gdal/wiki/DownloadingGdalBinaries
stplanr also depends on sf. Installation instructions for Mac, Ubuntu and other Linux distros can be found here: https://github.com/r-spatial/sf#installing
Instructions to install gdal
and Quartz
are provided at
https://github.com/ropensci/geojsonio#install and
https://www.xquartz.org/ respectively (Quartz is required for R - as
described here).
The current list of available functions can be seen with:
lsf.str("package:stplanr", all = TRUE)
To get internal help on a specific function, use the standard way.
?od2line
stplanr imports many great packages that it depends on. Many thanks to the developers of these tools:
desc = read.dcf("DESCRIPTION")headings = dimnames(desc)[[2]]fields = which(headings %in% c("Depends", "Imports", "Suggests"))pkgs = paste(desc[fields], collapse = ", ")pkgs = gsub("\n", " ", pkgs)strsplit(pkgs, ",")[[1]]#> [1] "R (>= 3.0.2)" " sp (>= 1.3.1)"#> [3] " curl (>= 3.2)" " readr (>= 1.1.1)"#> [5] " dplyr (>= 0.7.6)" " httr (>= 1.3.1)"#> [7] " jsonlite (>= 1.5)" " stringi (>= 1.2.4)"#> [9] " stringr (>= 1.3.1)" " lubridate (>= 1.7.4)"#> [11] " maptools (>= 0.9.3)" " raster (>= 2.6.7)"#> [13] " rgdal (>= 1.3.4)" " rgeos (>= 0.3.28)"#> [15] " openxlsx (>= 4.1.0)" " methods"#> [17] " R.utils (>= 2.7.0)" " geosphere (>= 1.5.7)"#> [19] " Rcpp (>= 0.12.1)" " igraph (>= 1.2.2)"#> [21] " nabor (>= 0.5.0)" " rlang (>= 0.2.2)"#> [23] " lwgeom (>= 0.1.4)" " sf (>= 0.6.3)"#> [25] " testthat (>= 2.0.0)" " knitr (>= 1.20)"#> [27] " rmarkdown (>= 1.10)" " dodgr (>= 0.0.3)"
stplanr
in R doing citation(package = 'stplanr')
od_aggregate_from()
and od_aggregate_to()
provide easy ways to aggregate origin-destination pairs. See #303.overline2()
is now faster and better documented, thanks to #307route_dodgr()
function, which provides an interface to the dodgr package, accepts wider range of inputssf
method for overline()
has been updated so it calls the much faster overline2()
functionroute_local()
sum_network_routes()
fixed. See #267dl_stats19()
are depreciated. They have been split-out into the new package stats19
route_dodgr()
has now been implementedoverline2()
has been added, thanks to Malcolm Morgan. This is faster than overline()
.od
functions, a new stplanr::od_coords2line()
function, and more support of sf
route_dodgr()
has been addedosm_net_example
, has been added for local routing purposes.citation("stplanr")
@maelle
: https://ropensci.github.io/stplanr/route_graphhopper()
has been fixed, see https://github.com/ropensci/stplanr/pull/297dplyr
0.8.0: https://github.com/ropensci/stplanr/pull/275install.packages()
installs suggested packages by defaultroute_local()
line2route()
: time_sleep
waits a period between each route requestdl_stats19()
, see #270line_via()
for identifying intermediary points on a transport networkSpatialLinesNetwork()
fixed (see #249)geo_length()
returns numeric vector of line lengths from sp or sf objects.?route_graphhopper
no longer mentions the depreciated 'bike2' profile - see #246?route_osrm
mentions that the public API only routes for cars - see #246introducing-stplanr
vignette to show new function and make more robustsf::st_length()
, used in SpatialLinesNetwork()
.sfNetwork
objects: now only plots the geometry by default.SpatialLinesNetwork()
and plot()
for spatial networks.sum_network_routes()
