Tools for Binning Data

Manually bin data using weight of evidence and information value. Includes other binning methods such as equal length, quantile and winsorized. Options for combining levels of categorical data are also available. Dummy variables can be generated based on the bins created using any of the available binning methods. References: Siddiqi, N. (2006) .


data

CRAN_Status_Badge Travis-CI BuildStatus AppVeyor BuildStatus Coveragestatus

Installation

# Install development version from GitHub
# install.packages("devtools")
devtools::install_github("rsquaredacademy/rbin")

Addins

rbin includes two addins for manually binning data:

  • rbinAddin()
  • rbinFactorAddin()

Usage

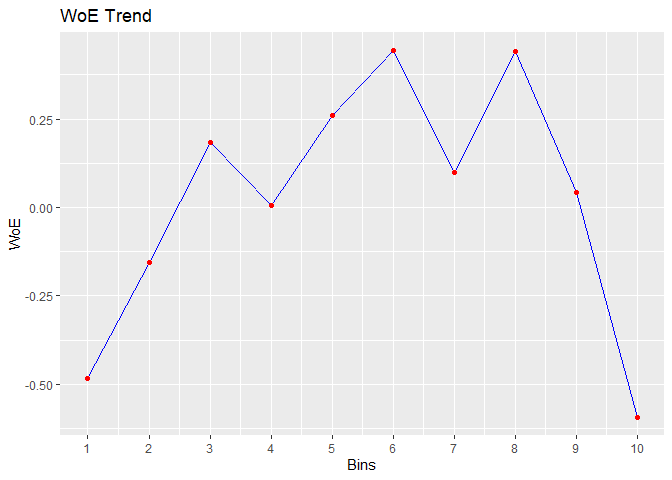

Manual Binning

bins <- rbin_manual(mbank, y, age, c(29, 31, 34, 36, 39, 42, 46, 51, 56))
bins
#> Binning Summary
#> ---------------------------
#> Method               Manual
#> Response             y
#> Predictor            age
#> Bins                 10
#> Count                4521
#> Goods                517
#> Bads                 4004
#> Entropy              0.5
#> Information Value    0.12
#>
#>
#> # A tibble: 10 x 7
#>    cut_point bin_count  good   bad      woe         iv entropy
#>    <chr>         <int> <int> <int>    <dbl>      <dbl>   <dbl>
#>  1 < 29            410    71   339 -0.484   0.0255       0.665
#>  2 < 31            313    41   272 -0.155   0.00176      0.560
#>  3 < 34            567    55   512  0.184   0.00395      0.459
#>  4 < 36            396    45   351  0.00712 0.00000443   0.511
#>  5 < 39            519    47   472  0.260   0.00701      0.438
#>  6 < 42            431    33   398  0.443   0.0158       0.390
#>  7 < 46            449    47   402  0.0993  0.000942     0.484
#>  8 < 51            521    40   481  0.440   0.0188       0.391
#>  9 < 56            445    49   396  0.0426  0.000176     0.500
#> 10 >= 56           470    89   381 -0.593   0.0456       0.700

# plot
plot(bins)

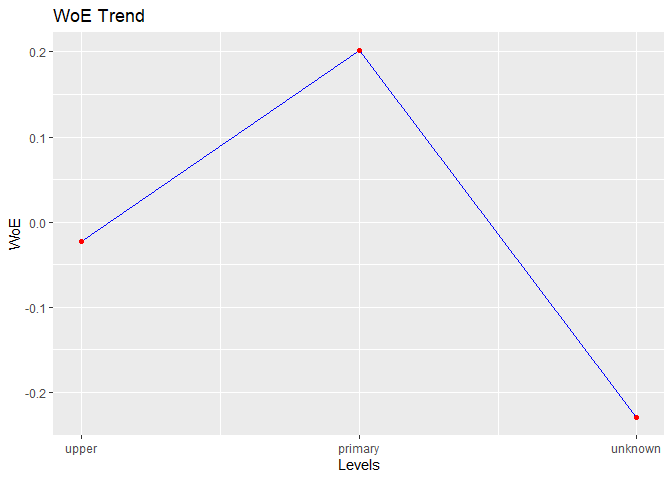

Combine Factor Levels

# combine levels
upper <- c("secondary", "tertiary")
out <- rbin_factor_combine(mbank, education, upper, "upper")
table(out$education)
#>
#> primary unknown   upper
#>     691     179    3651

# bins
bins <- rbin_factor(out, y, education)
bins
#> Binning Summary
#> ---------------------------
#> Method               Custom
#> Response             y
#> Predictor            education
#> Levels               3
#> Count                4521
#> Goods                517
#> Bads                 4004
#> Entropy              0.51
#> Information Value    0.01
#>
#>
#> # A tibble: 3 x 7
#>   level   bin_count  good   bad     woe       iv entropy
#>   <fct>       <int> <int> <int>   <dbl>    <dbl>   <dbl>
#> 1 primary       691    66   625  0.201  0.00572    0.455
#> 2 unknown       179    25   154 -0.229  0.00227    0.583
#> 3 upper        3651   426  3225 -0.0228 0.000422   0.520

# plot
plot(bins)

Quantile Binning

bins <- rbin_quantiles(mbank, y, age, 10)
bins
#> Binning Summary
#> -----------------------------
#> Method               Quantile
#> Response             y
#> Predictor            age
#> Bins                 10
#> Count                4521
#> Goods                517
#> Bads                 4004
#> Entropy              0.5
#> Information Value    0.12
#>
#>
#> # A tibble: 10 x 7
#>    cut_point bin_count  good   bad      woe         iv entropy
#>    <chr>         <int> <int> <int>    <dbl>      <dbl>   <dbl>
#>  1 < 29            410    71   339 -0.484   0.0255       0.665
#>  2 < 31            313    41   272 -0.155   0.00176      0.560
#>  3 < 34            567    55   512  0.184   0.00395      0.459
#>  4 < 36            396    45   351  0.00712 0.00000443   0.511
#>  5 < 39            519    47   472  0.260   0.00701      0.438
#>  6 < 42            431    33   398  0.443   0.0158       0.390
#>  7 < 46            449    47   402  0.0993  0.000942     0.484
#>  8 < 51            521    40   481  0.440   0.0188       0.391
#>  9 < 56            445    49   396  0.0426  0.000176     0.500
#> 10 >= 56           470    89   381 -0.593   0.0456       0.700

# plot
plot(bins)

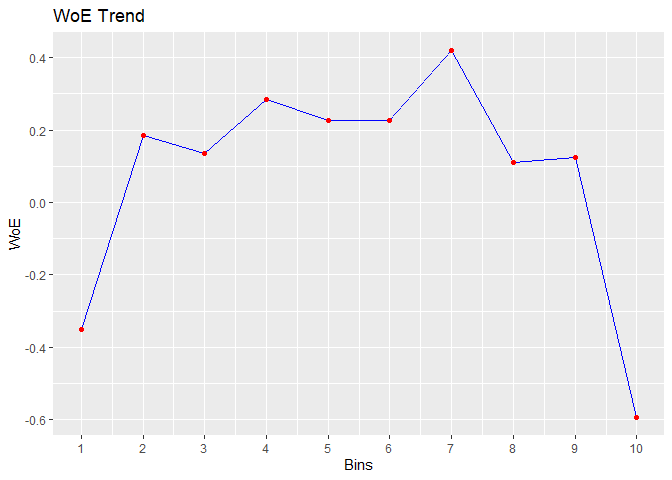

Winsorized Binning

bins <- rbin_winsorize(mbank, y, age, 10, winsor_rate = 0.05)
bins
#> Binning Summary
#> ------------------------------
#> Method               Winsorize
#> Response             y
#> Predictor            age
#> Bins                 10
#> Count                4521
#> Goods                517
#> Bads                 4004
#> Entropy              0.51
#> Information Value    0.1
#>
#>
#> # A tibble: 10 x 7
#>    cut_point bin_count  good   bad    woe       iv entropy
#>    <chr>         <int> <int> <int>  <dbl>    <dbl>   <dbl>
#>  1 < 30.2          723   112   611 -0.350 0.0224     0.622
#>  2 < 33.4          567    55   512  0.184 0.00395    0.459
#>  3 < 36.6          573    58   515  0.137 0.00225    0.473
#>  4 < 39.8          497    44   453  0.285 0.00798    0.432
#>  5 < 43            396    37   359  0.225 0.00408    0.448
#>  6 < 46.2          461    43   418  0.227 0.00482    0.447
#>  7 < 49.4          281    22   259  0.419 0.00927    0.396
#>  8 < 52.6          309    32   277  0.111 0.000811   0.480
#>  9 < 55.8          244    25   219  0.123 0.000781   0.477
#> 10 >= 55.8         470    89   381 -0.593 0.0456     0.700

# plot
plot(bins)

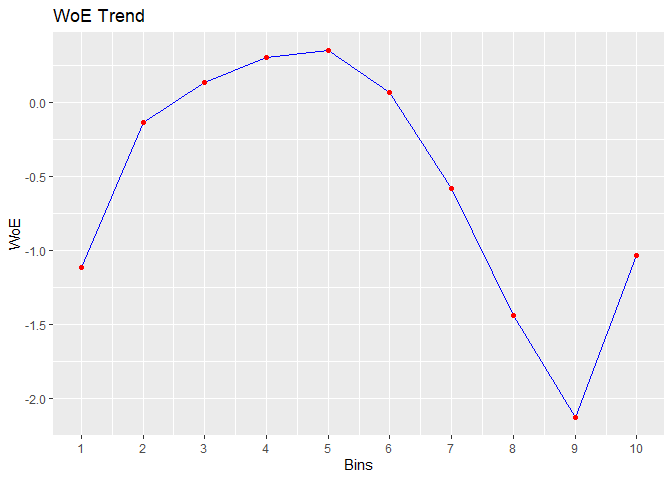

Equal Length Binning

bins <- rbin_equal_length(mbank, y, age, 10)
bins
#> Binning Summary
#> ---------------------------------
#> Method               Equal Length
#> Response             y
#> Predictor            age
#> Bins                 10
#> Count                4521
#> Goods                517
#> Bads                 4004
#> Entropy              0.5
#> Information Value    0.17
#>
#>
#> # A tibble: 10 x 7
#>    cut_point bin_count  good   bad     woe       iv entropy
#>    <chr>         <int> <int> <int>   <dbl>    <dbl>   <dbl>
#>  1 < 24.6           85    24    61 -1.11   0.0347     0.859
#>  2 < 31.2          822   106   716 -0.137  0.00358    0.555
#>  3 < 37.8         1133   115  1018  0.134  0.00425    0.474
#>  4 < 44.4          943    82   861  0.304  0.0172     0.426
#>  5 < 51            623    52   571  0.349  0.0147     0.414
#>  6 < 57.6          612    66   546  0.0660 0.000574   0.493
#>  7 < 64.2          229    43   186 -0.582  0.0214     0.697
#>  8 < 70.8           34    12    22 -1.44   0.0255     0.937
#>  9 < 77.4           25    13    12 -2.13   0.0471     0.999
#> 10 >= 77.4          15     4    11 -1.04   0.00517    0.837

# plot
plot(bins)

Alternatives

Community Guidelines

Please note that the ‘rbin’ project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms.
