Plot a Model's Residuals, Response, and Partial Dependence Plots

Plot model surfaces for a wide variety of models using partial dependence plots and other techniques. Also plot model residuals and other information on the model.


version downloads

After building a regression or classification model, it's often useful to plot the model response as the predictors vary. These model surface plots are helpful for visualizing "black box" models.

The plotmo package makes it easy to generate model surfaces for a wide variety of R models, including rpart, gbm, earth, and many others.

An example model surface

Let's generate a randomForest model from the well-known ozone dataset. (We use a random forest for this example, but any model could be used.)

    library(earth) # for the ozone1 data
    data(ozone1)
    oz <- ozone1[, c("O3", "humidity", "temp")] # simple dataset for illustration
    library(randomForest)
    mod <- randomForest(O3 ~ ., data=oz)

We now have a model, but what does it tell us about the relationship between ozone pollution (O3) and humidity and temperature? We can visualize this relationship with plotmo:

    library(plotmo)
    plotmo(mod)

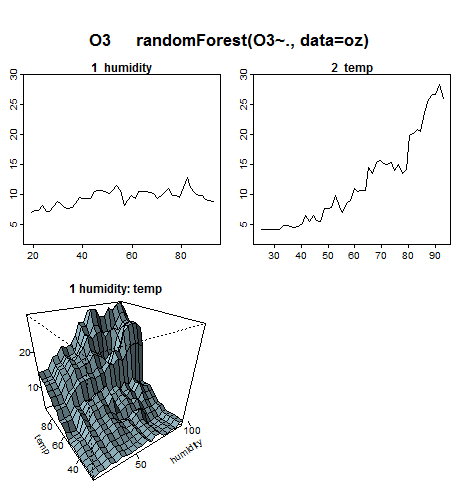

From the plots, we see that ozone increases with humidity and temperature, although humidity doesn't have much effect at low temperatures.

Some details

The top two plots in the above figure are generated by plotting the predicted response as a variable changes. Variables that don't appear in a plot are held fixed at their median values. Plotmo automatically creates a separate plot for each variable in the model.

The lower interaction plot shows the predicted response as two variables are changed (once again with other variables if any held at their median values). Plotmo draws just one interaction plot for this model, since there are only two variables.

Partial dependence plots

We can generate partial dependence plots by specifying pmethod="partdep" when invoking plotmo. In partial dependence plots, the effect of the background variables is averaged (instead of simply holding the background variables at their medians). Partial dependence plots can be very slow, but they do incorporate more information about the distribution of the response.

Plotting model residuals

The plotres function is also included in the plotmo package. This function shows residuals and other useful information about the model, if available. Using the above model as an example:

    plotres(mod)

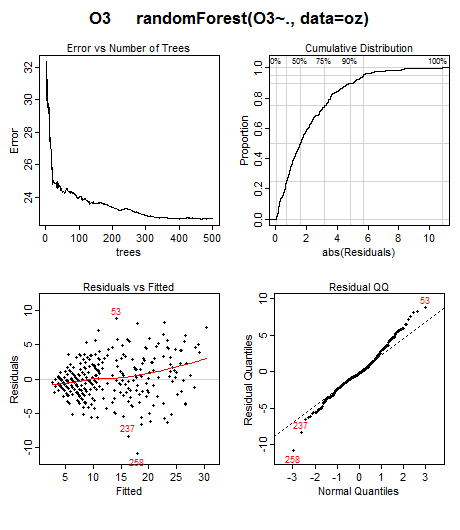

which gives

Note the "<" shape in the residuals plot in the lower left. This suggests that we should transform the response before building the model, maybe by taking the square or cube-root. Cases 53, 237, and 258 have the largest residuals and perhaps should be investigated. This kind of information is not obvious without plotting the residuals

Miscellaneous

More details and examples may be found in the package vignettes:

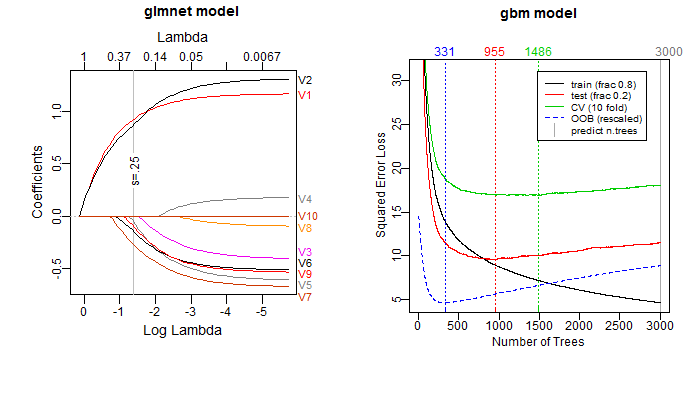

The package also provides a few utility functions such as plot_glmnet and plot_gbm. These functions enhance similar functions in the glmnet and gbm packages. Some examples:

Which models work with plotmo?

Any model that conforms to standard S3 model guidelines will work with plotmo. Plotmo knows how to deal with logistic, classification, and multiple response models. It knows how to handle different type arguments to predict functions.

Package authors may want to look at Guidelines for S3 Regression Models. If plotmo or plotres doesn't work with your model, contact the plotmo package maintainer. Often a minor tweak to the model code is all that is needed.

Stephen Milborrow

News

Changes to the plotmo package

--- 3.5.3 March 16, 2019

Extended plotmo to support earth version 5.0.0, which allows multiple responses using the Formula package. Plotmo now also has partial support for other models also created using Formula (as well as those that use formula). Added "Depends: Formula" to the DESCRIPTION.

Binomial pair responses are now more uni firmly converted to a "fraction true" before plotting.

If nresponse is not specified for multiple response models, plotmo now defaults to nresponse=1 with a warning (whereas previous versions of plotmo issued an error message).

Updates to the libraries shared with earth.

--- 3.5.2 Jan 2, 2019

Improved support for models specified with a formula containing an offset term.

The grid.levels argument can now be used with pmethod="partdep".

--- 3.5.1 Nov 23, 2018

Can now plot multinomial models from the "pre" package.

Tweaked linmod.R to better handle models with all-zero residuals, and updated the documentation.

Minor changes to internal function calls to prevent warnings when options(warnPartialMatchArgs=TRUE).

Added "LazyData: yes" to the DESCRIPTION file.

--- 3.5.0 Aug 19, 2018

The default pegged value of background variables has changed in this version, but only for logical and factor variables. For these variables the value occurring most often in the training data is used as the background value. (In previous plotmo versions, the first level of factors was used. But the majority level seems more consistent with the median used for numerics. Also, in previous versions logicals and integers were sometimes incorrectly converted to numeric.) Note this change doesn't affect pmethod="partdep" and "apartdep", which continue to behave as in previous versions.

We now support base::Date variables.

Plotmo now has better support for caret rpart models with factor predictors.

--- 3.4.2 July 3, 2018

Added support for the partykit and evtree packages. Thanks to Achim Zeilis for his help.

Plotmo is now more intelligent about maximizing the number of degree2 plots in the 4x4 grid.

Minor updates to linmod.R and linmod.methods.R.

--- 3.4.1 June 8, 2018

If plotting a probability and pt.col is specified, we now scale the response range to 0...1 so the points are displayed on the probability scale.

Expanded is.predict.prob() function for more models.

Fixed a minor bug in pmethod="partdep" which sometimes incorrectly caused an error message under certain conditions when there is only one predictor (added a missing drop=FALSE).

Enhanced support for the mlr package (but we can't support mlr objects properly until the call is saved with WrappedModels).

Enhanced support for the caret package (we now use get.singles and get.pairs on the submodel).

--- 3.4.0 May 31, 2018

If predict.rpart is predicting a probability, plotmo now recognizes that and sets ylim=c(0,1) appropriately.

Plotting of intercept-only models was slightly inconsistent. Fixed that.

We now attempt to better set the default nticks in persp plots.

We now position the labels in persp plots slightly better along the axes (they were sometimes too far away from the front corner).

When degree2 is exactly two strings, we now assign the x1 and x2 axes in the order specified in degree2 (although persp plots still get rotated for optimum visibility of the surface, and this rotation can reverse the order of the axes).

Added basic support for the mlr package (see test.mlr.R).

Documentation updates, especially to modguide.pdf and linmod.R.

--- 3.3.7 May 15, 2018

Added a README file.

If degree2 is exactly two strings, plotmo now prints just that degree2 plot e.g. degree2=c("wind", "humidity"). We plot the variable pair even that pair isn't used in the model (because we implicitly set all2=TRUE if degree2 is two strings).

If degree1 is of type character, we now plot the variable even if it isn't used in the model (because we implicitly set all1=TRUE if degree1 is is of type character).

For the qq plot in plotres, changed the diagonal qq line to dotted black. This gives more compatibility with plot.lm, and also means that the legend for the density subplot along the bottom of the qq plot (with info=TRUE) isn't mistakenly assumed to apply to the main plot. For the old behavior use qqline.col="gray", qqline.lty=1.

Added basic support for the "pre" package (using the importance function in that package).

Fixed minor bug: the plotmo grid wasn't printed if ylim was specified by the user.

The vignettes are now compressed with gs and qpdf as in tools::compactPDF, (but that happens outside the standard CRAN build system). It does mean that the tar.gz file for plotmo is a little smaller (now 1155 kByte).

--- 3.3.6 Mar 20, 2018

Minor documentation updates.

--- 3.3.5 Feb 26, 2018

Added support for package gam version 1.15 and higher (the S3 class of gam objects changed from "gam" to "Gam" to prevent clashes with the mgcv package). Plotmo now works with both the old and new versions of gam.

--- 3.3.4 July 26, 2017

Added support for glmnetUtils objects.

--- 3.3.3 May 4, 2017

Error "glmnet.formula must be called with use.model.frame=TRUE" is now issued when necessary.

Tweaked test scripts because cosso models fail with R version 3.4.0.

--- 3.3.2 Dec 2, 2016

Support for the C50 package.

Better handling of NA and 0 colors in plot_glmnet.

Better messages to the user for models with too many variables to fit on a page.

With all2=2, plotmo will now plot up to a maximum of all pairs of 20 variables (and as always, with all2=TRUE plotmo will plot a maximum of all pairs of 7 variables).

--- 3.3.1 Nov 24, 2016

When choosing which variables to plot for randomForest models, variable importance is now calculated using a more correct measure, viz. one of IncMSE or IncNodePurity (regression models), or MeanDecreaseAccuracy or MeanDecreaseGini (classifications models). The second option is used if importance=TRUE was used when building the model. Use trace=1 when calling plotmo to see which measure of importance is used.

The plot_gbm function now displays the gray vertical line at the correct position when n.trees is specified.

Documentation touchups.

--- 3.3.0 Nov 11, 2016

Added support for partial dependence plots (the pmethod argument).

Extended the vignette with new chapters on partial dependence plots and classification models.

Plotmo's nrug argument now supports quantiles.

The title on persp plots is now better aligned to the degree plot titles. The margins for persp plots are now more optimal (they now give bigger plots when do.par=FALSE and there are also degree1 plots).

Added support for e1071::predict.svm decision.values and probability arguments.

Fixed error message when plot_gbm was used on multinomial models. Fixed warnings in plot_gbm when gbm.ntrees is very small (less than 10).

--- 3.2.1 Oct 27, 2016

Added support for gbm package version 2.2. See gbm.backcompat.R.

Extended linmod.R: support for no-intercept models, support for 'keep' argument, better handling of newdata in predict.linmod. Also extended the tests for linmod.R in inst/slowtests.

--- 3.2.0 Sep 7, 2016

The functions plot_gbm and plot_glmnet are now exported and available for the user. These functions have been enhanced for this version.

Improved support for gbm and glmnet and related models.

The plotres function now works better with caret "train" models (but caret support is still a bit minimal).

We now print "plotmo grid:" instead of just "grid:" for context when it's printed from within a body of code.

Removed deprecated interface functions like get.plotmo.pairs.

Updated dot library functions for eventual move to a dots package.

Revamped the vignettes.

--- 3.1.5 Aug 26, 2016

The pt.cex argument now works correctly in plotres QQ plots.

Changed default colors in plot.glmnetx. The colors stay in the order they are passed to plot.glmnetx as we move down the rhs of the plot.

Extended test suite to include adabag package.

Fixed code in meta.R which assumed all.equal() always returned TRUE or FALSE.

Merged the library source file lib.R with the earth and rpart.plot packages's lib.R.

Updated and extended vignettes.

--- 3.1.4 Jul 29, 2015

Added support for the adabag package.

Added imports for standard grDevices, stats, and utils functions, as now required by CRAN check.

Documentation updates. Thanks to Achim Zeileis for his feedback.

--- 3.1.3 Jun 24, 2015

Added plotmo.prolog.cv.glmnet (to handle missing "call" in cv.glmnet objects). More work on the issue where vars on the rhs of formula are multidimensional. Documentation updates.

--- 3.1.2 Jun 15, 2015

Added the new vignette "Guidelines for S3 Regression Models". Documentation touchups.

--- 3.1.1 May 27, 2015

Removed references needed for old versions of earth. Fixed a gbm column naming issue. Other minor code and document updates.

--- 3.1.0 May 6, 2015

Removed references to functions in old versions of earth.

Simplified the way xlim and ylim are calculated internally.

Simplified the way jitter is handled.

If type="probability" or similar, and the response has two columns, nresponse now automatically defaults to column 2.

Added support for biglm objects. The predict.biglm method (unnecessarily) requires that newdata has a response column, so plotmo adds a dummy response column before calling predict.biglm.

We now find the data argument for formula models even if the argument is unnamed.

--- 3.0.0 Apr 29, 2015

Added the plotres function.

Reworked the internal functions that get the data from the model.

Reparameterized the argument list of plotmo, but maintained backwards compatibility using the "dots" routines.

--- 2.2.1 Jan 7, 2015

If pch.response has type character, we now plot the response points as text.

Earth models with no degree1 terms but with degree2 terms were incorrectly labelled as intercept-only models. Fixed that.

Changes to match changes to earth's predict.varmod interval argument.

--- 2.2.0 Dec 10, 2014

Fixed incorrect printing of some messages when trace=-1.

Expansions to check.index for earth.

Documentation touchups.

--- 2.1.0 Nov 30, 2014

Added a vignette "Notes on the plotmo package".

Some more functions are now exported to allow earth::plotmor to easily get the model data

Some documentation touchups as usual.

--- 2.0.0 Nov 19, 2014

Plotting of prediction or confidence levels is now more comprehensive. We now allow both prediction and confidence intervals to be plotted for those predict methods that support it on new data (currently only lm). The "se" argument is now deprecated and superseded by the "limit" argument (you will get a warning).

Plotmo will now plot the model even if it is an intercept-only model. Use int.only.ok=FALSE for the old behaviour (i.e., issue an error for intercept-only models).

The "grid:" message in now printed for only multiple predictor models. Remember that you can always suppress this message in any case with trace=-1.

The xlim argument is now supported. Typically only useful if only one degree1 plot.

Plotmo now supports quantreg and quantregForest objects.

Basic support for the AMORE package has been provided. Thanks to Bernard Nolan and David Lorenz for this. But this has been commented out in the source code to avoid having "suggests(AMORE)" in the plotmo DESCRIPTION file. To use functions, search for AMORE in the plotmo source code, and cut and paste the commented-out code into your environmemt.

The default pch.response is now 20 (was 1).

The default cex.response is now NULL (meaning automatic, was 1).

Minor other changes to fix formatting of captions etc.

--- 1.3-3 Feb 4, 2014

Clerical changes to satisfy recent CRAN check requirements.

--- 1.3-2 Dec 1, 2011

You can now use trace=-1 to inhibit the "grid: " message.

Removed a call to .Internal(persp)

--- 1.3-1 Sep 16, 2011

Fixed an minor incorrect message introduced in the previous release.

--- 1.3-0 Sep 15, 2011

You can now specify variables by name in degree1 and degree2. Suppressed annoying "Warning: surface extends beyond the box". We no longer issue an incorrect err msg if data frame has an "AsIs" field.

--- 1.2-6

Removed an incorrect stopifnot.integer(y.column) in plotmo_y.wrapper

--- 1.2-5 Jun 11, 2011

Fixed an incorrect stop when trace>0 and x had no column names. We no longer print the plot index in the plot title when all1 or all2 specified but also degree1 and degree2. Added get.plotmo.default.type.fda Touchups to the documentation.

--- 1.2-4 Apr 27, 2011

Removed hooks for the earth package (which are no longer necessary with earth 2.6-2). The file plotmo.methods.R was deleted.

Added the grid argument.

--- 1.2-3 Apr 17, 2011

This package no longer needs the earth package. However the current earth (2.6-1) needs some hooks in this package to build. After earth 2.6-2 is on CRAN that will no longer be necessary, and the hooks will be removed from this package. We now have better error reporting for bad y's. We now have better jittering of response points with a binary response.

--- 1.2-0 Apr 12, 2011

Added ndiscrete arg (variables with a small number of levels are now plotted as "blocks", like factors). Added smooth.col and related args (plotmo can add a loess line). Made tweaks necessary because earth now imports this package. Added dvalue and npoints args. Added center arg (preliminary implementation). Added basic support for lars, nnet, and knn3 models. Jittering now works better. We now jitter response points for factors and discrete variables by default. plotmo is now faster: We cache the plot data to avoid calling predict twice for each plot For discrete vars and factors we only call predict for their original values ngrid1 is much smaller (ok to do that because of ndiscrete arg) Better error reporting for illegal args. Reduced the number of default colors (just grays and lightblue now). Out-of-range values in image plots are now plotted in blue. Fixed an issue where the wrong environment could be used. Better error reporting for unsupported models. Fixed handling of factors with non contiguous levels Modified test scripts to conform to R 2.13.0's way of printing numbers Numerous other document and code touch ups.

--- 1.0-1 Apr 01, 2011

plotmo was printing degree1 graphs for all used earth predictors, not just those appearing in degree1 terms. Fixed that.

plotmo was not handling all1=TRUE correctly for earth models with factor predictors. Fixed that.

--- 1.0-0 Mar 31, 2011

Initial release. Moved plotmo from earth 2.5-1 to here.
