Tools for working with the National Hydrography Dataset

Tools for working with the National Hydrography Dataset, with functions for querying, downloading, and networking both the NHD < https://www.usgs.gov/core-science-systems/ngp/national-hydrography> and NHDPlus < http://www.horizon-systems.com/nhdplus> datasets.


Project Status: Active - The project has reached a stable, usablestate and is being activelydeveloped. CRAN_Status_Badge Travis-CI BuildStatus Codecov testcoverage DOI

The goal of nhdR is to provide R tools for interacting with the National Hydrography Dataset and NHDPlus.

Installation

You can install nhdR from github with:

# install.packages("devtools")
devtools::install_github("jsta/nhdR")

This package also requires an installation of 7-zip that can be called via the command line using 7z or 7za.exe.

Usage

Load package

library(nhdR)

NHD Plus

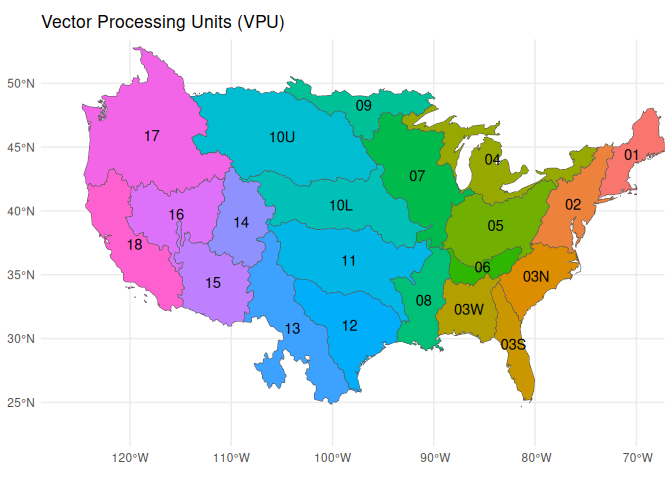

NHD-Plus exports are organized by vector processing unit (vpu). See below for a low resolution vpu map (also nhdR::vpu_shp). A hi-res version can be found here.

# get a vpu export
nhd_plus_get(vpu = 4, "NHDSnapshot")
nhd_plus_get(vpu = 4, "NHDPlusAttributes")
nhd_plus_get(vpu = 4, "NHDPlusCatchment")
# list layers
nhd_plus_list(vpu = 4, "NHDSnapshot")
#>  [1] "NHDArea.dbf"                "NHDAreaEventFC.dbf"
#>  [3] "NHDAreaEventFC.shp"         "NHDArea.shp"
#>  [5] "NHDFCode.dbf"               "NHDFlowline.dbf"
#>  [7] "NHDFlowline.shp"            "NHDFlowline.shp.xml"
#>  [9] "NHDLine.dbf"                "NHDLineEventFC.dbf"
#> [11] "NHDLineEventFC.shp"         "NHDLine.shp"
#> [13] "NHDPoint.dbf"               "NHDPointEventFC.dbf"
#> [15] "NHDPointEventFC.shp"        "NHDPoint.shp"
#> [17] "NHDReachCode_Comid.dbf"     "NHDReachCrossReference.dbf"
#> [19] "NHDWaterbody.dbf"           "NHDWaterbody.shp"
nhd_plus_list(vpu = 4, "NHDPlusAttributes")
#>  [1] "CumulativeArea.dbf"              "DivFracMP.dbf"
#>  [3] "elevslope.dbf"                   "HeadwaterNodeArea.dbf"
#>  [5] "MegaDiv.dbf"                     "PlusARPointEvent.dbf"
#>  [7] "PlusFlowAR.dbf"                  "PlusFlow.dbf"
#>  [9] "PlusFlowlineLakeMorphology.dbf"  "PlusFlowlineVAA.dbf"
#> [11] "PlusWaterbodyLakeMorphology.dbf"
nhd_plus_list(vpu = 4, "NHDPlusCatchment")
#> [1] "Catchment.dbf"         "Catchment.shp"         "featureidgridcode.dbf"
# get layer info
nhd_plus_info(vpu = 4, "NHDSnapshot", "NHDWaterbody")
#>  [1] "Driver: ESRI Shapefile; number of rows: 31830 "
#>  [2] "Feature type: wkbPolygon with 3 dimensions"
#>  [3] "Extent: (-93.24332 40.43575) - (-73.61814 48.11344)"
#>  [4] "CRS: +proj=longlat +datum=NAD83 +no_defs  "
#>  [5] "LDID: 87 "
#>  [6] "Number of fields: 12 "
#>  [7] "         name type length typeName"
#>  [8] "1       COMID    0      9  Integer"
#>  [9] "2       FDATE    9     10     Date"
#> [10] "3  RESOLUTION    4      7   String"
#> [11] "4     GNIS_ID    4     10   String"
#> [12] "5   GNIS_NAME    4     65   String"
#> [13] "6    AREASQKM    2     19     Real"
#> [14] "7   ELEVATION    2     19     Real"
#> [15] "8   REACHCODE    4     14   String"
#> [16] "9       FTYPE    4     24   String"
#> [17] "10      FCODE    0      9  Integer"
#> [18] "11 SHAPE_LENG    2     19     Real"
#> [19] "12 SHAPE_AREA    2     19     Real"
# load layer
dt <- nhd_plus_load(vpu = 4, "NHDSnapshot", "NHDWaterbody")
#> Reading layer `NHDWaterbody' from data source `/home/jose/.local/share/nhdR/NHDPlus/GL_04_NHDSnapshot/NHDWaterbody.shp' using driver `ESRI Shapefile'
#> Simple feature collection with 31830 features and 12 fields
#> geometry type:  POLYGON
#> dimension:      XYZ
#> bbox:           xmin: -93.24332 ymin: 40.43575 xmax: -73.61814 ymax: 48.11344
#> epsg (SRID):    4269
#> proj4string:    +proj=longlat +datum=NAD83 +no_defs

NHD

NHD exports are organized by US state.

nhd_get(state = c("DC", "HI"))
nhd_list(state = "DC")
#>  [1] "ExternalCrosswalk"           "NHDFCode"
#>  [3] "NHDFeatureToMetadata"        "NHDFlow"
#>  [5] "NHDFlowlineVAA"              "NHDMetadata"
#>  [7] "NHDProcessingParameters"     "NHDReachCodeMaintenance"
#>  [9] "NHDReachCrossReference"      "NHDSourceCitation"
#> [11] "NHDStatus"                   "NHDVerticalRelationship"
#> [13] "NHDPoint"                    "NHDFlowline"
#> [15] "NHDLine"                     "NHDArea"
#> [17] "NHDWaterbody"                "NHDAreaEventFC"
#> [19] "NHDLineEventFC"              "NHDPointEventFC"
#> [21] "WBDLine"                     "NonContributingDrainageArea"
#> [23] "NWISBoundary"                "NWISDrainageArea"
#> [25] "WBDHU14"                     "WBDHU8"
#> [27] "WBDHU2"                      "WBDHU4"
#> [29] "WBDHU6"                      "WBDHU10"
#> [31] "WBDHU12"                     "WBDHU16"
#> [33] "HYDRO_NET_Junctions"
#> attr(,"driver")
#> [1] "OpenFileGDB"
#> attr(,"nlayers")
#> [1] 33
nhd_info(state = "DC", dsn = "NHDWaterbody")
#> Source: "/home/jose/.local/share/nhdR/NHDH_DC.gdb", layer: "NHDWaterbody"
#> Driver: OpenFileGDB; number of rows: 8025
#> Feature type: wkbPolygon with 3 dimensions
#> Extent: (-78.07095 38.52142) - (-76.82219 39.64683)
#> CRS: +proj=longlat +datum=NAD83 +no_defs
#> Number of fields: 12
#>                    name type length typeName
#> 1  Permanent_Identifier    4     40   String
#> 2                 FDate   11      0 DateTime
#> 3            Resolution    0      0  Integer
#> 4               GNIS_ID    4     10   String
#> 5             GNIS_Name    4     65   String
#> 6              AreaSqKm    2      0     Real
#> 7             Elevation    2      0     Real
#> 8             ReachCode    4     14   String
#> 9                 FType    0      0  Integer
#> 10                FCode    0      0  Integer
#> 11         Shape_Length    2      0     Real
#> 12           Shape_Area    2      0     Real
head(nhd_load(state = "DC", dsn = "NHDWaterbody"))
#> Reading layer `NHDWaterbody' from data source `/home/jose/.local/share/nhdR/NHDH_DC.gdb' using driver `OpenFileGDB'
#> Simple feature collection with 8025 features and 12 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XYZ
#> bbox:           xmin: -78.07095 ymin: 38.52142 xmax: -76.82219 ymax: 39.64683
#> epsg (SRID):    4269
#> proj4string:    +proj=longlat +datum=NAD83 +no_defs
#> Simple feature collection with 6 features and 12 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -77.5767 ymin: 38.68957 xmax: -76.99631 ymax: 39.5882
#> epsg (SRID):    4269
#> proj4string:    +proj=longlat +datum=NAD83 +no_defs
#>   Permanent_Identifier               FDate Resolution GNIS_ID GNIS_Name
#> 1             51772167 2002-08-15 01:00:00          2    <NA>      <NA>
#> 2             46565431 2002-07-22 01:00:00          2    <NA>      <NA>
#> 3             51767181 2002-08-15 01:00:00          2    <NA>      <NA>
#> 4             51767223 2002-08-15 01:00:00          2    <NA>      <NA>
#> 5             51767287 2002-08-15 01:00:00          2    <NA>      <NA>
#> 6             51767709 2002-08-15 01:00:00          2    <NA>      <NA>
#>   AreaSqKm Elevation      ReachCode FType FCode Shape_Length   Shape_Area
#> 1    0.005        NA 02070008004787   436 43624 0.0032275838 5.164066e-07
#> 2    0.000        NA 02070010004605   436 43624 0.0005402029 1.879174e-08
#> 3    0.002        NA 02070008004808   390 39004 0.0017289109 1.954519e-07
#> 4    0.001        NA 02070008004829   390 39004 0.0013369633 1.239613e-07
#> 5    0.001        NA 02070008004860   390 39004 0.0011083831 8.130533e-08
#> 6    0.002        NA 02070008005063   390 39004 0.0016429957 1.745505e-07
#>                            Shape
#> 1 MULTIPOLYGON (((-77.11382 3...
#> 2 MULTIPOLYGON (((-76.99631 3...
#> 3 MULTIPOLYGON (((-77.56942 3...
#> 4 MULTIPOLYGON (((-77.56947 3...
#> 5 MULTIPOLYGON (((-77.57644 3...
#> 6 MULTIPOLYGON (((-77.46933 3...

News

nhdR 0.5.1

  • Critical bug fix for nhd_get recursive folder creation (# 56)
  • Bug fixes for extract_network enabling propagation of approve_all_dl flag
  • Improved documentation of non-geographic buffer extraction

nhdR 0.5.0

  • Improve extract_network to handle headwater lakes
  • Add function to return Great Lakes polygons
  • Enable non-geographic query buffers
  • Fix broken NHD download endpoint
  • Bug fixes for nhd_plus_query on multi vpu queries

nhdR 0.4

  • Confirmed working operation on MacOS
  • Results of load functions are now cached (memoized) for massive increase in package speed

nhdR 0.3

  • Added a NEWS.md file to track changes to the package.

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("nhdR")

0.5.1 by Joseph Stachelek, a month ago


https://github.com/jsta/nhdR


Report a bug at https://github.com/jsta/nhdR/issues


Browse source code at https://github.com/cran/nhdR


Authors: Joseph Stachelek [aut, cre]


Documentation:   PDF Manual


GPL license


Imports rappdirs, rgdal, sf, httr, rvest, xml2, foreign, ggplot2, gdalUtils, rlang, dplyr, curl, units, stringr, memoise, purrr

Depends on maps

Suggests knitr, rmarkdown, wikilake, sp, rgeos, testthat, covr, RCurl

System requirements: 7-zip command line tool (7z)
