Fast R and C++ Access to NIfTI Images

Provides very fast read and write access to images stored in the NIfTI-1 and ANALYZE-7.5 formats, with seamless synchronisation between compiled C and interpreted R code. Also provides a C/C++ API that can be used by other packages. Not to be confused with 'RNiftyReg', which performs image registration.


CRAN version Build Status Build status Coverage Status

The NIfTI-1 format is a popular file format for storing medical imaging data, widely used in medical research and related fields. Conceptually, a NIfTI-1 file incorporates multidimensional numeric data, like an R array, but with additional metadata describing the real-space resolution of the image, the physical orientation of the image, and how the image should be interpreted.

There are several packages available for reading and writing NIfTI-1 files in R, and these are summarised in the Medical Imaging task view. However, RNifti is distinguished by its

The latest development version of the package can always be installed from GitHub using the devtools package.

## install.packages("devtools")
devtools::install_github("jonclayden/RNifti")

Usage

The primary role of RNifti is in reading and writing NIfTI-1 files, either gzip-compressed or uncompressed, and providing access to image data and metadata. An image may be read into R using the readNifti function.

library(RNifti)
image <- readNifti(system.file("extdata", "example.nii.gz", package="RNifti"))

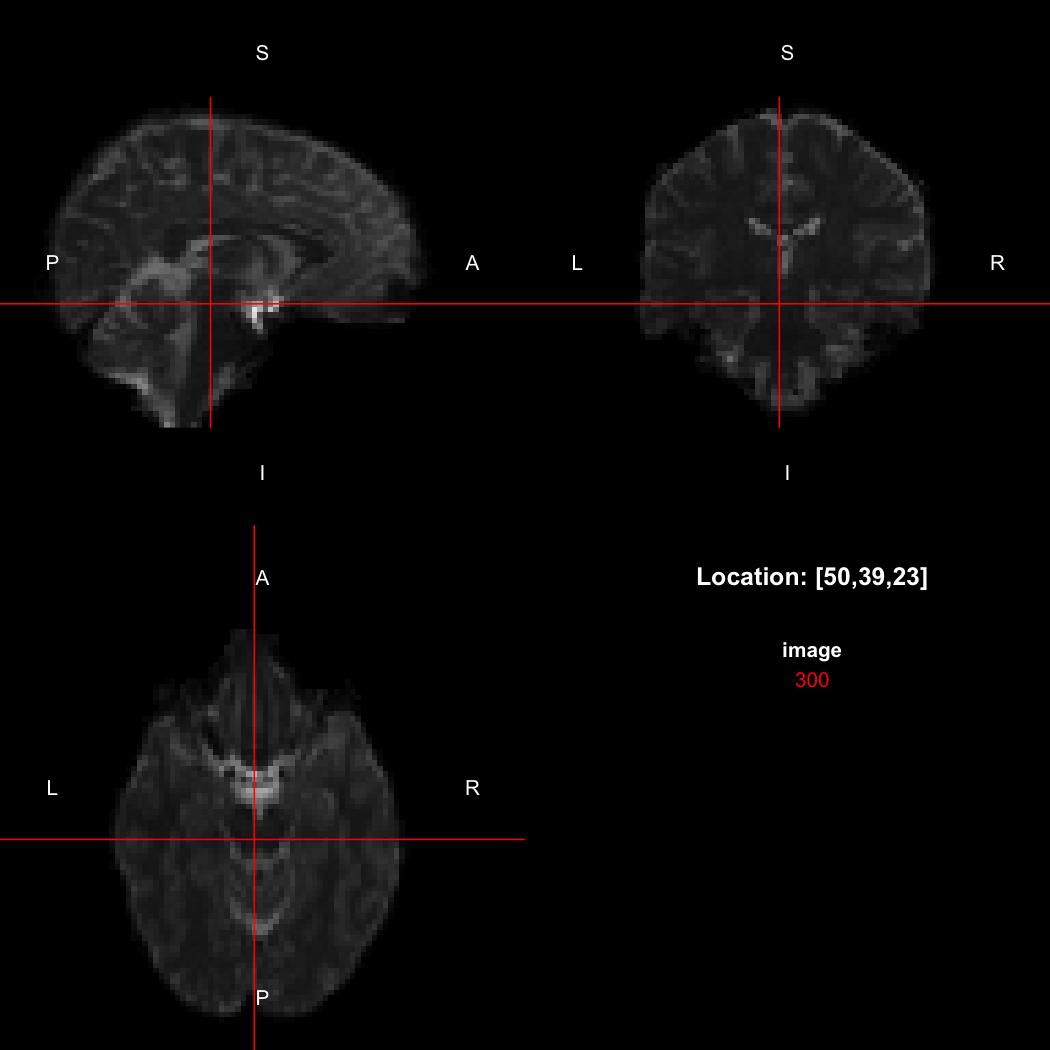

This image is an R array with some additional attributes containing information such as its dimensions and the size of its pixels (or voxels, in this case, since it is a 3D image). There are auxiliary functions for extracting this information: the standard dim(), plus pixdim() and pixunits().

dim(image)
# [1] 96 96 60

pixdim(image)
# [1] 2.5 2.5 2.5

pixunits(image)
# [1] "mm" "s"

So this image is of size 96 x 96 x 60 voxels, with each voxel representing 2.5 x 2.5 x 2.5 mm in real space. (The temporal unit, seconds here, only applies to the fourth dimension, if it is present.) Replacement versions of the latter functions are also available, for modifying the metadata.

A fuller list of the raw metadata stored in the file can be obtained using the niftiHeader function.

niftiHeader(image)
# NIfTI-1 header
#     sizeof_hdr: 348
#       dim_info: 0
#            dim: 3  96  96  60  1  1  1  1
#      intent_p1: 0
#      intent_p2: 0
#      intent_p3: 0
#    intent_code: 0
#       datatype: 8
#         bitpix: 32
#    slice_start: 0
#         pixdim: -1.0  2.5  2.5  2.5  0.0  0.0  0.0  0.0
#     vox_offset: 352
#      scl_slope: 0
#      scl_inter: 0
#      slice_end: 0
#     slice_code: 0
#     xyzt_units: 10
#        cal_max: 2503
#        cal_min: 0
# slice_duration: 0
#        toffset: 0
#        descrip: TractoR NIfTI writer v3.0.0
#       aux_file:
#     qform_code: 2
#     sform_code: 2
#      quatern_b: 0
#      quatern_c: 1
#      quatern_d: 0
#      qoffset_x: 122.0339
#      qoffset_y: -95.18523
#      qoffset_z: -55.03814
#         srow_x: -2.5000  0.0000  0.0000  122.0339
#         srow_y: 0.00000  2.50000  0.00000  -95.18523
#         srow_z: 0.00000  0.00000  2.50000  -55.03814
#    intent_name:
#          magic: n+1

Advanced users who know the NIfTI format well may want to alter elements of this metadata directly, and this can be performed using the $ operator shorthand, as in

image$intent_code <- 1

If you need to modify multiple metadata elements at once, or replace metadata wholesale with new information from another image, the updateNifti function provides a more efficient interface. See ?updateNifti for details.

An image can be written back to NIfTI-1 format using the writeNifti function. gzip compression will be used if the specified file name ends with ".gz".

writeNifti(image, "file.nii.gz")

Image orientation

The NIfTI-1 format has a mechanism for indicating the physical orientation and location of the image volume in real space. The reference orientation has the left–right direction aligned with the x-axis, the posterior–anterior (back–front) direction aligned with the y-axis, and the inferior–superior (bottom–top) direction aligned with the z-axis; but "xform" information stored with an image can describe a transformation from that coordinate system to the one used by that particular image, in the form of an affine matrix. To obtain the full xform matrix for an image, call the xform function:

xform(image)
#      [,1] [,2] [,3]      [,4]
# [1,] -2.5  0.0  0.0 122.03390
# [2,]  0.0  2.5  0.0 -95.18523
# [3,]  0.0  0.0  2.5 -55.03814
# [4,]  0.0  0.0  0.0   1.00000

Just the rotation with respect to the canonical axes can be obtained with the rotation function:

rotation(image)
#      [,1] [,2] [,3]
# [1,]   -1    0    0
# [2,]    0    1    0
# [3,]    0    0    1

In this case, the image is flipped along the x-axis relative to the canonical axes, so the positive x-direction points towards the left rather than the right. This is compactly represented by the output of the orientation function, which indicates the approximate real-world directions of the positive axes in each dimension.

orientation(image)
# [1] "LAS"

So, here, "LAS" means that the positive x-axis points left, the positive y-axis anterior and the positive z-axis superior. There is also a replacement version of the orientation function, which will reorient the image to align with the requested directions. This is a relatively complex operation, affecting the xform and the storage order of the data.

image[30,30,20]
# [1] 457

orientation(image) <- "RAS"
xform(image)
#      [,1] [,2] [,3]       [,4]
# [1,]  2.5  0.0  0.0 -115.46609
# [2,]  0.0  2.5  0.0  -95.18523
# [3,]  0.0  0.0  2.5  -55.03814
# [4,]  0.0  0.0  0.0    1.00000
image[30,30,20]
# [1] 409
image[67,30,20]
# [1] 457

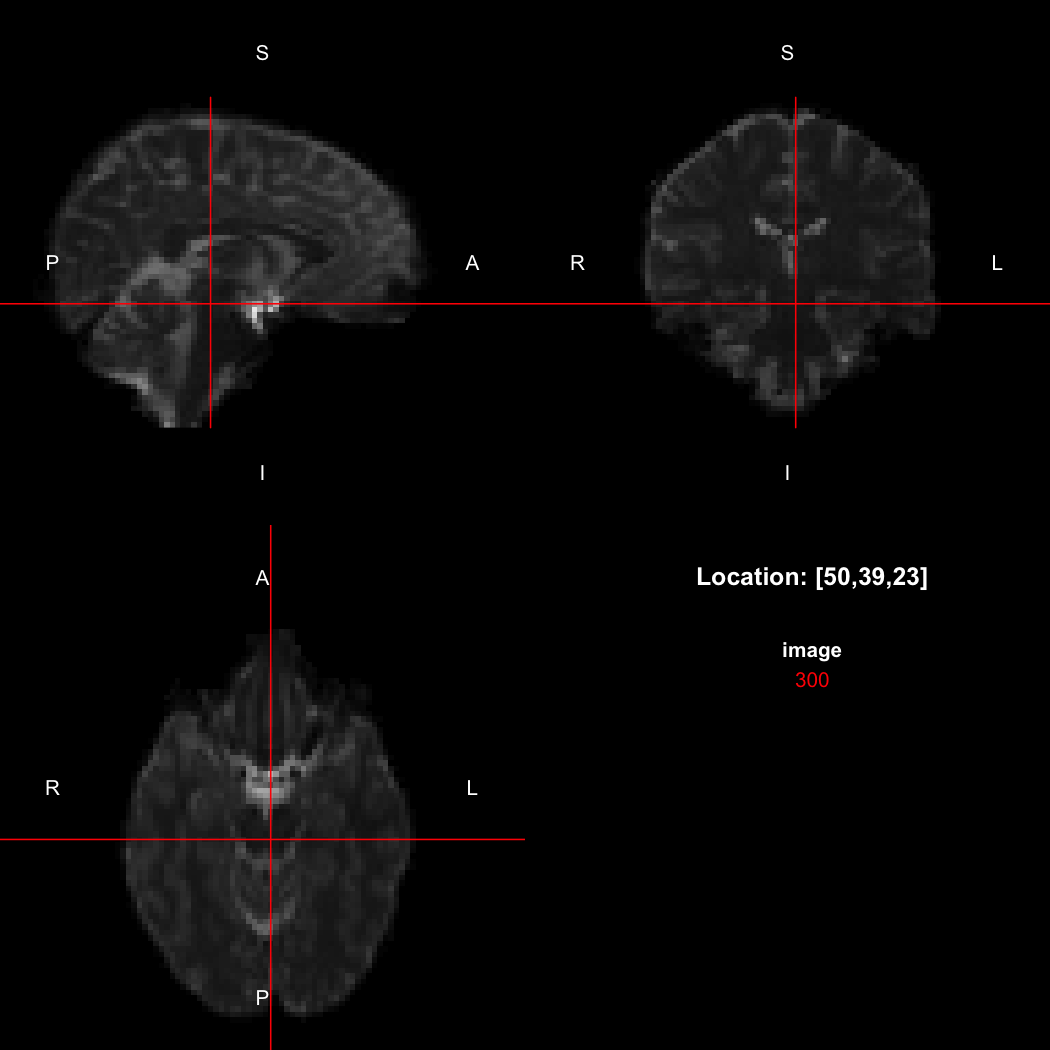

Notice that the sign of the top-left element of the xform has now flipped, and the value of the image at location (30,30,20) has changed because the data has been reordered. The equivalent x-location is now 67, which is the 30th element counting in the other direction (96 - 30 + 1 = 67).

This latter operation can be useful to ensure that indexing into several images with different native storage conventions will end up always having approximately the same meaning. It is non-destructive, because no interpolation of the data is performed. This means that the axes will not exactly align with the requested directions if the original image was oblique to the canonical axes, but conversely it ensures that no degradation in the image will result. (The RNiftyReg package can be used to apply an arbitrary rotation to an image and interpolate the data onto the new grid, if required.)

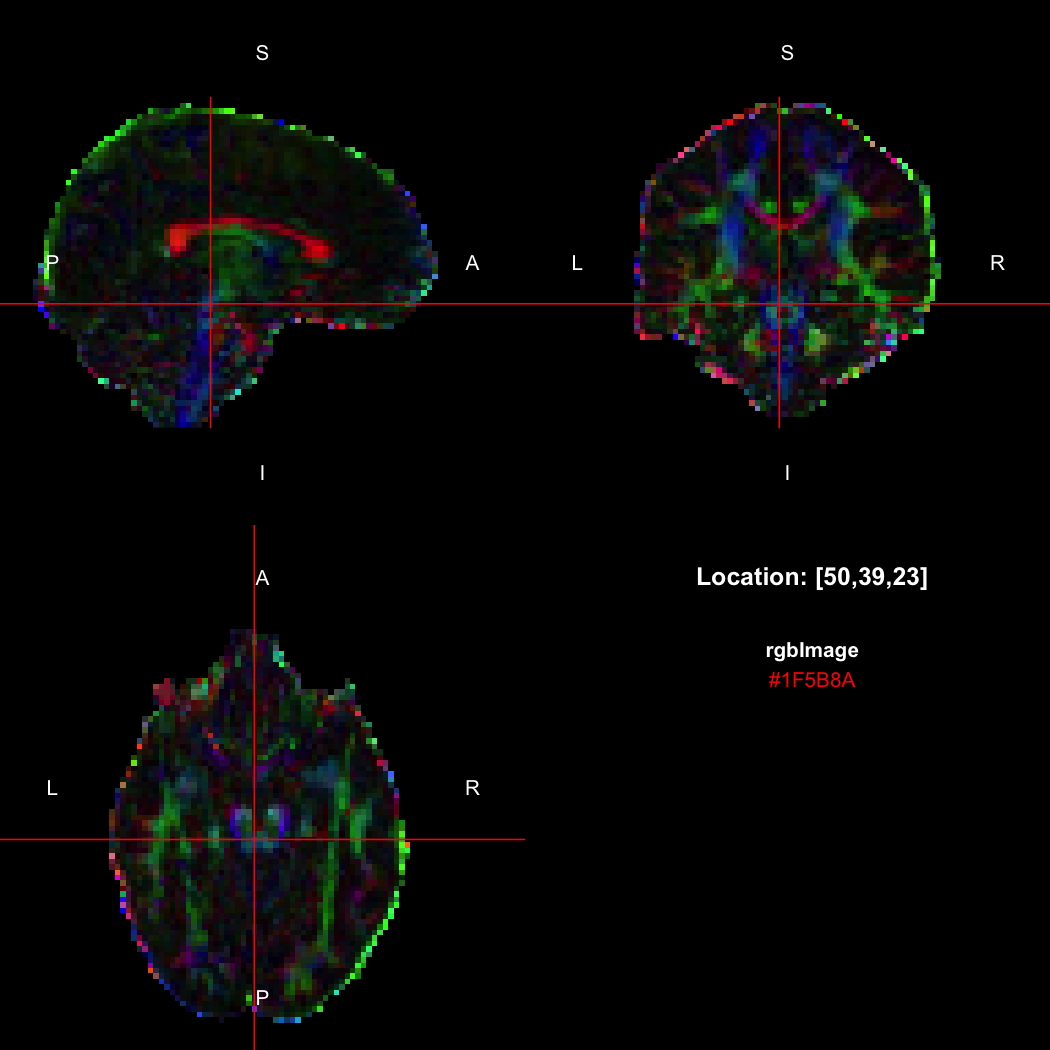

Performance

The RNifti package uses the robust NIfTI-1 reference implementation, which is written in C, to read and write NIfTI files. It also uses the standard NIfTI-1 data structure as its canonical representation of an image in memory. Together, these make the package extremely fast, as the following benchmark against packages AnalyzeFMRI, ANTsRCore, neuroim, oro.nifti and tractor.base shows.

installed.packages()[c("AnalyzeFMRI","ANTsRCore","neuroim","oro.nifti","RNifti",
                       "tractor.base"), "Version"]
#  AnalyzeFMRI    ANTsRCore      neuroim    oro.nifti       RNifti tractor.base
#     "1.1-17"    "0.5.6.3"      "0.0.6"      "0.9.1"      "0.9.0"      "3.2.2"

library(microbenchmark)
microbenchmark(AnalyzeFMRI::f.read.volume("example.nii"),
               ANTsRCore::antsImageRead("example.nii"),
               neuroim::loadVolume("example.nii"),
               oro.nifti::readNIfTI("example.nii"),
               RNifti::readNifti("example.nii"),
               tractor.base::readImageFile("example.nii"), unit="ms")
# Unit: milliseconds
#                                        expr       min        lq      mean
#   AnalyzeFMRI::f.read.volume("example.nii") 26.312881 26.769244 29.685981
#     ANTsRCore::antsImageRead("example.nii")  1.150787  1.626918  2.149145
#          neuroim::loadVolume("example.nii") 34.596506 37.732245 54.065227
#         oro.nifti::readNIfTI("example.nii") 57.059828 61.953430 89.386706
#            RNifti::readNifti("example.nii")  0.986773  1.136562  1.683821
#  tractor.base::readImageFile("example.nii") 33.380407 34.096574 34.961812
#     median        uq        max neval
#  27.301693 28.214908 185.441664   100
#   2.210696  2.481675   3.376350   100
#  40.714061 45.425047 192.978225   100
#  65.064212 71.425561 220.709246   100
#   1.501528  1.856601   7.961566   100
#  34.617259 35.257633  42.108584   100

With a median runtime of less than 2 ms, RNifti is typically at least ten times as fast as the alternatives to read this image into R. The exception is ANTsRCore, which uses a similar low-level pointer-based arrangement as RNifti, and is therefore comparable in speed. However, ANTsR has substantial dependencies, which may affect its suitability in some applications.

Implementation details

The package does not fully duplicate the NIfTI-1 structure's contents in R-visible objects. Instead, it passes key metadata back to R, such as the image dimensions and pixel dimensions, and it also passes back the pixel values where they are needed. It also creates an external pointer to the native data structure, which is stored in an attribute. This pointer is dereferenced whenever the object is passed back to the C++ code, thereby avoiding unnecessary duplication and ensuring that all metadata remains intact. The full NIfTI-1 header can be obtained using the niftiHeader R function, if it is needed.

This arrangement is efficient and generally works well, but many R operations strip attributes—in which case the external pointer will be removed. The internal structure will be built again when necessary, but using default metadata. In these cases, if it is important to keep the original metadata, the updateNifti function should be called explicitly, with a template object. This reconstructs the NIfTI-1 data structure, using the template as a starting point.

API

It is possible to use the package's NIfTI-handling code in other R packages' compiled code, thereby obviating the need to duplicate the reference implementation. Moreover, RNifti provides a C++ wrapper class, NiftiImage, which simplifies memory management, supports the package's internal image pointers and persistence, and provides syntactic sugar. Full doxygen documentation for this class is available at http://doxygen.flakery.org/RNifti/, and is also provided with package releases.

A third-party package can use the NiftiImage class by including

LinkingTo: Rcpp, RNifti

in its DESCRIPTION file, and then including the RNifti.h header file. For example,

#include "RNifti.h"

void myfunction ()
{
    RNifti::NiftiImage image("example.nii.gz");
    // Do something with the image
}

If you're using the sourceCpp function from Rcpp, you may also need to add the attribute line

// [[Rcpp::depends(RNifti)]]

to the top of your C++ source file.

In addition to the one taking a file path, there are also constructors taking a SEXP (i.e., an R object), another NiftiImage, or a nifti_image structure from the reference implementation. NiftiImage objects can be implicitly cast to pointers to nifti_image structs, meaning that they can be directly used in calls to the reference implementation's own API. The latter is accessed through the separate RNiftiAPI.h header file.

#include "RNifti.h"
#include "RNiftiAPI.h"

void myfunction (SEXP image_)
{
    RNifti::NiftiImage image(image_);
    const size_t volsize = nifti_get_volsize(image);
}

(RNifti will also have to be added to the Imports list in the package's DESCRIPTION file, as well as LinkingTo.) The RNiftiAPI.h header should only be included once per package, since it contains function implementations. Multiple includes will lead to duplicate symbol warnings from your linker. Therefore, if multiple source files require access to the NIfTI-1 reference implementation, it is recommended that the API header be included alone in a separate ".c" or ".cpp" file, while others only include the main RNifti.h.

RNifti is not specifically designed to be thread-safe, and R itself is expressly single-threaded. However, some effort has been made to try to minimise problems associated with parallelisation, such as putting R API calls within a critical region if OpenMP is being used. If you are using the API in a package that does use OpenMP or another form of threads, it is wise to preregister the functions exported by RNifti before use, by calling niftilib_register_all(). In single-threaded contexts this is optional, and will be performed when required.

Use in pure C++ projects

Thanks to contributions from @soolijoo, it is possible (as of package version 0.7.0) to use the NiftiImage C++ class in standalone C++ projects. You will need the following files:

Path Purpose
inst/include/lib/*.h Headers defining the NiftiImage class itself, related functions and macros
inst/include/niftilib/*.h Headers for the NIfTI-1 reference implementation
inst/include/znzlib/znzlib.h Header for I/O functions from the NIfTI-1 reference implementation
inst/include/zlib/*.h zlib headers for reading and writing gzipped files (optional; system zlib can be used instead)
src/niftilib/nifti1_io.c Source file for the NIfTI-1 reference implementation
src/znzlib/znzlib.c Source for I/O functions from the NIfTI-1 reference implementation
src/zlib/* zlib source files for reading and writing gzipped files (optional, as above)

Note that the NiftiImage class is header-only, but C code from the NIfTI-1 reference implementation will need to be compiled and linked into the project. The print.h header should be included before including NiftiImage.h, so that the R API is not used for printing error messages. The standalone directory provides a minimal example.

The NIfTI-2 format

The NIfTI-2 format is an evolution of the far more widely-used NIfTI-1. It primarily uses wider types for various fields, to support large datasets and improve precision.

Unfortunately, the NIfTI-1 version of the reference library is not forwards-compatible with NIfTI-2, and does not recognise NIfTI-2 files as valid, while the NIfTI-2 version changes the definition of the nifti_image data structure, and hence the return type of several core functions, rendering it potentially incompatible with software written for the original library. As a result, adding full NIfTI-2 support to RNifti without breaking existing code is not straightforward. Nevertheless, as of RNifti version 0.8.0, R function niftiVersion() and C++ static method NiftiImage::fileVersion() offer a forwards-compatible way to determine the version of the format used by a particular file, so that calling functions can take action accordingly.

News

Significant changes to the RNifti package are laid out below for each release.

===============================================================================

VERSION 0.10.0

R interface

  • Objects of class niftiHeader, created by the function of the same name, now also have core attributes such as pixdim and pixunits.
  • Passing objects without a dim or class attribute to functions expecting an image will now produce a more informative error message.

API changes

  • The NiftiImage class now uses a reference counting scheme, rather than relying on a simple persistence flag. (See the doxygen documentation for more details.) The isPersistent and setPersistence methods are therefore deprecated, with the former replaced by isShared.
  • Images are no longer internally duplicated when being passed back to R. This improves the package's memory footprint, but performing an explicit copy may now be necessary in some circumstances, e.g., if the image's memory will be freed elsewhere.
  • The RNIFTI_VERSION constant is now defined, as 100 * (major version) + (minor version). Its current value is therefore 10.
  • The niftilib function nifti_strdup is now part of the package API.

Bug fixes

  • The pixdim() and pixunits() functions will now work properly for path strings and other objects acceptable to niftiHeader(). (Reported by John Muschelli.)
  • Other, smaller memory leaks have been resolved.

===============================================================================

VERSION 0.9.0

  • When writing an image using an integer datatype, the scale and slope fields will now be set if the original values are outside the representable range of that datatype. This ensures that the voxel values are accurate when read back from the file (although some precision may, necessarily, be lost). This makes the datatype argument to writeNifti() more generally useful for file size reduction.
  • The dumpNifti() function has been soft-deprecated in favour of niftiHeader(), which works the same way. There is also a new analyzeHeader() function, which returns a list giving the header elements when interpreted according to the ANALYZE-7.5 format. Both functions now return a default header when given no argument.
  • The $ operator can now be used on "niftiImage" objects as a shorthand way to get or set individual header fields.
  • The qform and sform replacement functions now work on lists of class "niftiHeader".
  • The new rotation() function extracts just a pure 3x3 rotation matrix from an image xform or general affine.
  • Functions such as origin() and orientation() now also work directly on xform- like numeric matrices.
  • The offset part of an image's xform matrix (the fourth column) is now properly updated when the image is reoriented. Reorientation should also now work correctly for all possible permutations.
  • NA and NaN values are no longer removed from images on reading.
  • The pixdim attribute should now always contain the absolute values of the pixdim for each dimension.

===============================================================================

VERSION 0.8.1

  • A C-level namespace clash on certain platforms has been corrected.

===============================================================================

VERSION 0.8.0

  • The new niftiVersion() function identifies the NIfTI format variant used by files on disk.
  • The readNifti() function gains an option which allows only certain volumes to be read from disk.
  • The updateNifti() function gains an option to set the internal datatype, for advanced usage only (issue #8).
  • Calling updateNifti() with a list containing only a few fields could previously reset the remaining metadata to the defaults. This has been corrected.
  • It is now possible to change the cal_min and cal_max fields with the updateNifti() function (issue #9). The scl_slope and scl_inter fields cannot be changed, but this is now documented.
  • R packages using the RNifti API must now ensure that the USING_R symbol is defined (which it is by the main R header, R.h). Conversely, standalone use of RNifti as a C++ library no longer requires NO_R_ to be defined.

===============================================================================

VERSION 0.7.1

  • The package is now more careful about handling NaNs when converting to integer types.
  • Usage of the R API has been updated for forwards compatibility.

===============================================================================

VERSION 0.7.0

  • The new orientation() function can be used to identify the approximate storage orientation of an image. A replacement version allows the image data and metadata dimensions to be permuted and/or reversed.
  • Image reorientation is similarly available through the C++ API.
  • The sform and qform replacement methods should now follow R's usual semantics, and no longer modify the object in place if it is referred to by more than one name.
  • The NiftiImage class is now suitable for use in standalone C++ projects. (Thanks to Matt Hall.)

===============================================================================

VERSION 0.6.0

  • Slope and intercept values in a NIfTI-1 header are now applied to the image data when converting it to an R array (which will in this case always be of mode double), or a C++ vector.
  • The slope and intercept will be reset to zero when updating the data in an internal image object.

===============================================================================

VERSION 0.5.1

  • A potential crash and/or memory leak in the C++ NiftiImage copy assignment methods has been fixed.

===============================================================================

VERSION 0.5.0

  • The NiftiImage class gains methods to drop or replace the image data, and to mutate its datatype in-place. A datatype no longer needs to be specified when writing an image to file using the toFile() C++ method.
  • The niftilib functions nifti_image_unload() and nifti_mat44_to_orientation() are now exposed through the RNifti API.
  • Some minor compiler warnings that would affect packages linking to RNifti have been resolved.
  • Additional tests have been added, to exercise the package more thoroughly.

===============================================================================

VERSION 0.4.0

  • Additional public methods have been added to the NiftiImage C++ class. Please see the API documentation at http://doxygen.flakery.org/RNifti/ for details.
  • The new origin() R function is a convenience wrapper for worldToVoxel(), which returns the voxel coordinates of the image origin.
  • The package now produces an error when passed an "anlz" class object (from package "oro.nifti"), rather than mishandling it.

===============================================================================

VERSION 0.3.0

  • C++ API change: the NiftiImage class is now defined within an RNifti namespace. This will break existing uses of the class, but compatibility with older versions of the package can be preserved if desired, by checking for the compile-time constant HAVE_RNIFTI_NAMESPACE, which will be defined from now on.
  • Additional niftilib functions for calculating matrix norms and byte swapping are now exposed through the RNifti API.
  • Calling the C/C++ function niftilib_register_all() more than once should no longer result in repeated re-registration of functions.

===============================================================================

VERSION 0.2.2

  • The voxelToWorld() and worldToVoxel() functions now handle 2D points, rather than producing an error. (Reported by Takeo Katsuki.)

===============================================================================

VERSION 0.2.1

  • Examples have been added to the R-level documentation.
  • Image pixel dimensions are now used to return a more sensible xform matrix in the case where the NIfTI-1 sform and qform are both marked unknown.

===============================================================================

VERSION 0.2.0

  • The writeNifti() function now performs path expansion on its argument, matching the behaviour of readNifti(). (Reported by John Muschelli.)
  • Calling as.array() on an internal image containing no data now returns an array full of NAs (with a warning), rather than crashing R. (Reported by Tim Tierney.)
  • The package should now work correctly with sparse MriImage objects, from first-party package "tractor.base".
  • Images with invalid internal pointers are now handled (with a warning) by attempting to reconstruct the missing data structure. This should not happen in regular use, but can occur when external pointers are handed back to the main thread by worker threads when working in parallel. (Reported by Takeo Katsuki.)
  • Calling the RNifti API from within OpenMP threads could previously lead to a stack imbalance. This is now guarded against, and a new C function, niftilib_register_all(), has been added as the recommended way to preregister all NIfTI-1 library functions wrapped by RNifti, particularly in threaded applications.
  • Doxygen comments have been added to the C++ code to document the low-level API. A Doxyfile has also been added to the package root directory.

===============================================================================

VERSION 0.1.0

  • First public release. Package code has been split off from "RNiftyReg".

===============================================================================

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("RNifti")

0.10.0 by Jon Clayden, 7 months ago


https://github.com/jonclayden/RNifti


Report a bug at https://github.com/jonclayden/RNifti/issues


Browse source code at https://github.com/cran/RNifti


Authors: Jon Clayden [cre, aut] , Bob Cox [aut] , Mark Jenkinson [aut] , Matt Hall [ctb] , Rick Reynolds [ctb] , Kate Fissell [ctb] , Jean-loup Gailly [cph] , Mark Adler [cph]


Documentation:   PDF Manual


Task views: Medical Image Analysis


GPL-2 license


Imports Rcpp

Suggests testthat, covr, reportr

Enhances oro.nifti, tractor.base

Linking to Rcpp


Imported by ARIbrain, RNiftyReg, divest, fmriqa, melviewr, neurobase, oro.nifti, stapler, tractor.base.

Suggested by spant.


See at CRAN
