The problem

Fit a random forest and you get predictions, and you get an importance table. You also get, whether you ask for it or not, an answer to a different question: which observations does this model consider to be the same kind of thing? Two observations that keep landing in the same leaf are, as far as the forest is concerned, alike. Collect that over every tree and you have the proximity matrix

$$P_{ij} = \frac{1}{B}\sum_{b=1}^{B} \mathbb{I}\big[\ell_b(x_i) = \ell_b(x_j)\big],$$

with $\ell_b(x)$ the leaf of tree $b$ that $x$ reaches. It is a full description of the geometry the model learned, and it is the only part of a forest that talks about the observations rather than about the variables.

randomForest will compute it if you pass proximity = TRUE, hand you the matrix, and stop. There is no way in R to ask of it any of the questions that make it a statistical object rather than a picture:

• Do two forests represent the data the same way? Two engines, two random seeds, this year's model against last year's.
• How much of the structure is explained by the response, and how much by something the model never saw?
• Is it stable? A matrix that changes when you refit is not evidence of anything, and nobody says how many trees it takes.
• What do you do when $n$ is large? The matrix is $n \times n$: 31 MB at $n = 2{,}000$ and about 760 MB at $n = 10{,}000$.
• Is it even a valid kernel? The out-of-bag definition, which is the one that removes the optimistic bias, is not positive semi-definite, and every method downstream that assumes a kernel is quietly wrong on it.

What the package does instead

One extractor across engines, both definitions, the transforms and metric diagnostics that go with them, permutation inference for comparing matrices and partitioning one, two storage forms for when the matrix does not fit, a stability layer, and five plots. Every number in the documentation comes from a simulation study shipped in inst/simulations/, and several of those studies exist because they contradicted something that had been written down first.

Installation

# install.packages("pak")
pak::pak("agostinognasso/Proximum")

A worked example, end to end

The package ships a synthetic consumer loan portfolio. It is generated rather than collected, and ?loans says exactly what was built into it and why; the short version is that public credit panels with a protected attribute left in them do not exist, and one of the questions below needs one.

library(Proximum)
library(randomForest)
#> randomForest 4.7-1.2
#> Type rfNews() to see new features/changes/bug fixes.

str(loans, give.attr = FALSE, vec.len = 2)
#> 'data.frame':    2000 obs. of  13 variables:
#>  $ default        : Factor w/ 2 levels "no","yes": 1 1 1 1 1 ...
#>  $ amount         : num  8125 4425 ...
#>  $ income         : num  27233 30134 ...
#>  $ dti            : num  0.436 0.255 0.385 0.562 0.397 ...
#>  $ term           : Factor w/ 2 levels "36 months","60 months": 2 1 2 1 1 ...
#>  $ employment     : num  6 7 17 0 3 ...
#>  $ score          : num  720 673 644 758 553 ...
#>  $ utilisation    : num  0.352 0.445 0.566 0.345 0.367 ...
#>  $ delinquencies  : int  0 2 0 0 0 ...
#>  $ home           : Factor w/ 3 levels "rent","mortgage",..: 3 3 2 2 2 ...
#>  $ purpose        : Factor w/ 5 levels "debt consolidation",..: 5 1 1 1 1 ...
#>  $ vintage        : Factor w/ 4 levels "2019","2020",..: 1 1 1 1 1 ...
#>  $ applicant_group: Factor w/ 2 levels "A","B": 1 1 1 1 2 ...

The proximity, and what it is

as_proximity() takes a fitted ensemble and the data it was fitted on.

predictors <- setdiff(names(loans), c("applicant_group", "vintage"))

set.seed(1)
book <- loans[sample(nrow(loans), 400), ]
rf <- randomForest(default ~ ., data = book[, predictors], ntree = 500)

px <- as_proximity(rf, newdata = book[, predictors])
px
#> <proximity> 400 x 400
#>   engine : randomForest
#>   trees  : 500
#>   type   : inbag

The name is as_proximity() and not proximity() because e2tree, the package most likely to be attached alongside this one, exports a proximity() of its own. The as_ prefix also says what it does: it coerces a fitted ensemble into an object of class proximity, the way as.dist() coerces into a dist.

summary() reports what the matrix looks like and, more usefully, whether the dissimilarity it induces can be embedded in a Euclidean space at all.

summary(px)
#> <proximity> summary
#>   observations : 400
#>   engine       : randomForest ( 500 trees )
#>   type         : inbag
#>   off-diagonal :
#>    0%   25%   50%   75%  100%
#> 0.000 0.010 0.052 0.156 0.972
#>   exact zeros  : 10.7%
#>   euclidean    : TRUE

The one thing everybody gets wrong

The in-bag proximity above averages over all trees, including the trees that were fitted on $i$ and $j$. Those trees have seen both observations and are inclined to separate them correctly, which inflates the proximity of same-class pairs. Restricting the average to the trees where both were out-of-bag removes that bias, and costs the geometry:

rf_oob <- randomForest(default ~ ., data = book[, predictors], ntree = 500,
                       keep.inbag = TRUE)
px_oob <- as_proximity(rf_oob, newdata = book[, predictors], type = "oob")

c(inbag = summary(px)$euclidean, oob = summary(px_oob)$euclidean)
#> inbag   oob
#>  TRUE FALSE

This is not an accident of the data. Stack the leaf indicators into $Z$: the in-bag proximity is $P = ZZ^{\top}/B$, a Gram matrix, hence positive semi-definite. The out-of-bag one divides each entry by the number of trees in which that pair was jointly out of bag, making it a Hadamard quotient of two Gram matrices, which need not be positive semi-definite and here is not. Debiasing the estimate costs the geometry. make_psd() will repair it and record what it did, and summary() refuses to let the question pass silently either way.

Looking at it

Three views of the same object, and which one answers a question depends on the question.

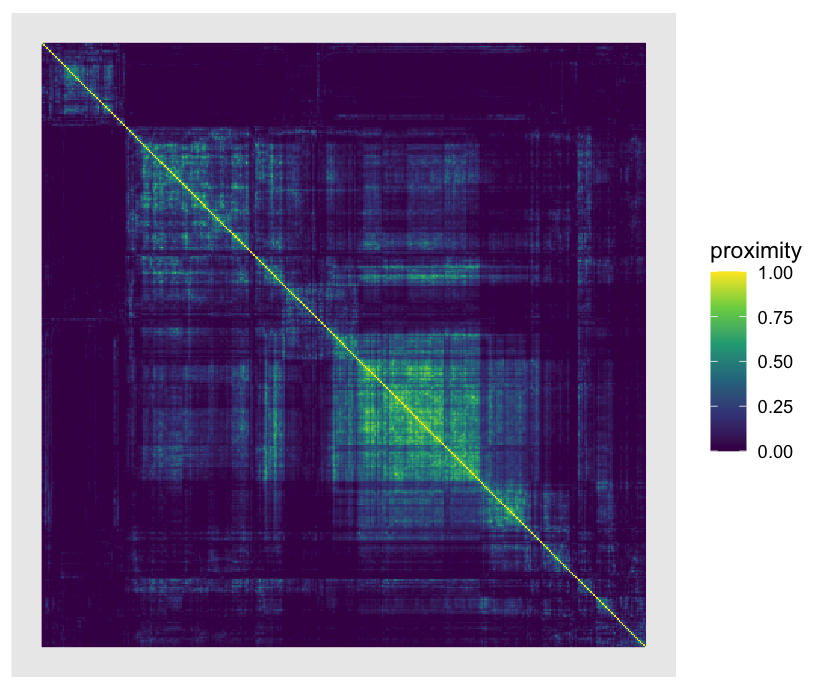

autoplot(px, type = "heatmap")

The rows and columns are ordered by a seriation of the induced dissimilarity, so the blocks the ensemble learned line up along the diagonal instead of being scattered by the order the rows arrived in.

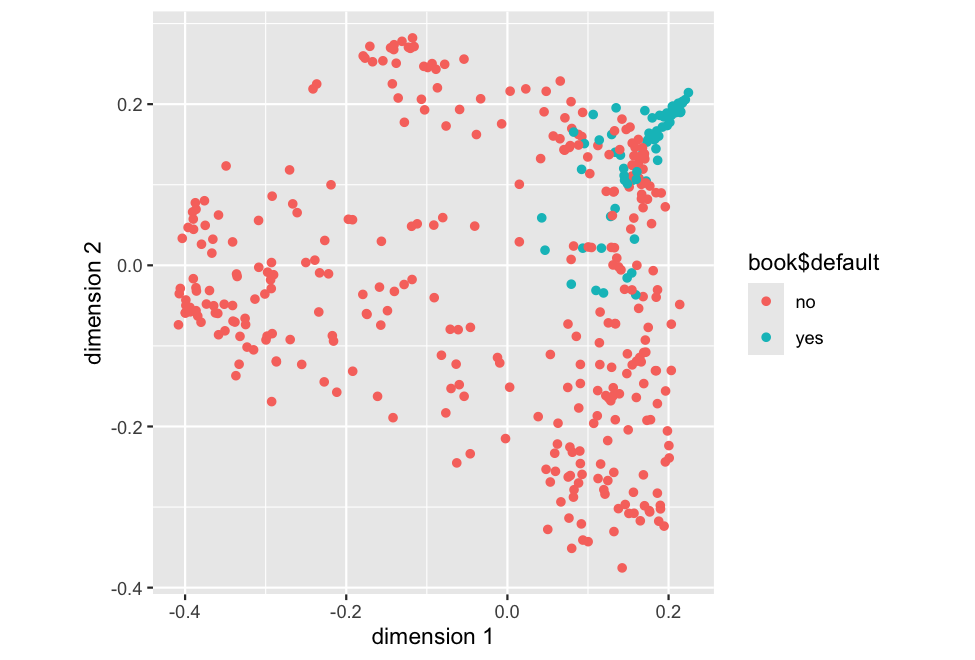

autoplot(px, type = "mds", colour = book$default)

The colouring is yours to pass. A proximity object carries the engine, the number of trees and the definition used, and nothing about the response, so a plot that coloured by outcome on its own would be inventing the outcome.

set.seed(11)

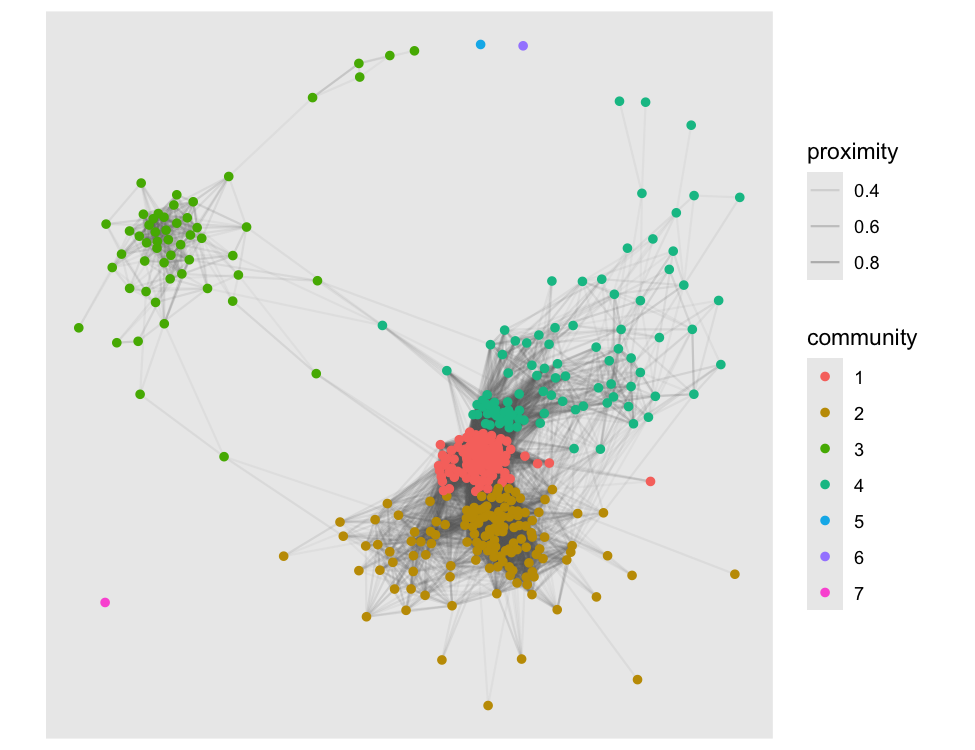

autoplot(px, type = "network", threshold = 0.2)

The network keeps the pairs above a threshold and reads the communities of the graph that remain. Those communities are the forest's own clustering, recovered from the proximity rather than imposed from outside; vignette("credit-scoring-case") asks whether they are risk segments and finds one that defaults at close to nine in ten against a book rate of one in six.

Comparing two forests

This is the question the package was written for. Fit a second forest, on the same data, differing only in the seed, and ask whether the two represent the borrowers the same way.

rf2 <- randomForest(default ~ ., data = book[, predictors], ntree = 500)
px2 <- as_proximity(rf2, newdata = book[, predictors])

mantel_test(px, px2, n_perm = 999)
#>
#>  Mantel test (pearson, 999 permutations of the observations)
#>
#> data:  px and px2
#> r = 0.99192, pairs = 79800, permutations = 999, p-value = 0.001
#> alternative hypothesis: greater

Two refits of the same forest agree almost perfectly, which is the answer you would hope for and the reference level everything else is read against. Change what the forest is allowed to look at, and it moves:

thin <- randomForest(default ~ score + utilisation, data = book, ntree = 500)
mantel_test(px, as_proximity(thin, newdata = book), n_perm = 999)$statistic
#>         r
#> 0.5257286

Three statistics are offered and they do not measure the same thing. mantel_test() correlates the pairwise values and runs the whole range; cka() aligns the centred kernels; rv_coefficient() is the matrix correlation. Measured over 20 replications at $n = 300$, on forests with nothing in common at all, Mantel reads 0.000 and CKA reads 0.670, and CKA cannot separate replicates of one ensemble (0.991) from forests fitted to different predictors with the same response (0.959). Use Mantel unless the question really is about the kernels.

Partitioning the variation

permanova() puts the proximity on the left of a design and asks how much of it each term accounts for. The interesting use is a term the model never received:

permanova(px, ~ default + applicant_group, data = book, n_perm = 999)
#> Permutation test for the proximity dissimilarity
#> Terms added sequentially (first to last), 999 permutations of the observations
#> Dissimilarity: sqrt(1 - P) on px
#> Model: ~default + applicant_group
#>                  Df SumOfSqs      R2      F Pr(>F)
#> default           1    5.973 0.03359 13.864  0.001 ***
#> applicant_group   1    0.803 0.00451  1.863  0.003 **
#> Residual        397  171.048 0.96190
#> Total           399  177.824 1.00000
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

applicant_group is a protected attribute. It was not in the formula, and in the generating process it affects the default probability nowhere at all. It does shift the income and the score, which are in the formula, so the forest separates the groups anyway, and this is how much: a small share, reliably not zero, measured on a model that never saw the attribute. That is a fairness diagnostic that does not require the model to have used the thing you are worried about.

How many trees does this need?

A proximity matrix that moves when you refit is not evidence of anything. n_trees_required() grows the ensemble in disjoint blocks and stops when the entries stop moving between them.

required <- n_trees_required(rf, book[, predictors], eps = 0.15)
required
#> <proximity_trees>
#>   target  : CV below 0.15
#>   searched: 25 to 200 trees per block, 4 block sizes
#>   answer  : 200 trees per block, at CV 0.135

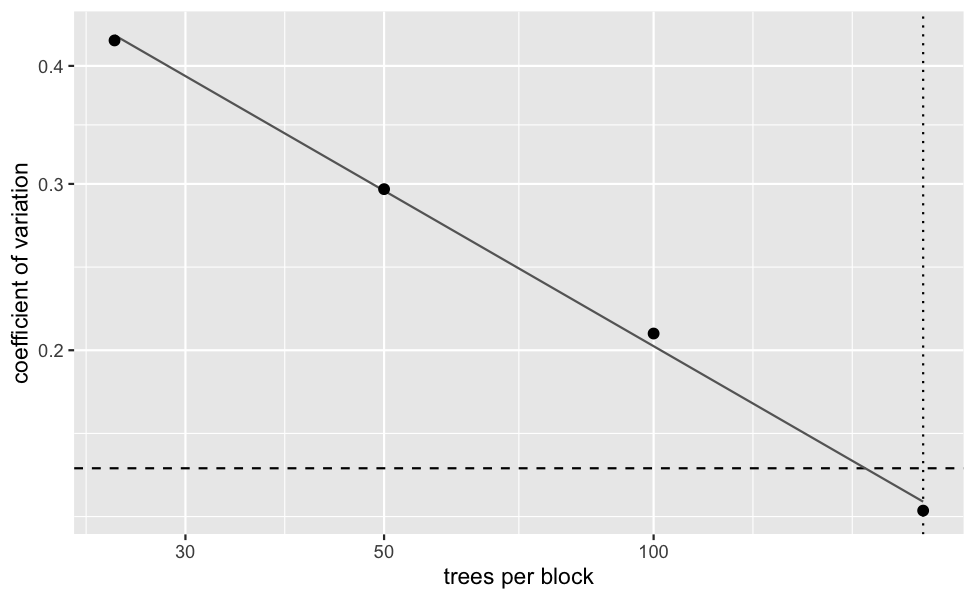

autoplot(required)

The criterion falls as a power of the block size, and the exponent is fitted rather than assumed: over four generating processes and both engines it lay between $-0.55$ and $-0.60$ with $R^2$ of at least 0.98, so it is a clean power law whose exponent is not the $-0.5$ a plain standard error would give. The answer is an ordinary integer and goes on behaving as one, so it can be handed straight back to the engine that raised the question:

required + 100L
#> [1] 300

stability() asks the same question of replicates you already hold, and assumes nothing about where they came from.

When the matrix does not fit

Two storage forms, and they are not interchangeable.

sparsify(px, threshold = 0.05)
#> <proximity_sparse> 400 x 400
#>   engine   : randomForest
#>   trees    : 500
#>   type     : inbag
#>   threshold: 0.05
#>   stored   : 50.4% of entries
nystrom(rf, book[, predictors], landmarks = 100)
#> <proximity_nystrom> 400 x 400
#>   engine   : randomForest
#>   trees    : 500
#>   type     : inbag
#>   landmarks: 100 of 400
#>   rank     : 100
#>   stored   : 312.7 Kb against 1.2 Mb dense

sparsify() thresholds and stores the result sparsely. It saves memory and does not survive being used: every statistic here runs on $\sqrt{1 - P}$ or on the doubly centred matrix, and across every sample size measured those had between 99.5 and 99.9 per cent, and exactly 100 per cent, of their entries non-zero. So the inference layer refuses a sparse object by name rather than densifying it behind you.

nystrom() is the one that survives. It stores an $n \times r$ factor whose cross-product is the approximation, so the $n \times n$ matrix is never formed going in or coming out: 40 MB instead of 760 at $n = 10{,}000$ with 500 landmarks. Its entries move much more than its geometry does, which is the point, since the geometry is what it is for: at $n = 400$ with 200 landmarks, 20.7 per cent relative error on the entries and 4.9 per cent on the configuration embedding() returns.

Closing the loop with e2tree

e2tree fits a single explainable tree to the dissimilarity a forest induces. It takes that dissimilarity as an argument, which is exactly what this package produces, and returns a tree whose own partition comes back as a proximity:

explanation <- e2tree::e2tree(default ~ ., data = book[, predictors],
                              D = as_dissimilarity(px), ensemble = rf)
mantel_test(px, as_proximity(explanation), n_perm = 999)$statistic
#>        r
#> 0.653591

That correlation is how much of the ensemble's geometry the single tree reproduces, which is the question e2tree exists to answer and the one thing it cannot ask of itself.

What the example showed

The forest arranged 400 borrowers into blocks; one of those blocks is an interaction no coefficient would have shown you. Two refits of the same forest agreed almost perfectly and a forest given two predictors instead of ten did not, so the statistic separates the cases it needs to separate. A protected attribute that the model never received still accounted for a measurable share of the arrangement. And the whole thing was checked for stability, for the number of trees it rests on, and for whether it is a kernel at all.

The theory underneath

The Gram identity. With $Z$ the stacked leaf indicator, $P = ZZ^{\top}/B$. This settles three things at once: the in-bag proximity is positive semi-definite, so $\sqrt{1-P}$ is Euclidean; the out-of-bag one is an elementwise quotient of two such products and is not; and the matrix can be computed as one sparse cross-product instead of a loop over trees. On 300 trees and 1,500 observations that is 0.16 s against 13 s.

Classical scaling and the kernel are the same computation. With $D^2 = \mathbf{1}\mathbf{1}^{\top} - P$ and $J$ the centring operator, $J\mathbf{1} = 0$ kills the first term and $G = -\tfrac12 J D^2 J = \tfrac12 J P J$. So embedding() never has to form the dissimilarity, and the same identity is what lets it read a configuration off a Nystrom factor at $O(nr^2)$ instead of $O(n^3)$.

Permutation, not asymptotics. Every entry of a proximity matrix shares an observation with $2(n-2)$ others, so the entries are nowhere near independent and no closed-form null applies. All the tests here permute the observations, which permutes rows and columns together and preserves that dependence.

Undefined is not zero. An out-of-bag pair that was never jointly out of bag is NA, not 0. Storing a zero would assert that the two observations never share a leaf, when what the forest reported is that it never had the chance to look. Every statistic is computed on the pairs where all matrices involved are defined, and reports how many those were.

Every exported function

What has been measured

Four studies in inst/simulations/, seeded and re-runnable, and the documentation quotes them rather than the other way round. Several exist because a claim written down first turned out to be false when measured:

• ?sparsify said most pairs never share a leaf and the thresholded matrix is typically very sparse. The exact zeros are 14.3 per cent of pairs at $n = 200$ and 58.5 per cent at $n = 1600$. Replaced by the table.
• n_trees_required() shipped with a default of eps = 0.01, which needs about 50,000 trees and was unreachable from any ensemble anyone would fit.
• The criterion was documented as falling like $1/\sqrt{B}$. The measured exponent is $-0.56$, and the projection now fits it instead of assuming it.
• Stratified landmarks were said to help. On the whole matrix they do not at all; on the rows they were designed for they do, and only when the budget is small relative to how rare the class is.
• The seriation behind the heatmap was documented as deterministic. It is not, on a proximity: the matrix is $k/B$ and takes at most $B+1$ distinct values, so the ordering breaks the ties at random and moves with the seed.

What this does not protect you from

The proximity is a description of the model, not of the data. Everything here is a statement about how one fitted ensemble arranges one sample; a different forest on the same data arranges it differently, which is precisely what stability() is for measuring rather than a caveat to be waved away.

A Mantel correlation is not a hypothesis about the world. It tests exchangeability of the observation labels, and rejecting that null tells you the two matrices share structure, not that the structure means what you hoped.

permanova() on a proximity is a diagnostic and not a fairness certificate. A share of variation is one number about one representation.

And the out-of-bag proximity is not a kernel. Every method downstream that assumes one, cka() included, refuses it rather than returning something plausible, and make_psd() is a choice you make and not a repair that happens to you.

Documentation

• vignette("Proximum-intro"): proximity matrices as statistical objects, the in-bag and out-of-bag definitions and what separates them, the three views.
• vignette("comparing-forests"): the inference layer in full.
• vignette("large-n"): sparsification, Nystrom, stability, and how to choose.
• vignette("credit-scoring-case"): the three questions above, worked.

Status

Version 1.1.0, and not yet on CRAN. The roadmap is complete and the interface is settled: extraction from randomForest, ranger and e2tree, the transforms and the metric diagnostics, the positive semi-definite repair, the inference layer, the scalability and stability layers, the plots, and the streaming layer.

The stable badge is a statement about the interface rather than about the number of users. as_proximity() was the last name to move, and it moved so that this one would not have to; from here a breaking change goes through a deprecation cycle. Everything 1.1.0 added is additive: proximity_stream() is a new constructor and block_size a new argument with a default, so nothing that ran under 1.0.0 runs differently.

Related work

• e2tree: explains a forest with a single tree built on the same similarity structure. It consumes what this package produces, and as_proximity() reads its result back.
• rankimp: which variables drive the representation Proximum describes.
• vegan: the reference implementation of Mantel, PERMANOVA and Procrustes on ordinary dissimilarities. It cannot consume a matrix with undefined pairs, which is why this package implements them natively and uses vegan only in its tests, to check that the two agree where both apply.
