Interface to the World Database on Protected Areas

Fetch and clean data from the World Database on Protected Areas (WDPA). Data is obtained from Protected Planet < http://protectedplanet.net>.


wdpar: Interface to the World Database on Protected Areas

lifecycle Travis Build Status AppVeyor Build Status Coverage Status CRAN_Status_Badge

The World Database on Protected Areas (WDPA) is the most comprehensive global dataset of protected areas. It is used to monitor the performance of existing protected areas and pinpoint priority areas for establishing new protected areas. Additionally, this database receives monthly updates from government agencies and non-governmental organizations. However, this dataset is associated with many issues that need to be addressed prior to analysis and the dynamic nature of this dataset means that the entire data cleaning process needs to be repeated after obtaining a new version of the dataset. The wdpar R package provides an interface to the World Database on Protected Areas (WDPA) and functions for cleaning the data following best practices (outlined in Butchart et al. 2015; Runge et al. 2015; Protected Planet).

Installation

The latest official version of the wdpar R package can be installed using the following R code. Please note that this package requires the curl and sf R packages which may require additional software to be installed. If you encounter problems installing the wdpar R package, please consult the installation instructions for these packages.

install.packages("wdpar", repos = "https://cran.rstudio.com/")

Alternatively, the latest developmental version can be installed using the following R code. Please note that while developmental versions may contain additional features not present in the official version, they may also contain coding errors.

if (!require(devtools))
  install.packages("devtools")
devtools::install_github("prioritizr/wdpar")

Usage

Here we will provide a short introduction to the wdpar R package. First, we will load the wdpar R package. We will also load the dplyr and ggmap R packages to help explore the data.

# load packages
library(wdpar)
library(dplyr)
library(ggmap)

Now we will download protected area data for Malta from Protected Planet. We can achieve this by specifying Malta's country name (i.e. "Malta") or Malta's ISO3 code (i.e. "MLT").

# download protected area data for Malta
mlt_raw_pa_data <- wdpa_fetch("Malta", wait = TRUE)

Next, we will clean the data set. Briefly, the cleaning steps include: excluding protected areas that are not yet implemented, excluding protected areas with limited conservation value, replacing missing data codes (e.g. "0") with missing data values (i.e. NA), replacing protected areas represented as points with circular protected areas that correspond to their reported extent, repairing any topological issues with the geometries, and erasing overlapping areas. For more information, see ?wdpa_clean.

# clean Malta data
mlt_pa_data <- wdpa_clean(mlt_raw_pa_data)

Print preview of the data associated with each protected area.

# print preview
head(mlt_pa_data)
## Simple feature collection with 6 features and 28 fields
## geometry type:  MULTIPOLYGON
## dimension:      XY
## bbox:           xmin: 1382455 ymin: 4280784 xmax: 1399726 ymax: 4299580
## epsg (SRID):    NA
## proj4string:    +proj=cea +lon_0=0 +lat_ts=30 +x_0=0 +y_0=0 +datum=WGS84 +units=m +no_defs
## precision:      1000
## # A tibble: 6 x 29
##   WDPAID WDPA_PID PA_DEF NAME  ORIG_NAME DESIG DESIG_ENG DESIG_TYPE
##    <dbl> <chr>    <chr>  <chr> <chr>     <chr> <chr>     <chr>
## 1 1.94e5 194420   1      Filf… Filfla    Rise… Nature R… National
## 2 1.94e5 194425   1      Il-G… Il-Gżejj… Rise… Nature R… National
## 3 5.56e8 5555886… 1      Il-M… Il-Majji… Park… National… National
## 4 1.75e5 174757   1      Il-Ġ… Il-Ġonna… List… List of … National
## 5 1.75e5 174758   1      Bidn… Bidnija,… List… List of … National
## 6 1.94e5 194415   1      Il-Ġ… Il-Ġonna… List… List of … National
## # … with 21 more variables: IUCN_CAT <chr>, INT_CRIT <chr>, MARINE <chr>,
## #   REP_M_AREA <dbl>, REP_AREA <dbl>, NO_TAKE <chr>, NO_TK_AREA <dbl>,
## #   STATUS <chr>, STATUS_YR <dbl>, GOV_TYPE <chr>, OWN_TYPE <chr>,
## #   MANG_AUTH <chr>, MANG_PLAN <chr>, VERIF <chr>, METADATAID <dbl>,
## #   SUB_LOC <chr>, PARENT_ISO <chr>, ISO3 <chr>, GEOMETRY_TYPE <chr>,
## #   AREA_KM2 <dbl>, geometry <MULTIPOLYGON [m]>

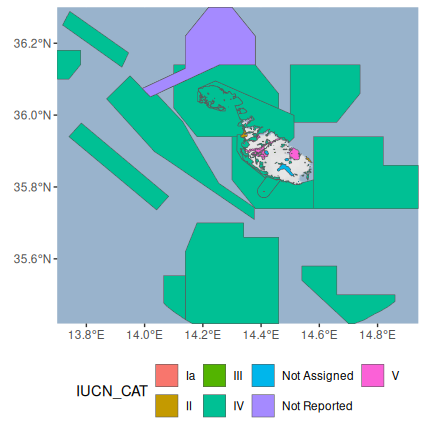

Finally, after cleaning the data, let's plot a map showing Malta's protected areas and color each area according to its management category (as defined by the The International Union for Conservation of Nature).

# reproject data to longitude/latitude for plotting
mlt_pa_data <- st_transform(mlt_pa_data, 4326)

# download basemap imagery
bg <- get_stamenmap(unname(st_bbox(mlt_pa_data)), zoom = 8,
                    maptype = "watercolor", force = TRUE)

# make map
ggmap(bg) +
geom_sf(aes(fill = IUCN_CAT), data = mlt_pa_data, inherit.aes = FALSE) +
theme(axis.title = element_blank(), legend.position = "bottom")

If you need to calculate protected area coverage statistics for a country, please note that you will need to manually clip the cleaned protected area data to the countries' coastline and its Exclusive Economic Zone (EEZ) to obtain accurate results (see official data cleaning guidelines). This step is not performed by the wdpar R package because there is no single "best" coastline and Exclusive Economic Zone (EEZ) dataset, since the "best" dataset for any given project depends on the level of required precision and available computational resources. For more examples---including an example of clipping the cleaned data to a coastline---please refer to the package vignette.

Citation

Please cite the wdpar R package and the World Database on Protected Areas (WDPA) in publications.

To cite the wdpar package in publications, use:

  Hanson JO (2019) wdpar: Interface to the World Database on
  Protected Areas. R package version 0.0.2.
  https://CRAN.R-project.org/package=wdpar

  UNEP-WCMC and IUCN (2019) Protected Planet: The World Database
  on Protected Areas (WDPA), [insert month/year of the version
  downloaded], Cambridge, UK: UNEP-WCMC and IUCN. Available at:
  www.protectedplanet.net.

Please cite both the World Database on Protected Areas data set
and this package.
To see these entries in BibTeX format, use 'print(<citation>,
bibtex=TRUE)', 'toBibtex(.)', or set
'options(citation.bibtex.max=999)'.

News

wdpar 0.0.2

  • CRAN release.

wdpar 0.0.1.3

  • Fix bug where parts of MULTIPOLYGON protected areas would be incorrectly erased during data cleaning (#9).

wdpar 0.0.1.2

  • Fix bug where protected areas represented as POINT and MULTIPOINT geometries were incorrectly omitted (#9).
  • Address CRAN check NOTES by removing unused Imports, or manually calling one of their functions.

wdpar 0.0.1.1

  • Fix Summary: ElementNotVisible bug (#8).
  • Citation automatically reports the correct URL (i.e. CRAN or GitHub) based on package version number.

wdpar 0.0.1

  • CRAN release.

wdpar 0.0.0.4 (unreleased)

  • Fix broken link in README, add package website to DESCRIPTION.
  • Update lifecycle badge to stable.
  • Fix bug that threw a bogus error message in wdpa_fetch when force = TRUE.

wdpar 0.0.0.3 (unreleased)

  • Update overview in README and vignette (#3; @rungec).
  • Add list with other datasets to vignette (#4; @rungec).
  • Add information about coastlines and EEZs to the README, vignette, and wdpa_clean documentation (#5; @rungec).
  • Add Visconti et al. 2013 citation to wdpa_clean help page, regarding the buffering of point localities.

wdpar 0.0.0.2 (unreleased)

  • Initial "everything works" version.

wdpar 0.0.0.1 (unreleased)

  • Initial package version.
