Archaeological Stratigraphy and Chronological Sequences

A tidy framework for working with archaeological stratigraphy and chronology. Includes tools for reading, analysing, and visualising stratigraphic sequences (Harris matrices) as directed graphs following the definition of Dye and Buck (2015) and an R interface to the Chronological Query Language (CQL) used in 'OxCal' by Bronk Ramsey (2009) .

stratigraphr

stratigraphr is a tidy framework for working with archaeological stratigraphy and chronology in R. It includes tools for reading, analysing, and visualising stratigraphic sequences (Harris matrices) and as directed graphs and an R interface to OxCal’s Chronological Query Language (CQL).

Installation

You can install the latest release of era from CRAN with:

install.packages("stratigraphr")

Or install the development version from GitHub with pak:

# install.packages("pak")
devtools::install_github("joeroe/stratigraphr")

Usage

stratigraph() uses a data frame of stratigraphic relations to construct a stratigraphic graph:

library(stratigraphr)

# Example stratigraphy from Harris (1979), figure 12:
harris12
#>    context   above   below equal
#> 1        1      NA 2, 3, 4  <NA>
#> 2        2       1       5  <NA>
#> 3        3       1       5  <NA>
#> 4        4       1       5  <NA>
#> 5        5 2, 3, 4       6  <NA>
#> 6        6       5    7, 8  <NA>
#> 7        7       6       9     8
#> 8        8       6       9     7
#> 9        9    7, 8 natural  <NA>
#> 10 natural       9      NA  <NA>

stratigraph(harris12, "context", "above")
#> # A stratigraph: 10 units and 12 relations
#> # ✔ Valid stratigraphic graph
#>                 1
#> ┌───────────────┼───────────────┐
#> 2               3               4
#> └───────────────┼───────────────┘
#>                 5
#>                 │
#>                 6
#>         ┌───────┴───────┐
#>         7               8
#>         └───────┬───────┘
#>                 9
#>                 │
#>              natural

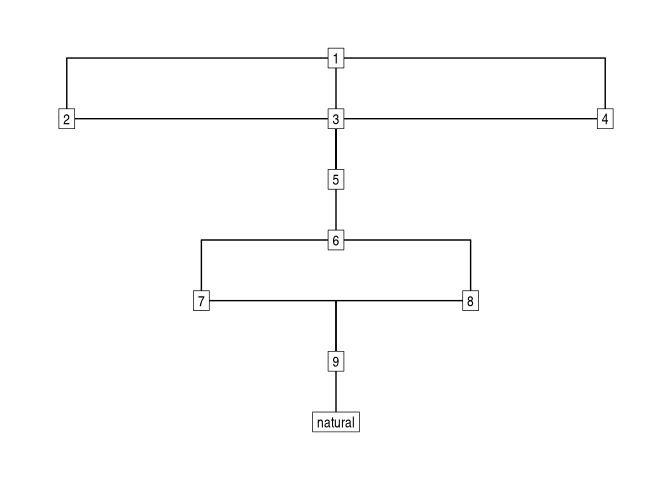

stratigraph objects are built on top of tidygraph, which gives access to a powerful tidy interface for manipulating and analysing the stratigraphy. It also works seamlessly with ggraph. For example, to approximate a conventional ‘Harris matrix’ visualisation with ggraph:

library("ggraph")
#> Loading required package: ggplot2

# Example data after Harris 1979, Fig. 12
harris12 |>
  stratigraph("context", "above") |>
  ggraph(layout = "sugiyama") +
    geom_edge_elbow() +
    geom_node_label(aes(label = context), label.r = unit(0, "mm")) +
    theme_graph()

For further information on:

• Graph-bases stratigraphic analysis, see vignette("stratigraphr").
• Chronological query language, see vignette("cql").

This package previous contained functions for tidy radiocarbon data. These were deprecated in v0.3.0 and moved to the c14 package. See c14’s introductory vignette for further information.
