Learning Graphs from Data via Spectral Constraints

In the era of big data and hyperconnectivity, learning high-dimensional structures such as graphs from data has become a prominent task in machine learning and has found applications in many fields such as finance, health care, and networks. 'spectralGraphTopology' is an open source, documented, and well-tested R package for learning graphs from data. It provides implementations of state of the art algorithms such as Combinatorial Graph Laplacian Learning (CGL), Spectral Graph Learning (SGL), Graph Estimation based on Majorization-Minimization (GLE-MM), and Graph Estimation based on Alternating Direction Method of Multipliers (GLE-ADMM). In addition, graph learning has been widely employed for clustering, where specific algorithms are available in the literature. To this end, we provide an implementation of the Constrained Laplacian Rank (CLR) algorithm.


codecov Travis-CI-Badge Build status CircleCI Docker Build Status Build Status

spectralGraphTopology provides estimators to learn k-component, bipartite, and k-component bipartite graphs from data by imposing spectral constraints on the eigenvalues and eigenvectors of the Laplacian and adjacency matrices. Those estimators leverages spectral properties of the graphical models as a prior information, which turn out to play key roles in unsupervised machine learning tasks such as community detection.

From inside an R session, type:

Alternatively, you can install the development version from GitHub:

$ git clone https://github.com/dppalomar/spectralGraphTopology.git
$ cd spectralGraphTopology
$ make build && make install

Microsoft Windows

On MS Windows environments, make sure to install the most recent version of Rtools.

Usage: clustering

We illustrate the usage of the package with simulated data, as follows:

library(spectralGraphTopology)
library(clusterSim)
library(igraph)
set.seed(42)

# generate graph and data
n <- 50  # number of nodes per cluster
twomoon <- clusterSim::shapes.two.moon(n)  # generate datapoints
k <- 2  # number of components

# estimate underlying graph
S <- crossprod(t(twomoon$data))
graph <- learn_k_component_graph(S, k = k, beta = .5, verbose = FALSE, abstol = 1e-3)

# plot
# build network
net <- igraph::graph_from_adjacency_matrix(graph$Adjacency, mode = "undirected", weighted = TRUE)
# colorify nodes and edges
colors <- c("#706FD3", "#FF5252")
V(net)$cluster <- twomoon$clusters
E(net)$color <- apply(as.data.frame(get.edgelist(net)), 1,
                      function(x) ifelse(V(net)$cluster[x[1]] == V(net)$cluster[x[2]],
                                        colors[V(net)$cluster[x[1]]], '#000000'))
V(net)$color <- colors[twomoon$clusters]
# plot nodes

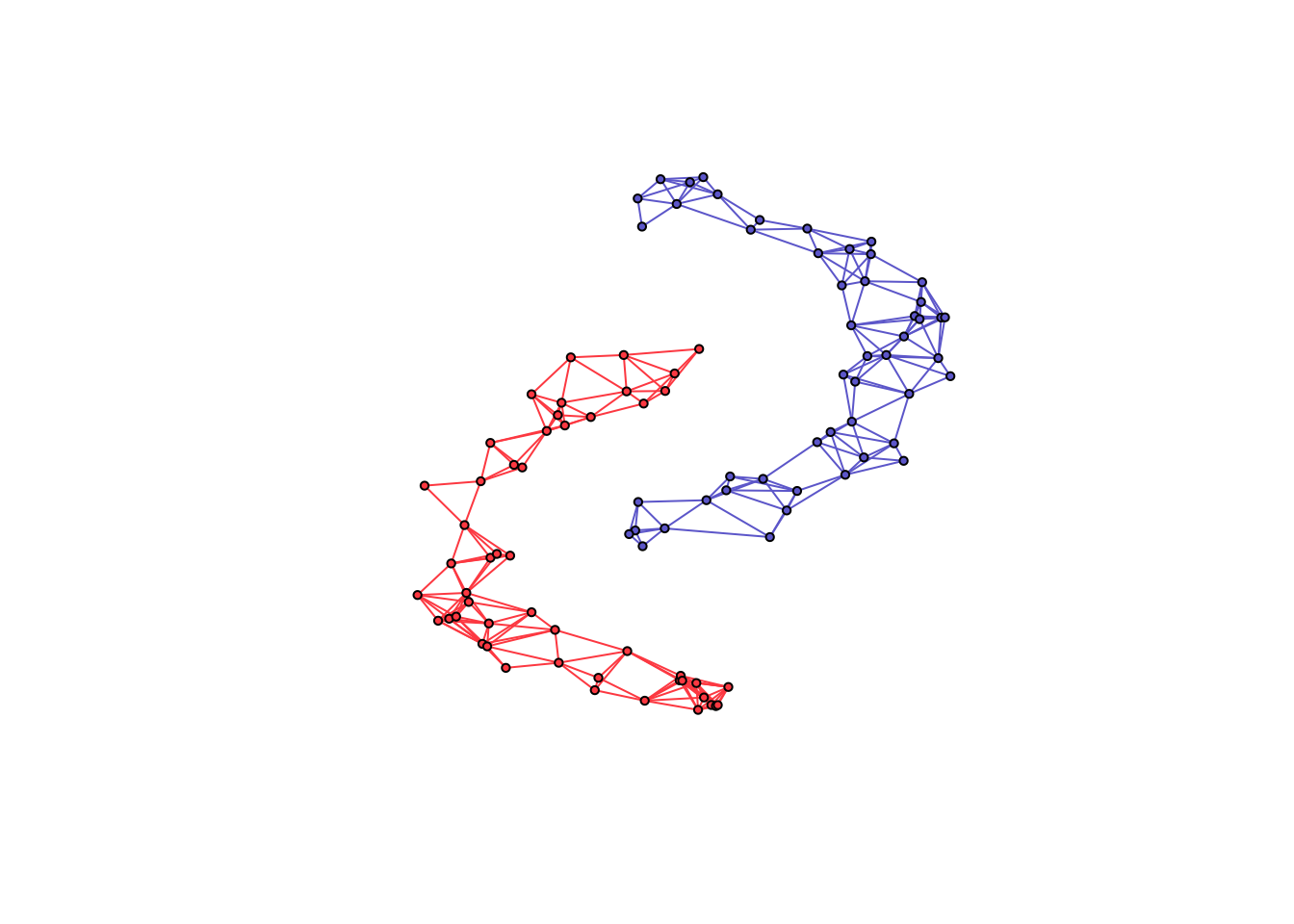

plot(net, layout = twomoon$data, vertex.label = NA, vertex.size = 3)

For more examples, check out our gallery.

Contributing

We welcome all sorts of contributions. Please feel free to open an issue to report a bug or discuss a feature request.

Citation

If you made use of this software please consider citing:

  • S. Kumar, J. Ying, J. V. de Miranda Cardoso, and D. P. Palomar (2019). A unified framework for structured graph learning via spectral constraints. https://arxiv.org/abs/1904.09792

In case you made use of the function cluster_k_component_graph, consider citing:

Links

Package: GitHub

README file: GitHub-readme

News

Changes in spectralGraphTopology version 0.1.0 (2019-05-xx)

  • Initial release is on CRAN.
