Visualize the Climate Scenario Alignment of a Financial Portfolio

Create plots to visualize the alignment of a corporate lending financial portfolio to climate change scenarios based on climate indicators (production and emission intensities) across key climate relevant sectors of the 'PACTA' methodology (Paris Agreement Capital Transition Assessment; < https://www.transitionmonitor.com/>). Financial institutions use 'PACTA' to study how their capital allocation decisions align with climate change mitigation goals.

r2dii.plot

The goal of r2dii.plot is to help you plot PACTA data in an informative, beautiful, and easy way.

Installation

You can install the released version of r2dii.plot from CRAN with:

install.packages("r2dii.plot")

And the development version from GitHub with:

# install.packages("devtools")
devtools::install_github("RMI-PACTA/r2dii.plot")

Example

The r2dii.plot package is designed to work smoothly with other “r2dii” packages – r2dii.data, r2dii.match, and r2dii.analysis. It also plays well with the ggplot2 package, which helps you customize your plots. Here, we’ll use an example data set that comes with r2dii.plot and that resembles the output of the target_market_share() function in the r2dii.analysis package.

library(ggplot2, warn.conflicts = FALSE)
library(dplyr, warn.conflicts = FALSE)
library(r2dii.plot)

Plot trajectory chart

• Use qplot_*() to quickly get a plot with standard titles and labels.

# `data` must meet documented "Requirements"
data <- market_share_demo %>%
  filter(
    sector == "power",
    technology == "renewablescap",
    region == "global",
    scenario_source == "demo_2020"
  )

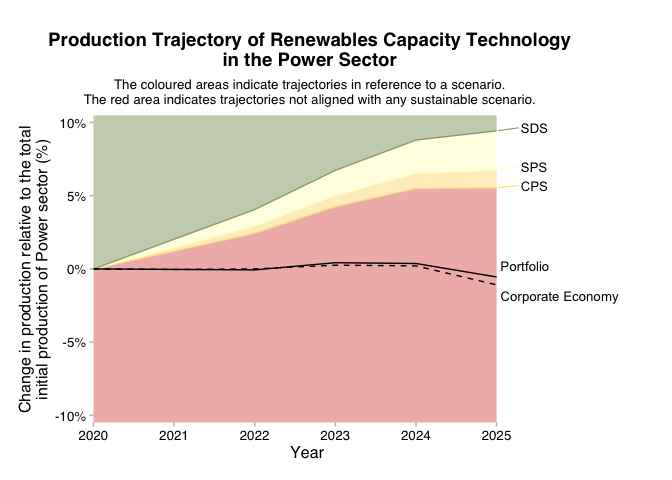

qplot_trajectory(data)

• Use plot_*() for a more “bare” plot that you can customize yourself by modifying the input data and applying ggplot2 functions.

data <- market_share_demo %>%
  filter(
    sector == "power",
    technology == "renewablescap",
    region == "global",
    scenario_source == "demo_2020",
    between(year, 2020, 2035)
  ) %>%
  mutate(
    label = case_when(
      metric == "projected" ~ "Your Portfolio",
      metric == "corporate_economy" ~ "Benchmark (Corp. Econ.)",
      metric == "target_sds" ~ "SDS Scenario",
      metric == "target_sps" ~ "SPS Scenario",
      metric == "target_cps" ~ "CPS Scenario",
      TRUE ~ metric
    )
  )

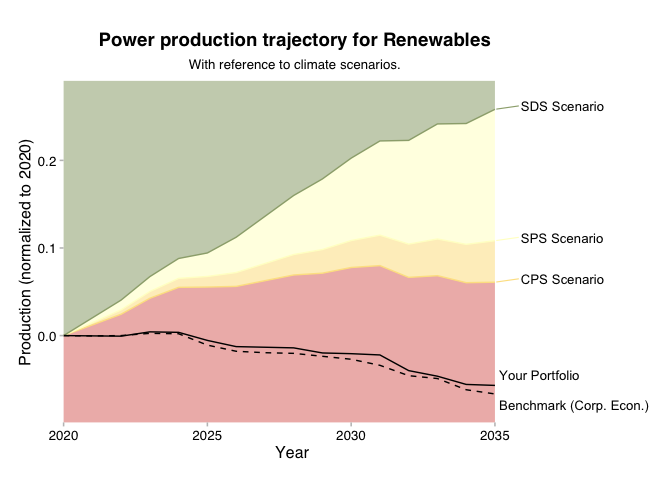

data %>%
  prep_trajectory() %>%
  plot_trajectory() +
  labs(
    title = "Power production trajectory for Renewables",
    subtitle = "With reference to climate scenarios.",
    x = "Year",
    y = "Production (normalized to 2020)"
  )

For examples of other plots and data sets please visit Get started with r2dii.plot.
