Fits a Principal Curve in Arbitrary Dimension

Fitting a principal curve to a data matrix in arbitrary dimensions.


BuildStatus AppVeyor BuildStatus CRAN_Status_Badge CoverageStatus

Fitting a principal curve to a data matrix in arbitrary dimensions. A principal curve is a smooth curve passing through the middle of a multidimensional dataset. This package is an R/C++ reimplementation of the S/Fortran code provided by Trevor Hastie, with multiple performance tweaks.

Example

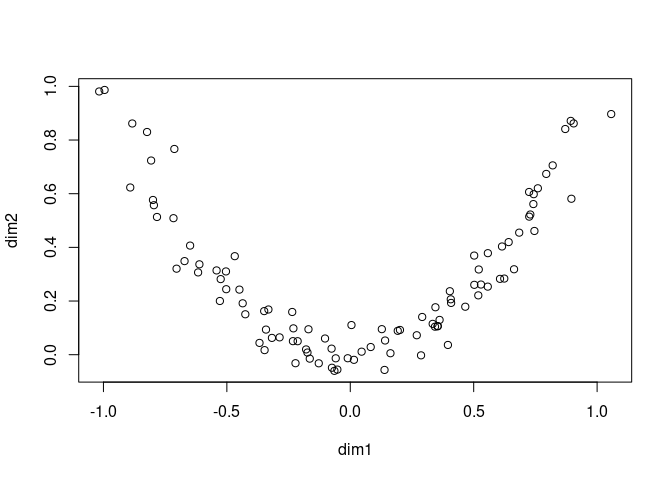

Usage of princurve is demonstrated with a toy dataset.

t <- runif(100, -1, 1)
x <- cbind(t, t ^ 2) + rnorm(200, sd = 0.05)
colnames(x) <- c("dim1", "dim2")

plot(x)

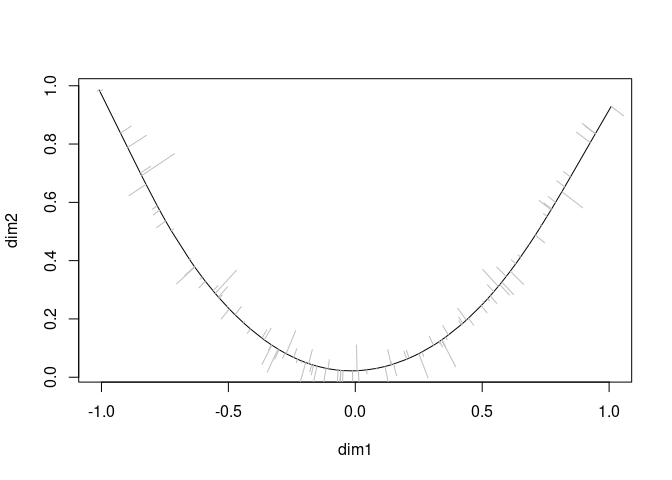

A principal curve can be fit to the data as follows:

library(princurve)
fit <- principal_curve(x)
plot(fit); whiskers(x, fit$s, col = "gray")

See ?principal_curve for more information on how to use the princurve package.

Latest changes

Check out news(package = "princurve") or NEWS.md for a full list of changes.

Latest changes in princurve 2.1.3 (2018-09-10)

  • Removed extra dependencies in princurve by removing vignettes; fixes #28.

  • Fully deprecated principal.curve() function.

Latest changes in princurve 2.1.2 (2018-07-24)

  • DOCUMENTATION: Use the magick package to generate animated GIFs in the vignette, instead of the animation package, because animation uses ffmpeg which is not installed on all CRAN systems.

  • DEPRECATION: Added deprecation which will be triggered starting from 2018-08-01 upon calling principal.curve() or get.lam().

References

Hastie, T. and Stuetzle, W., Principal Curves, JASA, Vol. 84, No. 406 (Jun., 1989), pp. 502-516, DOI: 10.2307/2289936 (PDF)

News

princurve 2.1.3 (2018-09-10)

  • Removed extra dependencies in princurve by removing vignettes; fixes #28.

  • Fully deprecated principal.curve() function.

princurve 2.1.2 (2018-07-24)

  • DOCUMENTATION: Use the magick package to generate animated GIFs in the vignette, instead of the animation package, because animation uses ffmpeg which is not installed on all CRAN systems.

  • DEPRECATION: Added deprecation which will be triggered starting from 2018-08-01 upon calling principal.curve() or get.lam().

princurve 2.1.1 (2018-07-23)

  • DOCUMENTATION: Added vignettes on the algorithm behind princurve and on benchmarking results between princurve 1.1 and 2.1.

  • BUG FIX principal_curve(): Don't apply rownames to curve as approx_points could be set to a different value other than nrow(x).

  • TESTING: Skip comparison unit test between princurve 1.1 and 2.1 on CRAN.

  • MINOR CHANGE project_to_curve(): Attempt to fix rchk warnings by not using x(i, j) = v notation but instead x[j * x.nrow() + i] = v.

  • DOCUMENTATION: Fix in README documentation.

princurve 2.1.0 (2018-07-14)

  • BUG FIX principal_curve(): avoid division by zero when the initial principal curve has already converged.

  • BUG FIX project_to_curve(): set dimension names of outputted s correctly.

  • DOCUMENTATION: Added cran-comments.md and revdep to repository.

  • MINOR CHANGE: Removed adjust_range(); use grDevices::extendrange() instead.

  • TESTING start_circle(): Added unit tests.

  • BUG FIX start_circle(): Make sure circle is centered and scaled correctly.

  • MINOR CHANGE: Move smoother functions from inside principal_curve() to a list smoother_functions.

  • TESTING smoother_functions: Added tests to ensure each of the smoother functions work correctly.

  • SPEED UP project_to_curve(): Significantly speed up this function by not allocation objects that don't need allocation, and pre-allocating objects that do.

  • SPEED UP principal_curve(): Added approx_points parameter. This allows approximation of the curve between smoothing and projection, to ensure principal_curve() scales well to higher numbers of samples.

princurve 2.0.4 (2018-07-09)

  • BUG FIX: Fixed issues with legacy principal.curve() and get.lam() (#8).

  • TESTING: Perform direct comparison between the current princurve and princurve 1.1-12 to check whether principal.curve() and get.lam() produce output with exactly the same format and almost exactly the same values.

  • SIGNIFICANT CHANGE: Remove the ord parameter from project_to_curve(), in order to reduce the amount of Rcpp code a little bit.

  • DOCUMENTATION: Improved citations (#10).

  • DOCUMENTATION: Improved news (#11).

  • SPEED UP project_to_curve(): Do not compute lambda accurately as it is only used to order the points in x.

  • MINOR CHANGE: Added ... argument to whiskers().

  • DOCUMENTATION: Minor fix in output documentation of principal_curve().

  • DOCUMENTATION: Added more information to the README.

  • MINOR CHANGE: Support both news() and markdown news on GitHub.

princurve 2.0.3 (2018-07-04)

  • SIGNIFICANT CHANGES: Reimplemented project_to_curve() completely in Rcpp, thereby completely removing all Fortran code from princurve.

  • TESTING: test both on linux and osx.

  • TESTING: Added tests to ensure project_to_curve() works similar to legacy get.lam().

princurve 2.0.2 (2018-06-12)

  • MAINTAINER: Changed the maintainer from Andreas Weingessel to Robrecht Cannoodt.

  • SIGNIFICANT CHANGES: Added functions principal_curve() and project_to_curve() with a slightly different interface than principal.curve() and get.lam().

  • DEPRECATION: Prepare get.lam() and principal.curve() for deprecation planned on 2018-07-01. Will contact maintainers of reverse depending packages.

  • BUG FIX: Allow start_circle() to work when the number of dimensions is larger than 2.

  • DOCUMENTATION: Rewrite the README in markdown.

  • DOCUMENTATION: Use roxygen2 for the documentation.

  • MINOR CHANGES: Clean up code to ensure consistent code formatting.

  • TESTING: Added tests for principal_curve() and project_to_curve().

  • TESTING: Enabled continuous integration using https://travis-ci.org/dynverse/princurve and https://ci.appveyor.com/project/dynverse/princurve.

princurve 1.1-12 (2013-04-25)

  • BUG FIX: src/sortdi.f (sortdi): Fix Fortran array bounds problem.

princurve 1.1-11 (2011-09-18)

  • MINOR CHANGES: Update for R 2.0.

  • DEPRECATION: Removed whiskers()

princurve 1.1-10 (2009-10-04)

  • BENCHMARKING: For larger data sets, most of the time is spent in get.lam().

  • BUG FIX: smooth.spline(x,y) will only use and return values for "unique" {x}:s. This means that the fitted {y}:s maybe be fewer than the input vector. In order to control for this, we use predict().

  • NEW FEATURE: Now smoother can also be a function taking arguments lambda, xj and ... and return y of the same length as lambda and xj.

  • NEW FEATURE principal.curve(): Arguments start and stretch can be NULL, which behaves the same as if they are "missing" [which is hard to emulate with for instance do.call()].

  • NEW FEATURE: Added converged and nbrOfIterations to return structure.

  • SPEED UP/MEMORY OPTIMIZATION: Now the nxp matrix 's' is allocated only once. Before it was built up using cbind() once per iteration.

  • SPEED UP: Now the smoother function is identified/created before starting the algorithm, and not once per dimension and iteration.

  • MEMORY OPTIMISATION principal.curve(): Now the result matrix allocated as doubles, not logicals (as NA is), in order to prevent a coersion.

  • BUG FIX: An error was thrown if smoother was a function.

  • MINOR CHANGES: Cleaned up source code (removed comments).

princurve 1.1-9 (2007-07-12)

  • MINOR CHANGE: Clarify license.

princurve 1.1-8 (2006-10-04)

  • MINOR CHANGE: Update license and add depending packages.

princurve 1.1-7 (2004-11-04)

  • MINOR CHANGE: Depend on R >= 1.9.0

  • MINOR CHANGE: Changed license to GPL version 2 or newer, as granted by Trevor Hastie.

  • MINOR CHANGE: Don't require defunct modreg.

princurve 1.1-6 (2004-01-31)

  • MINOR CHANGE: Removed INDEX.

princurve 1.1-5 (2002-07-03)

  • MINOR CHANGE: Added PACKAGE to Fortran calls.

princurve 1.1-4 (2002-07-02)

  • MINOR CHANGES: Change all T to TRUE.

princurve 1.1-2 (2001-06-10)

  • MINOR CHANGE plot.principal.curve(): Rename argument object to x.

  • MINOR CHANGE lines.principal.curve(): Rename argument object to x.

  • MINOR CHANGE points.principal.curve(): Rename argument object to x.

  • MINOR CHANGE: Rename internal functionstart.circle() to startCircle().

princurve 1.1-0 (2000-12-27)

  • DESCRIPTION: Added Title and Maintainer field.

  • MINOR CHANGES: Changed F to FALSE.

  • DOCUMENTATION: Added keywords to get.lam().

  • DOCUMENTATION: Expanded documentation of principal.curve(): added default values to usage, description, keywords and aliases.

  • MINOR CHANGES: Changed precision in getlam.f from v(2,10) to v(2,p).

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("princurve")

2.1.3 by Robrecht Cannoodt, 5 months ago


https://github.com/dynverse/princurve


Report a bug at https://github.com/dynverse/princurve/issues


Browse source code at https://github.com/cran/princurve


Authors: Trevor Hastie [aut] , Andreas Weingessel [aut] , Kurt Hornik [aut] , Henrik Bengtsson [ctb] (HenrikBengtsson) , Robrecht Cannoodt [aut, cre] , rcannood)


Documentation:   PDF Manual


GPL-2 license


Imports stats, graphics, grDevices, Rcpp

Suggests devtools, testthat

Linking to Rcpp


Imported by FateID, MDSMap, RSDA, SCORPIUS, analogue, lilikoi.


See at CRAN
