Diffusion Distance for Complex Networks

Enables the evaluation of diffusion distances for complex single-layer networks. Given a network one can define different types of Laplacian (or transition) matrices corresponding to different continuous-time random walks dynamics on the network. This package enables the evaluation of Laplacians, stochastic matrices, and the corresponding diffusion distance matrices. The metric structure induced by the network-driven process is richer and more robust than the one given by shortest-paths and allows to study the geometry induced by different types of diffusion-like communication mechanisms taking place on complex networks. For more details see: De Domenico, M. (2017) and Bertagnolli, G. and De Domenico, M. (2021) .

diffudist

Overview

The diffudist package provides several functions for evaluating the diffusion distance between nodes of a complex network.

Installation

# Or the development version from GitHub
# install.packages("devtools")
devtools::install_github("gbertagnolli/diffudist")

Usage

Additionally to diffudist you will also need the igraph package, because the main arguments of the functions in diffudist are networks as igraph objects.

library(diffudist)
library(igraph)
#>
#> Attaching package: 'igraph'
#> The following objects are masked from 'package:stats':
#>
#>     decompose, spectrum
#> The following object is masked from 'package:base':
#>
#>     union
library(ggplot2)
igraph_options(
  vertex.frame.color = "white",
  vertex.color = "#00B4A6",
  label.family = "sans-serif")

Examples

N <- 100
g <- sample_pa(N, directed = FALSE)
deg_g <- degree(g)
vertex_labels <- 1:N
vertex_labels[which(deg_g < quantile(deg_g, .9))] <- NA

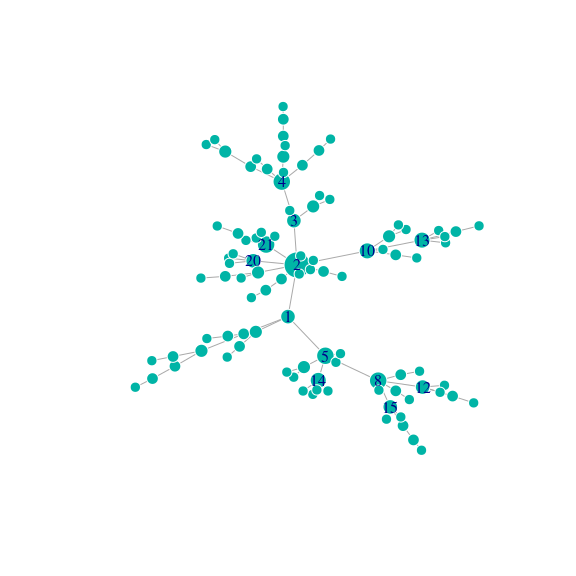

plot(g, vertex.label = vertex_labels, vertex.size = 6 + 10 * (deg_g - min(deg_g)) / max(deg_g))

D <- get_distance_matrix(g, tau = 2, type = "Normalized Laplacian", verbose = FALSE)
# or, for short:
# get_DDM(g, tau = 2, type = "Normalized Laplacian", verbose = FALSE)
MERW_Pt <- get_diffusion_probability_matrix(g, tau = 2, type = "MERW")
#> Unweighted network.
#> Evaluating the MERW Normalized Laplacian matrix

The probability transition matrix returned from get_diffusion_probability_matrix (or its shortened version get_diffu_Pt) is the matrix e^−τ**L_rw. The diffusion dynamics is controlled by the specific Laplacian matrix L_rw = I − T_rw, where T_rw is the jump matrix of the discrete-time random walk corresponding to our continuous-time dynamics.

Let us check that MERW_Pt is an actual stochastic (transition) matrix, i.e., that its rows are probability vectors

if (sum(MERW_Pt)  - N > 1e-6) {
  print("MERW_Pt is not a stochastic matrix")
} else {
  print("MERW_Pt is a stochastic matrix")
}
#> [1] "MERW_Pt is a stochastic matrix"

Compute diffusion distances from the Probability matrix MERW_Pt as follows:

if (requireNamespace("parallelDist", quietly = TRUE)) {
  # parallel dist
  D_MERW <- as.matrix(parallelDist::parDist(MERW_Pt))
} else {
  # dist
  D_MERW <- as.matrix(stats::dist(MERW_Pt))
}

Plot distance matrix

And finally plot the distance matrices (requires ggplot2 and ggdengro)

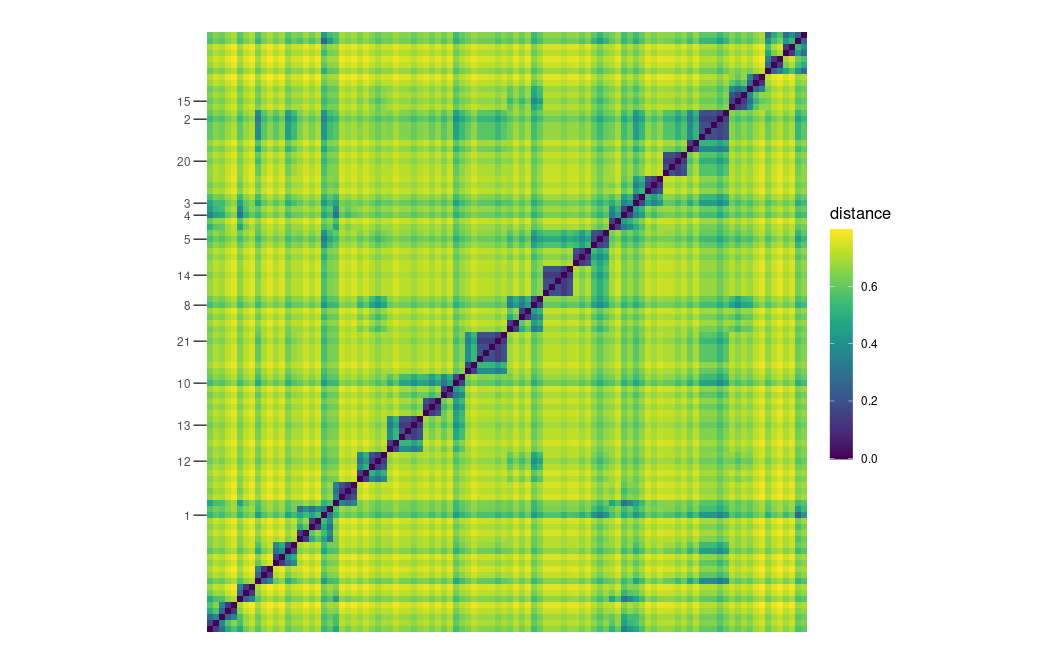

plot_distance_matrix(D, show_dendro = FALSE) +
  scale_y_discrete(breaks = vertex_labels[!is.na(vertex_labels)])

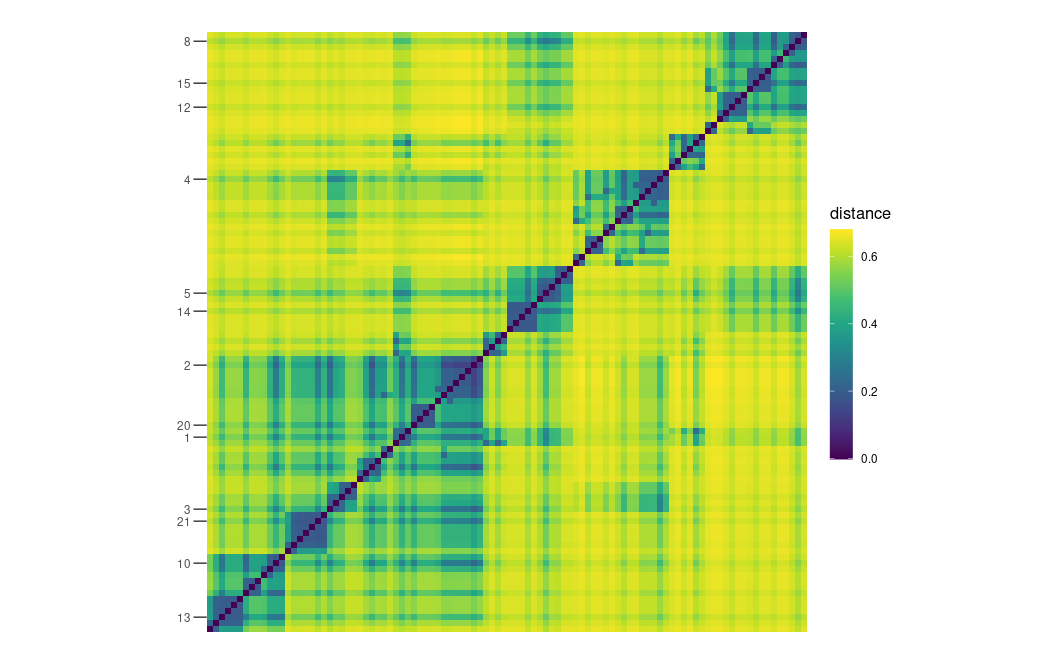

plot_distance_matrix(D_MERW, show_dendro = FALSE) +
  scale_y_discrete(breaks = vertex_labels[!is.na(vertex_labels)])

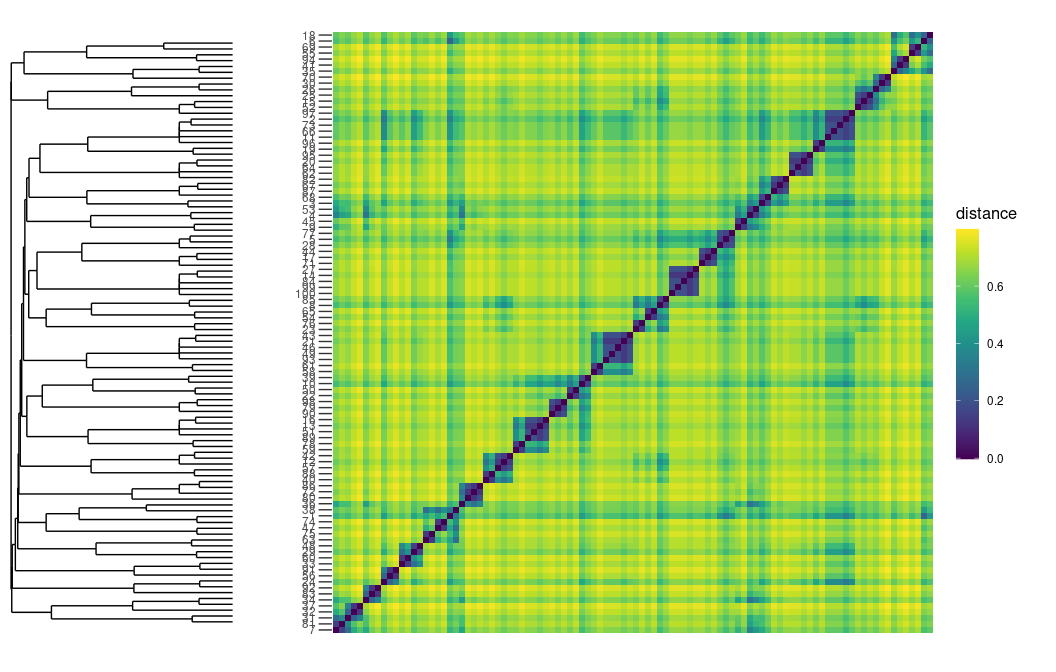

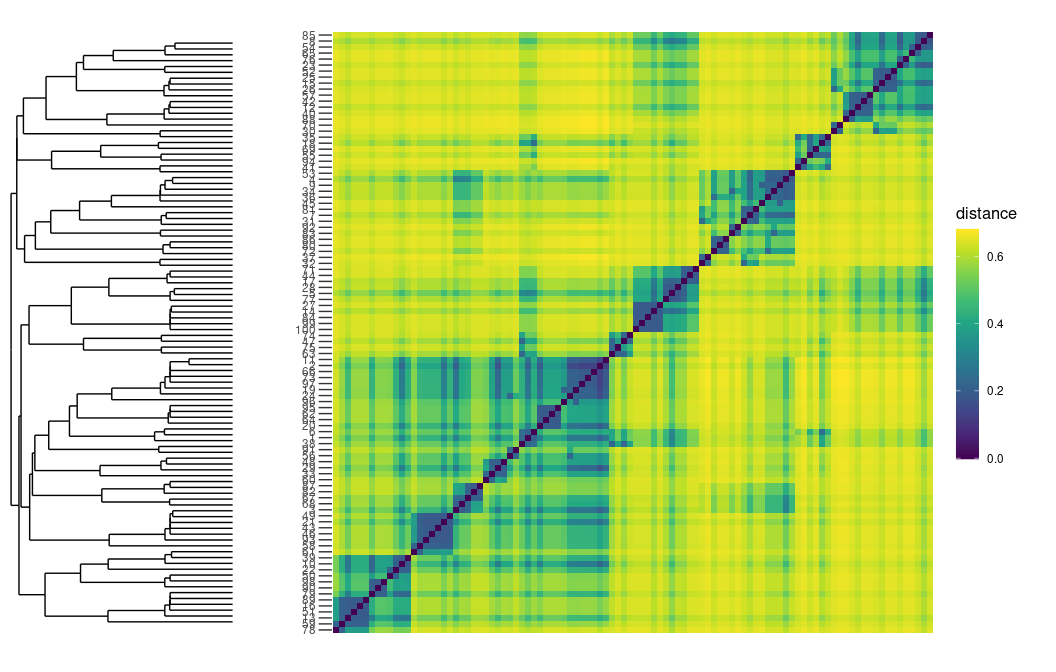

Adding the hierarchical clustering, i.e., visualising a dendrogram.

plot_distance_matrix(D)

plot_distance_matrix(D_MERW)

References

Bertagnolli, G., & De Domenico, M. (2021). Diffusion geometry of multiplex and interdependent systems. Physical Review E, 103(4), 042301. DOI: 10.1103/PhysRevE.103.042301, arXiv: 2006.13032, my-website.
