Tools for Developing Binary Logistic Regression Models

Tools designed to make it easier for beginner and intermediate users to build and validate binary logistic regression models. Includes bivariate analysis, comprehensive regression output, model fit statistics, variable selection procedures, model validation techniques and a 'shiny' app for interactive model building.


blorr: Tools for building binary logistic regression models

Author: Aravind Hebbali
License: MIT

Travis build status AppVeyor Build Status Coverage status

Tools designed to make it easier for users, particularly beginner/intermediate R users to build logistic regression models. Includes comprehensive regression output, variable selection procedures, model validation techniques and a 'shiny' app for interactive model building.

# Install blorr from CRAN
install.packages("blorr")

# Or the development version from GitHub
# install.packages("devtools")
devtools::install_github("rsquaredacademy/blorr")

Shiny App

Use blr_launch_app() to explore the package using a shiny app.

Vignettes

Consistent Prefix

blorr uses consistent prefix blr_* for easy tab completion.

Quick Overview

library(blorr)
library(magrittr)

Bivariate Analysis

blr_bivariate_analysis(hsb2, honcomp, female, prog, race, schtyp)
#>                          Bivariate Analysis
#> ---------------------------------------------------------------------
#> Variable    Information Value    LR Chi Square    LR DF    LR p-value
#> ---------------------------------------------------------------------
#>  female           0.10              3.9350          1        0.0473
#>   prog            0.43              16.1450         2        3e-04
#>   race            0.33              11.3694         3        0.0099
#>  schtyp           0.00              0.0445          1        0.8330
#> ---------------------------------------------------------------------

Weight of Evidence & Information Value

blr_woe_iv(hsb2, prog, honcomp)
#>                            Weight of Evidence
#> -------------------------------------------------------------------------
#> levels    0s_count    1s_count    0s_dist    1s_dist        woe      iv
#> -------------------------------------------------------------------------
#>   1          38          7           0.26       0.13       0.67     0.08
#>   2          65          40          0.44       0.75      -0.53     0.17
#>   3          44          6           0.30       0.11       0.97     0.18
#> -------------------------------------------------------------------------
#>
#>       Information Value
#> -----------------------------
#> Variable    Information Value
#> -----------------------------
#>   prog           0.4329
#> -----------------------------

Model

# create model using glm
model <- glm(honcomp ~ female + read + science, data = hsb2,
             family = binomial(link = 'logit'))

Regression Output

blr_regress(model)
#> - Creating model overview.
#> - Creating response profile.
#> - Extracting maximum likelihood estimates.
#> - Estimating concordant and discordant pairs.
#>                              Model Overview
#> ------------------------------------------------------------------------
#> Data Set    Resp Var    Obs.    Df. Model    Df. Residual    Convergence
#> ------------------------------------------------------------------------
#>   data      honcomp     200        199           196            TRUE
#> ------------------------------------------------------------------------
#>
#>                     Response Summary
#> --------------------------------------------------------
#> Outcome        Frequency        Outcome        Frequency
#> --------------------------------------------------------
#>    0              147              1              53
#> --------------------------------------------------------
#>
#>                   Maximum Likelihood Estimates
#> -----------------------------------------------------------------
#>  Parameter     DF    Estimate    Std. Error    z value    Pr(>|z|)
#> -----------------------------------------------------------------
#> (Intercept)    1     -12.7772       1.9755    -6.4677      0.0000
#>   female1      1      1.4825        0.4474     3.3139       9e-04
#>    read        1      0.1035        0.0258     4.0186       1e-04
#>   science      1      0.0948        0.0305     3.1129      0.0019
#> -----------------------------------------------------------------
#>
#>  Association of Predicted Probabilities and Observed Responses
#> ---------------------------------------------------------------
#> % Concordant          0.8561          Somers' D        0.7147
#> % Discordant          0.1425          Gamma            0.7136
#> % Tied                0.0014          Tau-a            0.2794
#> Pairs                  7791           c                0.8568
#> ---------------------------------------------------------------

Model Fit Statistics

blr_model_fit_stats(model)
#>                               Model Fit Statistics
#> ---------------------------------------------------------------------------------
#> Log-Lik Intercept Only:      -115.644    Log-Lik Full Model:              -80.118
#> Deviance(196):                160.236    LR(3):                            71.052
#>                                          Prob > LR:                         0.000
#> MCFadden's R2                   0.307    McFadden's Adj R2:                 0.273
#> ML (Cox-Snell) R2:              0.299    Cragg-Uhler(Nagelkerke) R2:        0.436
#> McKelvey & Zavoina's R2:        0.518    Efron's R2:                        0.330
#> Count R2:                       0.810    Adj Count R2:                      0.283
#> BIC:                          181.430    AIC:                             168.236
#> ---------------------------------------------------------------------------------

Confusion Matrix

blr_confusion_matrix(model)
#> Confusion Matrix and Statistics
#>
#>           Reference
#> Prediction   0   1
#>          0 135  26
#>          1  12  27
#>
#>                Accuracy : 0.81
#>                  95% CI : (0.7487, 0.8619)
#>     No Information Rate : 0.735
#>     P-Value [Acc > NIR] : 0.008453
#>
#>                   Kappa : 0.4673
#>  Mcnemar's Test P-Value : 0.034955
#>
#>             Sensitivity : 0.5094
#>             Specificity : 0.9184
#>          Pos Pred Value : 0.6923
#>          Neg Pred Value : 0.8385
#>              Prevalence : 0.2650
#>          Detection Rate : 0.1350
#>    Detection Prevalence : 0.1950
#>       Balanced Accuracy : 0.7139
#>
#>        'Positive' Class : 1
#>

Hosmer Lemeshow Test

blr_test_hosmer_lemeshow(model)
#>            Partition for the Hosmer & Lemeshow Test
#> --------------------------------------------------------------
#>                         def = 1                 def = 0
#> Group    Total    Observed    Expected    Observed    Expected
#> --------------------------------------------------------------
#>   1       20         0          0.16         20        19.84
#>   2       20         0          0.53         20        19.47
#>   3       20         2          0.99         18        19.01
#>   4       20         1          1.64         19        18.36
#>   5       21         3          2.72         18        18.28
#>   6       19         3          4.05         16        14.95
#>   7       20         7          6.50         13        13.50
#>   8       20         10         8.90         10        11.10
#>   9       20         13        11.49         7          8.51
#>  10       20         14        16.02         6          3.98
#> --------------------------------------------------------------
#>
#>      Goodness of Fit Test
#> ------------------------------
#> Chi-Square    DF    Pr > ChiSq
#> ------------------------------
#>   4.4998      8       0.8095
#> ------------------------------

Gains Table

blr_gains_table(model)
#> # A tibble: 10 x 12
#>    decile total   `1`   `0`    ks    tp    tn    fp    fn sensitivity
#>     <dbl> <int> <int> <int> <dbl> <int> <int> <int> <int>       <dbl>
#>  1   1.00    20    14     6  22.3    14   141     6    39        26.4
#>  2   2.00    20    13     7  42.1    27   134    13    26        50.9
#>  3   3.00    20    10    10  54.2    37   124    23    16        69.8
#>  4   4.00    20     7    13  58.5    44   111    36     9        83.0
#>  5   5.00    20     3    17  52.6    47    94    53     6        88.7
#>  6   6.00    20     3    17  46.7    50    77    70     3        94.3
#>  7   7.00    20     1    19  35.7    51    58    89     2        96.2
#>  8   8.00    20     2    18  27.2    53    40   107     0       100
#>  9   9.00    20     0    20  13.6    53    20   127     0       100
#> 10  10.0     20     0    20   0      53     0   147     0       100
#>    specificity accuracy
#>          <dbl>    <dbl>
#>  1        95.9     77.5
#>  2        91.2     80.5
#>  3        84.4     80.5
#>  4        75.5     77.5
#>  5        63.9     70.5
#>  6        52.4     63.5
#>  7        39.5     54.5
#>  8        27.2     46.5
#>  9        13.6     36.5
#> 10         0       26.5

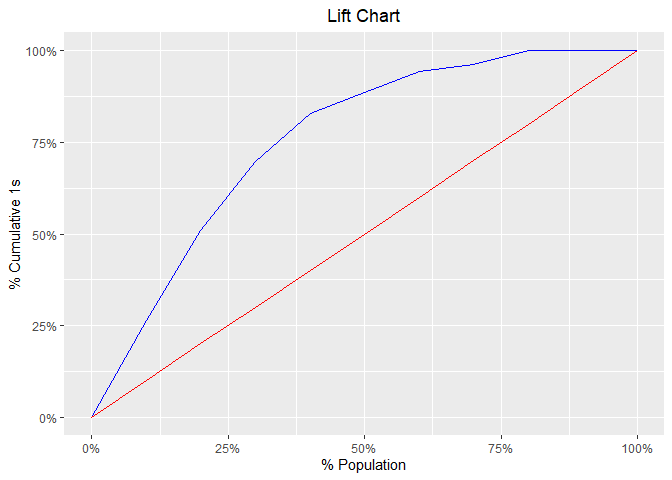

Lift Chart

model %>%
  blr_gains_table() %>%
  plot()

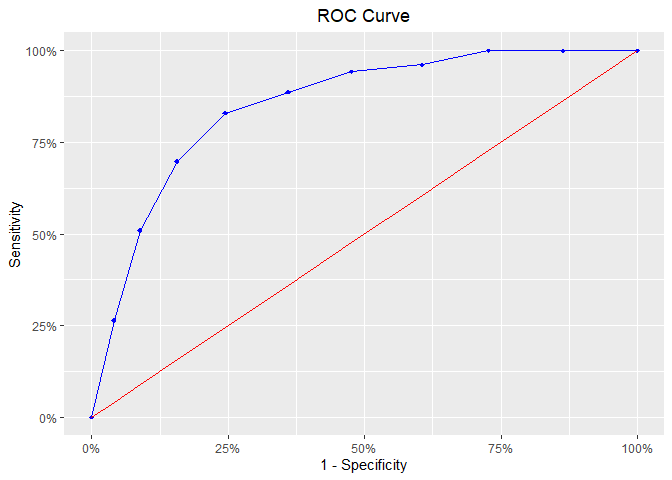

ROC Curve

model %>%
  blr_gains_table() %>%
  blr_roc_curve()

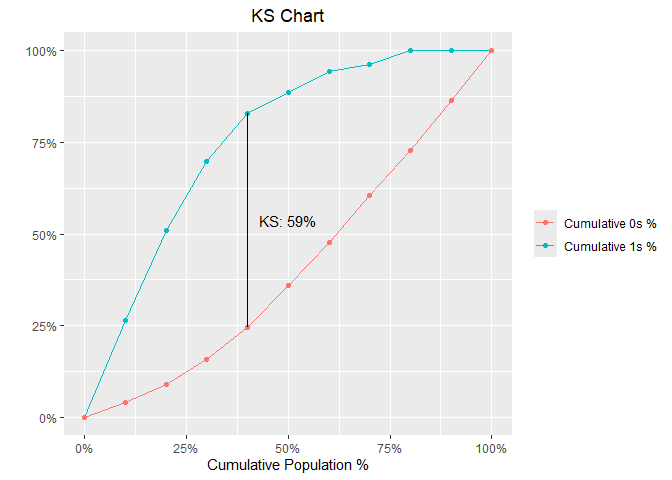

KS Chart

model %>%
  blr_gains_table() %>%
  blr_ks_chart()

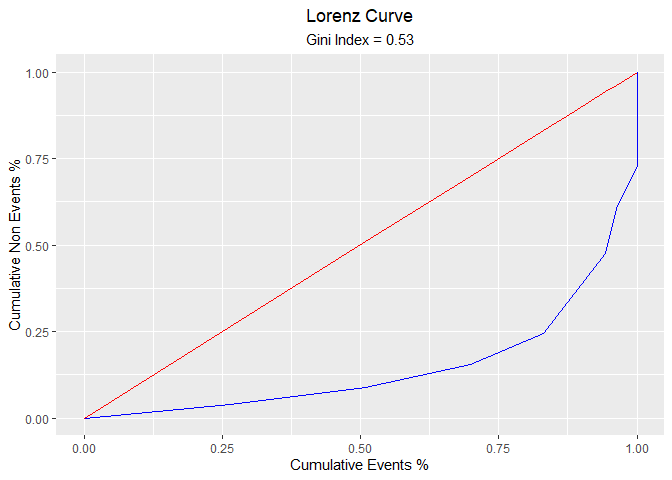

Lorenz Curve

blr_lorenz_curve(model)

Please note that this project is released with a Contributor Code of Conduct. By participating in this project you agree to abide by its terms.

News

blorr 0.1.0

Initial release
