Create and Explore Geographic Zoning Systems

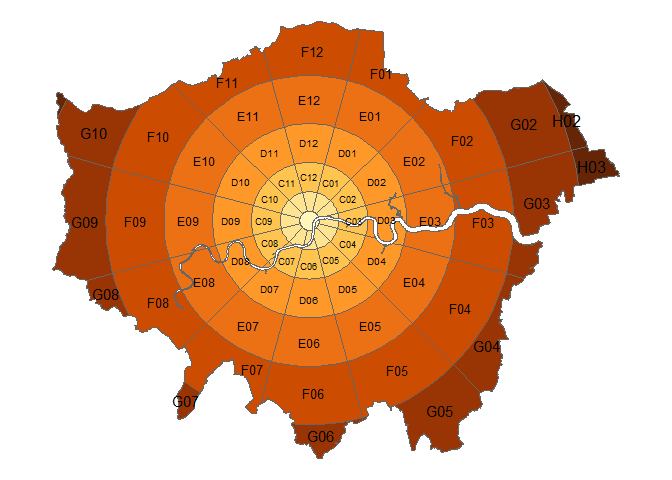

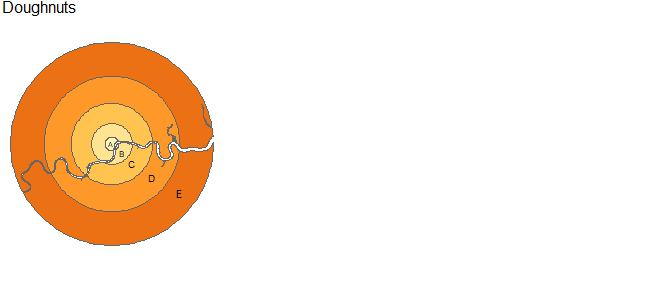

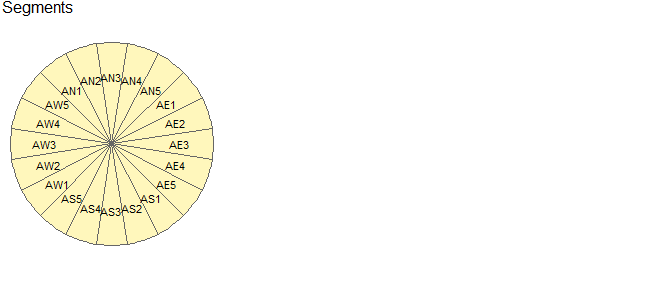

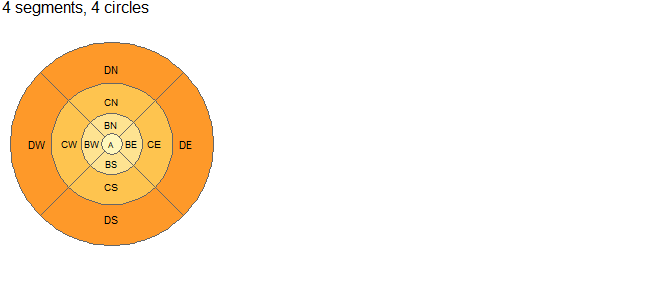

Functions, documentation and example data to help divide geographic space into discrete polygons (zones). The functions are motivated by research into the merits of different zoning systems . A flexible 'ClockBoard' zoning system is provided, which breaks-up space by concentric rings and radial lines emanating from a central point. By default, the diameter of the rings grow according the triangular number sequence with the first 4 'doughnuts' (or 'annuli') measuring 1, 3, 6, and 10 km wide. These annuli are subdivided into equal segments (12 by default), creating the visual impression of a dartboard. Zones are labelled according to distance to the centre and angular distance from North, creating a simple geographic zoning and labelling system useful for visualising geographic phenomena with a clearly demarcated central location such as cities.


Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.


0.0.1 by Robin Lovelace, 17 days ago,

Report a bug at

Browse source code at

Authors: Robin Lovelace [aut, cre] , Martijn Tennekes [aut]

Documentation:   PDF Manual

GPL-3 license

Imports sf, RColorBrewer, graphics, grDevices

Suggests knitr, rmarkdown, tmap, tmaptools, pct, dplyr, lwgeom, leaflet, covr

See at CRAN
