Yield Per Recruit

An implementation of equilibrium-based yield per recruit methods. Yield per recruit methods can used to estimate the optimal yield for a fish population. The yield can be based on the number of fish caught (or harvested) or biomass caught for all fish or just large (trophy) individuals.


lifecycle Travis buildstatus AppVeyor buildstatus Coveragestatus License:MIT CRANstatus

Introduction

ypr is an R package that implements equilibrium-based yield per recruit methods. Yield per recruit methods can used to estimate the optimal yield for a fish population (Walters and Martell 2004). The yield can be based on the number of fish caught (or harvested) or biomass for all fish or just large (trophy) individuals.

The key life history parameters are

  • The growth coefficient (k) and mean maximum length (Linf) from the Von Bertalanffy growth curve
  • The length at which 50% mature (Ls)
  • The length at which 50% vulnerable to harvest (Lv)
  • The instantaneous annual natural mortality rate (M)
  • The number of spawners per spawner at low density (Rk)

The calculations do not account for stochasticity, predator-prey dynamics, angler responses or density-dependent growth.

Information

For definitions of all 28 population parameters see ?ypr_population.

For an explanation of the calculations see the ypr vignette.

Demonstration

Schedule

library(ypr)
population <- ypr_population(Rk = 5, Ls = 50, Rmax = 100, rho = 0.6)

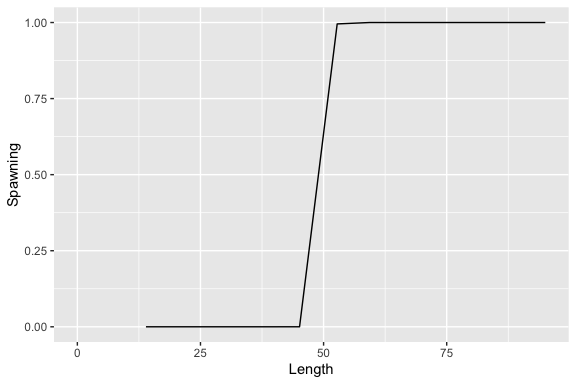

ypr_plot_schedule(population, x = "Length", y = "Spawning")

head(ypr_schedule(population))
#> # A tibble: 6 x 11
#>     Age Length Weight Fecundity  Spawning NaturalMortality Vulnerability
#>   <int>  <dbl>  <dbl>     <dbl>     <dbl>            <dbl>         <dbl>
#> 1     1   13.9   27.0      27.0  3.13e-56            0.181      3.13e-56
#> 2     2   25.9  174.      174.   2.91e-29            0.181      2.91e-29
#> 3     3   36.2  476.      476.   1.04e-14            0.181      1.04e-14
#> 4     4   45.1  918.      918.   3.46e- 5            0.181      3.46e- 5
#> 5     5   52.8 1469.     1469.   9.95e- 1            0.181      9.95e- 1
#> 6     6   59.3 2090.     2090.  10.00e- 1            0.181     10.00e- 1
#> # ... with 4 more variables: Retention <dbl>, FishingMortality <dbl>,
#> #   Survivorship <dbl>, FishedSurvivorship <dbl>

Fish

library(ypr)
ypr_plot_fish(population, color = "white")

head(ypr_tabulate_fish(population))
#> # A tibble: 6 x 7
#>     Age Surviving Spawning   Caught Harvested Released HandlingMortality
#>   <dbl>     <dbl>    <dbl>    <dbl>     <dbl>    <dbl>             <dbl>
#> 1     1      69.3 2.17e-54 4.34e-55  1.73e-55 2.60e-55                 0
#> 2     2      56.7 1.65e-27 3.30e-28  1.32e-28 1.98e-28                 0
#> 3     3      46.4 4.84e-13 9.69e-14  3.87e-14 5.81e-14                 0
#> 4     4      38.0 1.31e- 3 2.63e- 4  1.05e- 4 1.58e- 4                 0
#> 5     5      31.1 3.10e+ 1 6.19e+ 0  2.48e+ 0 3.72e+ 0                 0
#> 6     6      23.4 2.34e+ 1 4.69e+ 0  1.88e+ 0 2.81e+ 0                 0

Stock-Recruitment

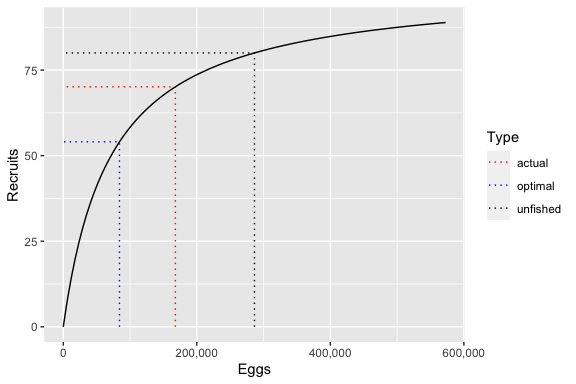

ypr_plot_sr(population)

ypr_tabulate_sr(population)
#> # A tibble: 3 x 7
#>   Type        pi     u    Eggs Recruits Spawners Fecundity
#>   <chr>    <dbl> <dbl>   <dbl>    <dbl>    <dbl>     <dbl>
#> 1 unfished 0     0     357733.     80.0    190.      3764.
#> 2 actual   0.2   0.08  201443.     69.3    125.      3232.
#> 3 optimal  0.418 0.167 106584.     54.4     76.5     2785.

Yield

ypr_tabulate_yield(population)
#> # A tibble: 2 x 8
#>   Type       pi     u Yield   Age Length Weight Effort
#>   <chr>   <dbl> <dbl> <dbl> <dbl>  <dbl>  <dbl>  <dbl>
#> 1 actual  0.2   0.08   9.97  7.88   66.5  3232.   2.12
#> 2 optimal 0.418 0.167 12.8   7.11   63.6  2785.   5.14

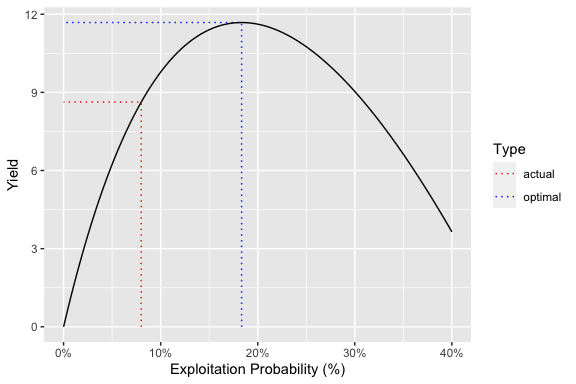

ypr_plot_yield(population)

Uncertainty

library(ggplot2)
populations <- ypr_populations(Rk = c(3,7), Ls = c(40, 60), Rmax = 100)
ypr_plot_yield(populations, plot_values = FALSE) +
  facet_grid(Rk~Ls)

Installation

To install the latest development version from GitHub

# install.packages("devtools")
devtools::install_github("poissonconsulting/ypr")

To install the latest development version from the Poisson drat repository

# install.packages("drat")
drat::addRepo("poissonconsulting")
install.packages("ypr")

Interaction

To interactively explore the effects of altering individual parameters on the schedule, stock-recruitment and yield see the ypr shiny app.

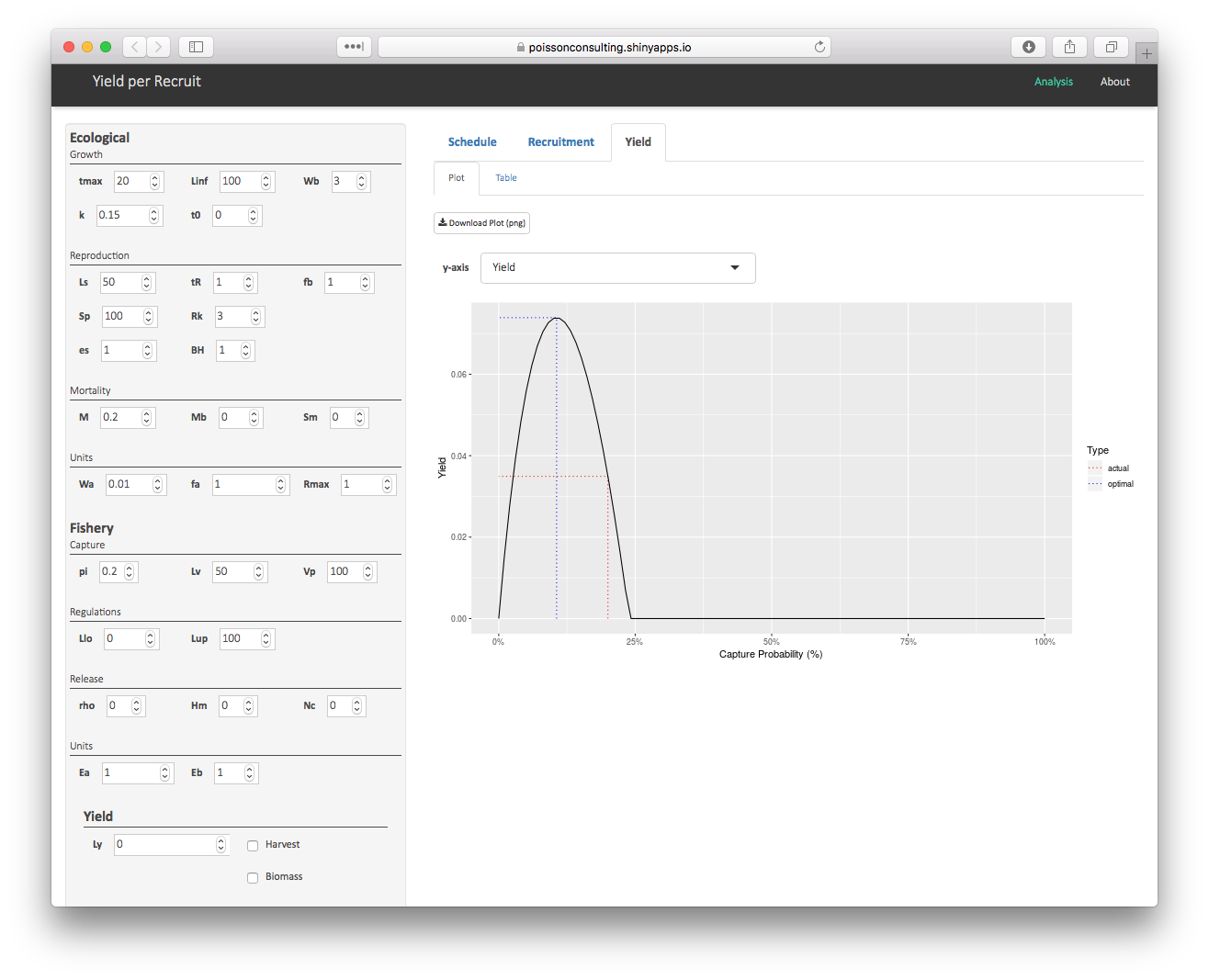

A screenshot of the yield from the ypr shinyapp

Creditation

Development of ypr was supported by the Habitat Conservation Trust Foundation and the Ministy of Forests, Lands and Natural Resource Operations.

The hex was designed by The Forest.

Contribution

Please report any issues.

Pull requests are always welcome.

Please note that this project is released with a Contributor Code of Conduct. By participating in this project you agree to abide by its terms.

References

Walters, Carl J., and Steven J. D. Martell. 2004. Fisheries Ecology and Management. Princeton, N.J: Princeton University Press.

News

ypr 0.3.1

  • ypr_populations() now generates names
  • Fixed Quesnel Lake Trout and Rainbow Trout mix up

ypr 0.3.0

  • Now uses q instead of Ea and Eb for effort
  • Parameter Rk now has to be greater than >= 1

ypr 0.2.0

  • Added ypr_exploitation() to convert capture probabilities to exploitation probabilities.
  • Added ypr_report() to generate Rmd file for population.
  • Can now pass Rk as egg to recruit survival (at low density).
  • Set default value of Wa to be 0.01.
  • Added ypr_populations() to generate all combinations of parameters.
  • Made ypr_tabulate_sr(), ypr_tabulate_yield(), ypr_tabulate_yields(), ypr_plot_yield() generic with definitions for ypr_population and ypr_populations objects.
  • Added scaling parameter A0 for inital interval mortality of recruits.
  • Added scaling parameters Ea and Eb to allow plots of yield per effort.
  • Added Age, Length, Weight and Effort to ypr_tabulate_yield() and added ypr_tabulate_yields()
  • Added y arg to ypr_plot_yield() to allow plotting of mean age, length, weight, effort or yield per effort by exploitation or capture probability.
  • Added ypr_plot_histogram() to plot frequency distributions of catch, spawners and in lake by age, length or weight bins.
  • Added ypr_tabulate_parameters() to get table of parameters, values and descriptions and ypr_detabulate_parameters() to convert back to a population object.
  • Added ypr_tabulate_sr() to get table of eggs and recruits at unfished, actual and optimal rates.
  • Added print.ypr_population().

ypr 0.1.0

  • Added Mb to scale mortality by length and BH to distinguish between Beverton-Holt and Ricker curves and es for probability of a mature fish spawning and Sm for spawning mortality probability and Sp for spawning power and vulnerability power Vp and slot limit non-complicance parameter Nc and scaling parameter R0.
  • Added ypr_population_update() to update population parameters.
  • Added ypr_yield_tabulate() to tabulate actual and optimal yields.
  • Added ypr_sr() to get stock recruitment parameters and ypr_plot_sr() to plot.
  • Added ypr_inst2inter() and ypr_inter2instant() to convert mortality rates.
  • Switched nu for M and R0 for Rmax.
  • Switched yield parameters harvest and biomass to FALSE by default.
  • Renamed a to Wa and b to Wb and eta to Hm and mu to pi and Rt to tR.
  • Removed Capture (as covered by single value) and TotalMortality from schedule and added Spawning.

ypr 0.0.1

  • Initial Release
