rchess
Chess Move, Generation/Validation, Piece Placement/ Movement, and Check/Checkmate/Stalemate Detection
R package for chess validations, pieces movements and check detection. Also integrates functions to plot chess boards given a Forsyth Edwards and Portable Game notations.
Introduction
The rchess package is a chess move, generation/validation, piece placement/movement, and check/checkmate/stalemate detection.
This Packages is a wrapper for the chess.js javascript library by Jeff Hlywa. Also rchess integrates htmlwidget for plot chessboard using chessboardjs library.
Installation
You can install the latest development version from github with:
devtools::install_github("jbkunst/rchess")Basic Usage
chss <- Chess$new() chss## ## Turn## w## ## Number of moves## 0## ## History## ## ## Fen representation## rnbqkbnr/pppppppp/8/8/8/8/PPPPPPPP/RNBQKBNR w KQkq - 0 1## ## Board## +------------------------+## 8 | r n b q k b n r |## 7 | p p p p p p p p |## 6 | . . . . . . . . |## 5 | . . . . . . . . |## 4 | . . . . . . . . |## 3 | . . . . . . . . |## 2 | P P P P P P P P |## 1 | R N B Q K B N R |## +------------------------+## a b c d e f g h chss$moves()## [1] "a3" "a4" "b3" "b4" "c3" "c4" "d3" "d4" "e3" "e4" "f3" ## [12] "f4" "g3" "g4" "h3" "h4" "Na3" "Nc3" "Nf3" "Nh3" chss$moves(verbose = TRUE)## Source: local data frame [20 x 6]## ## color from to flags piece san## (chr) (chr) (chr) (chr) (chr) (chr)## 1 w a2 a3 n p a3## 2 w a2 a4 b p a4## 3 w b2 b3 n p b3## 4 w b2 b4 b p b4## 5 w c2 c3 n p c3## 6 w c2 c4 b p c4## 7 w d2 d3 n p d3## 8 w d2 d4 b p d4## 9 w e2 e3 n p e3## 10 w e2 e4 b p e4## 11 w f2 f3 n p f3## 12 w f2 f4 b p f4## 13 w g2 g3 n p g3## 14 w g2 g4 b p g4## 15 w h2 h3 n p h3## 16 w h2 h4 b p h4## 17 w b1 a3 n n Na3## 18 w b1 c3 n n Nc3## 19 w g1 f3 n n Nf3## 20 w g1 h3 n n Nh3 chss$move("a3")We can concate some moves (and a captures)

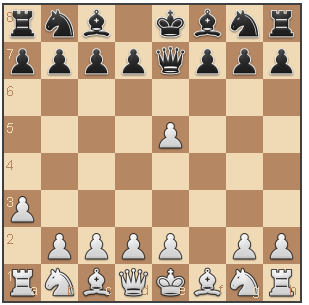

chss$move("e5")$move("f4")$move("Qe7")$move("fxe5")plot(chss)
(This is an image for the readme. The real one is a html document powered by chessboarjs. See here)

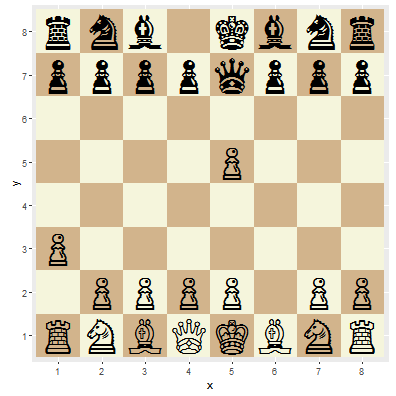

Or a ggplot2 version (I know, I need to change the chess pieces symbols in unicode; maybe use a chess typeface)
plot(chss, type = "ggplot")
chss$turn()## [1] "b" chss$square_color("h1")## [1] "light" chss$get("e5")## $type## [1] "p"## ## $color## [1] "w" chss$history(verbose = TRUE)## Source: local data frame [5 x 8]## ## color from to flags piece san captured number_move## (chr) (chr) (chr) (chr) (chr) (chr) (chr) (int)## 1 w a2 a3 n p a3 NA 1## 2 b e7 e5 b p e5 NA 2## 3 w f2 f4 b p f4 NA 3## 4 b d8 e7 n q Qe7 NA 4## 5 w f4 e5 c p fxe5 p 5 chss$history()## [1] "a3" "e5" "f4" "Qe7" "fxe5" chss$undo()## $color## [1] "w"## ## $from## [1] "f4"## ## $to## [1] "e5"## ## $flags## [1] "c"## ## $piece## [1] "p"## ## $captured## [1] "p"## ## $san## [1] "fxe5" chss$history()## [1] "a3" "e5" "f4" "Qe7" chss$fen()## [1] "rnb1kbnr/ppppqppp/8/4p3/5P2/P7/1PPPP1PP/RNBQKBNR w KQkq - 1 3" chss$header("White", "You") chss$header("Black", "Me") cat(chss$pgn())## [White "You"]## [Black "Me"]## ## 1. a3 e5 2. f4 Qe7 chss$ascii()## +------------------------+## 8 | r n b . k b n r |## 7 | p p p p q p p p |## 6 | . . . . . . . . |## 5 | . . . . p . . . |## 4 | . . . . . P . . |## 3 | P . . . . . . . |## 2 | . P P P P . P P |## 1 | R N B Q K B N R |## +------------------------+## a b c d e f g hLoad PGN and FEN
FEN
chssfen <- Chess$new() fen <- "rnbqkbnr/pp1ppppp/8/2p5/4P3/8/PPPP1PPP/RNBQKBNR w KQkq c6 0 2" chssfen$load(fen)## [1] TRUE chssfen$ascii()## +------------------------+## 8 | r n b q k b n r |## 7 | p p . p p p p p |## 6 | . . . . . . . . |## 5 | . . p . . . . . |## 4 | . . . . P . . . |## 3 | . . . . . . . . |## 2 | P P P P . P P P |## 1 | R N B Q K B N R |## +------------------------+## a b c d e f g hPGN
pgn <- system.file("extdata/pgn/kasparov_vs_topalov.pgn", package = "rchess")pgn <- readLines(pgn, warn = FALSE)pgn <- paste(pgn, collapse = "\n")cat(pgn)## [Event "Hoogovens A Tournament"]## [Site "Wijk aan Zee NED"]## [Date "1999.01.20"]## [EventDate "?"]## [Round "4"]## [Result "1-0"]## [White "Garry Kasparov"]## [Black "Veselin Topalov"]## [ECO "B06"]## [WhiteElo "2812"]## [BlackElo "2700"]## [PlyCount "87"]## ## 1. e4 d6 2. d4 Nf6 3. Nc3 g6 4. Be3 Bg7 5. Qd2 c6 6. f3 b5## 7. Nge2 Nbd7 8. Bh6 Bxh6 9. Qxh6 Bb7 10. a3 e5 11. O-O-O Qe7## 12. Kb1 a6 13. Nc1 O-O-O 14. Nb3 exd4 15. Rxd4 c5 16. Rd1 Nb6## 17. g3 Kb8 18. Na5 Ba8 19. Bh3 d5 20. Qf4+ Ka7 21. Rhe1 d4## 22. Nd5 Nbxd5 23. exd5 Qd6 24. Rxd4 cxd4 25. Re7+ Kb6## 26. Qxd4+ Kxa5 27. b4+ Ka4 28. Qc3 Qxd5 29. Ra7 Bb7 30. Rxb7## Qc4 31. Qxf6 Kxa3 32. Qxa6+ Kxb4 33. c3+ Kxc3 34. Qa1+ Kd2## 35. Qb2+ Kd1 36. Bf1 Rd2 37. Rd7 Rxd7 38. Bxc4 bxc4 39. Qxh8## Rd3 40. Qa8 c3 41. Qa4+ Ke1 42. f4 f5 43. Kc1 Rd2 44. Qa7 1-0 chsspgn <- Chess$new() chsspgn$load_pgn(pgn)## [1] TRUE cat(chsspgn$pgn())## [Event "Hoogovens A Tournament"]## [Site "Wijk aan Zee NED"]## [Date "1999.01.20"]## [EventDate "?"]## [Round "4"]## [Result "1-0"]## [White "Garry Kasparov"]## [Black "Veselin Topalov"]## [ECO "B06"]## [WhiteElo "2812"]## [BlackElo "2700"]## [PlyCount "87"]## ## 1. e4 d6 2. d4 Nf6 3. Nc3 g6 4. Be3 Bg7 5. Qd2 c6 6. f3 b5## 7. Nge2 Nbd7 8. Bh6 Bxh6 9. Qxh6 Bb7 10. a3 e5 11. O-O-O Qe7## 12. Kb1 a6 13. Nc1 O-O-O 14. Nb3 exd4 15. Rxd4 c5 16. Rd1 Nb6## 17. g3 Kb8 18. Na5 Ba8 19. Bh3 d5 20. Qf4+ Ka7 21. Rhe1 d4## 22. Nd5 Nbxd5 23. exd5 Qd6 24. Rxd4 cxd4 25. Re7+ Kb6## 26. Qxd4+ Kxa5 27. b4+ Ka4 28. Qc3 Qxd5 29. Ra7 Bb7## 30. Rxb7 Qc4 31. Qxf6 Kxa3 32. Qxa6+ Kxb4 33. c3+ Kxc3## 34. Qa1+ Kd2 35. Qb2+ Kd1 36. Bf1 Rd2 37. Rd7 Rxd7## 38. Bxc4 bxc4 39. Qxh8 Rd3 40. Qa8 c3 41. Qa4+ Ke1 42. f4 f5## 43. Kc1 Rd2 44. Qa7 1-0 chsspgn$history()## [1] "e4" "d6" "d4" "Nf6" "Nc3" "g6" "Be3" "Bg7" ## [9] "Qd2" "c6" "f3" "b5" "Nge2" "Nbd7" "Bh6" "Bxh6" ## [17] "Qxh6" "Bb7" "a3" "e5" "O-O-O" "Qe7" "Kb1" "a6" ## [25] "Nc1" "O-O-O" "Nb3" "exd4" "Rxd4" "c5" "Rd1" "Nb6" ## [33] "g3" "Kb8" "Na5" "Ba8" "Bh3" "d5" "Qf4+" "Ka7" ## [41] "Rhe1" "d4" "Nd5" "Nbxd5" "exd5" "Qd6" "Rxd4" "cxd4" ## [49] "Re7+" "Kb6" "Qxd4+" "Kxa5" "b4+" "Ka4" "Qc3" "Qxd5" ## [57] "Ra7" "Bb7" "Rxb7" "Qc4" "Qxf6" "Kxa3" "Qxa6+" "Kxb4" ## [65] "c3+" "Kxc3" "Qa1+" "Kd2" "Qb2+" "Kd1" "Bf1" "Rd2" ## [73] "Rd7" "Rxd7" "Bxc4" "bxc4" "Qxh8" "Rd3" "Qa8" "c3" ## [81] "Qa4+" "Ke1" "f4" "f5" "Kc1" "Rd2" "Qa7" chsspgn$history(verbose = TRUE)## Source: local data frame [87 x 8]## ## color from to flags piece san captured number_move## (chr) (chr) (chr) (chr) (chr) (chr) (chr) (int)## 1 w e2 e4 b p e4 NA 1## 2 b d7 d6 n p d6 NA 2## 3 w d2 d4 b p d4 NA 3## 4 b g8 f6 n n Nf6 NA 4## 5 w b1 c3 n n Nc3 NA 5## 6 b g7 g6 n p g6 NA 6## 7 w c1 e3 n b Be3 NA 7## 8 b f8 g7 n b Bg7 NA 8## 9 w d1 d2 n q Qd2 NA 9## 10 b c7 c6 n p c6 NA 10## .. ... ... ... ... ... ... ... ...Validation Functions
State validation

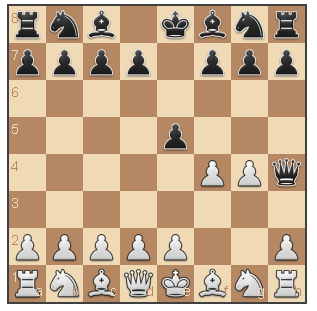

chss2 <- Chess$new("rnb1kbnr/pppp1ppp/8/4p3/5PPq/8/PPPPP2P/RNBQKBNR w KQkq - 1 3")plot(chss2)
(This is an image for the readme. The real one is a html document powered by chessboarjs. See here)
chss2$in_check()## [1] TRUE chss2$in_checkmate()## [1] TRUESlatemate validation
chss3 <- Chess$new("4k3/4P3/4K3/8/8/8/8/8 b - - 0 78") chss3$ascii()## +------------------------+## 8 | . . . . k . . . |## 7 | . . . . P . . . |## 6 | . . . . K . . . |## 5 | . . . . . . . . |## 4 | . . . . . . . . |## 3 | . . . . . . . . |## 2 | . . . . . . . . |## 1 | . . . . . . . . |## +------------------------+## a b c d e f g h chss3$in_stalemate()## [1] TRUEThree fold repetition
chss4 <- Chess$new("rnbqkbnr/pppppppp/8/8/8/8/PPPPPPPP/RNBQKBNR w KQkq - 0 1") chss4$in_threefold_repetition()## [1] FALSE chss4$move('Nf3')$move('Nf6')$move('Ng1')$move('Ng8') chss4$in_threefold_repetition()## [1] FALSE chss4$move('Nf3')$move('Nf6')$move('Ng1')$move('Ng8') chss4$in_threefold_repetition()## [1] TRUE chss4$history()## [1] "Nf3" "Nf6" "Ng1" "Ng8" "Nf3" "Nf6" "Ng1" "Ng8"Insufficient material

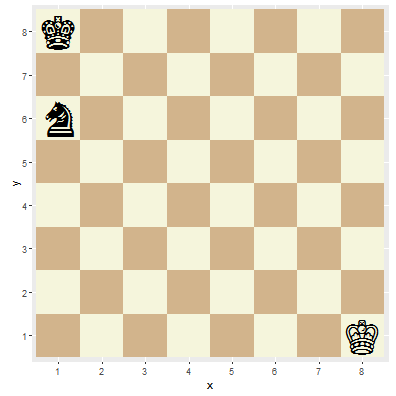

chess5 <- Chess$new("k7/8/n7/8/8/8/8/7K b - - 0 1") plot(chess5, type = "ggplot")
chess5$insufficient_material()## [1] TRUEOther (not from chessjs) Functions
Not all from the package is the wrapper for chessjs. There are some interesting functions.
History Detail
This functions is a detailed version from the history(verbose = TRUE).
chsspgn$history_detail()## Source: local data frame [92 x 8]## ## piece from to number_move piece_number_move status## (chr) (chr) (chr) (int) (int) (chr)## 1 a1 Rook a1 d1 21 1 NA## 2 a1 Rook d1 d4 29 2 NA## 3 a1 Rook d4 d1 31 3 NA## 4 a1 Rook d1 d4 47 4 captured## 5 b1 Knight b1 c3 5 1 NA## 6 b1 Knight c3 d5 43 2 captured## 7 c1 Bishop c1 e3 7 1 NA## 8 c1 Bishop e3 h6 15 2 captured## 9 White Queen d1 d2 9 1 NA## 10 White Queen d2 h6 17 2 NA## .. ... ... ... ... ... ...## Variables not shown: number_move_capture (int), captured_by (chr)We can check the final board status with the (last) fen and the
history_detail filtering by status == "game over"

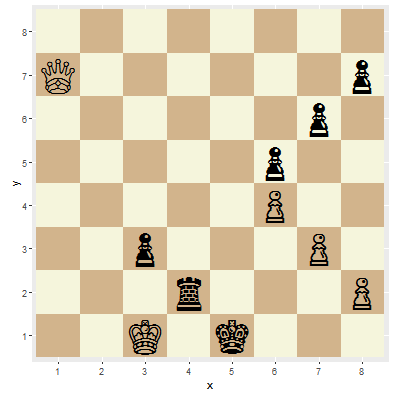

ggchessboard(chsspgn$fen())
library("dplyr")## ## Attaching package: 'dplyr'## ## The following objects are masked from 'package:stats':## ## filter, lag## ## The following objects are masked from 'package:base':## ## intersect, setdiff, setequal, unionchsspgn$history_detail() %>% filter(status == "game over")## Source: local data frame [11 x 8]## ## piece from to number_move piece_number_move status## (chr) (chr) (chr) (int) (int) (chr)## 1 White Queen a4 a7 87 13 game over## 2 White King b1 c1 85 3 game over## 3 f2 Pawn f3 f4 83 2 game over## 4 g2 Pawn g2 g3 33 1 game over## 5 h2 Pawn h2 NA NA 1 game over## 6 b7 Pawn c4 c3 80 3 game over## 7 f7 Pawn f7 f5 84 1 game over## 8 g7 Pawn g7 g6 6 1 game over## 9 h7 Pawn h7 NA NA 1 game over## 10 a8 Rook d3 d2 86 5 game over## 11 Black King d1 e1 82 12 game over## Variables not shown: number_move_capture (int), captured_by (chr)Under the hood
This package is basically a wrapper of chessjs by jhlywa.
The main parts in this package are:
- V8 package and chessjs javascript library.
- R6 package for the OO system.
- htmlwidget package and chessboardjs javascript library.
Thanks to the creators and maintainers of these packages and libraries.
