A Graph Based Particle Simulator Based on D3-Force

Simulating particle movement in 2D space has many application. The 'particles' package implements a particle simulator based on the ideas behind the 'd3-force' 'JavaScript' library. 'particles' implements all forces defined in 'd3-force' as well as others such as vector fields, traps, and attractors.

Travis-CI Build Status AppVeyor Build Status CRAN_Release_Badge CRAN_Download_Badge

This package implements the d3-force algorithm developed by Mike Bostock in R, thus providing a way to run many types of particle simulations using its versatile interface.

While the first goal is to provide feature parity with its JavaScript origin, the intentions is to add more forces, constraints, etc. down the line. While d3-force is most well-known as a layout engine for visualising networks, it is capable of much more. Therefore, particles is provided as a very open framework to play with. Eventually ggraph will provide some shortcut layouts based on particles with the aim of facilitating network visualisation.


particles builds upon the framework provided by tidygraph and adds a set of verbs that defines the simulation:

  • simulate() : Creates a simulation based on the input graph, global parameters, and a genesis function that sets up the initial conditions of the simulation.
  • wield() : Adds a force to the simulation. All forces implemented in d3-force are available as well as some additionals.
  • impose() : Adds a constraint to the simulation. This function is a departure from d3-force, as d3-force only allowed for simple fixing of x and/or y coordinates through the use of the fx and fy accessors. particles formalises the use of simulation constraints and adds new functionalities.
  • evolve() : Progresses the simulation, either a predefined number of steps, or until the simulated annealing has cooled down.

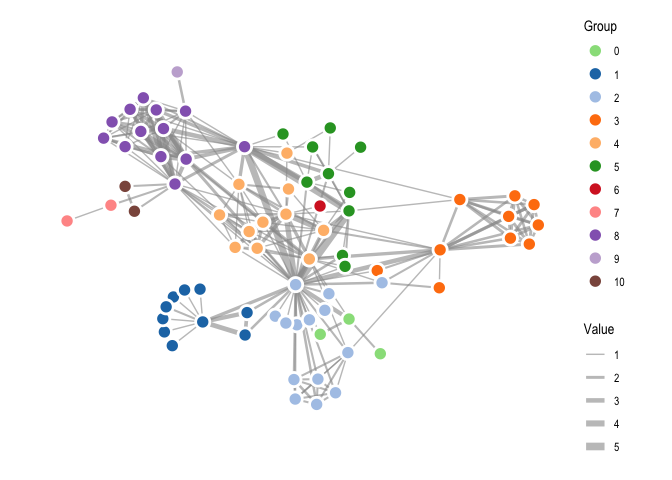

A recreation of the Les Miserable network in https://bl.ocks.org/mbostock/4062045

# Data preparation
d3_col <- c(
  '0' = "#98df8a",
  '1' = "#1f77b4",
  '2' = "#aec7e8",
  '3' = "#ff7f0e",
  '4' = "#ffbb78",
  '5' = "#2ca02c",
  '6' = "#d62728",
  '7' = "#ff9896",
  '8' = "#9467bd",
  '9' = "#c5b0d5",
  '10' =  "#8c564b"
raw_data <- 'https://gist.githubusercontent.com/mbostock/4062045/raw/5916d145c8c048a6e3086915a6be464467391c62/miserables.json'
miserable_data <- jsonlite::read_json(raw_data, simplifyVector = TRUE)
miserable_data$nodes$group <- as.factor(miserable_data$nodes$group)
miserable_data$links <- miserable_data$links %>%
  mutate(from = match(source, miserable_data$nodes$id),
         to = match(target, miserable_data$nodes$id))
# Actual particles part
mis_graph <- miserable_data %>%
  simulate() %>%
  wield(link_force) %>%
  wield(manybody_force) %>%
  wield(center_force) %>%
  evolve() %>%
# Plotting with ggraph
ggraph(mis_graph, 'nicely') +
  geom_edge_link(aes(width = sqrt(value)), colour = '#999999', alpha = 0.6) +
  geom_node_point(aes(fill = group), shape = 21, colour = 'white', size = 4,
                  stroke = 1.5) +
  scale_fill_manual('Group', values = d3_col) +
  scale_edge_width('Value', range = c(0.5, 3)) +
  coord_fixed() +

If you intend to follow the steps of the simulation it is possible to attach an event handler that gets called ofter each generation of the simulation. If the handler produces a plot the result will be an animation of the simulation:

# Random overlapping circles
graph <- as_tbl_graph(igraph::erdos.renyi.game(100, 0)) %>%
  mutate(x = runif(100) - 0.5,
         y = runif(100) - 0.5,
         radius = runif(100, min = 0.1, 0.2))
# Plotting function
graph_plot <- . %>% {
  gr <- as_tbl_graph(.)
  p <- ggraph(gr, 'manual', node.position = as_tibble(gr)) +
    geom_node_circle(aes(r = radius), fill = 'forestgreen', alpha = 0.5) +
    coord_fixed(xlim = c(-2.5, 2.5), ylim = c(-2.5, 2.5)) +
# Simulation
graph %>% simulate(velocity_decay = 0.7, setup = predefined_genesis(x, y)) %>%
  wield(collision_force, radius = radius, n_iter = 2) %>%
  wield(x_force, x = 0, strength = 0.002) %>%
  wield(y_force, y = 0, strength = 0.002) %>%
  evolve(on_generation = graph_plot)

Click here for resulting animation (GitHub don't allow big gifs in readme)


You can install particles from github with:

# install.packages("devtools")

Immense Thanks

  • A huge "Thank You" to Mike Bostock is in place. Without d3-force, particles wouldn't exist and without d3 in general the world would be a sadder place.
  • The C++ quad tree implementation that powers manbody_force and collision_force is a modification of the implementation made by Andrei Kashcha and made available under MIT license. Big thanks to Andrei as well.


particles 0.2.2

  • Fix a bug in trap_force where particles on the edge of a polygon would get an NA velocity
