Orthogonalizing EM: Penalized Regression for Big Tall Data

Solves penalized least squares problems for big tall data using the orthogonalizing EM algorithm of Xiong et al. (2016) . The main fitting function is oem() and the functions cv.oem() and xval.oem() are for cross validation, the latter being an accelerated cross validation function for linear models. The big.oem() function allows for out of memory fitting.



output: html_document: keep_md: yes self_contained: true

version

OS Build
Linux x86_64 / OSX Build Status
Windows x86_64 Appveyor Build Status

Introduction

The oem package provides estimaton for various penalized linear models using the Orthogonalizing EM algorithm. Documentation for the package can be found here: oem site (still under construction).

Install using the devtools package (RcppEigen must be installed first as well):

devtools::install_github("jaredhuling/oem")

or by cloning and building using R CMD INSTALL

Models

Lasso

library(microbenchmark)
library(glmnet)
library(oem)
# compute the full solution path, n > p
set.seed(123)
n <- 1000000
p <- 100
m <- 25
b <- matrix(c(runif(m), rep(0, p - m)))
x <- matrix(rnorm(n * p, sd = 3), n, p)
y <- drop(x %*% b) + rnorm(n)

lambdas = oem(x, y, intercept = TRUE, standardize = FALSE, penalty = "elastic.net")$lambda[[1]]

microbenchmark(
    "glmnet[lasso]" = {res1 <- glmnet(x, y, thresh = 1e-10,
                                      standardize = FALSE,
                                      intercept = TRUE,
                                      lambda = lambdas)},
    "oem[lasso]"    = {res2 <- oem(x, y,
                                   penalty = "elastic.net",
                                   intercept = TRUE,
                                   standardize = FALSE,
                                   lambda = lambdas,
                                   tol = 1e-10)},
    times = 5
)
## Unit: seconds
##           expr      min       lq     mean   median       uq      max neval
##  glmnet[lasso] 8.454950 8.925667 9.183843 9.255825 9.351194 9.931580     5
##     oem[lasso] 2.456566 2.640007 2.754852 2.881469 2.884303 2.911914     5
# difference of results
max(abs(coef(res1) - res2$beta[[1]]))
## [1] 1.048072e-07
res1 <- glmnet(x, y, thresh = 1e-12,
               standardize = FALSE,
               intercept = TRUE,
               lambda = lambdas)

# answers are now more close once we require more precise glmnet solutions
max(abs(coef(res1) - res2$beta[[1]]))
## [1] 3.763397e-09

Nonconvex Penalties

library(sparsenet)
library(ncvreg)
library(plus)
# compute the full solution path, n > p
set.seed(123)
n <- 5000
p <- 200
m <- 25
b <- matrix(c(runif(m, -0.5, 0.5), rep(0, p - m)))
x <- matrix(rnorm(n * p, sd = 3), n, p)
y <- drop(x %*% b) + rnorm(n)

mcp.lam <- oem(x, y, penalty = "mcp",
               gamma = 2, intercept = TRUE,
               standardize = TRUE,
               nlambda = 200, tol = 1e-10)$lambda[[1]]

scad.lam <- oem(x, y, penalty = "scad",
               gamma = 4, intercept = TRUE,
               standardize = TRUE,
               nlambda = 200, tol = 1e-10)$lambda[[1]]

microbenchmark(
    "sparsenet[mcp]" = {res1 <- sparsenet(x, y, thresh = 1e-10,
                                          gamma = c(2,3), #sparsenet throws an error
                                                          #if you only fit 1 value of gamma
                                          nlambda = 200)},
    "oem[mcp]"    = {res2 <- oem(x, y,
                                 penalty = "mcp",
                                 gamma = 2,
                                 intercept = TRUE,
                                 standardize = TRUE,
                                 nlambda = 200,
                                 tol = 1e-10)},
    "ncvreg[mcp]"    = {res3 <- ncvreg(x, y,
                                   penalty = "MCP",
                                   gamma = 2,
                                   lambda = mcp.lam,
                                   eps = 1e-7)},
    "plus[mcp]"    = {res4 <- plus(x, y,
                                   method = "mc+",
                                   gamma = 2,
                                   lam = mcp.lam)},
    "oem[scad]"    = {res5 <- oem(x, y,
                                 penalty = "scad",
                                 gamma = 4,
                                 intercept = TRUE,
                                 standardize = TRUE,
                                 nlambda = 200,
                                 tol = 1e-10)},
    "ncvreg[scad]"    = {res6 <- ncvreg(x, y,
                                   penalty = "SCAD",
                                   gamma = 4,
                                   lambda = scad.lam,
                                   eps = 1e-7)},
    "plus[scad]"    = {res7 <- plus(x, y,
                                   method = "scad",
                                   gamma = 4,
                                   lam = scad.lam)},
    times = 5
)
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Warning message: some lam not reached by the plus path and dropped
## Unit: milliseconds
##            expr       min        lq      mean    median         uq
##  sparsenet[mcp] 2320.8100 2352.9517 2458.7722 2392.4679  2517.0486
##        oem[mcp]  189.3625  212.6236  233.1697  226.6125   267.3957
##     ncvreg[mcp] 8129.6092 8555.1828 9115.0166 8886.1990  9958.1984
##       plus[mcp] 2099.2994 2500.4747 2554.6303 2589.2470  2756.9943
##       oem[scad]  137.4814  139.5355  184.2794  187.5250   220.8466
##    ncvreg[scad] 8808.6070 9585.5057 9916.8835 9804.8729 10375.9077
##      plus[scad] 2304.6635 2496.2100 2617.9396 2539.4899  2831.3368
##         max neval
##   2710.5826     5
##    269.8545     5
##  10045.8938     5
##   2827.1361     5
##    236.0083     5
##  11009.5241     5
##   2917.9977     5
diffs <- array(NA, dim = c(4, 1))
colnames(diffs) <- "abs diff"
rownames(diffs) <- c("MCP:  oem and ncvreg", "SCAD: oem and ncvreg",
                     "MCP:  oem and plus", "SCAD: oem and plus")
diffs[,1] <- c(max(abs(res2$beta[[1]] - res3$beta)), max(abs(res5$beta[[1]] - res6$beta)),
               max(abs(res2$beta[[1]][-1,1:nrow(res4$beta)] - t(res4$beta))),
               max(abs(res5$beta[[1]][-1,1:nrow(res7$beta)] - t(res7$beta))))
diffs
##                          abs diff
## MCP:  oem and ncvreg 1.725859e-07
## SCAD: oem and ncvreg 5.094648e-08
## MCP:  oem and plus   2.684136e-11
## SCAD: oem and plus   1.732409e-11

Group Lasso

library(gglasso)
library(grpreg)
library(grplasso)
# compute the full solution path, n > p
set.seed(123)
n <- 10000
p <- 200
m <- 25
b <- matrix(c(runif(m, -0.5, 0.5), rep(0, p - m)))
x <- matrix(rnorm(n * p, sd = 3), n, p)
y <- drop(x %*% b) + rnorm(n)
groups <- rep(1:floor(p/10), each = 10)

grp.lam <- oem(x, y, penalty = "grp.lasso",
               groups = groups,
               nlambda = 100, tol = 1e-10)$lambda[[1]]


microbenchmark(
    "gglasso[grp.lasso]" = {res1 <- gglasso(x, y, group = groups,
                                            lambda = grp.lam,
                                            intercept = FALSE,
                                            eps = 1e-8)},
    "oem[grp.lasso]"    = {res2 <- oem(x, y,
                                       groups = groups,
                                       intercept = FALSE,
                                       standardize = FALSE,
                                       penalty = "grp.lasso",
                                       lambda = grp.lam,
                                       tol = 1e-10)},
    "grplasso[grp.lasso]"    = {res3 <- grplasso(x=x, y=y,
                                                 index = groups,
                                                 standardize = FALSE,
                                                 center = FALSE, model = LinReg(),
                                                 lambda = grp.lam * n * 2,
                                                 control = grpl.control(trace = 0, tol = 1e-10))},
    "grpreg[grp.lasso]"    = {res4 <- grpreg(x, y, group = groups,
                                             eps = 1e-10, lambda = grp.lam)},
    times = 5
)
## Unit: milliseconds
##                 expr       min        lq     mean    median        uq
##   gglasso[grp.lasso] 4004.4774 4086.1746 4108.586 4103.6553 4126.2035
##       oem[grp.lasso]  112.8335  114.3252  125.083  118.6199  120.8217
##  grplasso[grp.lasso] 7816.4330 8224.7857 9044.954 8851.7595 9250.1811
##    grpreg[grp.lasso] 2253.6705 2319.5918 2431.038 2379.3103 2565.8449
##         max neval
##   4222.4212     5
##    158.8146     5
##  11081.6107     5
##   2636.7702     5
diffs <- array(NA, dim = c(2, 1))
colnames(diffs) <- "abs diff"
rownames(diffs) <- c("oem and gglasso", "oem and grplasso")
diffs[,1] <- c(  max(abs(res2$beta[[1]][-1,] - res1$beta)), max(abs(res2$beta[[1]][-1,] - res3$coefficients))  )
diffs
##                      abs diff
## oem and gglasso  1.303906e-06
## oem and grplasso 1.645871e-08

Bigger Group Lasso Example

set.seed(123)
n <- 500000
p <- 200
m <- 25
b <- matrix(c(runif(m, -0.5, 0.5), rep(0, p - m)))
x <- matrix(rnorm(n * p, sd = 3), n, p)
y <- drop(x %*% b) + rnorm(n)
groups <- rep(1:floor(p/10), each = 10)

grp.penalties <- c("grp.lasso", "grp.mcp", "grp.scad",
                   "grp.mcp.net", "grp.scad.net",
                   "sparse.group.lasso")
system.time(res <- oem(x, y,
                       penalty = grp.penalties,
                       groups  = groups,
                       alpha   = 0.25, # mixing param for l2 penalties
                       tau     = 0.5)) # mixing param for sparse grp lasso
##    user  system elapsed
##    3.62    0.17    4.03

Fitting Multiple Penalties

The oem algorithm is quite efficient at fitting multiple penalties simultaneously when p is not too big.

set.seed(123)
n <- 100000
p <- 100
m <- 15
b <- matrix(c(runif(m, -0.25, 0.25), rep(0, p - m)))
x <- matrix(rnorm(n * p, sd = 3), n, p)
y <- drop(x %*% b) + rnorm(n)

microbenchmark(
    "oem[lasso]"    = {res1 <- oem(x, y,
                                   penalty = "elastic.net",
                                   intercept = TRUE,
                                   standardize = TRUE,
                                   tol = 1e-10)},
    "oem[lasso/mcp/scad/ols]"    = {res2 <- oem(x, y,
                                   penalty = c("elastic.net", "mcp",
                                               "scad", "grp.lasso",
                                               "grp.mcp", "sparse.grp.lasso",
                                               "grp.mcp.net", "mcp.net"),
                                   gamma = 4,
                                   tau = 0.5,
                                   alpha = 0.25,
                                   groups = rep(1:10, each = 10),
                                   intercept = TRUE,
                                   standardize = TRUE,
                                   tol = 1e-10)},
    times = 5
)
## Unit: milliseconds
##                     expr      min       lq     mean   median       uq
##               oem[lasso] 213.7904 219.6538 226.4532 219.8930 237.8327
##  oem[lasso/mcp/scad/ols] 259.2121 260.7772 267.5143 268.8317 271.7456
##       max neval
##  241.0959     5
##  277.0047     5

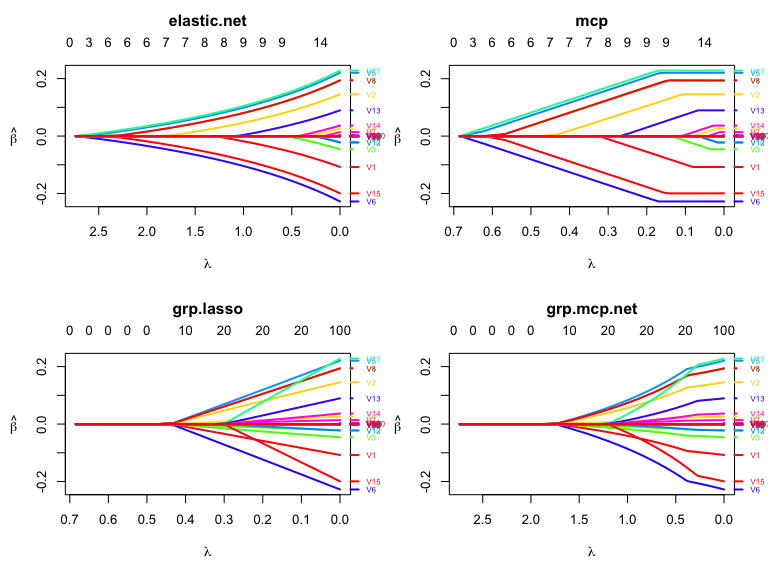

#png("../mcp_path.png", width = 3000, height = 3000, res = 400);par(mar=c(5.1,5.1,4.1,2.1));plot(res2, which.model = 2, main = "mcp",lwd = 3,cex.axis=2.0, cex.lab=2.0, cex.main=2.0, cex.sub=2.0);dev.off()
#

layout(matrix(1:4, ncol=2, byrow = TRUE))
plot(res2, which.model = 1, lwd = 2,
     xvar = "lambda")
plot(res2, which.model = 2, lwd = 2,
     xvar = "lambda")
plot(res2, which.model = 4, lwd = 2,
     xvar = "lambda")
plot(res2, which.model = 7, lwd = 2,
     xvar = "lambda")
