Area-Proportional Euler and Venn Diagrams with Ellipses

Generate area-proportional Euler diagrams using numerical optimization. An Euler diagram is a generalization of a Venn diagram, relaxing the criterion that all interactions need to be represented. Diagrams may be fit with ellipses and circles via a wide range of inputs and can be visualized in numerous ways.

Travis-CI BuildStatus AppVeyor BuildStatus CoverageStatus CRANBadge Donate

eulerr generates area-proportional Euler diagrams that display set relationships (intersections, unions, and disjoints) with circles or ellipses. Euler diagrams are Venn diagrams without the requirement that all set interactions be present (whether they are empty or not), which means that, depending on input, eulerr sometimes produces Venn diagrams and sometimes not.

With three or more sets intersecting, exact Euler diagrams are often impossible. For such cases eulerr attempts to provide a good approximation by numerically tuning the parameters of the ellipses or circles to minimize the error in the resulting diagram. Residuals and goodness of fit statistics are provided to assess whether the resulting diagram can be trusted.


CRAN version


Development version


Shiny app

eulerr is also available as a shiny app hosted at


# From Wilkinson 2012
fit <- euler(c("A" = 4, "B" = 6, "C" = 3, "D" = 2, "E" = 7, "F" = 3,
               "A&B" = 2, "A&F" = 2, "B&C" = 2, "B&D" = 1,
               "B&F" = 2, "C&D" = 1, "D&E" = 1, "E&F" = 1,
               "A&B&F" = 1, "B&C&D" = 1),
             shape = "ellipse")

We can inspect the goodness-of-fit metrics diagError and stress for the solution,

#> [1] 0.0001957608
#> [1] 0.002251973

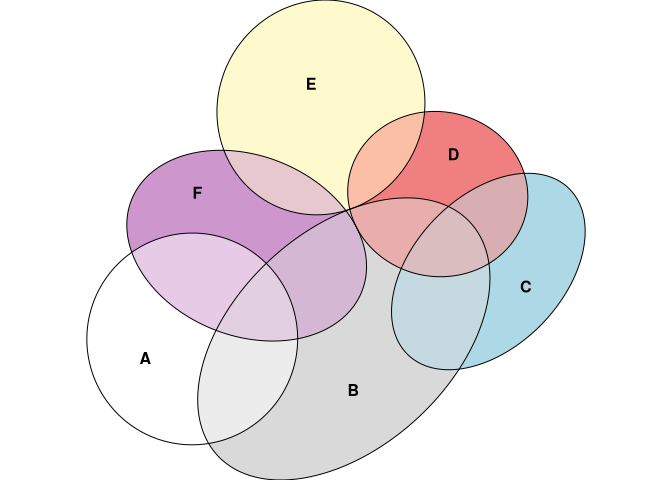

and plot it


Please see the introductory vignette for a brief introduction or eulerr under the hood for details.


eulerr is open source software, licensed under GPL-3.


eulerr uses semantic versioning.

Code of conduct

Please note that this project is released with a Contributor Code of Conduct. By participating in this project you agree to abide by its terms.


eulerr would not be possible without Ben Frederickson’s work on venn.js or Leland Wilkinson’s venneuler.
