Assigns Colours to Values

Maps one of the viridis colour palettes, or a user-specified palette to values. Viridis colour maps are created by Stéfan van der Walt and Nathaniel Smith. They were set as the default palette for the 'Python' 'Matplotlib' library, introduced at SciPy 2015 conference < http://scipy2015.scipy.org/ehome/index.php?eventid=115969&>. Other palettes available in this library have been derived from 'RColorBrewer' < https://CRAN.R-project.org/package=RColorBrewer> and 'colorspace' < https://CRAN.R-project.org/package=colorspace> packages.

What does it do?

It maps viridis colours (by default) to values, and quickly!

Note It does not perform a 1-to-1 mapping of a palette to values. It interpolates the colours from a given palette.

Why did you build it?

I’m aware there are other methods for mapping colours to values. And which do it quick too. But I can never remember them, and I find the interfaces a bit cumbersome. For example, scales::col_numeric(palette = viridisLite::viridis(5), domain = range(1:5))(1:5).

I wanted one function which will work on one argument.

colour_values(1:5)
# [1] "#440154FF" "#3B528BFF" "#21908CFF" "#5DC963FF" "#FDE725FF"
colour_values(letters[1:5])
# [1] "#440154FF" "#3B528BFF" "#21908CFF" "#5DC963FF" "#FDE725FF"

I also want it available at the src (C/C++) level for linking to other packages.

Why do you spell colour with a ‘u’?

Because it’s correct, and R tells us to

But don’t worry, color_values(1:5) works as well

How do I install it?

From CRAN

install.packages("colourvalues")

Or install the development version from GitHub with:

# install.packages("devtools")
devtools::install_github("SymbolixAU/colourvalues")

How can I make use of it in my package?

Rcpp

All functions are written in Rcpp. I have exposed some of them in header files so you can “link to” them in your package.

For example, the LinkingTo section in DESCRIPTION will look something like

LinkingTo:
    Rcpp,
    colourvalues

And in a c++ source file so you can #include a header and use the available functions

#include "colourvalues/colours/colours_hex.hpp"
// [[Rcpp::depends(colourvalues)]]

R

If you’re not using Rcpp, just Import this package like you would any other.

Do you have any examples?

Of course!

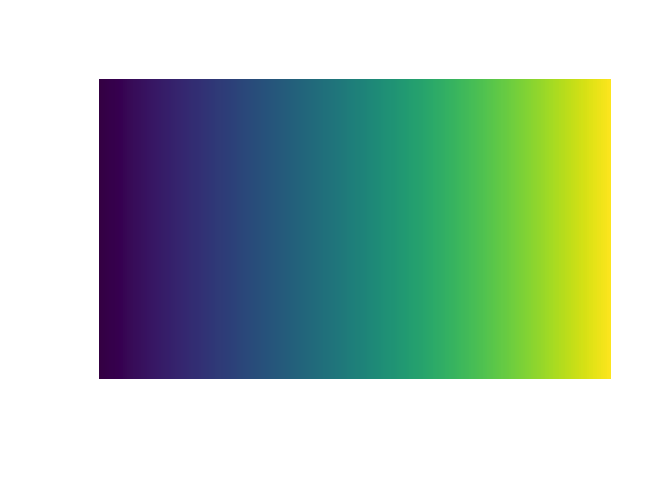

256 numbers mapped to a colour

bar_plot <- function(df) {
  barplot( height = df[["a"]], col = df[["col"]], border = NA, space = 0, yaxt = 'n')
}
df <- data.frame(a = 10, x = 1:256)
df$col <- colour_values(df$x, palette = "viridis")
bar_plot( df )

5000 numbers on a non-linear scale

df <- data.frame(a = 10, x = c((1:5000)**3))
df$col <- colour_values(df$x, palette = "viridis")
bar_plot( df )

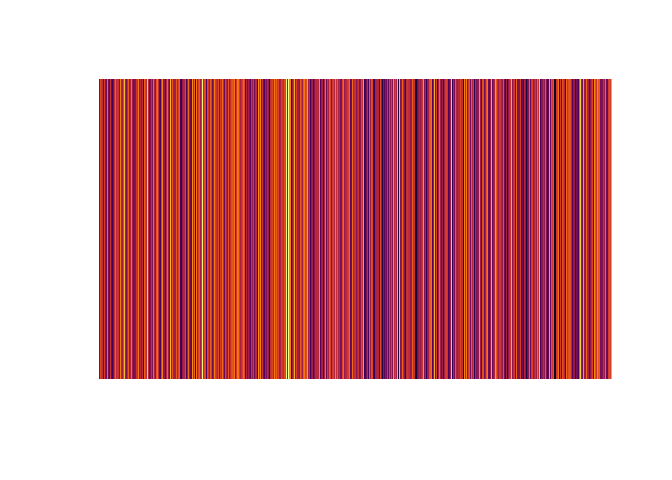

1000 random numbers

df <- data.frame(a = 10, x = rnorm(n = 1000))
df$col <- colour_values(df$x, palette = "inferno")
bar_plot( df )

Eurgh!

df <- df[with(df, order(x)), ]
bar_plot( df )

That’s better!

Are there only viridis palettes?

No, you can chose one from

colour_palettes()
#  [1] "viridis"        "cividis"        "magma"          "inferno"
#  [5] "plasma"         "ylorrd"         "ylorbr"         "ylgnbu"
#  [9] "ylgn"           "reds"           "rdpu"           "purples"
# [13] "purd"           "pubugn"         "pubu"           "orrd"
# [17] "oranges"        "greys"          "greens"         "gnbu"
# [21] "bupu"           "bugn"           "blues"          "spectral"
# [25] "rdylgn"         "rdylbu"         "rdgy"           "rdbu"
# [29] "puor"           "prgn"           "piyg"           "brbg"
# [33] "terrain"        "topo"           "heat"           "cm"
# [37] "rainbow"        "terrain_hcl"    "heat_hcl"       "sequential_hcl"
# [41] "rainbow_hcl"    "diverge_hcl"    "diverge_hsv"    "ygobb"
# [45] "matlab_like2"   "matlab_like"    "magenta2green"  "cyan2yellow"
# [49] "blue2yellow"    "green2red"      "blue2green"     "blue2red"

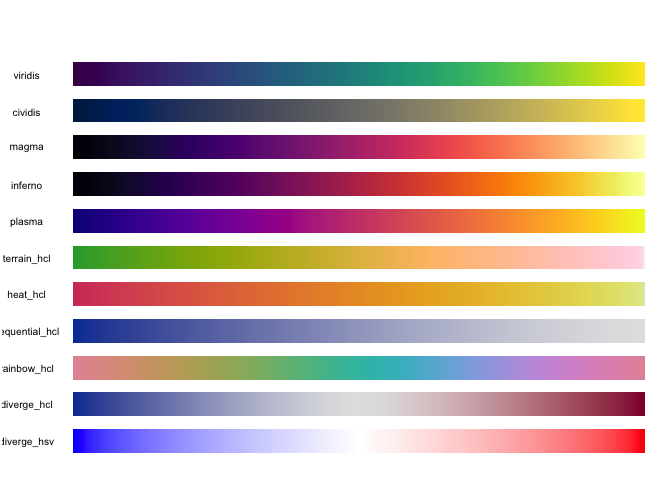

And you can use show_colours() to view them all. Here’s what some of them look like

show_colours( colours = colour_palettes(c("viridis", "colorspace")))

Do I have to use the in-built palettes?

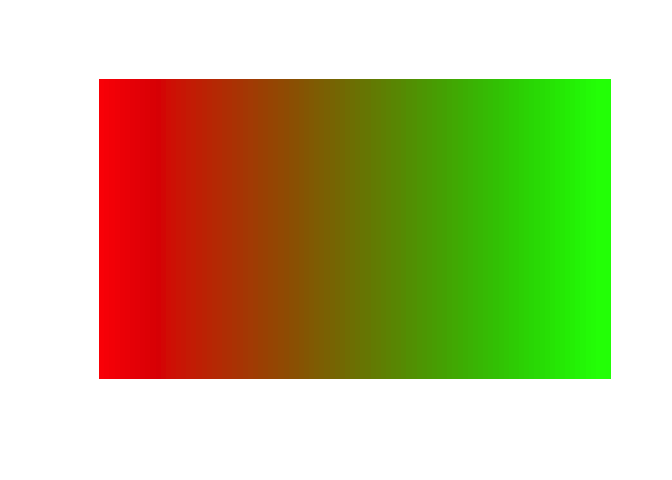

No, you can use your own specified as a matrix of red, green and blue columns in the range [0,255]

n <- 100
m <- grDevices::colorRamp(c("red", "green"))( (1:n)/n )
df <- data.frame(a = 10, x = 1:n)
df$col <- colour_values(df$x, palette = m)
bar_plot( df )

Do you support ‘alpha’ values

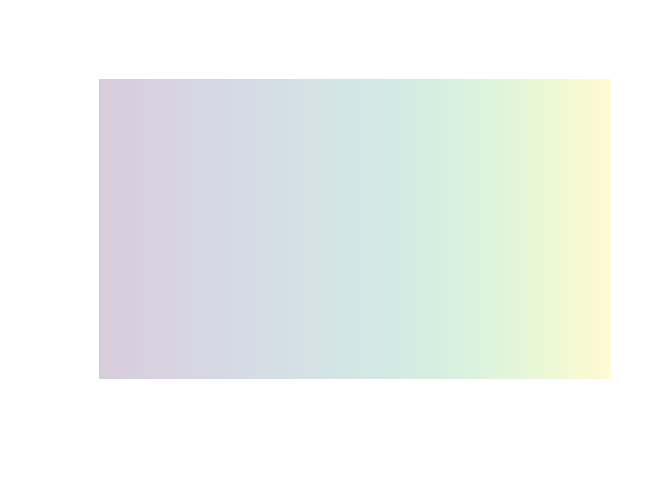

Yep. Either supply a single alpha value for all the colours

## single alpha value for all colours
df <- data.frame(a = 10, x = 1:255)
df$col <- colour_values(df$x, alpha = 50)
bar_plot( df )

Or use a vector of values the same length as x

df <- data.frame(a = 10, x = 1:300, y = rep(c(1:50, 50:1), 3) )
df$col <- colour_values(df$x, alpha = df$y)
bar_plot( df )

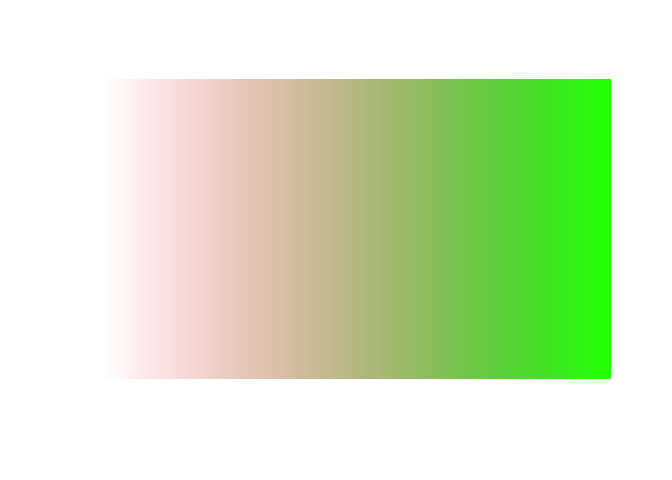

Or include the alpha value as a 4th column in the palette matrix

n <- 100
m <- grDevices::colorRamp(c("red", "green"))( (1:n)/n )
## alpha values
m <- cbind(m, seq(0, 255, length.out = 100))
df <- data.frame(a = 10, x = 1:n)
df$col <- colour_values(df$x, palette = m)
bar_plot( df )

Some of my plotting functions don’t support alpha, can I exclude it?

Yep. Set include_alpha = FALSE

colour_values(1:5, include_alpha = F)
# [1] "#440154" "#3B528B" "#21908C" "#5DC963" "#FDE725"
colour_values_rgb(1:5, include_alpha = F)
#      [,1] [,2] [,3]
# [1,]   68    1   84
# [2,]   59   82  139
# [3,]   33  144  140
# [4,]   93  201   99
# [5,]  253  231   37

Can I get a summary of colours to use in a legend?

Yes, for numeric values use the n_summaries argument to specify the number of summary values you’d like

colour_values(1:10, n_summaries = 3)
# $colours
#  [1] "#440154FF" "#482878FF" "#3E4A89FF" "#31688EFF" "#26838EFF"
#  [6] "#1F9D89FF" "#35B779FF" "#6CCE59FF" "#B4DD2CFF" "#FDE725FF"
#
# $summary_values
# [1] "1.00"  "5.50"  "10.00"
#
# $summary_colours
# [1] "#440154FF" "#21908CFF" "#FDE725FF"

You can also specify the number of digits you’d like returned in the summary

colour_values(rnorm(n = 10), n_summaries = 3, digits = 2)
# $colours
#  [1] "#27AD81FF" "#3F4989FF" "#39568CFF" "#218F8DFF" "#228C8DFF"
#  [6] "#FDE725FF" "#440154FF" "#3F4889FF" "#453681FF" "#26818EFF"
#
# $summary_values
# [1] "-1.21" "0.71"  "2.62"
#
# $summary_colours
# [1] "#440154FF" "#21908CFF" "#FDE725FF"

You can also use format = FALSE if you don’t want the summary values formatted.

dte <- seq(as.Date("2018-01-01"), as.Date("2018-02-01"), by = 1)
colour_values(dte, n_summaries = 3)
# $colours
#  [1] "#440154FF" "#470D60FF" "#48196BFF" "#482474FF" "#472E7CFF"
#  [6] "#453882FF" "#414286FF" "#3E4B8AFF" "#3A548CFF" "#365D8DFF"
# [11] "#32658EFF" "#2E6D8EFF" "#2B758EFF" "#287D8EFF" "#25858EFF"
# [16] "#228C8DFF" "#20948CFF" "#1E9C89FF" "#20A386FF" "#25AB82FF"
# [21] "#2DB27DFF" "#39BA76FF" "#48C16EFF" "#58C765FF" "#6ACD5BFF"
# [26] "#7ED34FFF" "#92D742FF" "#A8DB34FF" "#BEDF26FF" "#D4E21BFF"
# [31] "#E9E41AFF" "#FDE725FF"
#
# $summary_values
# [1] "2018-01-01" "2018-01-16" "2018-02-01"
#
# $summary_colours
# [1] "#440154FF" "#21908CFF" "#FDE725FF"

colour_values(dte, n_summaries = 3, format = F)
# $colours
#  [1] "#440154FF" "#470D60FF" "#48196BFF" "#482474FF" "#472E7CFF"
#  [6] "#453882FF" "#414286FF" "#3E4B8AFF" "#3A548CFF" "#365D8DFF"
# [11] "#32658EFF" "#2E6D8EFF" "#2B758EFF" "#287D8EFF" "#25858EFF"
# [16] "#228C8DFF" "#20948CFF" "#1E9C89FF" "#20A386FF" "#25AB82FF"
# [21] "#2DB27DFF" "#39BA76FF" "#48C16EFF" "#58C765FF" "#6ACD5BFF"
# [26] "#7ED34FFF" "#92D742FF" "#A8DB34FF" "#BEDF26FF" "#D4E21BFF"
# [31] "#E9E41AFF" "#FDE725FF"
#
# $summary_values
# [1] 17532.0 17547.5 17563.0
#
# $summary_colours
# [1] "#440154FF" "#21908CFF" "#FDE725FF"

For categorical values use summary = TRUE to return a uniqe set of the values, and their associated colours

colour_values(sample(letters, size = 50, replace = T), summary = T)
# $colours
#  [1] "#2F6C8EFF" "#2FB47CFF" "#482575FF" "#2F6C8EFF" "#43BF71FF"
#  [6] "#3B528BFF" "#414487FF" "#2FB47CFF" "#43BF71FF" "#5DC963FF"
# [11] "#5DC963FF" "#2F6C8EFF" "#7AD151FF" "#345F8DFF" "#7AD151FF"
# [16] "#7AD151FF" "#482575FF" "#25848EFF" "#1E9C89FF" "#2A788EFF"
# [21] "#9AD93DFF" "#3B528BFF" "#481466FF" "#7AD151FF" "#22A884FF"
# [26] "#5DC963FF" "#21908CFF" "#FDE725FF" "#21908CFF" "#DDE318FF"
# [31] "#463480FF" "#21908CFF" "#25848EFF" "#2F6C8EFF" "#481466FF"
# [36] "#25848EFF" "#440154FF" "#BCDF27FF" "#345F8DFF" "#25848EFF"
# [41] "#440154FF" "#FDE725FF" "#440154FF" "#43BF71FF" "#1E9C89FF"
# [46] "#22A884FF" "#2F6C8EFF" "#BCDF27FF" "#DDE318FF" "#463480FF"
#
# $summary_values
#  [1] "a" "b" "c" "e" "f" "g" "h" "i" "j" "k" "m" "o" "p" "q" "r" "s" "t"
# [18] "u" "x" "y" "z"
#
# $summary_colours
#  [1] "#440154FF" "#481466FF" "#482575FF" "#463480FF" "#414487FF"
#  [6] "#3B528BFF" "#345F8DFF" "#2F6C8EFF" "#2A788EFF" "#25848EFF"
# [11] "#21908CFF" "#1E9C89FF" "#22A884FF" "#2FB47CFF" "#43BF71FF"
# [16] "#5DC963FF" "#7AD151FF" "#9AD93DFF" "#BCDF27FF" "#DDE318FF"
# [21] "#FDE725FF"

What’s the performance like?

10 million numeric values

library(microbenchmark)
library(ggplot2)
library(scales)
library(viridisLite)

n <- 1e7
df <- data.frame(x = rnorm(n = n))

m <- microbenchmark(
  colourvalues = { colourvalues::colour_values(x = df$x) },
  scales = { col_numeric(palette = rgb(subset(viridis.map, opt=="D")[, 1:3]), domain = range(df$x))(df$x) },
  times = 25
)
m
# Unit: seconds
#          expr      min       lq     mean   median       uq      max neval
#  colourvalues 1.617036 1.629365 1.682938 1.645191 1.745641 1.800155    25
#        scales 2.820961 2.916128 3.035900 2.981311 3.140706 3.418156    25

autoplot(m)
# Coordinate system already present. Adding new coordinate system, which will replace the existing one.

1 million characters (26 unique values)

library(microbenchmark)
library(ggplot2)
library(scales)
library(viridisLite)

n <- 1e6
x <- sample(x = letters, size = n, replace = TRUE)
df <- data.frame(x = x)

m <- microbenchmark(
  colourvalues = { x <- colourvalues::colour_values(x = df$x) },
  scales = { y <- col_factor(palette = rgb(subset(viridis.map, opt=="D")[, 1:3]), domain = unique(df$x))(df$x) },
  times = 25
)
m
# Unit: milliseconds
#          expr      min       lq     mean   median       uq      max neval
#  colourvalues 182.1952 203.5807 206.2559 207.5844 209.7223 245.3349    25
#        scales 329.7487 342.8897 349.5171 345.3121 345.8927 417.3716    25

autoplot(m)
# Coordinate system already present. Adding new coordinate system, which will replace the existing one.
