Tree Sap Flow Extractor

Performs data assimilation, processing and analyses on sap flow data obtained with the thermal dissipation method (TDM). The package includes functions for gap filling time-series data, detecting outliers, calculating data-processing uncertainties and generating uniform data output and visualisation. The package is designed to deal with large quantities of data and to apply commonly used data-processing methods. The functions have been validated on data collected from different tree species across the northern hemisphere (Peters et al. 2018 ).

TREXr

TREXr allows to assimilate, process and analyse sap flow data obtained with the thermal dissipation method (TDM). The package includes functions for gap filling time-series data, detecting outliers, calculating data-processing uncertainties and generating uniform data output and visualisation. The package is designed to deal with large quantities of data and apply commonly used data-processing methods. The functions have been validated on data collected from different tree species across the northern hemisphere (Peters et al. 2018 <doi: 10.1111/nph.15241>).

1. Installation

A development version of TREXr can be installed and used via

remotes::install_github("the-Hull/TREXr")

library(TREXr)

2. Basic use and workflow

Load data

# load raw data
raw   <- is.trex(example.data(type="doy"),
                 tz="GMT",
                 time.format="%H:%M",
                 solar.time=TRUE,
                 long.deg=7.7459,
                 ref.add=FALSE)

# adjust time steps
input <- dt.steps(input=raw,
                start="2013-05-01 00:00",
                end="2013-11-01 00:00",
                time.int=15,
                max.gap=60,
                decimals=10,
                df=FALSE)

# remove obvious outliers
input[which(input<0.2)]<- NA

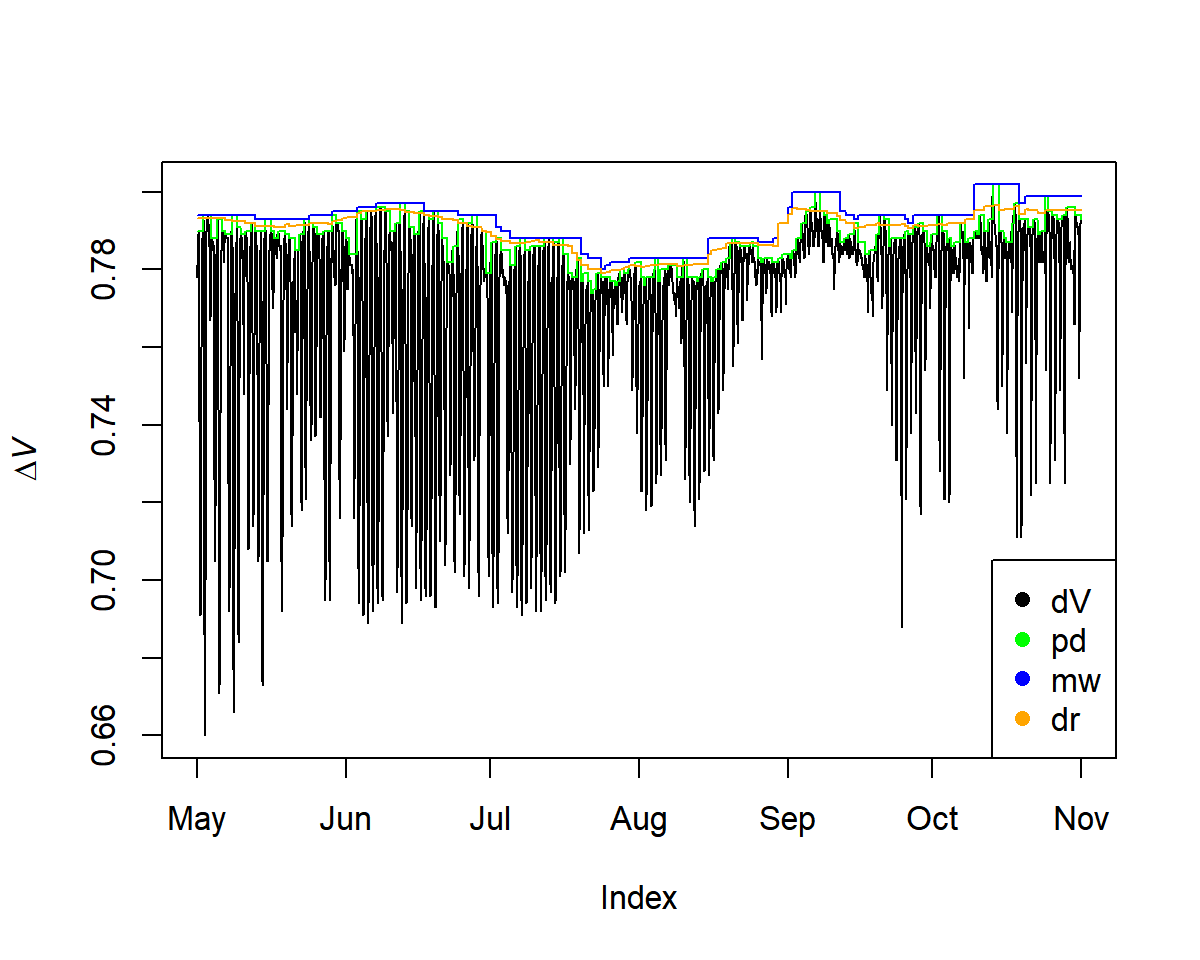

Calculate maximum ΔT-Values

Three methods can be applied to calculate ΔT (or ΔV for voltage differences between TDM probes):

• pd: pre-dawn
• mw: moving-window
• dr: double-regression

input <- tdm_dt.max(input,
                    methods = c("pd", "mw", "dr"),
                    det.pd = TRUE,
                    interpolate = FALSE,
                    max.days = 10,
                    df = FALSE)

plot(input$input, ylab = expression(Delta*italic("V")))

lines(input$max.pd, col = "green")
lines(input$max.mw, col = "blue")
lines(input$max.dr, col = "orange")

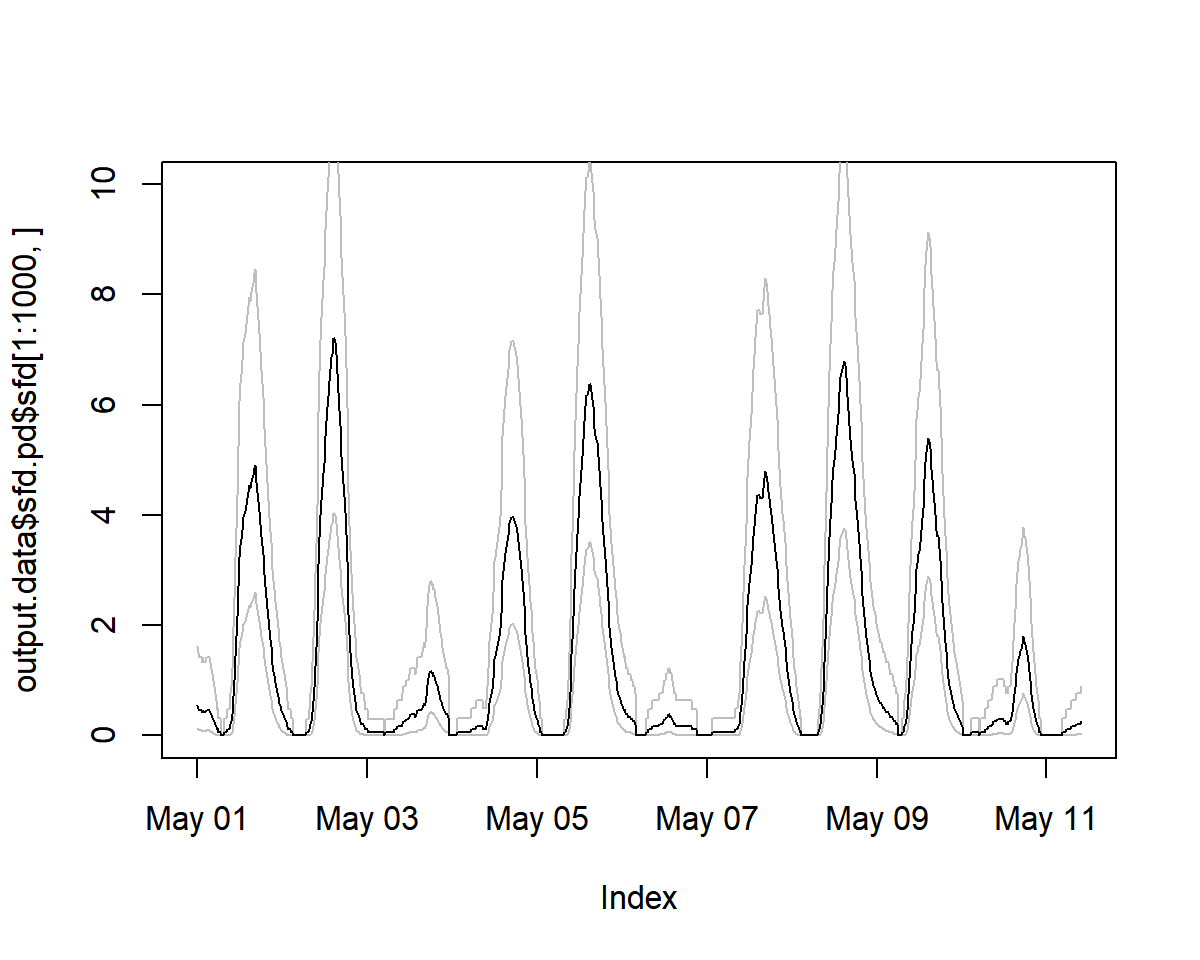

Calculate Sap Flux Density

output.data<- tdm_cal.sfd(input,make.plot=TRUE,df=FALSE,wood="Coniferous")

plot(output.data$sfd.pd$sfd[1:1000, ], ylim=c(0,10))
# see estimated uncertainty
lines(output.data$sfd.pd$q025[1:1000, ], lty=1,col="grey")
lines(output.data$sfd.pd$q975[1:1000, ], lty=1,col="grey")
lines(output.data$sfd.pd$sfd[1:1000, ])

sfd_data <- output.data$sfd.dr$sfd

Generate Outputs

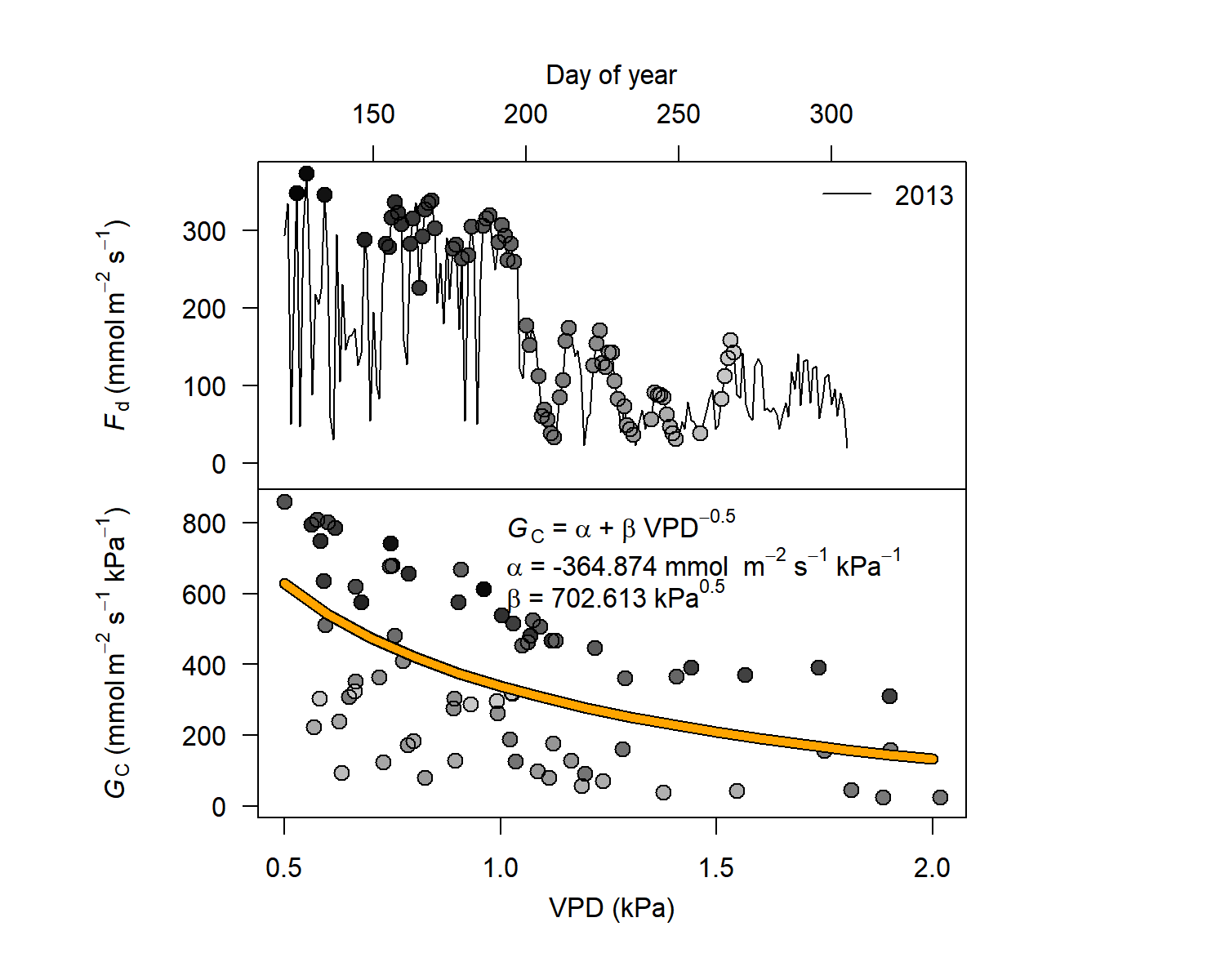

Here we generate outputs based on environmental filters and calculate crown conductance (G_c) values.

output<- out.data(input=sfd_data,
                  vpd.input=vpd,
                  sr.input=sr,
                  prec.input=preci,
                  low.sr = 150,
                  peak.sr=300,
                  vpd.cutoff= 0.5,
                  prec.lim=1,
                  method="env.filt",
                  max.quant=0.99,
                  make.plot=TRUE)

3. More on TREXr

Workshops using TREXr

• ESA 2020: TREXr was introduced and demonstrated in detail in a workshop during the Ecological Society of America's 2020 AGM. The workshop description can be found here, and all materials on the dedicated page.
