Track Numerical Optimization

Tracks parameter values, gradients, and Hessians at each iteration of numerical optimizers. Useful for analyzing optimization progress, diagnosing issues, and studying convergence behavior.

Track numerical optimization

The {trackopt} package tracks parameter values, gradients, and Hessians at each iteration of numerical optimizers in R. This can be useful for analyzing optimization progress, diagnosing issues, and studying convergence behavior.

Installation

You can install the released package version from CRAN with:

install.packages("trackopt")

Examples

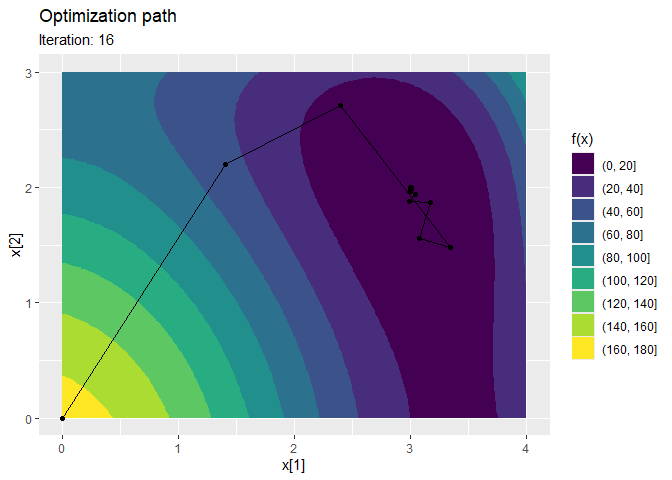

The following example tracks nlm while it minimizes Himmelblau’s function:

library("trackopt")
himmelblau <- function(x) (x[1]^2 + x[2] - 11)^2 + (x[1] + x[2]^2 - 7)^2
track <- nlm_track(f = himmelblau, p = c(0, 0))
summary(track)
#> Iterations: 16
#> Function improvement: 170 -> 1.521e-07
#> Computation time: 0.07373 seconds
#> Initial parameter: 0, 0
#> Final parameter: 3, 2
ggplot2::autoplot(track)

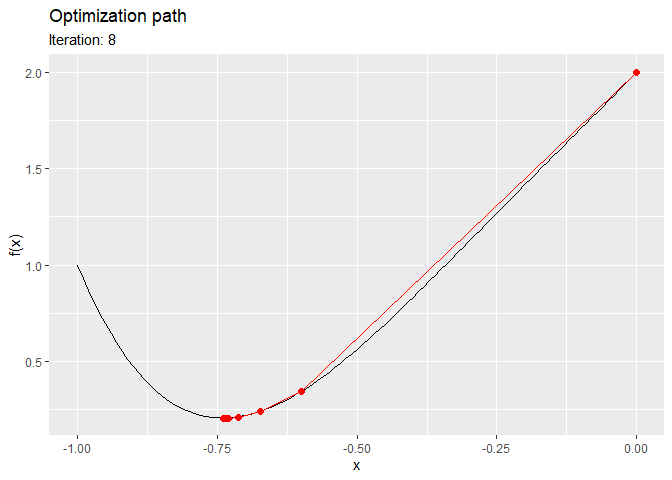

The next example tracks optim while it minimizes a quartic polynomial:

polynomial <- function(x) 5 * x^4 + 4 * x^3 + x^2 + 3 * x + 2
gradient <- function(x) 20 * x^3 + 12 * x^2 + 2 * x + 3
track <- optim_track(
  f = polynomial,
  p = 0,
  gradient = gradient,
  method = "BFGS"
)
print(track)
#> # A tibble: 9 × 6
#>   iteration value         step parameter hessian seconds
#> *     <dbl> <dbl>        <dbl>     <dbl>   <dbl>   <dbl>
#> 1         0 2      0               0       NA    0
#> 2         1 0.344 -1.66           -0.6      9.20 0.00830
#> 3         2 0.241 -0.103          -0.672   13.0  0.00156
#> 4         3 0.212 -0.0293         -0.712   15.3  0.00144
#> 5         4 0.207 -0.00524        -0.730   16.4  0.00144
#> 6         5 0.206 -0.000679       -0.736   16.8  0.00143
#> 7         6 0.206 -0.0000752      -0.738   17.0  0.00271
#> 8         7 0.206 -0.00000784     -0.739   17.0  0.00151
#> 9         8 0.206 -0.000000802    -0.739   17.0  0.00147
ggplot2::autoplot(track)
