sooty
Data Source Catalogues Online for Southern Ocean Ecosystem Research
Obtains lists of files of remote sensing collections for Southern Ocean surface
properties. Commonly used data sources of sea surface temperature, sea ice concentration, and
altimetry products such as sea surface height and sea surface currents are cached in object storage
on the Pawsey Supercomputing Research Centre facility. Patterns of working to retrieve data from these object storage
catalogues are described. The catalogues include complete collections of datasets Reynolds et al. (2008)
"NOAA Optimum Interpolation Sea Surface Temperature (OISST) Analysis, Version 2.1"
sooty
The goal of sooty is to provide access to data of relevance to Southern Ocean research.
To see what files we know about in object storage, use
library(sooty)
(files <- sooty_files())
#> # A tibble: 232,798 × 7
#> date source Dataset Bucket Key Protocol Host
#> <dttm> <chr> <chr> <chr> <chr> <chr> <chr>
#> 1 1981-09-01 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 2 1981-09-02 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 3 1981-09-03 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 4 1981-09-04 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 5 1981-09-05 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 6 1981-09-06 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 7 1981-09-07 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 8 1981-09-08 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 9 1981-09-09 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> 10 1981-09-10 00:00:00 /vsicurl/https://pro… oisst-… idea-… www.… /vsicurl http…
#> # ℹ 232,788 more rows
The main columns of interest are date and source and Dataset, the
source is a directly useable source identifier that a GDAL-enabled
package can read. (See examples below).
We can get a very simple model of a “logical dataset” by honing in one
Dataset in particular. First let’s make a summary from everything:
library(sooty)
sooty_files() |>
dplyr::mutate(date = as.Date(date)) |> dplyr::group_by(Dataset) |>
dplyr::summarize(earliest = min(date), latest = max(date), n = dplyr::n()) |>
dplyr::arrange(Dataset, earliest)
#> # A tibble: 24 × 4
#> Dataset earliest latest n
#> <chr> <date> <date> <int>
#> 1 BREMEN-SEAICE-SMOS-north 2010-05-01 2025-08-24 5569
#> 2 BREMEN-SEAICE-SMOS-south 2010-10-01 2016-05-03 12
#> 3 NSIDC_SEAICE_PS_N25km 1978-10-26 2025-08-24 15448
#> 4 NSIDC_SEAICE_PS_S25km 1978-10-26 2025-08-24 15448
#> 5 SEALEVEL_GLO_PHY_L4 1993-01-01 2025-08-25 11811
#> 6 antarctica-amsr2-asi-s3125-tif 2012-07-02 2025-08-24 4791
#> 7 ccmp-wind-product-v2 1993-01-02 2024-08-31 11552
#> 8 esacci-oc-l3s-chlor-a-merged-5day 1997-09-03 2025-03-27 2019
#> 9 esacci-oc-l3s-chlor-a-merged-annual 1997-09-01 2024-09-01 28
#> 10 esacci-oc-l3s-chlor-a-merged-daily 1997-09-04 2025-03-31 10045
#> # ℹ 14 more rows
library(terra)
#> terra 1.8.97
file <- files$source[which.max(files$date) ]
print(file)
#> [1] "/vsicurl/https://data.source.coop/ausantarctic/ghrsst-mur-v2/2025/08/29/20250829090000-JPL-L4_GHRSST-SSTfnd-MUR-GLOB-v02.0-fv04.1_analysed_sst.tif"
rast(file)
#> class : SpatRaster
#> size : 17999, 36000, 1 (nrow, ncol, nlyr)
#> resolution : 0.01, 0.01 (x, y)
#> extent : -179.995, 180.005, -89.995, 89.995 (xmin, xmax, ymin, ymax)
#> coord. ref. : lon/lat WGS 84 (EPSG:4326)
#> source : 20250829090000-JPL-L4_GHRSST-SSTfnd-MUR-GLOB-v02.0-fv04.1_analysed_sst.tif
#> name : 20250829090000-JPL-L4_GHRSST-S~GLOB-v02.0-fv04.1_analysed_sst
The available datasets can be found from the table.
dplyr::distinct(sooty_files(), Dataset)
#> # A tibble: 24 × 1
#> Dataset
#> <chr>
#> 1 oisst-avhrr-v02r01
#> 2 SEALEVEL_GLO_PHY_L4
#> 3 NSIDC_SEAICE_PS_S25km
#> 4 NSIDC_SEAICE_PS_N25km
#> 5 antarctica-amsr2-asi-s3125-tif
#> 6 ghrsst-tif
#> 7 ccmp-wind-product-v2
#> 8 BREMEN-SEAICE-SMOS-south
#> 9 BREMEN-SEAICE-SMOS-north
#> 10 oisst-tif
#> # ℹ 14 more rows
There are data sets like the 25km resolution south polar stereographic sea ice concentration, available via the dataset identifier `:
icefiles <- sooty_files() |> dplyr::filter(Dataset == "NSIDC_SEAICE_PS_S25km")
dplyr::glimpse(icefiles)
#> Rows: 15,448
#> Columns: 7
#> $ date <dttm> 1978-10-26, 1978-10-28, 1978-10-30, 1978-11-01, 1978-11-03, …
#> $ source <chr> "/vsicurl/https://projects.pawsey.org.au/idea-10.5067-mpyg15w…
#> $ Dataset <chr> "NSIDC_SEAICE_PS_S25km", "NSIDC_SEAICE_PS_S25km", "NSIDC_SEAI…
#> $ Bucket <chr> "idea-10.5067-mpyg15waa4wx", "idea-10.5067-mpyg15waa4wx", "id…
#> $ Key <chr> "n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978.10.26/NSIDC005…
#> $ Protocol <chr> "/vsicurl", "/vsicurl", "/vsicurl", "/vsicurl", "/vsicurl", "…
#> $ Host <chr> "https://projects.pawsey.org.au", "https://projects.pawsey.or…
You can immediately see what range of dates is available:
range(icefiles$date)
#> [1] "1978-10-26 UTC" "2025-08-24 UTC"
And, explore exactly what source files are available:
range(diff(icefiles$date)) ## there are some gaps, it's every two days to start and some are missing
#> Time differences in days
#> [1] 1 42
diff(range(icefiles$date)) ## the number of potential data days
#> Time difference of 17104 days
nrow(icefiles) ## the actual number of data days
#> [1] 15448
This is a very experimental begin at replacing raadtools with a package anyone can use.
We can read from the datasets with a GDAL-ready package, such as terra. But note that we need to set a configuration first, and we need to unset it after, this is WIP.
amsrfiles <- dataset("antarctica-amsr2-asi-s3125-tif")@source
#> Warning in dataset("antarctica-amsr2-asi-s3125-tif"): 'dataset' is deprecated.
#> Use 'datasource' instead.
#> See help("Deprecated")
library(terra)
r <- rast(tail(amsrfiles$source, 1))
dim(r); substr(crs(r), 0, 98); ext(r)
#> [1] 2656 2528 1
#> [1] "PROJCRS[\"WGS 84 / NSIDC Sea Ice Polar Stereographic South\",\n BASEGEOGCRS[\"WGS 84\",\n ENSE"
#> SpatExtent : -3950000, 3950000, -3950000, 4350000 (xmin, xmax, ymin, ymax)
r[r > 100] <- NA
plot(r[[nlyr(r)]] * 1, main = format(max(icefiles$date)))
ghrsst <- datasource("ghrsst-tif")
sstfile <- ghrsst@source$source[match(max(icefiles$date), ghrsst@source$date)]
sst <- rast(sprintf("vrt://%s?ovr=4", sstfile))
ct <- as.contour(crop(sst, ext(-180, 180, -90, -40)))
plot(project(ct, crs(r)), add = TRUE, col = "hotpink")

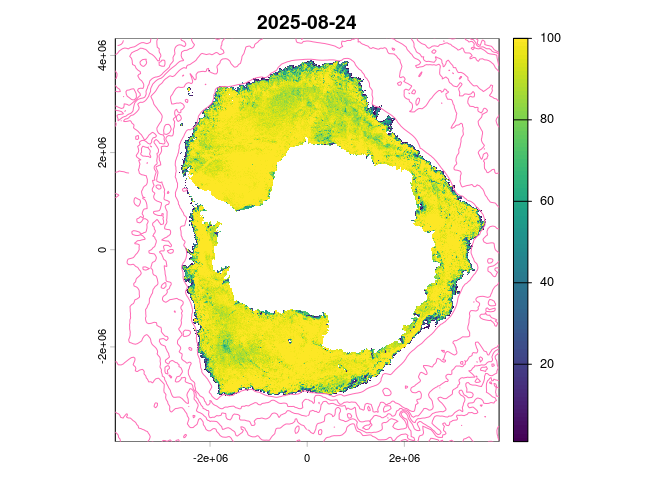

That should be the state of the sea ice in the Southern Ocean at the latest available date, sea ice concentration from passive microwave at 3.125km resolution, by the AWI artist sea ice group.
About the columns in sooty_files()
Dataset is the main grouping value, and files from different
Datasets are otherwise non-relatable, be it by file format, available
variable/s, grid specification (spatial extent and resolution), or
temporal organization. We guarantee that within a Dataset, the files are
ordered and unique by date(-time) and that they are exactly relatable
spatially and (mostly, or usually also) by variable/s. The time series
may not be regular or complete, but usually is.
We retain the component parts of source, as Bucket, Key,
Protocol, and Host as this is object storage and these are the
separable parts of addressing objects in different ways, and we’ve
reserved that for future usage. (We use https:// protocol by default
to avoid any required configurations). Get in touch if you have any
questions about this.
S7 object control
We have an in-progress class for dataset handling. Create a ‘dataset()’ and set an id.
ds <- dataset()
#> Warning in dataset(): 'dataset' is deprecated.
#> Use 'datasource' instead.
#> See help("Deprecated")
ds@id <- "NSIDC_SEAICE_PS_S25km"
ds
#> <sooty::dataset>
#> @ id : chr "NSIDC_SEAICE_PS_S25km"
#> @ n : int 15448
#> @ mindate: POSIXct[1:1], format: "1978-10-26"
#> @ maxdate: POSIXct[1:1], format: "2025-08-24"
#> @ source : tibble [15,448 × 7] (S3: tbl_df/tbl/data.frame)
#> $ date : POSIXct[1:15448], format: "1978-10-26" "1978-10-28" ...
#> $ source : chr [1:15448] "/vsicurl/https://projects.pawsey.org.au/idea-10.5067-mpyg15waa4wx/n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978"| __truncated__ "/vsicurl/https://projects.pawsey.org.au/idea-10.5067-mpyg15waa4wx/n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978"| __truncated__ "/vsicurl/https://projects.pawsey.org.au/idea-10.5067-mpyg15waa4wx/n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978"| __truncated__ "/vsicurl/https://projects.pawsey.org.au/idea-10.5067-mpyg15waa4wx/n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978"| __truncated__ ...
#> $ Dataset : chr [1:15448] "NSIDC_SEAICE_PS_S25km" "NSIDC_SEAICE_PS_S25km" "NSIDC_SEAICE_PS_S25km" "NSIDC_SEAICE_PS_S25km" ...
#> $ Bucket : chr [1:15448] "idea-10.5067-mpyg15waa4wx" "idea-10.5067-mpyg15waa4wx" "idea-10.5067-mpyg15waa4wx" "idea-10.5067-mpyg15waa4wx" ...
#> $ Key : chr [1:15448] "n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978.10.26/NSIDC0051_SEAICE_PS_S25km_19781026_v2.0.nc" "n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978.10.28/NSIDC0051_SEAICE_PS_S25km_19781028_v2.0.nc" "n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978.10.30/NSIDC0051_SEAICE_PS_S25km_19781030_v2.0.nc" "n5eil01u.ecs.nsidc.org/PM/NSIDC-0051.002/1978.11.01/NSIDC0051_SEAICE_PS_S25km_19781101_v2.0.nc" ...
#> $ Protocol: chr [1:15448] "/vsicurl" "/vsicurl" "/vsicurl" "/vsicurl" ...
#> $ Host : chr [1:15448] "https://projects.pawsey.org.au" "https://projects.pawsey.org.au" "https://projects.pawsey.org.au" "https://projects.pawsey.org.au" ...
ds@source
#> # A tibble: 15,448 × 7
#> date source Dataset Bucket Key Protocol Host
#> <dttm> <chr> <chr> <chr> <chr> <chr> <chr>
#> 1 1978-10-26 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 2 1978-10-28 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 3 1978-10-30 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 4 1978-11-01 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 5 1978-11-03 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 6 1978-11-05 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 7 1978-11-07 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 8 1978-11-09 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 9 1978-11-11 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> 10 1978-11-13 00:00:00 /vsicurl/https://pro… NSIDC_… idea-… n5ei… /vsicurl http…
#> # ℹ 15,438 more rows
