Creates a Prisma Diagram using 'DiagrammeR'

Creates 'PRISMA' < http://prisma-statement.org/> diagram from a minimal dataset of included and excluded studies and allows for more custom diagrams. 'PRISMA' diagrams are used to track the identification, screening, eligibility, and inclusion of studies in a systematic review.

prismadiagramR

The goal of prismadiagramR is to create a custom prismadiagram in R.

Installation

You can install the released version of prismadiagramR from CRAN with:

install.packages("prismadiagramR")

And the development version from GitHub with:

# install.packages("devtools")
devtools::install_github("ltrainstg/prismadiagramR")

Example

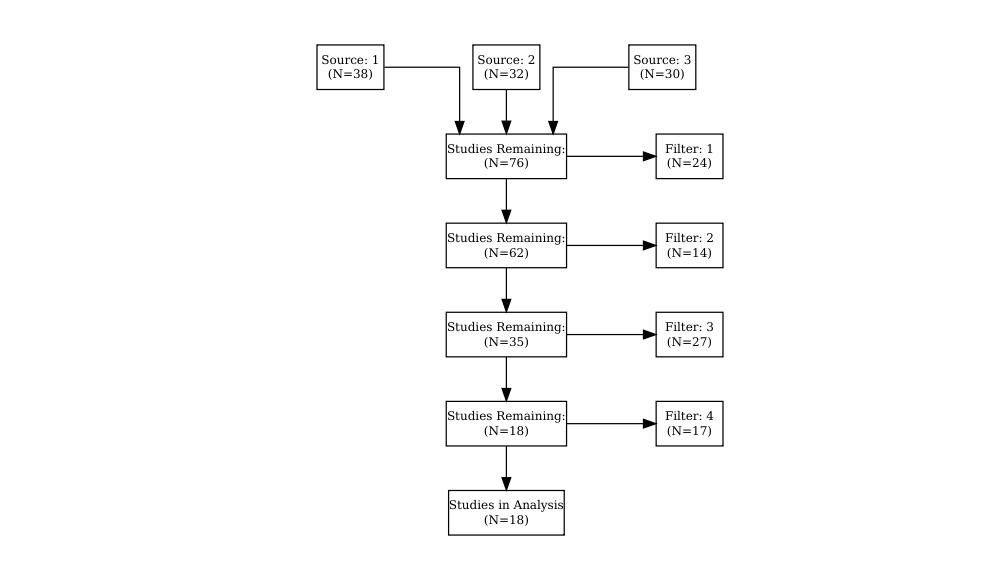

This example shows how to create a simple automated PRISMA from a publication tracker.


set.seed(25)
N <- 100
studyStatus <- data.frame(Pub.ID = seq(1:N),
                          Source = sample(1:3, N, replace = TRUE),
                          Filter = sample(1:5, N, replace = TRUE))
studyStatus$Filter[studyStatus$Filter==5] <- NA
getPrisma(studyStatus) %>% DiagrammeR::grViz(.)
#> Warning in getPrisma(studyStatus): prismaFormat is null so attempting to
#> make automatic one from studyStatus
#> Warning in getFormatNode(prismaFormat): fontSize param not passed in
#> prismaFormat

Other PRISMA resources

A few other R packages exist that also make PRISMA diagram that might be better for your needs.

prismaStatement This also uses DiagrammeR, but the template is fixed.
metagear This does not use DiagrammeR and is highly customizable, but is buried with many other functions and a little hard to get working.
