Focus on Specific Factor Levels in your ggplot()

A 'ggplot2' extension that provides tools for automatically focusing specific factor levels.


Introduction

Many times during data analysis, one may want to visualize data for a specific subgroup of observations. While ggplot is great for data visualization in general, constructing graphics that focus on those subgroups may need very troublesome manipulation of data and graphical scales (for example colors), i.e. setting low alpha for unimportant observations, coloring things in a way that highlights the focus subgroup, etc.

ggfocus allows you to build graphics that focus on those specific subgroups by doing the scale manipulation automatically while keeping all the flexibility from ggplot. The idea behind this approach is from this issue from tidyverse/ggplot2.

Installing ggfocus

The package is not available in CRAN (yet), but you can install it from github with devtools.

devtools::install_github("Freguglia/ggfocus")

Usage

ggfocus implements the ggfocus() function.

ggfocus(p, var, focus_levels, focus_aes = c("color", "alpha"),
  color_focus = NULL, color_other = "black", alpha_focus = 1,
  alpha_other = 0.05)
  • p: a ggplot.
  • var: the factor variable that you want to specify levels to focus (note that this can be a numeric variable that represents a factor, i.e., you gave an integer number to each 'level', like an integer ID or a character variable).
  • focus_levels: a vector of levels (either character or numeric) to highlight.
  • focus_aes: which aesthetics should be used to highlight the levels. Currently only color, alpha and fill are available. A character vector is expected.
  • color_focus: what color selected levels should have? It can be either one color (all equal) or character vector with one color for each level. This affects both color and fill.
  • color_other: color for levels not selected.
  • alpha_focus and alpha_other: alpha for selcted and not selected levels, respectively.

Examples

Using the gapminder dataset, first we create our ggplot

library(ggplot2)
library(gapminder)
p <- ggplot(gapminder, aes(x=log(gdpPercap), y=lifeExp, group=country)) + geom_line()
p

Now we can use ggfocus() to highlight European countries only.

library(ggfocus)
ggfocus(p, continent, "Europe")

We can also highlight countries

ggfocus(p, country, c("Brazil","Argentina"), color_focus = c("Green","Blue"))

Because ggfocus() retuns a modified ggplot object, other ggplot extensions can used with it, for example, gganimate.

library(gganimate)
p <- ggplot(gapminder, aes(x=log(gdpPercap), y=lifeExp, size=pop, frame=year)) + geom_point()
focus_p <- ggfocus(p,country,c("Brazil","Argentina"), color_focus = c("Green","Blue"))
gganimate(focus_p,interval=.2)

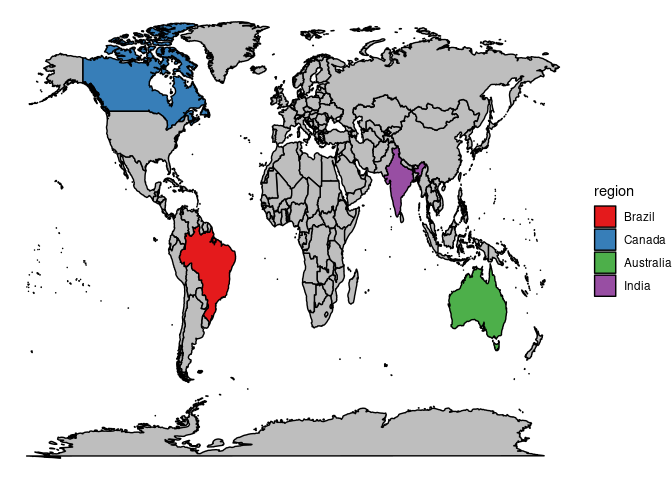

Using ggfocus with ggmaps

library(ggmap)
library(maps)

wm <- map_data("world")
p <- ggplot(wm, aes(x=long, y = lat, group = group)) + geom_polygon(color="black") + theme_void()
ggfocus(p, region, c("Brazil","India","Italy","Canada"),focus_aes = c("fill","alpha"),
        color_focus = "blue", alpha_other = 0.15) + guides(fill=FALSE)
