Frequentist Inference for Thermal Load Sensitivity Models

A maximum-likelihood implementation of the thermal-load-sensitivity framework for thermal death-time modelling introduced by Noble, Arnold and Pottier in the 'bayesTLS' package, providing the frequentist counterpart to that Bayesian workflow. The modelling idea and the four-parameter logistic parameterisation are theirs; 'freqTLS' contributes a 'Template Model Builder' ('TMB') likelihood whose midpoint is written directly in terms of critical thermal maximum ('CTmax') and thermal sensitivity (z) so both headline quantities are estimable, and reports uncertainty through a unified trio of frequentist intervals -- Wald (delta), profile-likelihood, and bootstrap -- for binomial and beta-binomial survival counts and beta-distributed proportions. Column and formula interfaces support fixed and grouped designs plus limited independent random intercepts; prediction includes survival curves and deterministic heat-injury scenarios. Equivalence claims are restricted to the matched relative-threshold, constant-shape 'bayesTLS' configuration.

freqTLS

Fast, prior-free frequentist confidence intervals — Wald, profile-likelihood, and bootstrap — for thermal-load-sensitivity (thermal death-time) models; the maximum-likelihood complement to bayesTLS.

freqTLS fits the single-stage four-parameter logistic (4PL) thermal death-time model by maximum likelihood via TMB, parameterised directly in CTmax (critical thermal maximum) and z (thermal sensitivity). It then returns prior-free frequentist confidence intervals — Wald, profile-likelihood (asymmetry-respecting), and bootstrap — for binomial and beta-binomial survival counts, and for continuous proportion responses in (0, 1) via the beta family.

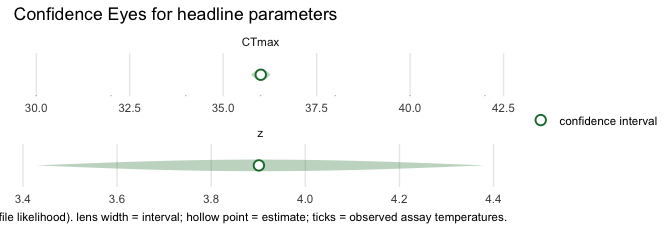

Its signature display is the Confidence Eye: a pale horizontal lens spanning the likelihood interval, with a hollow point estimate. These are likelihood confidence intervals, not posteriors, so the visual deliberately avoids posterior-density iconography, and the prose never uses “posterior” or “credible” language.

What freqTLS does

• Fits the 4PL thermal death-time model by maximum likelihood, directly in CTmax and z, for binomial and beta-binomial survival counts and continuous beta proportions in (0, 1) (no trials column needed).
• Inverts the likelihood-ratio test to give profile-likelihood confidence intervals that respect asymmetry and carry no prior.
• Surfaces identifiability honestly: when a profile does not close, it is flagged, never fabricated. By default confint() then falls back to a prior-free parametric bootstrap; unstable refits remain unavailable rather than producing a fabricated bound. Set fallback = FALSE to keep the open profile, which the Confidence Eye marks with a hollow point and no lens.
• Ships a tidy column interface (fit_tls()) and a brms/drmTMB-style formula interface (tls_bf()) with fixed-effect predictors on any sub-parameter (CTmax, log_z, low, up, log_k), plus prediction, lethal-time derivation, and plotting (survival curves, the survival surface, and the Confidence Eye).
• Fits random intercepts on CTmax, log_z, low, and log_k (<param> ~ <fixed> + (1 | group)), with profile intervals for the fixed effects. At most one intercept term is supported per coordinate, and multiple terms remain independent variance blocks; correlated, crossed, nested, and random-slope structures are not implemented.
• Derives critical temperatures — derive_ctmax() (absolute threshold) and derive_tcrit() (rate-multiplier) — and predicts heat injury under a temperature trace (predict_heat_injury()) with a prior-free bootstrap confidence band (heat_injury_envelope(), plot_heat_injury()). See vignette("frequentist-and-bayesian") for how the likelihood and Bayesian paths compare.

Why not the two-stage workflow

The classical workflow fits a curve per temperature, then regresses the derived endpoints in a second stage. That discards the joint uncertainty: the second-stage standard errors treat noisy first-stage estimates as fixed, and the design’s identifiability is invisible. freqTLS fits one model to all the counts at once and inverts the likelihood for CTmax and z directly, so the interval reflects the whole design and flags weakly identified parameters.

How it differs from bayesTLS

freqTLS and bayesTLS fit the same model. Under the matched constant-shape configuration they target the same likelihood and the same fitted curve; they differ only in how uncertainty is summarised.

Use freqTLS when you want fast, prior-free, asymmetry-respecting intervals and an explicit identifiability check. When a profile does not close it can fall back to a parametric bootstrap; if too few stable refits remain, the result stays unavailable rather than reporting a fabricated bound. Use bayesTLS when you want a full Bayesian workflow, prior information, or the heat-injury and repair sub-models. The two are complementary lenses on the same model, not competitors.

Installation

After the package appears on CRAN, install the released version with:

install.packages("freqTLS")

Or install the development version from GitHub:

# install.packages("pak")
pak::pak("itchyshin/freqTLS")

Quick start

The workflow follows the same standardize → fit → quantities → plot sequence as bayesTLS, but the packages are not drop-in replacements. freqTLS implements the tested fixed/grouped designs and limited random-intercept structures described below; more general Bayesian models remain in bayesTLS. The engine is maximum likelihood (no Stan, no MCMC, no internet); uncertainty is a frequentist trio (Wald, profile, bootstrap) instead of a posterior. The deliberate differences are documented in vignette("comparing-to-bayesTLS"): the absolute (p-survival) threshold and non-default asymptote bounds are not yet wired through the ML backbone (fit on the relative midpoint, then convert with extract_tdt()); uncertainty comes as bootstrap replicates rather than posterior draws; and the temperature effect defaults to the constant-shape configuration.

library(freqTLS)

# 1. Standardize raw survival counts (the shared bayesTLS entry point)
dat <- simulate_tls(family = "beta_binomial", CTmax = 36, z = 4, phi = 50, seed = 1)
std <- standardize_data(dat, temp = "temp", duration = "duration",
                        n_total = "total", n_surv = "survived")

# 2. Fit the 4PL by maximum likelihood, directly in CTmax and z
fit <- fit_4pl(std, t_ref = 1)

# 3. Headline thermal-death-time quantities with profile-likelihood intervals
tls(fit)
#> <tls> relative threshold; quantities: z, CTmax (profile intervals)
#> # A tibble: 2 × 4
#>   quantity median lower upper
#>   <chr>     <dbl> <dbl> <dbl>
#> 1 CTmax     36.0  35.7  36.3
#> 2 z          3.90  3.43  4.38

For per-group CTmax and z, standardize a dataset that contains the grouping column, then pass matching formulas exactly as in bayesTLS:

grouped_dat <- simulate_tls(
  family = "binomial", group = c("cool", "warm"), reps = 4, n = 40,
  CTmax = c(35, 38), z = c(4, 4), seed = 2
)
grouped_std <- standardize_data(
  grouped_dat, temp = "temp", duration = "duration",
  n_total = "total", n_surv = "survived"
)
grouped_fit <- fit_4pl(
  grouped_std, ctmax = ~ 0 + group, z = ~ 0 + group, t_ref = 1
)
# Inspect the recovered group-specific CTmax and z estimates.
tidy_parameters(grouped_fit)[
  grepl("^(CTmax|z):", tidy_parameters(grouped_fit)$parameter),
  c("parameter", "estimate")
]

extract_tdt(), predict_survival_curves(), and diagnose_tdt_fit() complete the twin surface; the column / formula engine interface (fit_tls(), tls_bf()) remains available underneath.

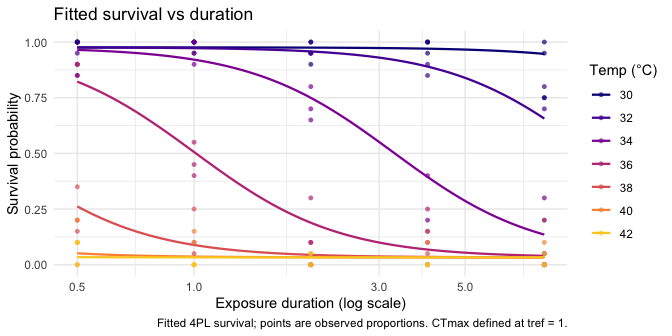

# 4. Plot the fitted survival surface (the Confidence Eye is shown above)
plot_survival_curves(fit)

Formula interface

If you prefer a grammar, build the model with tls_bf() and pass it as the first argument with the data in data =. The left-hand side names the survival counts (successes | trials(total)); the right-hand side tags the two axes with the time() and temp() markers. The formula path feeds the same likelihood engine, so the fits are numerically identical:

# Column form and formula form fit the same model:
fit_f <- fit_tls(
  tls_bf(survived | trials(total) ~ time(duration) + temp(temp)),
  data   = dat,
  family = "beta_binomial",
  tref   = 1
)
all.equal(coef(fit_f), coef(fit))
#> [1] TRUE

Add a sub-parameter formula for predictors on CTmax and log_z (for example CTmax ~ life_stage, log_z ~ life_stage for a grouped fit). These two headline coordinates must use the same fixed-effect design columns; their supported random-intercept groupings may differ. The shape coordinates may use independent fixed designs.

Random effects on CTmax and z

When thermal tolerance varies across colonies, clutches, or populations, add a random intercept on CTmax with CTmax ~ 1 + (1 | group). freqTLS fits it by maximum likelihood through TMB’s Laplace approximation (matching the bayesTLS random-effects-on-the-midpoint configuration), reports the between-group standard deviation as sigma_CTmax, and returns the group BLUPs via ranef(). The no-random-effects path stays byte-identical to the fixed-effects model.

# 15 colonies whose CTmax varies with SD = 1.5 C.
dre <- simulate_tls(family = "binomial", CTmax = 36, z = 4,
                    re_sd = 1.5, n_re_groups = 15, seed = 1)
fit_re <- fit_tls(
  tls_bf(survived | trials(total) ~ time(duration) + temp(temp),
         CTmax ~ 1 + (1 | colony)),
  data = dre, family = "binomial", tref = 1
)
# Between-colony SD of CTmax (with a Wald interval):
tp <- tidy_parameters(fit_re)
tp[tp$parameter == "sigma_CTmax", c("parameter", "estimate", "conf.low", "conf.high")]
#> # A tibble: 1 × 4
#>   parameter   estimate conf.low conf.high
#>   <chr>          <dbl>    <dbl>     <dbl>
#> 1 sigma_CTmax     1.48     1.03      2.12

# Colony BLUPs (deviations from the population CTmax):
head(ranef(fit_re), 3)
#> # A tibble: 3 × 4
#>   group term  estimate std.error
#>   <chr> <chr>    <dbl>     <dbl>
#> 1 g1    CTmax   -1.03      0.390
#> 2 g10   CTmax   -0.651     0.390
#> 3 g11   CTmax    2.05      0.390

# Choose the prediction target explicitly for a random-intercept fit.
colony_1 <- as.character(ranef(fit_re)$group[1])
new_re <- data.frame(temp = 36, duration = 2, colony = colony_1)
data.frame(
  target = c("population", "colony"),
  survival = c(
    predict(fit_re, new_re, re.form = "population"),
    predict(fit_re, new_re, re.form = "conditional")
  )
)
#>       target   survival
#> 1 population 0.22405366
#> 2     colony 0.08768286

Population predictions set every random intercept to zero. Conditional predictions add the fitted BLUP and therefore require each relevant grouping column in newdata; unseen groups stop with guidance to use the population prediction. Calling predict() without re.form on a random-effects fit warns and returns the population prediction.

A random intercept on thermal sensitivity works the same way, with log_z ~ 1 + (1 | group). Because z is modelled on the log scale, the deviation is Gaussian on log(z) and sigma_logz is a standard deviation on log(z) — read exp(sigma_logz) as the approximate multiplicative spread of z across groups, not a z-scale SD. The two intercepts can be combined; with the same grouping factor freqTLS fits two independent variances (no correlation term) and warns, since group-level CTmax and z deviations are usually correlated — reach for bayesTLS when you need a correlated random effect. Like sigma_CTmax, sigma_logz is a maximum-likelihood variance component, biased low with few groups.

Population differences in curve shape

Two populations can differ not only in where the thermal-death curve sits (CTmax, z) but in its shape — how steeply survival collapses with exposure (k), or the background and maximum survival (low, up). The formula interface lets low, up, and log_k vary by a grouping factor, relaxing the shared-shape restriction. Here a heat-tolerant and a heat-sensitive population differ in both CTmax and the curve steepness k:

# The tolerant population has a higher CTmax and a steeper survival collapse.
dpop <- simulate_tls(family = "binomial", group = c("tolerant", "sensitive"),
                     CTmax = c(38, 35), z = c(3.5, 3.5),
                     low = 0.02, up = 0.98, k = c(8, 3), seed = 11)
fit_pop <- fit_tls(
  tls_bf(survived | trials(total) ~ time(duration) + temp(temp),
         CTmax ~ group, log_z ~ group,
         low ~ group, up ~ group, log_k ~ group),
  data = dpop, family = "binomial", tref = 1
)
# Per-group steepness k with profile-likelihood confidence intervals:
confint(fit_pop, parm = c("k:tolerant", "k:sensitive"), method = "profile")
#> # A tibble: 2 × 8
#>   parameter   conf.low conf.high estimate level method  scale conf.status
#>   <chr>          <dbl>     <dbl>    <dbl> <dbl> <chr>   <chr> <chr>
#> 1 k:tolerant      7.43     10.6      8.86  0.95 profile log   ok
#> 2 k:sensitive     2.40      3.48     2.90  0.95 profile log   ok

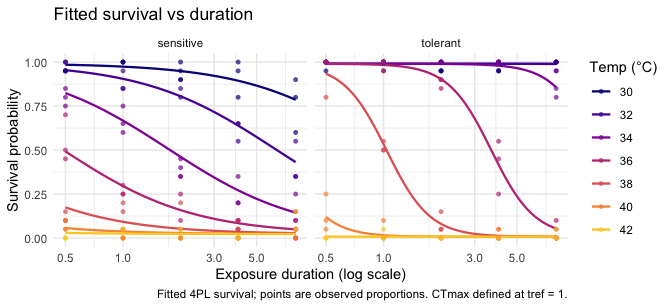

The two steepness estimates have non-overlapping confidence intervals, so the shape difference is identified by the data, not assumed. The fitted curves show it directly — survival collapses abruptly in the tolerant population and gradually in the sensitive one:

plot_survival_curves(fit_pop)

The model

For exposure duration d (with logd = log10(d)) and assay temperature T, survival follows the descending four-parameter logistic

$$ p = \mathrm{low} + \frac{\mathrm{up} - \mathrm{low}}{1 + \exp!\big(k,(\log_{10} d - \mathrm{mid})\big)}, \qquad \mathrm{mid} = \log_{10}(t_\mathrm{ref}) - \frac{T - \mathrm{CTmax}}{z}. $$

CTmax is the critical thermal maximum at the reference time tref, and z is the thermal sensitivity (degrees Celsius per decade of exposure duration). The temperature effect runs through the midpoint only (shared low, up, k), matching the bayesTLS constant-shape configuration. Because CTmax and z are direct model coordinates, both can be profiled directly.

See vignette("freqTLS") for the full walkthrough, vignette("model-math") for the exact bridge to bayesTLS, and vignette("profile-likelihood") for what the profile is doing and the honest non-closing fallback.

Credit and origins

The thermal-load-sensitivity modelling framework implemented here was introduced by Daniel W. A. Noble, Pieter A. Arnold, and Patrice Pottier in the bayesTLS package. The model and the mapping from the 4PL midpoint slope to z and CTmax are theirs. freqTLS is a likelihood implementation of that framework. Please cite bayesTLS alongside freqTLS when you use this package. freqTLS contributes a TMB maximum-likelihood likelihood, the direct CTmax/z reparameterisation that makes both quantities directly profile-able, and profile-likelihood confidence intervals — a likelihood complement to the Bayesian path (no priors, no MCMC, no Stan).

Data credits

The six case-study datasets vendored with freqTLS (shrimp_lethal, shrimp_sublethal, zebrafish_lethal, zebrafish_o2, dsuzukii, and aphid_tdt) are drawn from the thermal-load-sensitivity literature and the bayesTLS framework, redistributed with attribution. They include the two new published case studies — aphid_tdt (cereal aphids across species and ages; Li et al. 2023) and zebrafish_o2 (zebrafish across an oxygen gradient; Saruhashi et al. 2026) — alongside dsuzukii (Drosophila suzukii by sex; Ørsted et al. 2024, Zenodo 10.5281/zenodo.10602268). See ?aphid_tdt, ?zebrafish_o2, the other dataset help pages, and inst/CITATION for sources and licences. freqTLS code is released under GPL (>= 3); the original data licences apply to the vendored data. Please cite bayesTLS and the original data sources (see citation("freqTLS")) when you use these datasets.
