droughtevents
Identify and Characterize Drought Events from Drought Index Time Series
Detects, describes, and analyzes drought events from time series
of drought indices, such as the Standardized Precipitation-Evapotranspiration
Index (SPEI). Identifies drought episodes based on threshold values and calculates
their duration, intensity, severity, and peak month. Includes utilities for summarizing
and visualizing drought dynamics over time. The Standardized Precipitation-Evapotranspiration
Index is described in Vicente-Serrano et al. (2010)
dRoughtevents
Overview
droughtevents provides tools to detect, summarize, and visualize
drought events from drought-related index time series (e.g., SPEI, SPI).
Given a time series and a threshold, the package identifies periods of
sustained below-threshold values, computes summary statistics for each
event (duration, intensity, severity, timing), and offers
ggplot2-based plotting functions to visualize the time series and
highlight the detected events.
Installation
You can install the development version of droughtevents from
GitHub with:
# install.packages("remotes")
remotes::install_github("ajpelu/droughtevents")
Usage
library(droughtevents)
library(ggplot2)
Detect drought events
droughts() identifies drought events in a time series when a given
index falls below a specified threshold for at least min_duration
consecutive months (2 by default).
data(spei_granada)
result <- droughts(spei_granada, vname = "spei12", threshold = -1.28)
result$drought_assessment
#> # A tibble: 17 × 9
#> index_events d_duration d_intensity d_severity lowest_spei month_peak minyear
#> <int> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 3 11 -1.93 21.2 -2.3 10 1945
#> 2 5 4 -1.45 5.8 -1.6 5 1949
#> 3 7 2 -1.45 2.9 -1.5 12 1950
#> 4 11 2 -1.35 2.7 -1.4 6 1965
#> 5 21 14 -1.83 25.6 -2.2 10 1994
#> 6 23 9 -1.63 14.7 -1.9 6 1998
#> 7 27 7 -1.64 11.5 -1.7 7 2005
#> 8 29 9 -1.92 17.3 -2.2 8 2012
#> 9 31 5 -1.38 6.9 -1.5 5 2014
#> 10 33 5 -1.64 8.2 -1.9 3 2015
#> 11 35 3 -1.5 4.5 -1.7 10 2016
#> 12 37 11 -1.6 17.6 -2.1 12 2017
#> 13 39 11 -1.7 18.7 -2 10 2019
#> 14 41 2 -1.5 3 -1.7 12 2020
#> 15 43 21 -1.58 33.2 -2.1 1 2021
#> 16 45 12 -1.91 22.9 -2.4 1 2023
#> 17 47 5 -1.54 7.7 -1.7 9 2024
#> # ℹ 2 more variables: maxyear <dbl>, rangeDate <chr>
The returned object is a named list with three elements:
data: the original data, with drought flags and durations added.drought_events: only the rows that belong to a detected drought event.drought_assessment: one row per event, with its duration, intensity, severity, and timing.

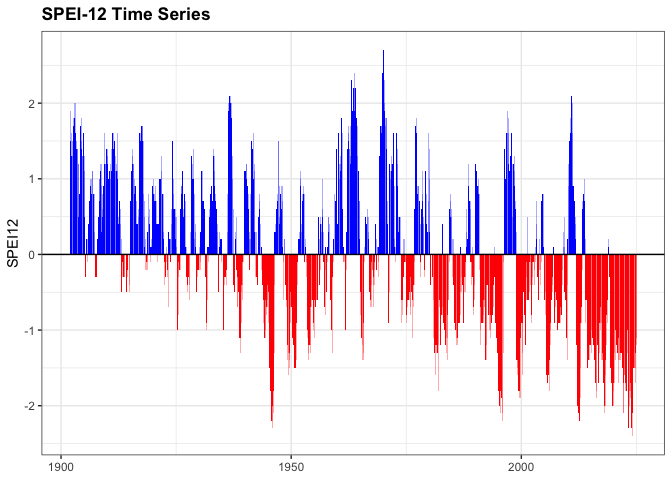

Plot the time series
plot_drought_ts() draws the index as a bar plot, coloring positive
(wet, blue) and negative (dry, red) periods differently.
plot_drought_ts(spei_granada, vname = "spei12", title = "SPEI-12 Time Series")

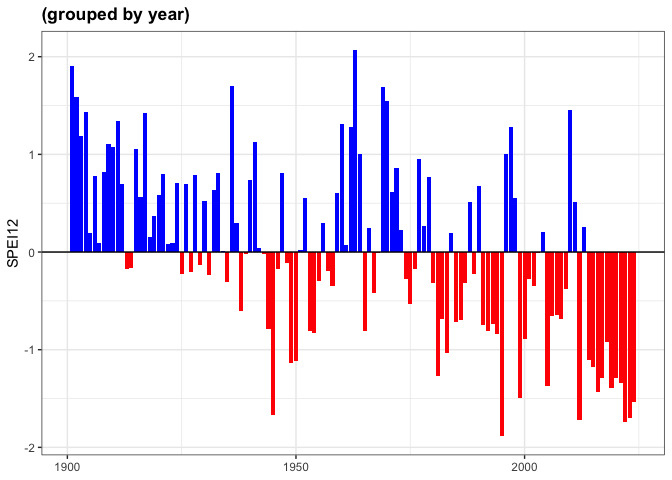

You can also aggregate by year:
plot_drought_ts(spei_granada, vname = "spei12", by_year = TRUE)

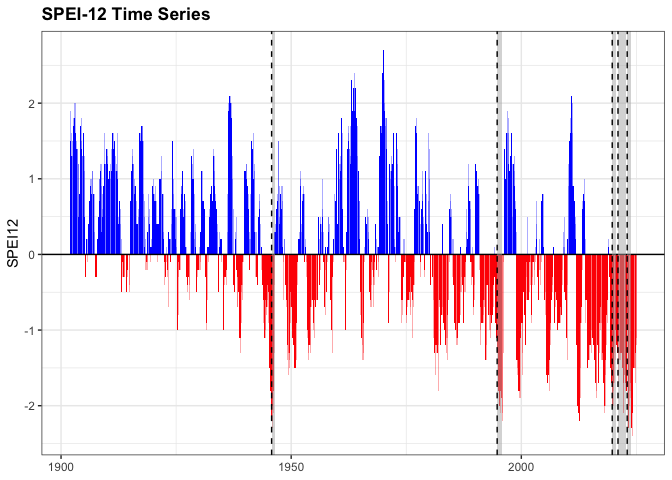

Highlight drought events on the plot
add_drought_events() overlays the detected events on top of a plot
created with plot_drought_ts(), as shaded bands or vertical lines, or
both.
p <- plot_drought_ts(spei_granada, vname = "spei12", title = "SPEI-12 Time Series")
p |>
add_drought_events(
drought_assessment = result$drought_assessment,
which_events = "top",
metric = "severity",
top_n = 5,
type = "both",
show_severity = FALSE
)
Data
The package ships with spei_granada, a monthly SPEI time series (6,
12, 24, and 48-month scales) for Granada, Spain, covering 1901-2024. See
?spei_granada for details and the data source.
References
Vicente-Serrano, S.M., Beguería, S., López-Moreno, J.I. (2010). A Multiscalar Drought Index Sensitive to Global Warming: The Standardized Precipitation Evapotranspiration Index. Journal of Climate, 23(7), 1696-1718. 10.1175/2009JCLI2909.1
