Multidimensional Cluster Generation Using Support Lines

An implementation of the clugen algorithm for generating multidimensional clusters with arbitrary distributions. Each cluster is supported by a line segment, the position, orientation and length of which guide where the respective points are placed. This package is described in Fachada & de Andrade (2023) .

Downloads

clugenr

Summary

clugenr is an R implementation of the clugen algorithm for generating multidimensional clusters with arbitrary distributions. Each cluster is supported by a line segment, the position, orientation and length of which guide where the respective points are placed.

How to install

A stable version of the package is available on CRAN and can be installed with the following instruction:

install.packages("clugenr")

Alternatively, install the development version from GitHub with the following command (requires the devtools package):

devtools::install_github("clugen/clugenr")

Documentation

All methods and functions are fully documented and can be queried using the built-in help system. After installation, to access the man pages, invoke the clugenr help page as follows:

help("clugenr")

The complete online documentation is available here.

Quick start

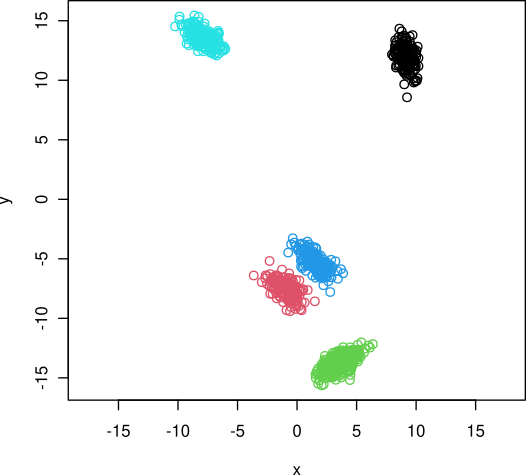

library(clugenr)
x <- clugen(2, 5, 1000, c(1, -0.5), 0.5, c(4, 6), 6, 0.2, 0.5)
plot(x$points, col = x$clusters, xlab = "x", ylab = "y", asp = 1)

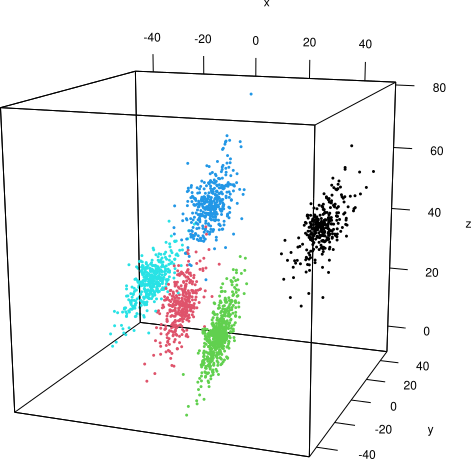

library(clugenr)
library(rgl) # For 3D plots
x <- clugen(3, 5, 2000, c(1, 0.5, -0.7), 0.5, c(15, 10, 20), 15, 3, 10)
plot3d(x$points, col = x$clusters, xlab = "x", ylab = "y", zlab = "z", aspect = T)

Reference

If you use this software, please cite the following reference:

Fachada, N. & de Andrade, D. (2023). Generating multidimensional clusters with support lines. Knowledge-Based Systems, 277, 110836. https://doi.org/10.1016/j.knosys.2023.110836 (arXiv preprint)
