Vertex Pool Topology for Well-Known Geometry

Establishes and maintains vertex pool topology for geometry handled by 'wk'. Segments are the atomic unit, vertices are shared via integer references into a pool. Topology is made discoverable via coincident vertex detection while not requiring modification of the input data. Topological data models follow principles described in Worboys and Duckham (2004, ISBN:978-0415283755). The edge-based topology geometry decomposed into vertices and directed edge pairs is a simplification of the quad-edge case in Guibas & Stolfi (1985) .

wkpool

Vertex pool topology for geometry handled by wk.

Design philosophy

Simple features throws away topology — every polygon stores its own coordinates, shared boundaries are duplicated, and expensive operations (GEOS) are needed to rediscover this structure which is then again discarded.

wkpool takes a different approach:

• Segments are atomic: Everything is edges (vertex pairs). Polygons, linestrings, meshes — all just segments with different grouping.
• Vertices live in a pool: Coordinates stored once, referenced by integer ID (.vx).
• Observe, don’t correct: establish_topology() represents the truth of your input. Snapping/fixing is a separate, explicit decision.
• Topology is discoverable: merge_coincident() finds shared vertices. Shared boundaries, neighbour relations — they emerge from the data.
• Feature provenance: Segments track which feature they came from (.feature), enabling adjacency and boundary queries.

Installation

From CRAN use

install.packages("wkpool")

For development version use

#install.packages("remotes")
remotes::install_github("hypertidy/wkpool")

Usage

library(wkpool)
library(wk)

# Any wk-handleable geometry
#x <- wk::as_wkb(<wk-compatible>)
x <- wk::as_wkb(c(
   paste0(
     "MULTIPOLYGON (((0 0, 0 1, 0.75 1, 1 0.8, 0.5 0.7, ",
     "0.8 0.6, 0.69 0, 0 0), (0.2 0.2, 0.5 0.2, ",
     "0.5 0.4, 0.3 0.6, 0.2 0.4, 0.2 0.2)))"),
 "MULTIPOLYGON (((0.69 0, 0.8 0.6, 1.1 0.63, 1.23 0.3, 0.69 0)))"
))

# Establish topology (no coordinate merging yet)
pool <- establish_topology(x)

# What do we have?
topology_report(pool)
#> $n_vertices_raw
#> [1] 19
#>
#> $n_vertices_unique
#> [1] 14
#>
#> $n_duplicate_vertices
#> [1] 5
#>
#> $n_near_miss_vertices
#> [1] 0
#>
#> $n_segments
#> [1] 16
#>
#> $n_shared_edges
#> [1] 1
#>
#> $n_features
#> [1] 2

# Merge coincident vertices (exact match)
merged <- merge_coincident(pool, tolerance = 0)

# Find shared boundaries
shared <- find_shared_edges(merged)

# Internal boundaries (edges shared by exactly 2 features)
internal <- find_internal_boundaries(merged)

# Neighbour relations
neighbours <- find_neighbours(merged, type = "edge")    # share a boundary
neighbours_v <- find_neighbours(merged, type = "vertex") # share any vertex

# Access the raw structure
pool_vertices(merged)  # data.frame: .vx, x, y
#>    .vx    x    y
#> 1    1 0.00 0.00
#> 2    2 0.00 1.00
#> 3    3 0.75 1.00
#> 4    4 1.00 0.80
#> 5    5 0.50 0.70
#> 6    6 0.80 0.60
#> 7    7 0.69 0.00
#> 9    8 0.20 0.20
#> 10   9 0.50 0.20
#> 11  10 0.50 0.40
#> 12  11 0.30 0.60
#> 13  12 0.20 0.40
#> 17  13 1.10 0.63
#> 18  14 1.23 0.30
pool_segments(merged)  # data.frame: .vx0, .vx1, .feature
#>    .vx0 .vx1 .feature .path
#> 1     1    2        1     1
#> 2     2    3        1     1
#> 3     3    4        1     1
#> 4     4    5        1     1
#> 5     5    6        1     1
#> 6     6    7        1     1
#> 7     7    1        1     1
#> 8     8    9        1     2
#> 9     9   10        1     2
#> 10   10   11        1     2
#> 11   11   12        1     2
#> 12   12    8        1     2
#> 13    7    6        2     3
#> 14    6   13        2     3
#> 15   13   14        2     3
#> 16   14    7        2     3

Shared boundaries and holes

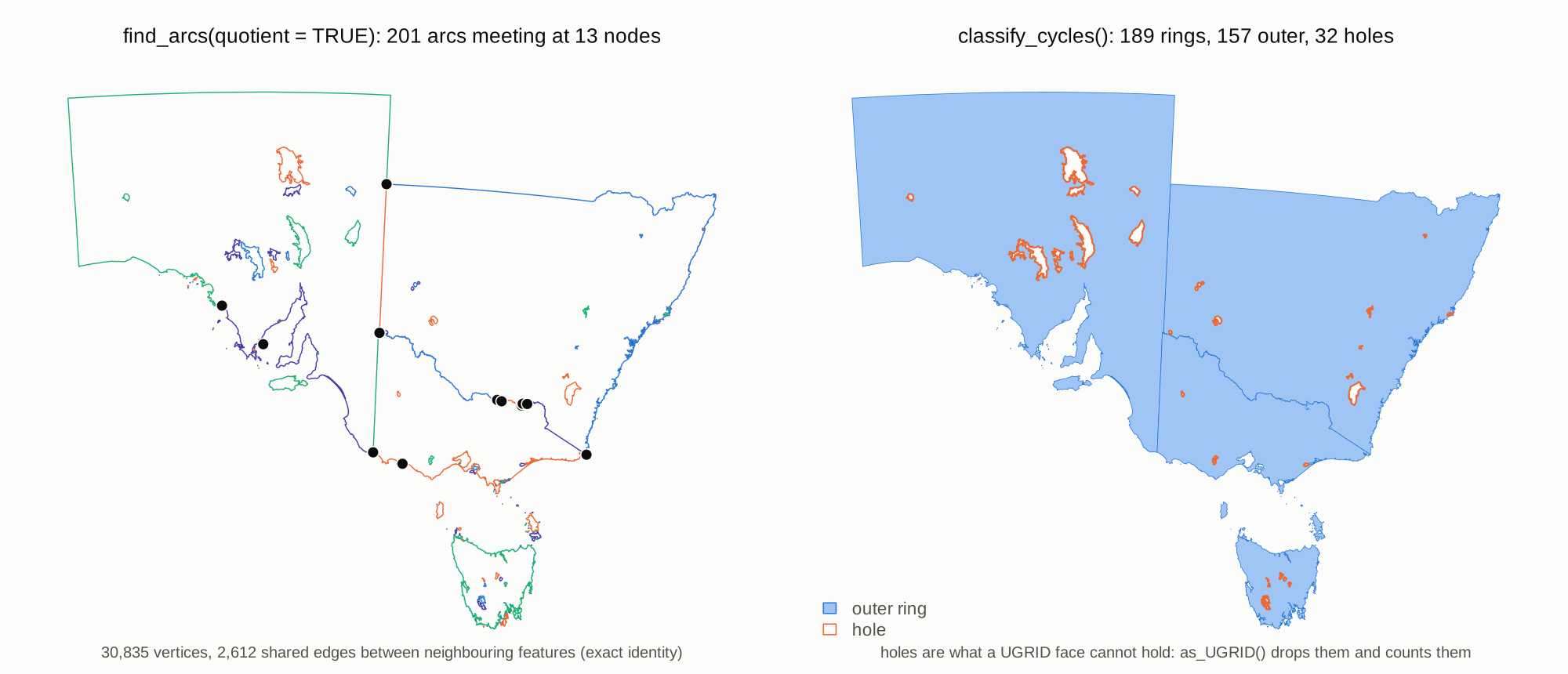

inlandwaters (in silicate) has six features with 189 rings, 32 of them holes, and neighbouring states that share long boundaries vertex for vertex. After merge_coincident() those boundaries are the same vertex pairs, so the quotient graph walks each shared boundary once:

x <- wk::as_wkb(sf::st_geometry(silicate::inlandwaters))
pool <- merge_coincident(establish_topology(x))
find_arcs(pool, quotient = TRUE)    # 201 arcs
find_nodes(pool, quotient = TRUE)   # 13 nodes where three or more edges meet
classify_cycles(pool)               # 189 rings: 157 outer, 32 holes

Without quotient = TRUE every vertex inside a shared boundary has degree 4 (each feature carries its own copy of the edge), so find_nodes() returns 2,619 nodes and find_arcs() 5,418 arcs. Use the quotient graph for coverages; the default counts every segment.

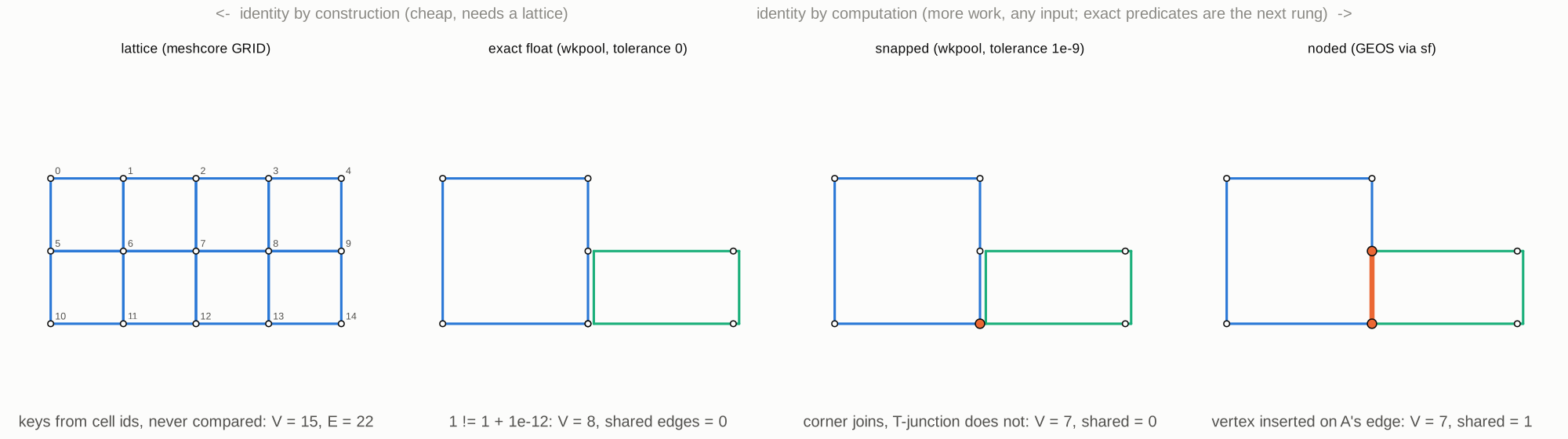

Vertex identity

wkpool covers two rungs of a ladder of ways a vertex can be “the same”: exact float (merge_coincident(tolerance = 0)) and snapped (tolerance > 0). It does not node: a vertex lying on another feature’s edge stays a T-junction until something like GEOS inserts it. Above exact float, a lattice (a raster, a discrete global grid) can give identity by construction, with no comparison at all.

Performance

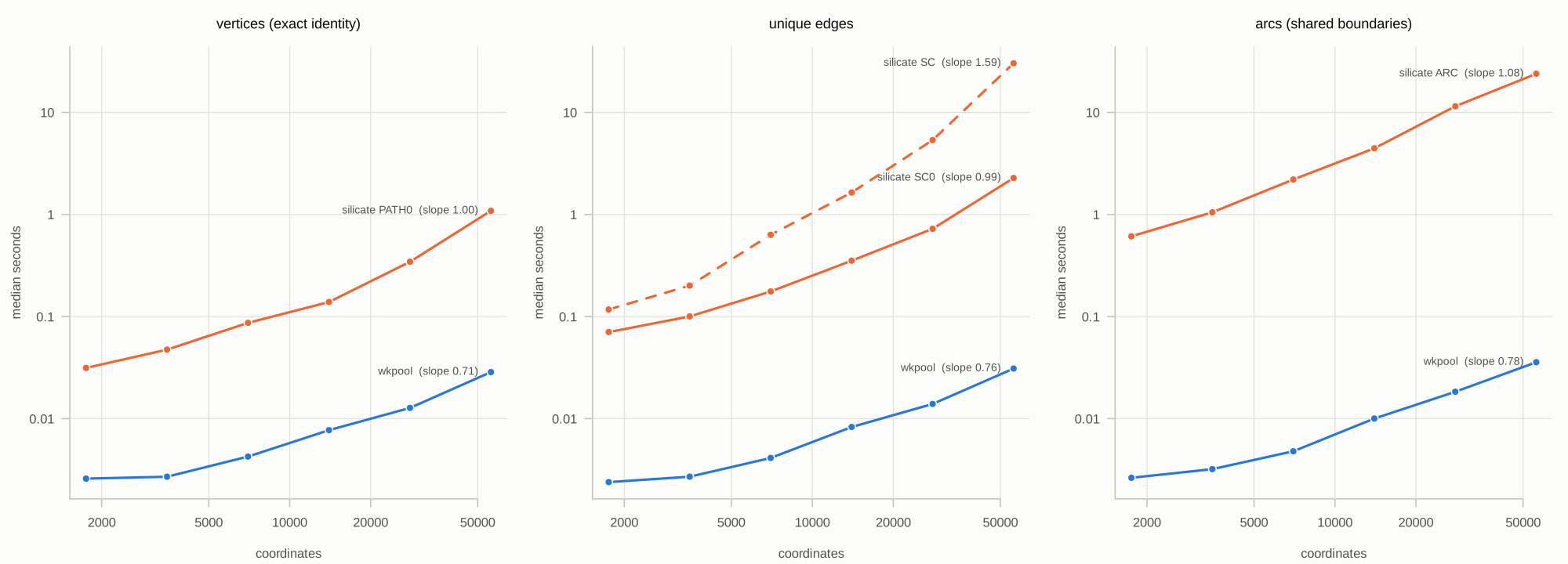

All pipelines scale linearly. Against silicate on the same inputs (bench/README.md has the full tables), wkpool is 1.6 to 29 times faster than PATH0() for vertices and 12 to 1300 times faster than SC() and ARC() for edges and arcs.

Related

wkpool is machinery: silicate’s models and sc_* verbs can sit on it, and so can other mesh models. Work in progress on top of it:

• silicate, branch silicate2: the UGRID model and a model zoo, with polygons and lines routed into UGRID through wkpool.
• meshcore (working name): one verb set for rasters and discrete global grids, whose as_wkpool() hands over an already-merged pool.

Key decisions

Next steps

• [x] wk_handle.wkpool(): round-trip back to wk geometry
• [x] Path reconstruction: derive linestrings/rings from segment connectivity
• [x] Arc-node topology and cycles, with quotient semantics for shared boundaries
• [x] PSLG for constrained triangulation (as_pslg(), for RTriangle; see the triangulation vignette)
• [x] Vectorised verbs with no quadratic scans; C++ (cpp11) for arcs
• [ ] Apply to production package (trip)
• [x] Triangulation integration (decido): indexed triangles from the same pool (pool_triangulate(), experimental)

Code of Conduct

Please note that the wkpool project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms.
