Create Interactive Timeline Visualizations in R

Create rich and fully interactive timeline visualizations. Timelines can be included in Shiny apps and R markdown documents, or viewed from the R console and RStudio Viewer. 'timevis' includes an extensive API to manipulate a timeline after creation, and supports getting data out of the visualization into R. Based on the 'vis.js' Timeline module and the 'htmlwidgets' R package.


timevis - Create interactive timeline visualizations in R

> the MIT license.*

timevis lets you create rich and fully interactive timeline visualizations in R. Timelines can be included in Shiny apps and R markdown documents, or viewed from the R console and RStudio Viewer. timevis includes an extensive API to manipulate a timeline after creation, and supports getting data out of the visualization into R. This package is based on the vis.js Timeline module and the htmlwidgets R package.

Click here to view a live interactive demo of timevis.

timevis is available through both CRAN and GitHub:

To install the stable CRAN version:

install.packages("timevis")

To install the latest development version from GitHub:

install.packages("devtools")
devtools::install_github("daattali/timevis")

You can view a minimal timeline without any data by simply running

library(timevis)
timevis()

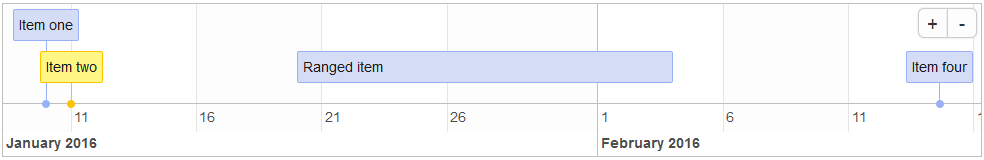

You can add data to the timeline by supplying a data.frame

data <- data.frame(
  id      = 1:4,
  content = c("Item one"  , "Item two"  ,"Ranged item", "Item four"),
  start   = c("2016-01-10", "2016-01-11", "2016-01-20", "2016-02-14 15:00:00"),
  end     = c(NA          ,           NA, "2016-02-04", NA)
)

timevis(data)

Every item must have a content and a start variable. If the item is a range rather than a single point in time, you can supply an end as well. id is only required if you want to access or manipulate an item. There are more variables that can be used in the data.frame -- they are all documented in the help file for ?timevis() under the Data format section.

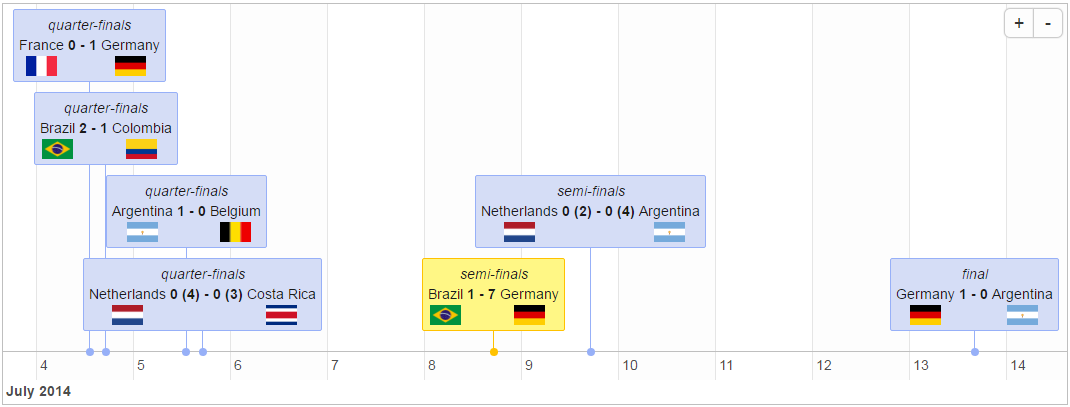

The content of an item can even include HTML, which makes it easy to show any kind of data in a timeline, such as the matches of the 2014 World Cup:

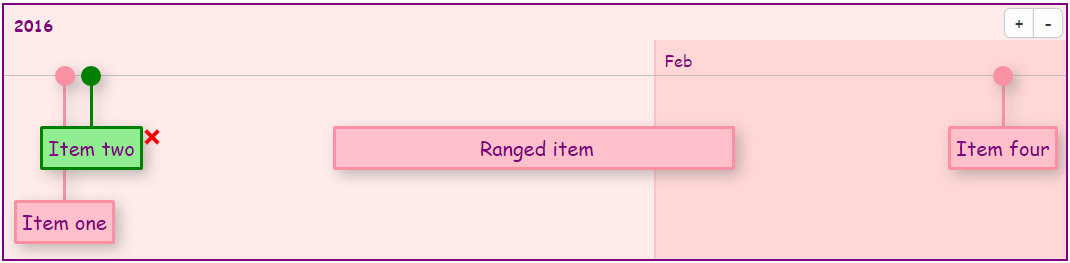

If you know some CSS, you can completely customize the look of the timeline:

By default, a timeline will show the current date as a red vertical line and will have zoom in/out buttons. You can supply many customization options to timevis() in order to get it just right (see ?timevis() for details).

The timeline lets the user interact with it seamlessly. You can click on the zoom in/out buttons or drag the timeline left/right in order to move to past/future dates.

If you set the editable = TRUE option, then the user will be able to add new items by double clicking, modify items by dragging, and delete items by selecting them.

You can use the groups feature to group together multiple items into different "buckets". When using groups, all items with the same group are placed on one line. A vertical axis is displayed showing the group names. Grouping items can be useful for a wide range of applications, for example when showing availability of multiple people, rooms, or other resources next to each other. You can also think of groups as "adding a Y axis", if that helps.

Here is an example of a timeline that has three groups: "Library", "Gym", and "Pool":

In order to use groups, items in the data need to have group ids, and a separate dataframe containing the group information needs to be provided. More information about using groups and the groups dataframe is available in the help file for ?timevis() under the Groups section.

There are many functions that allow programmatic manipulation of a timeline. For example: addItem() programmatically adds a new item, centerItem() moves the timeline so that a given item is centered, setWindow() sets the start and end dates of the timeline, setOptions() updates the configuration options, and many more functions are available.

There are two ways to call these timeline manipulation functions: You can manipulate a timeline widget during its creation by chaining functions to the timevis() call. For example:

timevis() %>%
  addItem(list(id = "item1", content = "one", start = "2016-08-01")) %>%
  centerItem("item1")

This method of manipulating a timeline is especially useful when creating timeline widgets in the R console or in R markdown documents because it can be used directly when initializing the widget.

In Shiny apps, you can manipulate a timeline widget at any point after its creation by referring to its ID. For example:

library(shiny)

ui <- fluidPage( timevisOutput("mytime"), actionButton("btn", "Add item and center") )

server <- function(input, output, session) { output$mytime <- renderTimevis(timevis()) observeEvent(input$btn, { addItem("mytime", list(id = "item1", content = "one", start = "2016-08-01")) centerItem("mytime", "item1") }) }

shinyApp(ui = ui, server = server)

You can even chain these functions and use this manipulation code instead of the bold code:
addItem("mytime", list(id = "item1", content = "one", start = "2016-08-01")) %>%
  centerItem("item1")

Technical note: If you're trying to understand how both methods of timeline manipulation work, it might seem very bizarre to you. The reason they work is that every manipulation function accepts either a timevis object or the ID of one. In order to make chaining work, the return value from these functions depend on the input: if a timevis object was given, then an updated timevis object is returned, and if an ID was given, then the same ID is returned.

You can add a timeline to a Shiny app by adding timevisOutput() to the UI and renderTimevis(timevis()) to the server.

It is possible to retrieve data from a timeline in a Shiny app. When a timeline widget is created in a Shiny app, there are four pieces of information that are always accessible as Shiny inputs. These inputs have special names based on the timeline's id. Suppose that a timeline is created with an outputId of "mytime", then the following four input variables will be available:

  • input$mytime_data - will return a data.frame containing the data of the items in the timeline. The input is updated every time an item is modified, added, or removed.
  • input$mytime_ids - will return the IDs (a vector) of all the items in the timeline. The input is updated every time an item is added or removed from the timeline.
  • input$mytime_selected - will return the IDs (a vector) of the selected items in the timeline. The input is updated every time an item is selected or unselected by the user. Note that this will not get updated if an item is selected programmatically using the API functions.
  • input$mytime_window - will return a 2-element vector containing the minimum and maximum dates currently visible in the timeline. The input is updated every time the viewable window of dates is updated (by zooming or moving the window).

You can view examples of many of the features supported by checking out the demo Shiny app. If you want to see how those examples were created, the full code for the examples is inside inst/example.

If you create any cool timelines that you'd like to share with me, or if you want to get in touch with me for any reason, feel free to contact me!

News

timevis 0.4 2016-09-16

  • timevis and visNetwork can work together in the same app (the bug is fixed on timevis' end, so it will only work if a timevis widget is defined before a visNetwork one until visNetwork also fix the bug) (#11)
  • re-defining the data input handler does not cause a warning

timevis 0.3

2016-08-29

  • Added VignetteBuilder field to DESCRIPTION file as per CRAN's request

timevis 0.2

2016-08-24

  • added support for groups (#1) (parameter order for timevis() has changed)
  • add fit param to timevis() that determines if to fit the items on the timeline by default or not
  • timevis can now be included inside regular R markdown documents
  • all the API functions can now work on timeline widgets that are not yet initialized, which means they can work in rmarkdown documents or in the console
  • all the API functions can now work with pipes (%>% pipelines)
  • the API functions can accept either an ID of a widget or a widget object. This is useful because now the API functions can either be called from the server of a Shiny app at any point, or they can be called directly using the widget when it is being initialized
  • when re-rendering a timeline, the old data are not removed (#3)
  • can now use a dataframe that results from merging/binding two dataframes as input (#7)
  • zoom buttons show up when using a custom shinytheme() (#9)
  • removed the getData getWindow getIds getSelected parameters and instead just return that info always (#4)
  • refactor and modularize Shiny app code
  • UI improvements to Shiny app
  • added source code to Shiny app
  • added social media meta tags to Shiny app
  • add a lot of responsive CSS to make the app look well in smaller screens

timevis 0.1

2016-07-25

Initial CRAN release

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("timevis")

0.4 by Dean Attali, 5 months ago


https://github.com/daattali/timevis, http://daattali.com/shiny/timevis-demo/


Report a bug at https://github.com/daattali/timevis/issues


Browse source code at https://github.com/cran/timevis


Authors: Dean Attali [aut, cre] (R interface), Almende B.V. [aut, cph] (vis.js library, http://visjs.org, http://www.almende.com/home)


Documentation:   PDF Manual


MIT + file LICENSE license


Imports htmltools, htmlwidgets, jsonlite, magrittr, methods, rmarkdown, shiny

Suggests knitr, testthat
