Compare Raster Images Side by Side with a Slider

Create a side-by-side view of raster(image)s with an interactive slider to switch between regions of the images. This can be especially useful for image comparison of the same region at different time stamps.

Interactively Explore (Raster)Images side-by-side

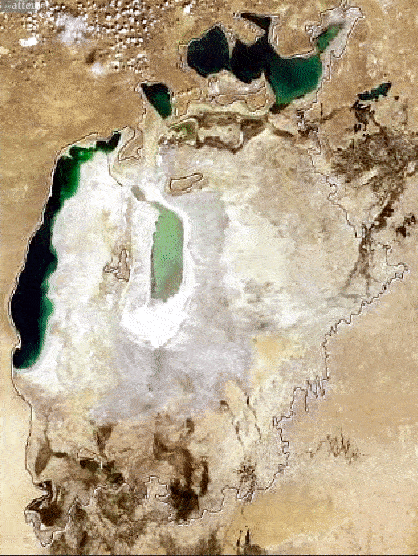

slideview enables interactive exploration of (raster)images side-by-side by providing a mouse-controlled slider. This can be especially useful for comparing images of the same region at different time stamps (change detection).

Installation

You can install the released version of slideview from CRAN with:

install.packages("slideview")

Example

### example taken from
### http://www.news.com.au/technology/environment/nasa-images-reveal-
### aral-sea-is-shrinking-before-our-eyes/story-e6frflp0-1227074133835
library(jpeg)
library(raster)
library(slideview)

# 2000
web_img2000 <- "http://cdn.newsapi.com.au/image/v1/68565a36c0fccb1bc43c09d96e8fb029"
jpg2000 <- readJPEG(readBin(web_img2000, "raw", 1e6))

# Convert imagedata to raster
rst_blue2000 <- raster(jpg2000[, , 1])
rst_green2000 <- raster(jpg2000[, , 2])
rst_red2000 <- raster(jpg2000[, , 3])

img2000 <- brick(rst_red2000, rst_green2000, rst_blue2000)

# 2013
web_img2013 <- "http://cdn.newsapi.com.au/image/v1/5707499d769db4b8ec76e8df61933f2a"
jpg2013 <- readJPEG(readBin(web_img2013, "raw", 1e6))

# Convert imagedata to raster
rst_blue2013 <- raster(jpg2013[, , 1])
rst_green2013 <- raster(jpg2013[, , 2])
rst_red2013 <- raster(jpg2013[, , 3])

img2013 <- brick(rst_red2013, rst_green2013, rst_blue2013)

slideView(img2000, img2013, label1 = "before", label2 = "after")

Code of Conduct

Please note that the ‘slideview’ project is released with a Contributor Code of Conduct. By participating in this project you agree to abide by its terms.
