Visualize Spatial Data using 'roughjs'

Draw maps using the 'javascript' library 'roughjs'. This allows to draw sketchy, hand-drawn-like maps.

roughsf

Using the java script library rough.js to draw sketchy, hand-drawn-like maps
(Checkout ggrough for turning general ggplot objects into sketchy drawings and roughnet for networks)

Installation

You can install the developers version of roughsf with:

# install.packages("remotes")
remotes::install_github("schochastics/roughsf")

Usage

roughsf() takes a list of sf objects as input. The layers are drawn in order as they appear in the list. MULTI* geometries are not supported and should be casted beforehand. Aesthetics need to be specified explicitly as columns in the sf objects.

The following attributes are supported for POLYGONS:

fill fill color
color stroke color
stroke stroke size
fillstyle one of “hachure”, “solid”, “zigzag”, “cross-hatch”, “dots”, “dashed”, “zigzag-line”
fillweight thickness of fillstyle (between 0 and 1)
hachureangle angle of hachure lines
hachuregap gap between two hachure lines

The following attributes are supported for LINESTRINGS:

color stroke color
stroke stroke size

The following attributes are supported for POINTS:

color color of point
size size of point
label label to be added (optional)
label_pos position of label relative to point: (c)enter, (n)orth, (e)ast, (s)outh, (w)est (optional)

Default values are used if one of the attributes is not found.

Values need to be specified explicitly and cannot be inferred from other columns (This needs to be done in a preparatory step)

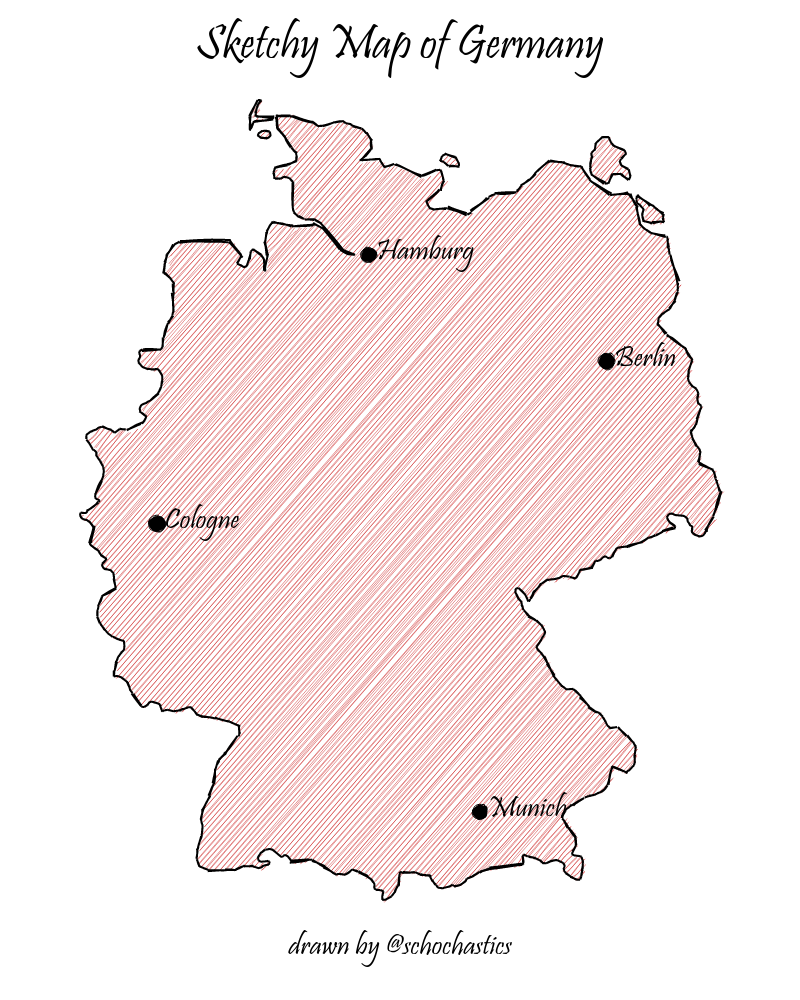

library(sf)
ger <- rnaturalearth::ne_countries(scale = "medium", country = "Germany", returnclass = "sf")
ger <- st_cast(ger, "POLYGON")
ger$fill <- "#CD2626"
ger$stroke <- 2
ger$fillweight <- 0.5

# MULTIPOLYGON (and also MULTILINESTRING) are not supported
ger <- st_cast(ger, "POLYGON")

cities <- data.frame(name = c("Berlin", "Munich", "Hamburg", "Cologne"))
cities$geometry <- st_sfc(
  st_point(c(13.4, 52.5200)), st_point(c(11.582, 48.1351)),
  st_point(c(9.9937, 53.5511)), st_point(c(6.9603, 50.9375))
)
cities <- st_sf(cities)
st_crs(cities) <- "+proj=longlat +datum=WGS84 +no_defs +ellps=WGS84 +towgs84=0,0,0"
cities$size <- 15
cities$color <- "#000000"
cities$label <- cities$name
cities$label_pos <- "e"

roughsf::roughsf(list(ger, cities),
                 title = "Sketchy Map of Germany", caption = "drawn by @schochastics",
                 title_font = "48px Pristina", font = "30px Pristina", caption_font = "30px Pristina",
                 roughness = 1, bowing = 1, simplification = 1,
                 width = 800, height = 1000,
)
