Convert Images to Spatially Referenced 'SpatRaster' Objects

Convert digital images to spatially referenced 'SpatRaster' objects, as defined by the 'terra' package, using coordinates from supported spatial input classes. Supported inputs include numeric coordinate vectors and objects from the 'sf', 'terra' and 'stars' packages. The main function is an S3 generic, allowing other packages to extend support to additional spatial classes.

rasterpic

rasterpic is a tiny package with a single goal: geotag an image and return a terra SpatRaster object using coordinates from supported spatial input classes (see ?terra::SpatRaster).

[!NOTE]

This package is stable and maintained on a best-effort basis. I currently prioritize CRAN compatibility, bug fixes and regressions over new features.

Installation

install.packages("rasterpic")

# install.packages("pak")
pak::pak("dieghernan/rasterpic")

# Install rasterpic in R.
install.packages(
  "rasterpic",
  repos = c(
    "https://dieghernan.r-universe.dev",
    "https://cloud.r-project.org"
  )
)

Example

rasterpic_img() can geotag an image from several spatial input classes:

• sf classes: sf, sfc, sfg and bbox.
• terra classes: SpatRaster, SpatVector and SpatExtent.
• stars class: stars.
• A numeric coordinate vector of the form c(xmin, ymin, xmax, ymax).

rasterpic_img() is an S3 generic. Methods for extent-like inputs use the object extent, and vector methods can also mask the image to the object shape.

This example uses an sf object:

library(rasterpic)
library(sf)
library(terra)

# Use the flag of the United Kingdom.
img <- system.file("img/UK_flag.png", package = "rasterpic")
uk <- read_sf(system.file("gpkg/UK.gpkg", package = "rasterpic"))

class(uk)
#> [1] "sf"         "tbl_df"     "tbl"        "data.frame"

# Geotag the image.
uk_flag <- rasterpic_img(uk, img)

uk_flag
#> class       : SpatRaster
#> size        : 400, 800, 3  (nrow, ncol, nlyr)
#> resolution  : 5398.319, 5398.319  (x, y)
#> extent      : -2542183, 1776472, 6430573, 8589900  (xmin, xmax, ymin, ymax)
#> coord. ref. : WGS 84 / Pseudo-Mercator (EPSG:3857)
#> source(s)   : memory
#> colors rgb  : 1, 2, 3
#> names       :   r,   g,   b
#> min values  :   0,  14,  35
#> max values  : 255, 255, 255

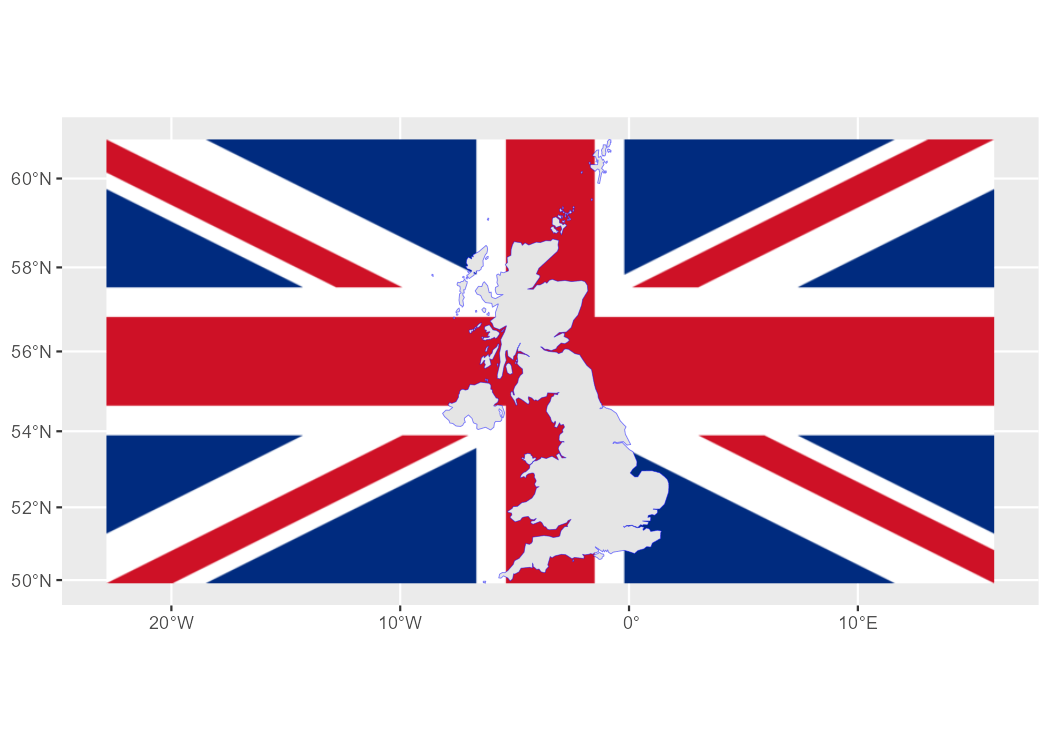

# Plot with ggplot2 and tidyterra.
library(tidyterra)
library(ggplot2)

autoplot(uk_flag) +
  geom_sf(data = uk, color = alpha("blue", 0.5))

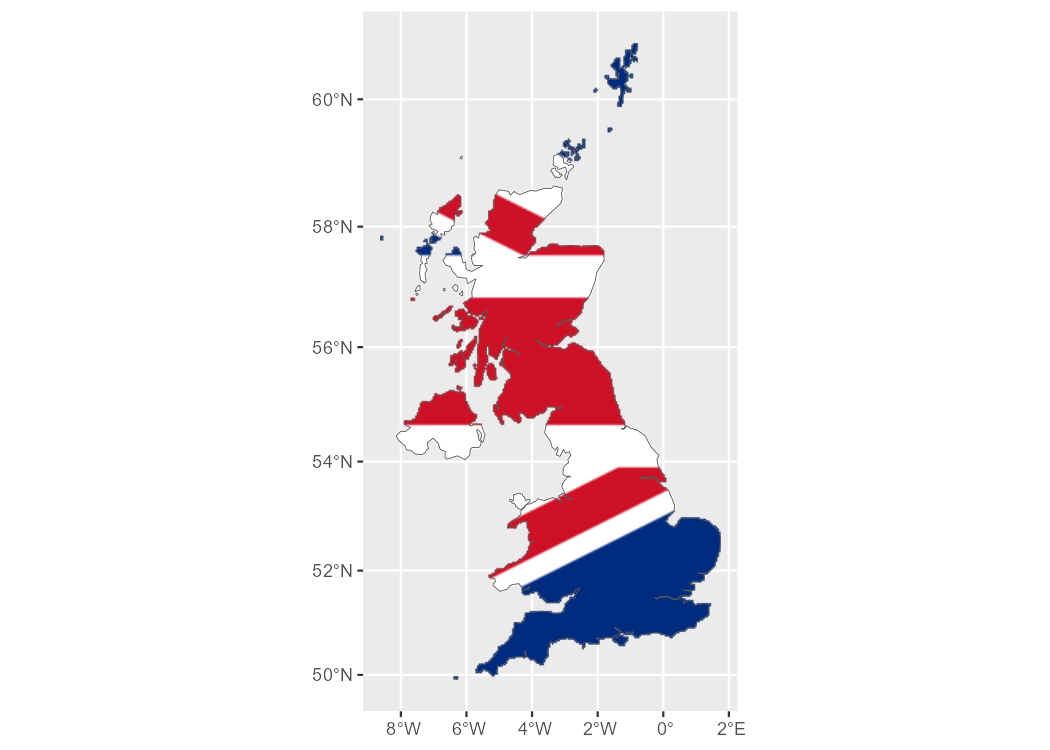

You can also adjust the expansion, alignment, cropping and masking options:

# Align, crop and mask the image.
uk_flag2 <- rasterpic_img(uk, img, halign = 0.2, crop = TRUE, mask = TRUE)

autoplot(uk_flag2) +
  geom_sf(data = uk, fill = NA)

Supported image formats

rasterpic can read the following image formats:

• png files.
• jpeg/jpg files.
• tiff/tif files.

Citation

Hernangómez D (2026). rasterpic: Convert Images to Spatially Referenced SpatRaster Objects. doi:10.32614/CRAN.package.rasterpic. https://dieghernan.github.io/rasterpic/.

A BibTeX entry for LaTeX users is:

@Manual{R-rasterpic,
  title = {{rasterpic}: Convert Images to Spatially Referenced {SpatRaster} Objects},
  doi = {10.32614/CRAN.package.rasterpic},
  author = {Diego Hernangómez},
  year = {2026},
  version = {1.0.0},
  url = {https://dieghernan.github.io/rasterpic/},
  abstract = {Convert digital images to spatially referenced SpatRaster objects, as defined by the terra package, using coordinates from supported spatial input classes. Supported inputs include numeric coordinate vectors and objects from the sf, terra and stars packages. The main function is an S3 generic, allowing other packages to extend support to additional spatial classes.},
}
