'ggplot2' Version of "I'm Feeling Lucky!"

Examines the characteristics of a data frame and a formula to automatically choose the most suitable type of plot out of the following supported options: scatter, violin, box, bar, density, hexagon bin, spine plot, and heat map. The aim of the package is to let the user focus on what to plot, rather than on the "how" during exploratory data analysis. It also automates handling of observation weights, logarithmic axis scaling, reordering of factor levels, and overlaying smoothing curves and median lines. Plots are drawn using 'ggplot2'.


For exploratory data analysis in R, let users focus on what to plot, not how.

To install the latest development branch:

install.packages('devtools')
library(devtools)
devtools::install_github("stefan-schroedl/plotluck")

Imagine you have given a new R data frame, and would like to get an overview of the distributions, or see how each column interacts with a specific target column. Typically, you would have to go through each column, and create a 1D or 2D plot depending on its type (e.g., a scatter plot for 2 numerical variables, or a box plot for one factor and one numeric variable). After looking at it, you might realize that outliers make it hard to see most of the data, so you plot it again with a logarithmic axis transform. Or, in the case of a box plot, if you have many factor levels, you might want to sort them first by the y-value.

Plotluck is a tool for exploratory data visualization in R that automates such steps. It creates complete graphics based on ggplot; the only things that have to be specified are the data frame, a formula, and optionally a weight column.

library(plotluck)
data(diamonds, package='ggplot2')

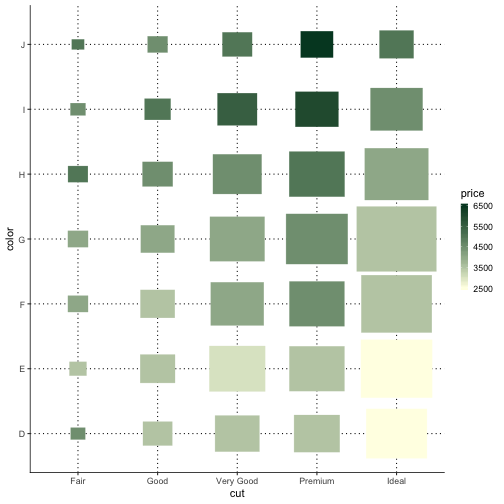

plotluck(diamonds, price~cut+color)

  • Automatic determination of the type of plot, based on the data types of the columns. Supports scatter, box, violin, bar, density, hex and spine plot, and heat maps.
  • Overlays of smoothing curves and median lines.
  • Automatic reordering of factor levels according to dependent variable.
  • Automatic application of axis scaling, when appropriate (logarithmic or log-modulus).
  • Correct handling and visualization of instance weights.
  • Support for missing values in factors.
  • If the data set is too large to plot, sampling is applied.
  • You can also create a grid of plots:
    • Distribution of each column in a data frame;
    • One target column against all others, ordering plots by degree of dependency (conditional entropy);
    • All pairs of columns.

Plotluck is designed for generic out-of-the-box plotting, and not suitable to produce more specialized types of plots that arise in specific application domains (e.g., association, stem-and-leaf, star plots, geo maps, etc). It is restricted to at most three variables. Parallel plots with variables on different scales (such as time series of multiple related signals) are not supported.

You can find more examples under tests/testthat/test_plotluck.R.

More background is given in the vignette.

News

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("plotluck")

1.1.0 by Stefan Schroedl, 5 months ago


https://github.com/stefan-schroedl/plotluck


Report a bug at https://github.com/stefan-schroedl/plotluck/issues


Browse source code at https://github.com/cran/plotluck


Authors: Stefan Schroedl [aut, cre]


Documentation:   PDF Manual


MIT + file LICENSE license


Imports grid, Hmisc, quantreg, scales, plyr, hexbin, RColorBrewer, ggplot2

Suggests testthat, ggplot2movies, mgcv, nlme, knitr, rmarkdown, gapminder
