Utilities for fast and stable estimation of the probability of
informed trading (PIN) in the model introduced by Easley et al. (2002)
The pinbasic
package ships utilities for fast and stable estimation of
the probability of informed trading in the static PIN framework. The
function design is chosen to fit the extended EHO model setup but can
also be applied to the simpler EKOP model by equating the intensities of
uninformed buys and sells. State-of-the-art factorization of the model
likelihood function as well as most recent algorithms for generating
initial values for optimization routines are implemented. In total, two
likelihood factorizations and three methodologies for starting values
are included. Likelihood functions are evaluated with pin_ll
and sets
of starting values are returned by initial_vals
. The probability of
informed trading can be estimated for arbitrary length of daily buys and
sells data with pin_est
which is a wrapper around the workhorse
function pin_est_core
. No information about the time span of the
underlying data is required to perform optimizations with pin_est
.
However, the recommendation given in the literature is using at least
data for 60 trading days to ensure convergence of the likelihood
maximization. Quarterly estimates are returned by qpin
which can be
visualized with ggplot
. Datasets of daily aggregated numbers of buys
and sells can be simulated with simulateBS
. Calculation of confidence
intervals for the probability of informed trading can be enabled by
confint
argument in optimization routines (pin_est_core
, pin_est
and qpin
) or by calling pin_confint
directly. Additionally,
posterior probabilities for conditions of trading days can be computed
with posterior
and plotted with ggplot
.
The dataset BSfrequent
cover 60 trading days and represent a
frequently traded equity. Model parameters and the probability of
informed trading can be estimated with pin_est
.
library(pinbasic)# Loading datadata("BSfrequent")# Estimationpin_freq <- pin_est(numbuys = BSfrequent[,"Buys"], numsells = BSfrequent[,"Sells"])pin_freq#> $Results#> Estimate Std. error t value Pr(> t)#> alpha 0.2000 0.05163873 3.873062 0.0001074766#> delta 0.5000 0.14433702 3.464115 0.0005319794#> epsilon_b 1805.4354 5.67230494 318.289553 0.0000000000#> epsilon_s 1700.6753 5.50984189 308.661358 0.0000000000#> mu 597.6107 14.60600145 40.915421 0.0000000000#>#> $ll#> loglike#> 1415607#>#> $pin#> PIN#> 0.03296587#>#> $conv#> Convergence#> 0#>#> $message#> [1] "relative convergence (4)"#>#> $iterations#> Iterations#> 1#>#> $init_vals#> alpha delta epsilon_b epsilon_s mu#> 0.2000 0.5000 1805.4259 1700.6852 597.6111#>#> $posterior#> no good bad#> [1,] 1.000000e+00 1.054677e-28 8.603585e-38#> [2,] 1.000000e+00 1.708301e-41 5.437236e-31#> [3,] 1.000000e+00 7.029207e-40 1.412484e-38#> [4,] 2.119110e-45 2.484190e-80 1.000000e+00#> [5,] 4.284377e-34 1.000000e+00 8.485090e-66#> [6,] 1.000000e+00 2.173042e-38 3.616880e-32#> [7,] 1.000000e+00 1.657474e-39 2.486257e-44#> [8,] 6.148468e-35 8.501740e-62 1.000000e+00#> [9,] 1.000000e+00 1.584055e-36 7.734248e-39#> [10,] 1.000000e+00 6.617151e-36 9.224399e-43#> [11,] 3.419344e-38 1.000000e+00 2.743870e-70#> [12,] 1.000000e+00 1.264228e-40 9.395923e-40#> [13,] 1.000000e+00 1.785679e-25 3.020421e-45#> [14,] 1.000000e+00 6.820067e-38 3.359919e-44#> [15,] 1.000000e+00 3.624041e-34 7.734248e-39#> [16,] 6.036227e-38 1.015713e-77 1.000000e+00#> [17,] 1.000000e+00 1.226614e-38 2.922883e-34#> [18,] 1.000000e+00 5.443069e-42 2.276597e-42#> [19,] 1.000000e+00 9.928515e-25 6.952753e-40#> [20,] 3.917168e-47 1.000000e+00 1.103522e-86#> [21,] 1.435856e-43 1.121835e-89 1.000000e+00#> [22,] 1.000000e+00 1.632631e-38 1.908825e-38#> [23,] 1.000000e+00 2.076785e-35 2.486257e-44#> [24,] 1.540415e-42 1.000000e+00 1.148294e-86#> [25,] 1.000000e+00 6.324039e-33 1.908825e-38#> [26,] 1.000000e+00 2.892333e-38 3.737577e-43#> [27,] 1.000000e+00 7.029207e-40 4.023421e-31#> [28,] 1.000000e+00 9.642821e-42 2.627545e-35#> [29,] 1.000000e+00 9.498287e-41 4.540581e-44#> [30,] 1.000000e+00 1.560312e-35 2.235037e-45#> [31,] 1.789734e-33 1.000000e+00 5.903585e-80#> [32,] 1.472181e-39 1.000000e+00 7.064422e-74#> [33,] 1.000000e+00 1.322823e-43 2.405970e-33#> [34,] 1.000000e+00 2.764215e-35 3.192063e-36#> [35,] 1.000000e+00 1.024329e-45 4.313742e-36#> [36,] 1.000000e+00 2.045657e-34 9.395923e-40#> [37,] 1.000000e+00 3.463511e-31 5.144867e-40#> [38,] 1.000000e+00 1.632631e-38 1.412484e-38#> [39,] 1.000000e+00 5.201964e-39 8.446526e-41#> [40,] 1.000000e+00 4.472796e-29 1.520508e-26#> [41,] 1.000000e+00 1.632631e-38 1.944319e-35#> [42,] 1.000000e+00 3.072441e-42 3.550854e-35#> [43,] 1.000000e+00 2.848980e-37 7.734248e-39#> [44,] 1.000000e+00 2.108388e-36 6.825829e-43#> [45,] 1.000000e+00 2.108388e-36 2.154180e-51#> [46,] 1.000000e+00 1.513888e-33 8.024552e-33#> [47,] 1.000000e+00 6.617151e-36 1.600465e-34#> [48,] 1.000000e+00 2.108388e-36 3.020421e-45#> [49,] 1.000000e+00 1.120353e-32 7.213723e-34#> [50,] 2.401133e-41 4.101858e-82 1.000000e+00#> [51,] 1.000000e+00 1.103560e-31 7.734248e-39#> [52,] 1.000000e+00 7.355002e-43 1.684626e-42#> [53,] 1.000000e+00 5.695348e-45 8.446526e-41#> [54,] 1.000000e+00 5.201964e-39 1.514405e-43#> [55,] 1.000000e+00 4.897022e-35 1.571248e-37#> [56,] 1.000000e+00 6.923847e-39 1.293372e-36#> [57,] 1.000000e+00 6.617151e-36 1.341919e-30#> [58,] 1.000000e+00 1.172280e-35 3.877866e-37#> [59,] 5.426305e-39 3.757091e-77 1.000000e+00#> [60,] 1.000000e+00 2.486910e-28 2.084616e-40#> attr(,"class")#> [1] "matrix" "posterior"

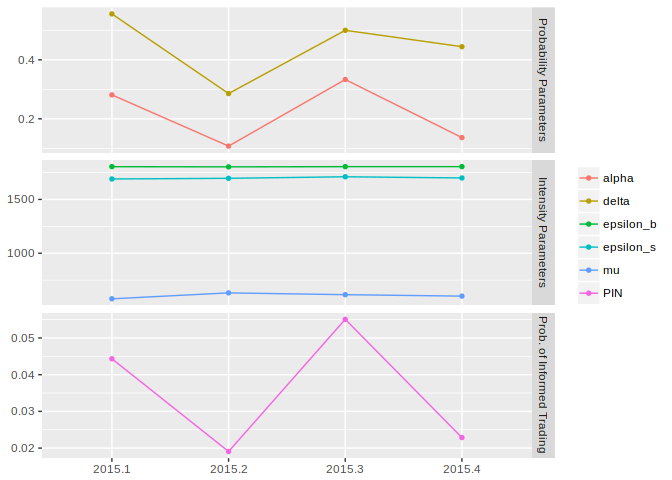

BSfrequent2015
contains simulated daily buys and sells for a
frequently traded equity for business days in 2015. qpin
returns
quarterly estimates which can be visualized with ggplot
.
# Quarterly PIN estimates# Confidence interval computation enabled:# * using only 1000 simulated datasets# * confidence level set to 0.95# * seed set to 123data('BSfrequent2015')qpin2015 <- qpin(numbuys = BSfrequent2015[,"Buys"], numsells = BSfrequent2015[,"Sells"],dates = as.Date(rownames(BSfrequent2015), format = "%Y-%m-%d"),confint = TRUE, ci_control = list(n = 1000, seed = 123))# Print confidence intervals for all four quartersci_quarters <- lapply(qpin2015[["res"]], function(x) x$confint)ci_quarters#> $`2015.1`#> 2.5% 97.5%#> 0.02752256 0.05943952#>#> $`2015.2`#> 2.5% 97.5%#> 0.006405346 0.033145972#>#> $`2015.3`#> 2.5% 97.5%#> 0.03658681 0.07322781#>#> $`2015.4`#> 2.5% 97.5%#> 0.01014942 0.03794254# Visualization of estimated parameterslibrary(ggplot2)ggplot(qpin2015[["res"]])

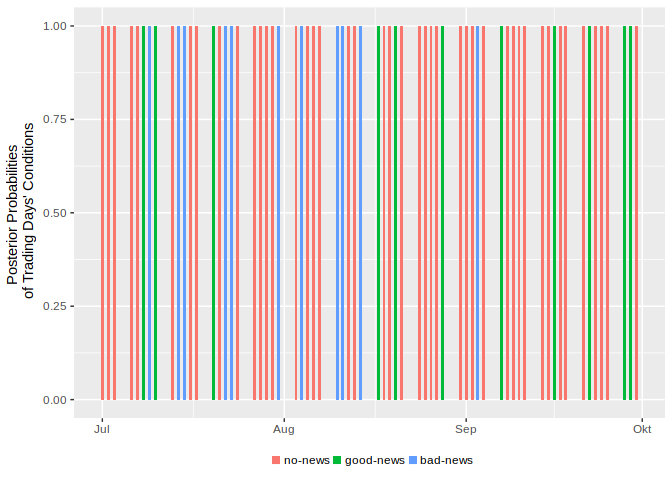

Posterior probabilities of trading days’ condition are returned by
posterior
and can be displayed with ggplot
. The following code chunk
shows how posterior probabilities for BSfrequent2015
in the third
quarter can be calculated and visualized.
# Corresponding parameter estimatesfreq_2015.3 <- qpin2015[["res"]]$'2015.3'$Results[,"Estimate"]# Subsetting datathird_quarter <- subset(BSfrequent2015, subset = lubridate::quarter(rownames(BSfrequent2015)) == 3)# Calculating posterior probabilitiespost_third <- posterior(param = freq_2015.3,numbuys = third_quarter[,"Buys"], numsells = third_quarter[,"Sells"])# Plottingggplot(post_third)
You may install the stable version from CRAN, or the development version from GitHub using devtools:
# install from CRANinstall.packages("pinbasic")# install from github using devtoolsdevtools::install_github("anre005/pinbasic")
nlminb_control
to function qpin
, pin_est
and pin_est_core
(see control argument for stats::nlminb
)BSfrequent
is now simulated with the parameter set (0.2, 0.5, 2200, 2000, 800) instead of (0.2, 0.5, 1800, 1700, 600)simulateBS
now completely in C++pin_confint
function
is no longer tied to HAC
. Other available methods can be chosen via
the method
argument of the function. (Defaults to "HAC"
)posterior
to enable computing posterior probabilities of
conditions of trading days for pin_est
, pin_est_core
and qpin
functionsqpin
function returns now list of list by default with slots res
and posterior
:
res
is relevant for ggplot.qpin
pin_confint
for ncores = 1
; seed
is set once at the beginning, hence results differ slightly from them of earlier versionpin_confint
and thus less dependencies; ncores = 1
by default nowpin_est_core
, pin_est
or qpin
use only 1 CPU core by default nowRcpp
simulateBS
function is re-implemented with Rcpp
posterior
: calculates posterior probabilities for trading days' conditionsggplot.posterior
: Method for ggplot
function for handling objects with class 'posterior' (Results from posterior
function)pin_confint
: using iter
function from iterators
package to iterate over list of simulated datasets if executed in parallel
which gains little speed-up in execution timeqpin_plot
changed to ggplot.qpin
: Method for ggplot
function for handling objects with class 'qpin' (Results from qpin
function)num_best_res = 1
simulateBS
for simulating daily buys and sells datapin_confint
: computes confidence intervals for the probability of informed tradingpin_est_core
, pin_est
and qpin
gained two new arguments: confint
and ci_control
qpin_plot
, facets are now grouped by probability parameters,
intensity parameters and the probability of informed tradinginitial_vals
together with method = "HAC_Ref"
now returns a number of sets of initial values depending
on num_clust
argument, not only one set
