Fast and Extensible Pattern Discovery in Tabular Data

Fast and extensible framework for discovering interesting patterns in tabular data. The package searches combinations of fuzzy or Boolean predicates and evaluates the resulting subgroups using statistical, logical, or structural measures. It supports a broad range of pattern-discovery tasks, including association rules (Agrawal et al., 1994, < https://www.vldb.org/conf/1994/P487.PDF>), contrast patterns (Chen, 2022, ), emerging patterns (Dong et al., 1999, ), subgroup discovery (Atzmueller, 2015, ), and conditional correlations (Hájek, 1978, ). User-defined functions may be supplied to guide custom pattern searches, making the framework applicable beyond traditional association-rule mining. Efficient implementation enables pattern discovery on large and dense data sets. Package includes methods for visualization and supports interactive exploration through integrated Shiny applications.

nuggets

Fast and extensible pattern mining in R - fuzzy association rules, conditional correlations, and contrast patterns

nuggets is a package for R providing a fast and extensible framework for discovering interesting patterns in tabular data. It can find association rules, contrasts, subgroup patterns, conditional correlations, and other patterns defined by user-specified evaluation functions. Both Boolean and fuzzy predicates are supported. Efficient implementation enables pattern discovery on large and dense data sets. Package includes methods for visualization and supports interactive exploration through integrated Shiny applications.

Live Demo!

Association Rules Explorer

What Patterns Can You Discover?

Association Rules: “University educated people in middle age working in IT have high income” - identify conditions that strongly predict specific outcomes.
Conditional Correlations: “Study time correlates with test score on hard exams” - discover relationships between variables that only hold under certain conditions .
Complement Contrasts: “Smokers have lower life expectancy than non-smokers” - find subgroups with significantly different characteristics from the rest.
Baseline Contrasts: “Measurement error differs from zero when using tool A” - detect when a variable deviates significantly from a baseline under specific conditions.
Paired Contrasts: “Ice cream sales exceed tea sales on sunny days” – compare paired measurements within specific contexts.
Custom Patterns: Define your own evaluation functions for specialized pattern mining.

Why nuggets?

arules is the established R framework for transaction-based association-rule and frequent-itemset mining. The nuggets package takes a broader approach: it searches combinations of conditions and evaluates the observations they select. This makes association rules just one of several types of patterns that can be discovered.

Key advantages of nuggets include:

Beyond association rules - discover associations, contrasts, subgroup patterns, conditional correlations, and other patterns defined by your own evaluation function.
Boolean and fuzzy predicates - work with both crisp conditions and fuzzy predicates, allowing patterns to express gradual concepts such as young, high income, or strongly associated.
Works naturally with ordinary data frames - search directly in tabular R data rather than requiring the data to be converted into a transaction representation first.
Numeric and categorical data - combine conditions on different types of variables and, where appropriate, use partition() to construct meaningful predicates from numeric or factor variables.
Extensible pattern discovery - dig() provides a general mechanism for searching candidate conditions and evaluating the resulting subsets of observations with arbitrary user-defined functions.
Fast pattern search - implemented in C++ with performance in mind, including efficient processing of large and dense datasets.
Visualization - unique tools for visualizing discovered patterns and their relationships.
Interactive exploration - inspect and explore discovered patterns using the package’s Shiny app.

Fast on Dense Datasets

A lot of effort has been put into optimizing the performance of the package, especially for dense datasets. The core algorithms are implemented in C++ and use single-instruction multiple-data (SIMD) operations to speed up the operations.

On a randomly generated dataset with 1 million rows and 15 columns, association rules with at most 5 items in the antecedent, a support above 0.001, and a confidence above 0.5 were searched. The total times, including reading the data from the CSV file, searching for rules, and writing the result back to CSV, on a Linux desktop computer with standard installations of the packages, were as follows:

nuggets (R, boolean logic): 1.4 s
arules - ECLAT (R, boolean logic): 2.9 s
arules - Apriori (R, boolean logic): 3.3 s

Fuzzy variant of association rules, which is much more computationally intensive:

nuggets (R, fuzzy logic): 12.0 s

For comparison, two Python libraries performed as follows:

cleverminer (Python, boolean logic): 1m 15.0s
mlxtend (Python, boolean logic, frequent itemsets only): 4h 11m 22.5s

See also a detailed Performance Comparison!

Installation

To install the stable version of nuggets from CRAN, type the following command within the R session:

install.packages("nuggets", dependencies = TRUE)

You can also install the development version of nuggets from GitHub with:

install.packages("devtools")
devtools::install_github("beerda/nuggets")

To start using the package, load it to the R session with:

library(nuggets)

Minimal Example

The following example demonstrates how to use nuggets to find association rules in the built-in mtcars dataset:

# Preprocess: dichotomize and fuzzify numeric variables
cars <- mtcars |>
    partition(cyl, vs:gear, .method = "dummy") |>
    partition(carb, .method = "crisp", .breaks = c(0, 3, 10)) |>
    partition(mpg, disp:qsec, .method = "triangle", .breaks = 3)

# Search for associations among conditions
rules <- dig_associations(cars,
                          antecedent = everything(),
                          consequent = everything(),
                          max_length = 4,
                          min_support = 0.1)

# Add various interest measures
rules <- add_interest(rules)

# Explore the found rules interactively

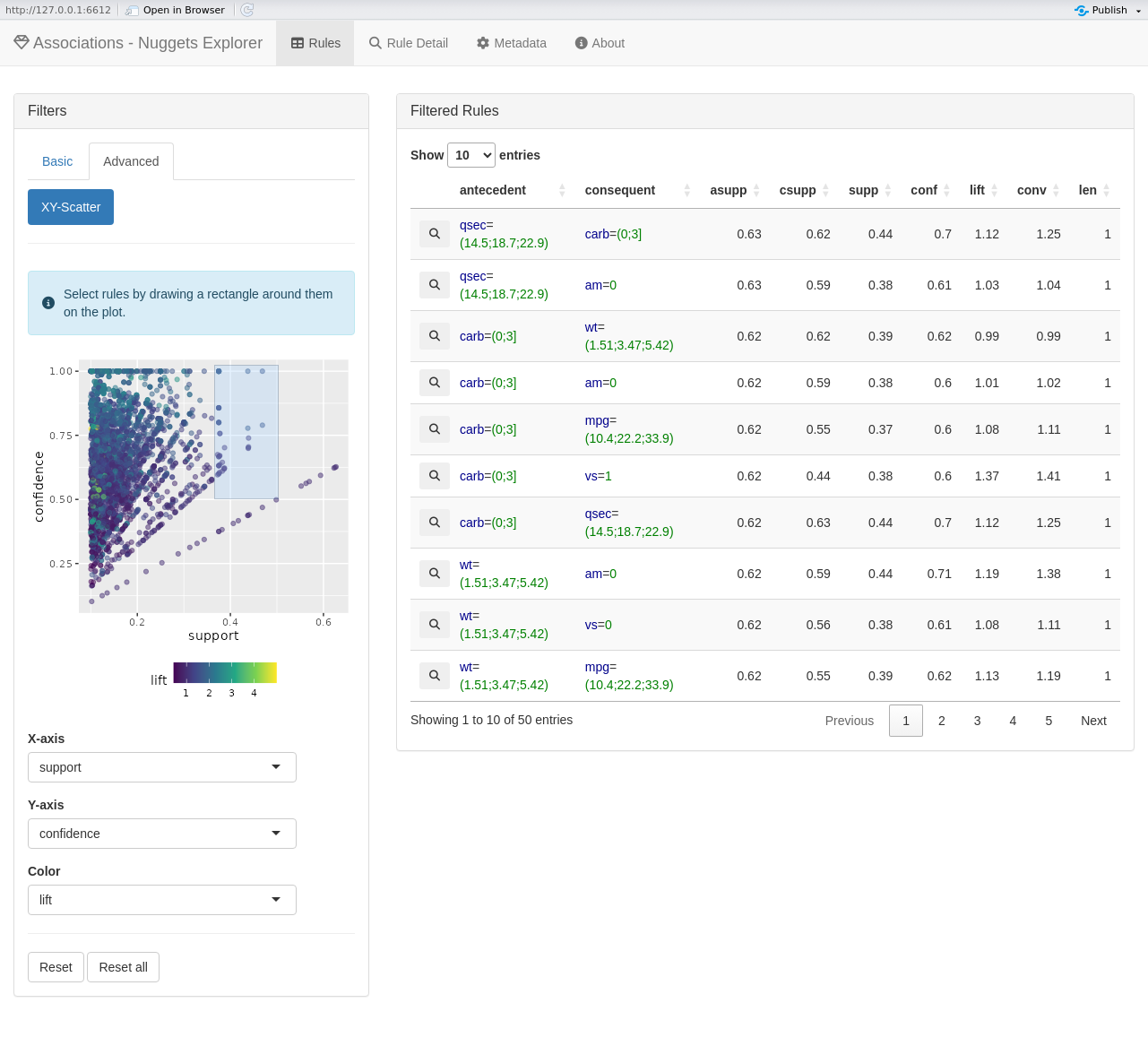

explore(rules, cars)
