Sparse Principal Component Analysis with Multiple Principal Components

Implements an algorithm for computing multiple sparse principal components of a dataset. The method is based on Cory-Wright and Pauphilet "Sparse PCA with Multiple Components" (2026) . The algorithm uses an iterative deflation heuristic with a truncated power method applied at each iteration to compute sparse principal components with controlled sparsity.

msPCA

Sparse PCA with multiple principal components in R.

The msPCA package computes sparse loading vectors that explain a high fraction of variance while controlling non-redundancy across components. It supports two non-redundancy definitions:

• orthogonality of loading vectors,
• zero pairwise correlation of components.

The package is listed in two CRAN Task Views: Machine Learning and Statistical Learning and Chemometrics and Computational Physics.

Installation

Install from CRAN:

install.packages("msPCA")
library(msPCA)

Install development version from GitHub:

install.packages("devtools")
devtools::install_github("jeanpauphilet/msPCA")
library(msPCA)

Quick start

The main function is mspca().

Inputs (following the elasticnet convention, the data is a single argument M plus a type selector):

• M: the data matrix,
• type: "Sigma" (default) treats M as a covariance/correlation matrix (p x p); "X" treats M as a raw data matrix (n observations x p variables),
• r: number of sparse principal components,
• ks: integer vector of length r with sparsity budgets.

With type = "X", mspca() applies the algorithm to the data directly via the products t(X) %*% (X %*% beta) and never forms the p x p matrix, which reduces each iteration's matrix–vector product from O(p^2) to O(np). Pass type = "X" when the number of variables greatly exceeds the number of observations; when n > p the dense type = "Sigma" path is cheaper.

Output fields:

• x_best: sparse loading matrix (p x r),
• objective_value,
• feasibility_violation,
• runtime,
• feasibilityConstraintType: the constraint enforced, reused as the default for all diagnostics,
• nonredundancy: the pairwise violation matrices under both constraint definitions, computed at fit time.

Example on mtcars:

library(msPCA)

Sigma <- cor(datasets::mtcars)
set.seed(42)

res <- mspca(Sigma, r = 2, ks = c(4, 4), verbose = FALSE)   # type = "Sigma" is the default
print(res)
summary(res)

feasibility_violation_off(Sigma, res$x_best, feasibilityConstraintType = 0)
fraction_variance_explained(Sigma, res$x_best)

Equivalent workflow from the raw data matrix (no covariance matrix needed):

library(msPCA)

X <- as.matrix(datasets::mtcars)
set.seed(42)

# type = "X" treats the first argument as raw data; scale = TRUE operates on the
# correlation matrix, matching cor(mtcars) above.
res <- mspca(X, r = 2, ks = c(4, 4), type = "X", scale = TRUE, verbose = FALSE)
print(res)
summary(res)

fraction_variance_explained(cor(X), res$x_best)

Documentation

The first three are installed vignettes: after install.packages("msPCA"), run vignette(package = "msPCA") to list them, or e.g. vignette("case-study-snp500", package = "msPCA").

Choosing parameters

ks is the main tuning input, and feasibilityConstraintType selects the notion of non-redundancy: 0 (default) enforces orthogonality of the loading vectors, 1 enforces zero pairwise correlation of the components. Use 0 when the loadings serve as a geometric projection basis, 1 when statistical decorrelation of the component scores is the priority.

For a fuller treatment — how to sweep ks and read the resulting sparsity/variance trade-off, when the two constraint types diverge, and how to set maxIter, maxRestartTPM and minRestartTPM — see Algorithm and implementation notes.

Synthetic benchmark

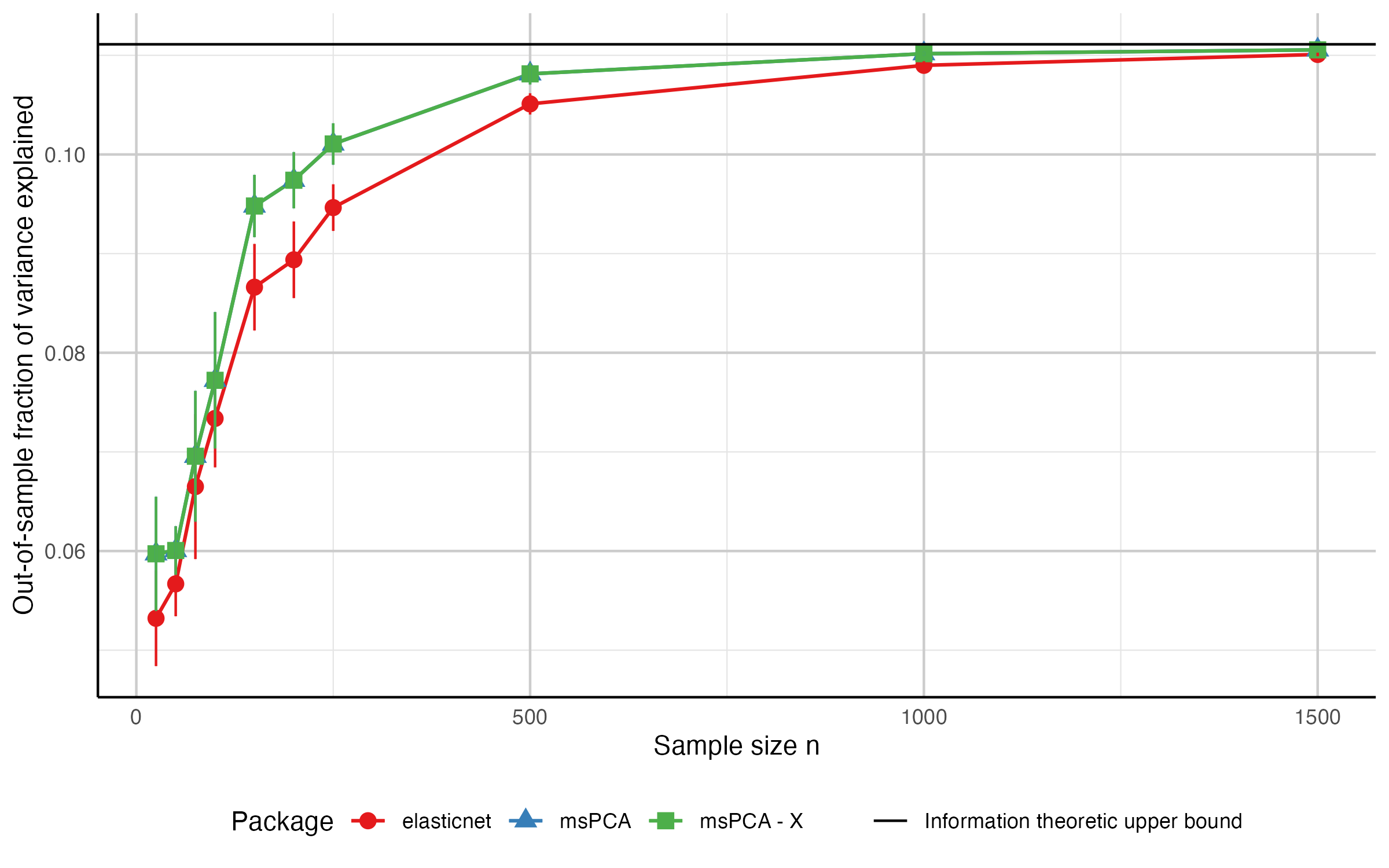

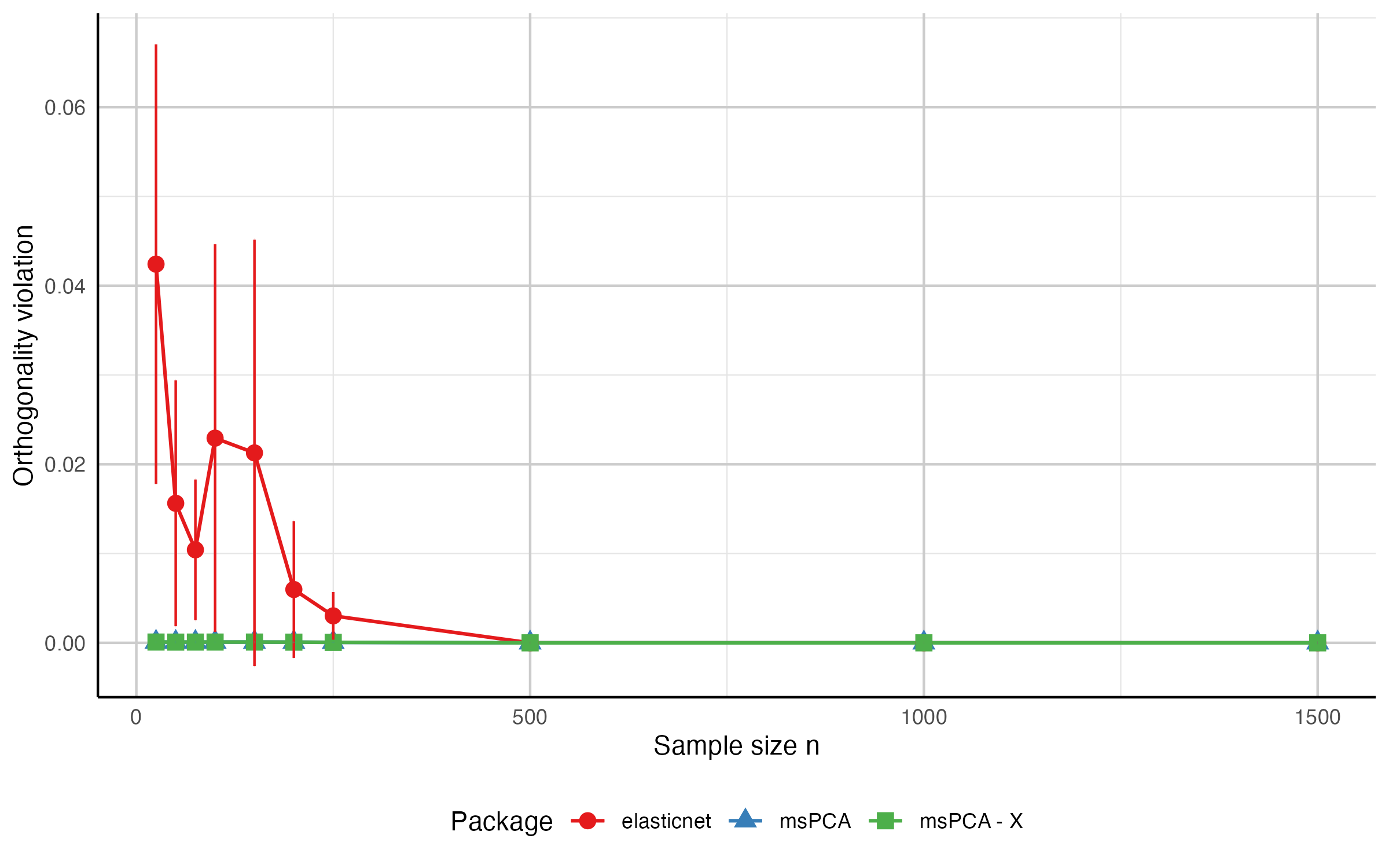

The script notebooks/notebook_synthetic.R compares msPCA with elasticnet::spca() on synthetic data across sample sizes and exports the figures below.

To regenerate these files, run notebooks/notebook_synthetic.R from the repository root. It writes to notebooks/; copy the two PNGs into man/figures/ afterwards, since that is where this README and the website read them from. For a broader comparison — seven competing packages on four real datasets — see the benchmarking article.

Main functions

• mspca(M, r, ks, type = c("Sigma", "X"), ...): multiple sparse PCs.
• tpm(M, k, type = c("Sigma", "X"), ...): single sparse PC via truncated power method.

mspca() returns an object of class mspca with print() and summary() methods. Both read what they report from the fitted object, so neither needs the covariance matrix passed back in. summary() reports the non-redundancy violations under the constraint type used to fit; pass feasibilityConstraintType explicitly to inspect the solution under the other definition.

Useful optional arguments in mspca():

• feasibilityConstraintType
• feasibilityTolerance
• maxIter
• stallingTolerance
• timeLimitTPM
• maxRestartTPM
• minRestartTPM

Raw-data arguments (type = "X"):

• center (default TRUE), scale (default TRUE, set FALSE for covariance),
• divisor ("n-1" for the sample covariance, the default, or "n").

Covariance-matrix validation arguments (type = "Sigma"):

• checkPSD (default TRUE), symTolerance, psdTolerance.

Diagnostic functions

• fraction_variance_explained(Sigma, U)
• fraction_variance_explained_perPC(Sigma, U)
• variance_explained_perPC(Sigma, U)
• feasibility_violation_off(Sigma, U, feasibilityConstraintType), for scoring loadings that did not come from mspca(). Under feasibilityConstraintType = 1 the violation is normalized by the total variance tr(Sigma), making it invariant to a rescaling of Sigma.
• print(sol_object, digits = 3) / summary(sol_object)

Included data

• snp500: the market-deflated correlation matrix of daily log-returns for 423 S&P 500 constituents, January 2010 – December 2019 (?snp500). Used by the S&P 500 case study; derived from a CC0-licensed Kaggle dataset by data-raw/snp500.R.

Citation

If you use msPCA in academic work, please cite the package and the underlying paper.

You can retrieve the package citation in R with:

citation("msPCA")

Reference paper:

@article{cory2026sparse,
  title   = {Sparse PCA with Multiple Components},
  author  = {Cory-Wright, Ryan and Pauphilet, Jean},
  year    = {2026},
  journal = {Operations Research},
  doi     = {10.1287/opre.2023.0598}
}

Development

Package structure overview:

• R/
  • main.R: user-facing functions and helper diagnostics.
  • data.R: documentation for the bundled snp500 dataset.
  • RcppExports.R: R interface for compiled code, generated by Rcpp::compileAttributes().
• src/
  • msPCA_R_CPP.cpp: C++ implementation of the core algorithm and the dense/raw-data entry points.
  • CovOperator.h: covariance-operator abstraction (DenseOp for Sigma, GramOp for X).
  • ConstantArguments.h: internal algorithm constants.
  • RcppExports.cpp: generated C++ interface.
  • Makevars, Makevars.win: compilation settings.
• man/: function documentation generated from roxygen comments.
• vignettes/: the three installed vignettes, plus articles/ for the website-only benchmarking article (build-ignored).
• data-raw/: script and archival source for data/snp500.rda (build-ignored).
• inst/vignette-data/: pre-computed results read by the case-study vignette.
• replication/: scripts reproducing the benchmarking and case-study results reported in the paper and in the benchmarking article (build-ignored).
• tests/testthat/: unit tests.
• notebooks/
  • notebook_mtcars.R
  • notebook_plot.R
  • notebook_synthetic.R
  • msPCA_synthetic_results.csv

For interface changes, regenerate exports and documentation with Rcpp::compileAttributes() and devtools::document(). After editing data-raw/snp500.R, rebuild the dataset with source("data-raw/snp500.R").

License

See LICENSE.
