Line Maps

Create maps made of lines. The package contains two functions: linemap() and getgrid(). linemap() displays a map made of lines using a data frame of gridded data. getgrid() transforms a set of polygons (sf objects) into a suitable data frame for linemap().


Build Status

Example

The package contains two functions: linemap and getgrid

linemap

linemap displays a map made of lines from a data frame of gridded data.

library(linemap)
library(sf)
data("popOcc")
data("occitanie")
opar <- par(mar=c(0,0,0,0), bg = "ivory2")
plot(st_geometry(occitanie), col="ivory1", border = NA)
linemap(x = popOcc, var = "pop", k = 2.5, threshold = 50,
        col = "ivory1", border = "ivory4", lwd = 0.6, add = TRUE)
par(opar)

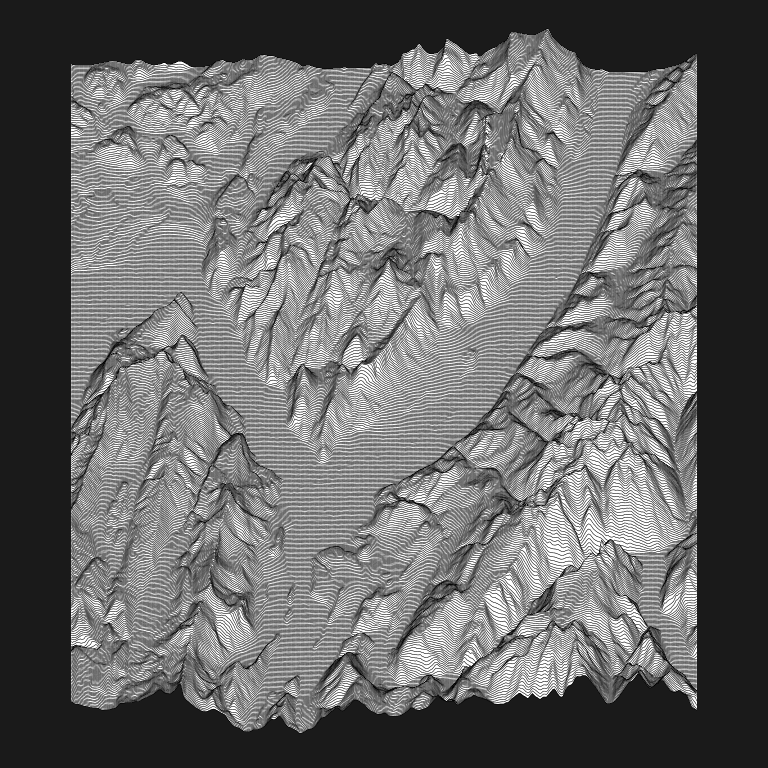

mordor

getgrid

getgrid transforms a set of polygons (POLYGONS or MULTIPOLYGONS, sf objects) into a suitable data frame for linemap.

library(linemap)
library(sf)
data("bretagne")
data("france")
plot(st_geometry(bretagne))

bretagne

bret <- getgrid(x = bretagne, cellsize = 2000, var = "POPULATION")
bret[6010:6014,]
X Y POPULATION
6010 340217.1 6783195 670.7509
6011 342217.1 6783195 1050.2651
6012 344217.1 6783195 1410.0992
6013 346217.1 6783195 2304.2012
6014 348217.1 6783195 2875.4047
opar <- par(mar = c(0,0,0,0))
plot(st_geometry(france), col="lightblue3", border = NA, bg = "lightblue2",
     xlim = c(min(bret$X), max(bret$X)), ylim= c(min(bret$Y), max(bret$Y)))
linemap(x = bret, var = "POPULATION", k = 5, threshold = 1,
        col = "lightblue3", border = "white", lwd = 0.8,
        add = TRUE)
par(opar)

mordor2

Installation

library(devtools)
install_github("rCarto/linemap")

Inspiration

Unknown Pleasures (Joy Division)
Population Lines: How and Why I Created It (James Cheshire)
GeospatialLineGraphs (Ryan Brideau)

News

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("linemap")

0.2.0 by Timothée Giraud, 8 months ago


https://github.com/riatelab/linemap


Report a bug at https://github.com/riatelab/linemap/issues


Browse source code at https://github.com/cran/linemap


Authors: Timothée Giraud [cre, aut]


Documentation:   PDF Manual


GPL-3 license


Imports graphics, sf, stats

Suggests tinytest, covr


See at CRAN
