Colour Schemes for Scientific Data Visualization

An implementation of Paul Tol's colour schemes for use with 'graphics' or 'ggplot2'. These schemes are ready for each type of data (qualitative, diverging or sequential), with colours that are distinct for all people, including colour-blind readers. This package provides tools to simulate colour-blindness and to test how well the colours of any palette are identifiable. Several scientific thematic schemes (geologic timescale, land cover, FAO soils, etc.) are also implemented.


Build Status codecov GitHub Release CRAN Version CRAN Downloads lifecycle DOI

Overview

khroma is a utility package: it provides usefull colour schemes for archaeological data visualization. khroma provides Paul Tol's colour schemes and several thematic palettes (geologic timescale, FAO Soil Reference Groups, etc.) with scales for ggplot2.

Installation

Install the released version of khroma from CRAN:

install.packages("khroma")

Or install the development version from GitHub with:

devtools::install_github("nfrerebeau/khroma")

Usage

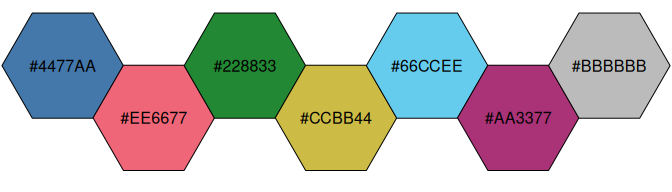

Paul Tol's Colour Schemes

Paul Tol offers carefully chosen schemes, ready for each type of data, with colours that are:

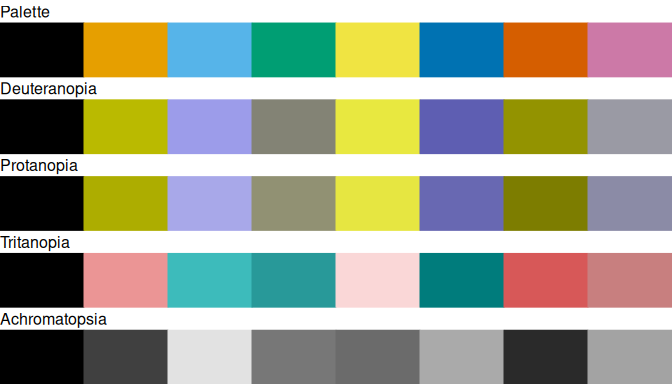

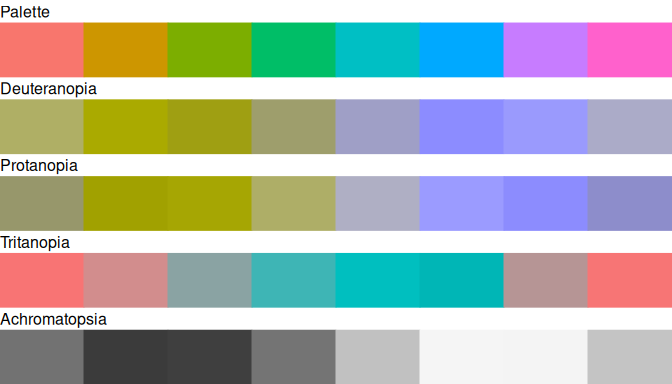

  • distinct for all people, including colour-blind readers;
  • distinct from black and white;
  • distinct on screen and paper;
  • matching well together.

All the scales presented in his 2018 technical note [1] are implemented here, for use with graphics or ggplot2.

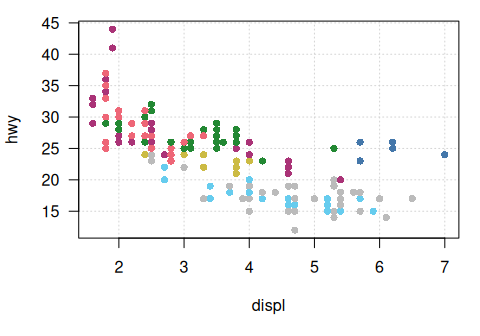

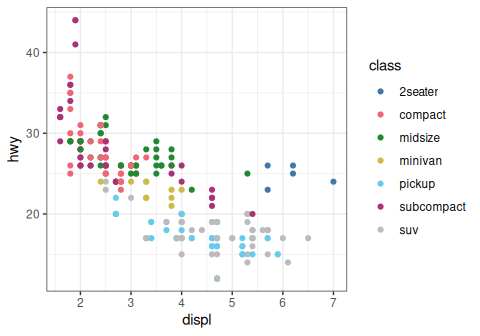

Qualitative data

Diverging data

Sequential data

Scientific colour schemes

The following scientific colour schemes are available:

  • International Chronostratigraphic Chart
  • FAO Soil Reference Groups

More will be added in future releases (suggestions are welcome).

[1] Tol, Paul (2018). Colour Schemes. SRON. Technical Note No. SRON/EPS/TN/09-002. URL: https://personal.sron.nl/~pault/data/colourschemes.pdf.

News

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("khroma")

1.2.0 by Nicolas Frerebeau, a day ago


http://khroma.archaeo.science, http://github.com/nfrerebeau/khroma, https://cran.r-project.org/package=khroma


Report a bug at http://github.com/nfrerebeau/khroma/issues


Browse source code at https://github.com/cran/khroma


Authors: Nicolas Frerebeau [aut, cre] , Brice Lebrun [ctb]


Documentation:   PDF Manual


GPL-3 license


Imports ggplot2, grDevices, scales

Suggests covr, testthat, vdiffr, knitr, rmarkdown


Suggested by tabula.


See at CRAN
