Distinct Colour Palettes Based on 'iwanthue'

Creating effective colour palettes for figures is challenging. This package generates and plot palettes of optimally distinct colours in perceptually uniform colour space, based on 'iwanthue' < http://tools.medialab.sciences-po.fr/iwanthue/>. This is done through k-means clustering of CIE Lab colour space, according to user-selected constraints on hue, chroma, and lightness.

hues

This package generates and plot palettes of optimally distinct colours in perceptually uniform colour space, based on iwanthue. This is done through k-means clustering of CIE Lab colour space, according to user-selected constraints on hue, chroma, and lightness.

The development version of hues can be installed using install_github from the devtools package:

# install.packages('devtools') # uncomment if devtools isn't already installed
devtools::install_github('johnbaums/hues')

Examples

The examples below show palettes corresponding to some presets given at the iwanthue website.

library(hues)

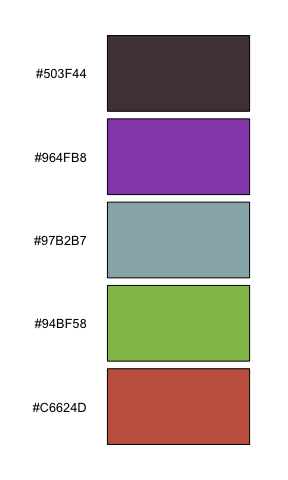

iwanthue(5, plot=TRUE)

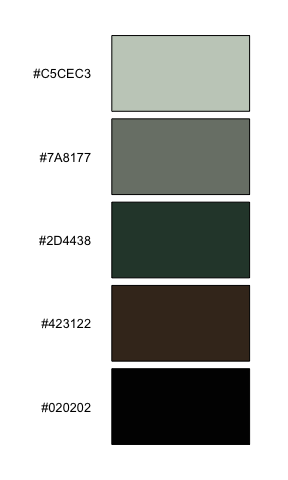

iwanthue(5, 0, 240, 0, 24, 0, 100, plot=TRUE)    # shades

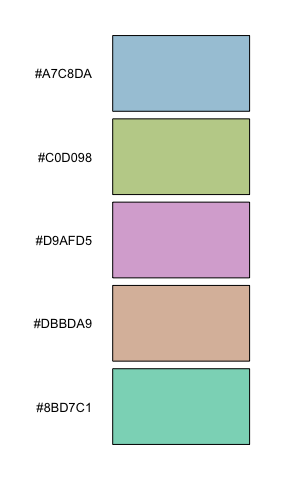

iwanthue(5, 0, 360, 0, 54, 67, 100, plot=TRUE)   # pastel

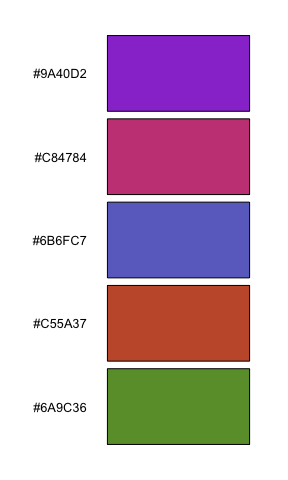

iwanthue(5, 0, 360, 54, 180, 27, 67, plot=TRUE)  # pimp

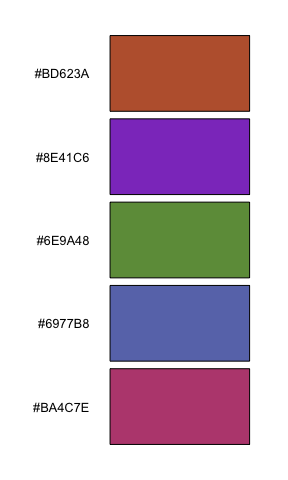

iwanthue(5, 0, 360, 36, 180, 13, 73, plot=TRUE)  # intense

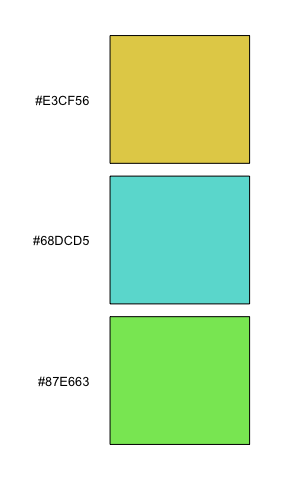

iwanthue(3, 0, 300, 60, 180, 73, 100, plot=TRUE) # fluoro

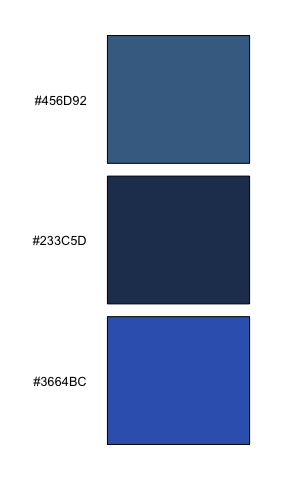

iwanthue(3, 220, 260, 12, 150, 0, 53, plot=TRUE) # blue ocean
