Hierarchical and Grouped Time Series

Provides methods for analysing and forecasting hierarchical and grouped time series. The available forecast methods include bottom-up, top-down, optimal combination reconciliation (Hyndman et al. 2011) , and trace minimization reconciliation (Wickramasuriya et al. 2018) .


Travis-CI BuildStatus codecov CRAN_Status_Badge Downloads

The R package hts presents functions to create, plot and forecast hierarchical and grouped time series.

Installation

You can install the stable version on R CRAN.

install.packages('hts', dependencies = TRUE)

You can also install the development version from Github

# install.packages("devtools")
devtools::install_github("earowang/hts")

Usage

Example 1: hierarchical time series

library(hts)
#> Loading required package: forecast

# hts example 1
print(htseg1)
#> Hierarchical Time Series
#> 3 Levels
#> Number of nodes at each level: 1 2 5
#> Total number of series: 8
#> Number of observations per series: 10
#> Top level series:
#> Time Series:
#> Start = 1992
#> End = 2001
#> Frequency = 1
#>  [1] 48.74808 49.48047 49.93238 50.24070 50.60846 50.84851 51.70922
#>  [8] 51.94330 52.57796 53.21496
summary(htseg1)
#> Hierarchical Time Series
#> 3 Levels
#> Number of nodes at each level: 1 2 5
#> Total number of series: 8
#> Number of observations per series: 10
#> Top level series:
#> Time Series:
#> Start = 1992
#> End = 2001
#> Frequency = 1
#>  [1] 48.74808 49.48047 49.93238 50.24070 50.60846 50.84851 51.70922
#>  [8] 51.94330 52.57796 53.21496
#>
#> Labels:
#> [1] "Level 0" "Level 1" "Level 2"
aggts1 <- aggts(htseg1)
aggts2 <- aggts(htseg1, levels = 1)
aggts3 <- aggts(htseg1, levels = c(0, 2))

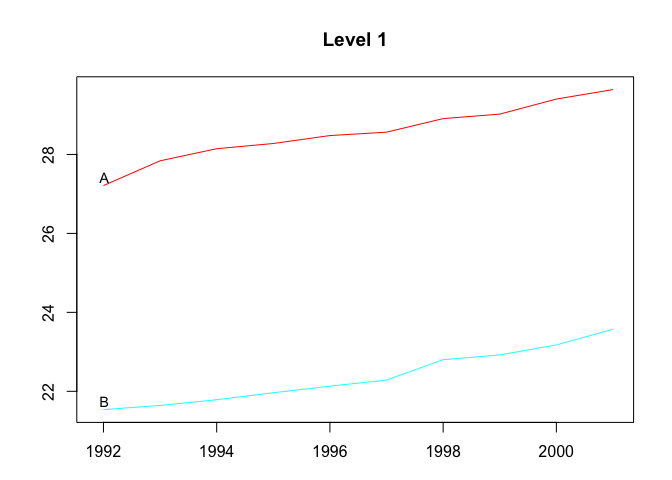

plot(htseg1, levels = 1)

smatrix(htseg1)  # Return the dense mode
#>      [,1] [,2] [,3] [,4] [,5]
#> [1,]    1    1    1    1    1
#> [2,]    1    1    1    0    0
#> [3,]    0    0    0    1    1
#> [4,]    1    0    0    0    0
#> [5,]    0    1    0    0    0
#> [6,]    0    0    1    0    0
#> [7,]    0    0    0    1    0
#> [8,]    0    0    0    0    1

# Forecasts
fcasts1.bu <- forecast(
  htseg1, h = 4, method = "bu", fmethod = "ets", parallel = TRUE
)
aggts4 <- aggts(fcasts1.bu)
summary(fcasts1.bu)
#> Hierarchical Time Series
#> 3 Levels
#> Number of nodes at each level: 1 2 5
#> Total number of series: 8
#> Number of observations in each historical series: 10
#> Number of forecasts per series: 4
#> Top level series of forecasts:
#> Time Series:
#> Start = 2002
#> End = 2005
#> Frequency = 1
#> [1] 53.2149 53.2149 53.2149 53.2149
#>
#> Method: Bottom-up forecasts
#> Forecast method: ETS
fcasts1.td <- forecast(
  htseg1, h = 4, method = "tdfp", fmethod = "arima", keep.fitted = TRUE
)
summary(fcasts1.td)  # When keep.fitted = TRUE, return in-sample accuracy
#> Hierarchical Time Series
#> 3 Levels
#> Number of nodes at each level: 1 2 5
#> Total number of series: 8
#> Number of observations in each historical series: 10
#> Number of forecasts per series: 4
#> Top level series of forecasts:
#> Time Series:
#> Start = 2002
#> End = 2005
#> Frequency = 1
#> [1] 53.71128 54.20760 54.70392 55.20024
#>
#> Method: Top-down forecasts using forecasts proportions
#> Forecast method: Arima
#> In-sample error measures at the bottom level:
#>                AA           AB          AC          BA           BB
#> ME   0.0007719336 0.0009183738 0.001003812 0.001043247  0.001087807
#> RMSE 0.1298400018 0.0515879830 0.040306867 0.037462277  0.105015065
#> MAE  0.0978321731 0.0436089571 0.033210387 0.027003846  0.081906948
#> MAPE 1.1275970221 0.4534439625 0.323535559 0.251066115  0.691364891
#> MPE  0.0367879336 0.0069220593 0.006785872 0.007787895 -0.011087494
#> MASE 0.6825678136 0.5197483057 0.774250880 0.447950006  0.493684443
fcasts1.comb <- forecast(
  htseg1, h = 4, method = "comb", fmethod = "ets", keep.fitted = TRUE
)
aggts4 <- aggts(fcasts1.comb)

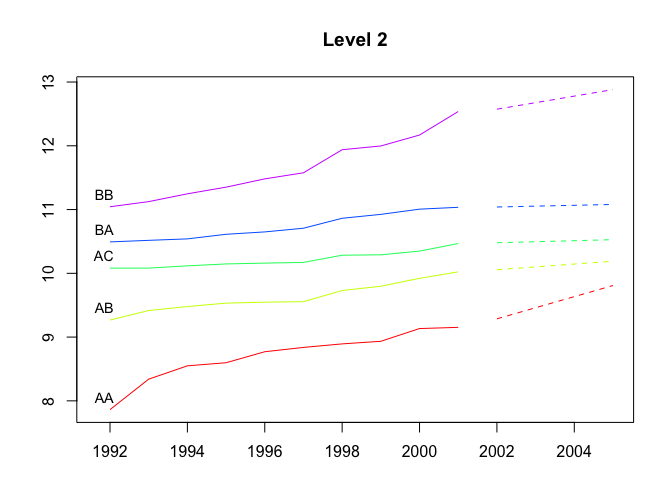

plot(fcasts1.comb, levels = 2)

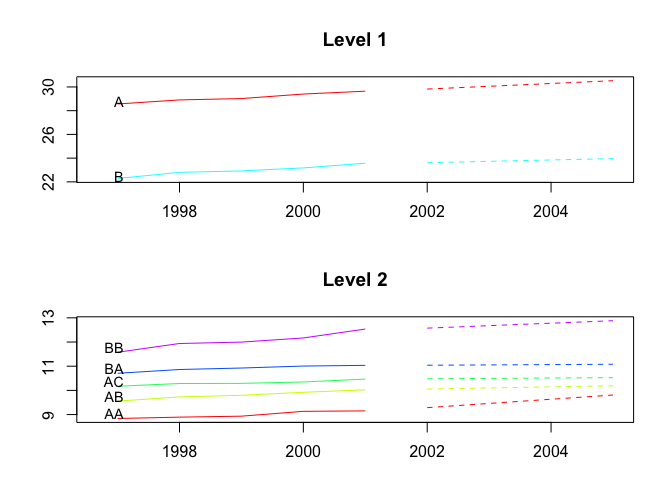

plot(fcasts1.comb, include = 5, levels = c(1, 2))

Example 2: hierarchical time series

# hts example 2
data <- window(htseg2, start = 1992, end = 2002)
test <- window(htseg2, start = 2003)
fcasts2.mo <- forecast(
  data, h = 5, method = "mo", fmethod = "ets", level = 1,
  keep.fitted = TRUE, keep.resid = TRUE
)
accuracy.gts(fcasts2.mo, test)
#>            Total          A          B        A10         A20         B30
#> ME    -0.1794783 -0.2486428 0.06916451 -0.1954860 -0.05315684 -0.02399186
#> RMSE   0.1818643  0.2732218 0.13585344  0.2180641  0.05572214  0.03144802
#> MAE    0.1794783  0.2486428 0.11251209  0.1954860  0.05315684  0.02399186
#> MAPE  11.1268019  8.4004312 2.27814495  7.5371465 14.49009308  1.69936058
#> MPE  -11.1268019  8.4004312 1.30221674  7.5371465 14.49009308 -1.69936058
#> MASE   0.5663497  1.3950200 0.81137939  1.2966219  1.93505737  0.52639468
#>             B40        A10A       A10B         A10C        A20A
#> ME   0.09315637 -0.03774880 -0.1649411  0.007203920 -0.04105604
#> RMSE 0.16498366  0.05205754  0.1779641  0.012753680  0.04696434
#> MAE  0.13636607  0.03873088  0.1649411  0.009838328  0.04105604
#> MAPE 3.85101876  3.11436103 20.5656022  1.774154141 13.39804861
#> MPE  2.45900161  3.04078646 20.5656022 -1.351777719 13.39804861
#> MASE 1.46488456  0.36661690  5.1038016  0.768361455  3.23432001
#>             A20B         B30A       B30B       B30C       B40A      B40B
#> ME   -0.01210080  -0.05065830 0.01324339 0.01342306 -0.0495926 0.1427490
#> RMSE  0.01432307   0.05944454 0.01485743 0.01599316  0.0728362 0.2349335
#> MAE   0.01228684   0.05065830 0.01324339 0.01342306  0.0495926 0.1800119
#> MAPE 15.88898042  16.89941739 2.89472660 2.07537753  3.6008092 8.1543683
#> MPE  15.22048749 -16.89941739 2.89472660 2.07537753 -3.6008092 6.1053561
#> MASE  0.83150955   2.07454397 1.47284424 1.10323688  0.9554614 4.3707453
accuracy.gts(fcasts2.mo, test, levels = 1)
#>               A          B
#> ME   -0.2486428 0.06916451
#> RMSE  0.2732218 0.13585344
#> MAE   0.2486428 0.11251209
#> MAPE  8.4004312 2.27814495
#> MPE   8.4004312 1.30221674
#> MASE  1.3950200 0.81137939
fcasts2.td <- forecast(
  data, h = 5, method = "tdgsa", fmethod = "ets",
  keep.fitted = TRUE, keep.resid = TRUE
)

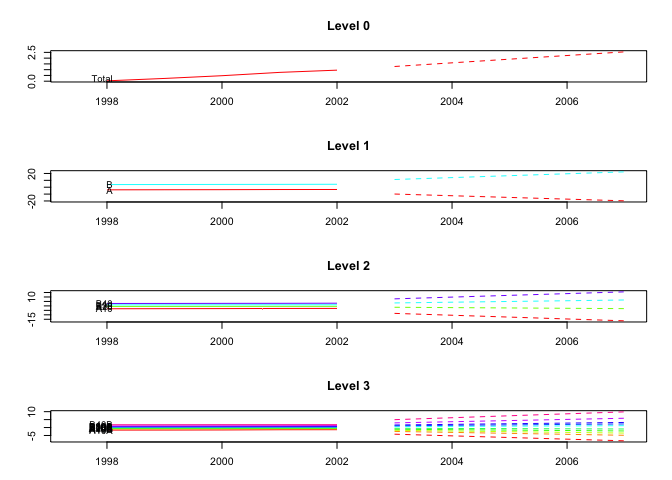

plot(fcasts2.td, include = 5)

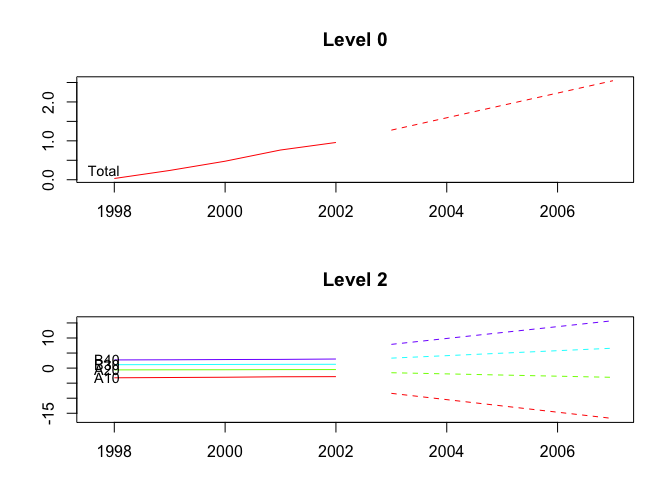

plot(fcasts2.td, include = 5, levels = c(0, 2))

Example 3: grouped time series

# gts example

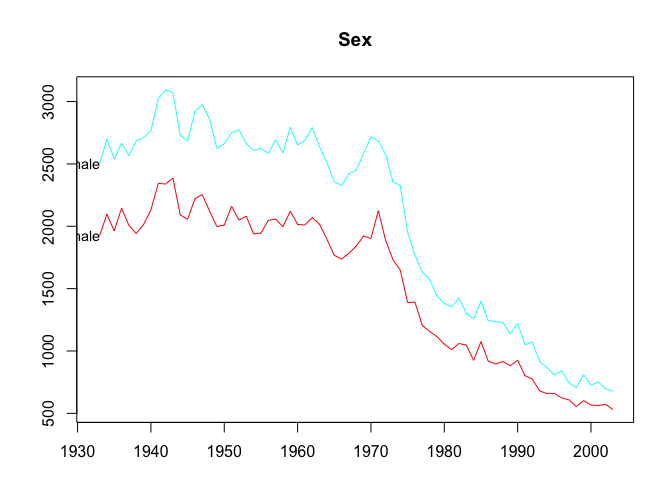

plot(infantgts, levels = 1)


fcasts3.comb <- forecast(infantgts, h = 4, method = "comb", fmethod = "ets")
agg_gts1 <- aggts(fcasts3.comb, levels = 1)
agg_gts2 <- aggts(fcasts3.comb, levels = 1, forecasts = FALSE)

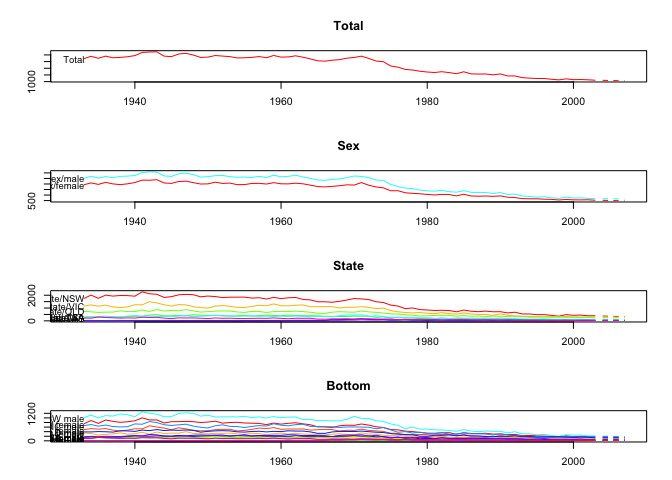

plot(fcasts3.comb)

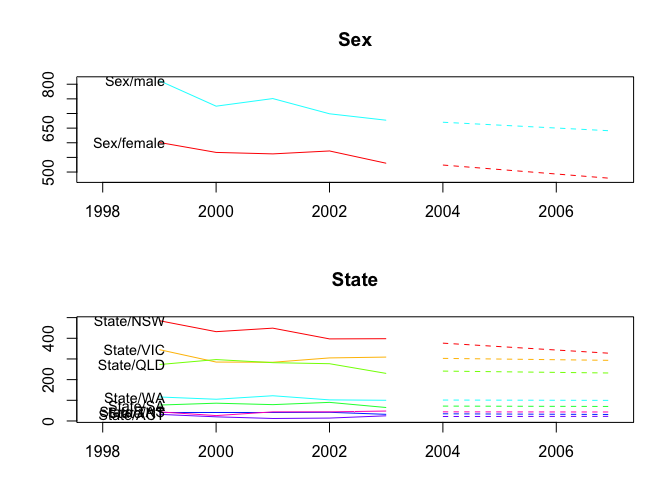

plot(fcasts3.comb, include = 5, levels = c(1, 2))


fcasts3.combsd <- forecast(
  infantgts, h = 4, method = "comb", fmethod = "ets",
  weights = "sd", keep.fitted = TRUE
)

fcasts3.combn <- forecast(
  infantgts, h = 4, method = "comb", fmethod = "ets",
  weights = "nseries", keep.resid = TRUE
)

License

This package is free and open source software, licensed under GPL (>= 2).

News

hts 5.1.5

  • Fixed hts authorship in the DESCRIPTION file
  • Updated reference
  • Replaced rBind with rbind due to Matrix new release
  • Depends on R (>= 3.2.0)

hts 5.1.4

  • The hts and gts don't actually fit into mts, ts and matrix classes, and hence mts, ts and matrix classes are dropped.
  • Added helper functions get_nodes for hts and get_groups for gts.
  • Fixed forecast(method = "tdfp", h = 1) issue (#32).
  • Fixed forecast(FUN = hybridModel) when newxreg is present (#28).

hts 5.1.0

  • Earo Wang took over maintenance of the package from Rob J Hyndman.
  • Replaced ChangeLog with a NEWS.md file to track changes to the package.
  • Used roxygen2 to generate and manage reference. Thanks to Yihui's Rd2roxygen package for hassle-free conversion.
  • Enabled pkgdown support.
  • Allowed more control of colour in plot.gts (Thanks to @ellisp for the pull request #25).
  • Exported the is.hts and is.gts functions (as per #29).
  • Registered accurary as an S3 method from forecast::accuracy.

hts 5.0

  • Added mint option in forecast.gts (written by Shanika Wickramasuriya)
  • Allowed arbitrary ordering of bottom level time series in hts()
  • Added QR decomposition if LU decomposition fails
  • Bug fixes

hts 4.5

  • Fixed bugs in accuracy.gts().
  • Fixed bug in forecast.gts() detecting the right default forecasting horizon.
  • Fixed bug in gts() for a gts with one grouping variable.
  • Speeded up Smatrix().
  • Make SparseM package as dependency.
  • Better handle missing values.
  • Speeded up combinef() for Alan's algorithm.
  • Added 3 new algorithms to the optimally reconciled approach.
  • Fixed bug in forecast.gts() when using external regressors with parallel.
  • Fixed time attributes of fitted and residual series.

hts 4.4

  • Allowed multiple seasonal objects "msts" in hts() and gts().
  • Fixed bug of MASE in accuracy.gts().
  • Allowed user's defined forecasting function in forecast.gts().

hts 4.3

  • Fixed bug of the arg "include" in plot.gts, when there are not yearly data.
  • Fixed bug in combinef(), when it handles a simple hierarchy with 2 levels.
  • Improved arg "characters" in hts() to automate the node structure.
  • Added a new arg "characters" in gts(), which will automate the grouping matrix.
  • Added a new reference to combinef() man.
  • Made 'sd' the default weight in forecast.gts().

hts 4.2

  • Fixed Next.Generic error in accuracy.gts.
  • Adjust weights = sd.

hts 4.1

  • Set the default parallel processes to 2.
  • Fixed three dots in parallel computing for forecast.gts.
  • Speeded up the topdown approaches.

hts 4.0

  • Speeded up all existing functions.
  • Restructured hts function. Argument g is replaced with nodes. Added bnames and characters to allow custom names.
  • Added argument gnames to gts function.
  • Argument groups in gts function allows the gmatrix with characters.
  • Added function aggts in which users can specify whatever levels they like.
  • Renamed Smatrix to smatrix.
  • Added summary.gts function.
  • Added more arguments to forecast.gts such as keep.fitted, keep.resid, lambda, weights.
  • When setting method = "mo" in forecasts.gts, argument level started with 0 rather than 1.
  • Import parallel package in order to support for parallel processing.
  • Added more criterions to accuracy.gts function. When keep.fitted = TRUE in forecast.gts function, accuracy.gts can also return in-sample error measures at the bottom level.
  • Dropped argument criterions in accuracy.gts function.
  • Added argument weights to combinef function. When it's a hts object, argument nodes is used instead of the summing matrix.
  • combinef function returns either a gts object or time series at the bottom level. Dropped arguments return and hierarchical.
  • Argument levels in plot.gts function allows more flexibilities.

hts 3.01

  • Added the infantgts data
  • Added the vignette

hts 3.00

  • Restructured gts objects and dropped hts objects. A flag indicates if gts is hierarchical.
  • gts objects can now contain forecasts as well as historical data.
  • Updated plot.gts function with an option to show historical data as well as forecasts
  • Added the window.gts function
  • Moved SparseM from Depends to Imports

hts 2.02

  • Bug fixes to cope with much bigger hierarchies

hts 2.01

  • Changed hierarchical naming convention to allow much bigger hierarchies.

hts 2.0

  • Added grouped time series (gts) objects, and re-wrote many functions in order to handle them.
  • hts objects are now a subset of gts objects.
  • Some old hts methods have been replaced by gts methods.
  • Rob J Hyndman took over maintenance of the package from Han Lin Shang

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("hts")

5.1.5 by Earo Wang, a year ago


http://pkg.earo.me/hts


Report a bug at https://github.com/earowang/hts/issues


Browse source code at https://github.com/cran/hts


Authors: Rob Hyndman [aut] (Package creator) , Alan Lee [aut] (Fast computation using recursive methods) , Earo Wang [aut, cre] , Shanika Wickramasuriya [aut] (Reconciliation via trace minimization)


Documentation:   PDF Manual


Task views: Time Series Analysis


GPL (>= 2) license


Imports SparseM, Matrix, matrixcalc, parallel, utils, methods, graphics, grDevices, stats

Depends on forecast

Suggests testthat, knitr, rmarkdown

Linking to Rcpp, RcppEigen


Imported by thief.

Depended on by gtop.

Suggested by corset.


See at CRAN
