R Client for the COLOURlovers API

Provides access to the COLOURlovers < http://www.colourlovers.com/> API, which offers color inspiration and color palettes.


CRANVersion Downloads BuildStatus codecov.io

The colourlovers package connects R to the COLOURlovers API. COLOURlovers is a social networking site for sharing colors, color palettes, and color-rich visual designs. The social networking features of the site mean that COLOURlovers provides not only rich, original color palettes to use in R graphics but also provides ratings and community evaluations of those palettes, helping R graphics designers to utilize visually pleasing color combinations.

Installation

You can find a stable release on CRAN:

install.packages("colourlovers")

or install the latest development version from GitHub using:

if (!require("remotes")) {
  install.packages("remotes")
}

remotes::install_github("andrewheiss/colourlovers")

Using colourlovers in R graphics

The plot method for the various colourlovers functions pulls PNG-formatted images from the COLOURlovers website and displays them in R graphics, which is helpful for previewing particular colors, palettes, or patterns. But, using the returned colors in R graphics requires extracting the relevant colors and using them in some way. Thus the function swatch extracts color information from any of the function return values, and converts them to a character vector of hexidecimal color representations, which can easily be directly plugged into subsequent graphics calls.

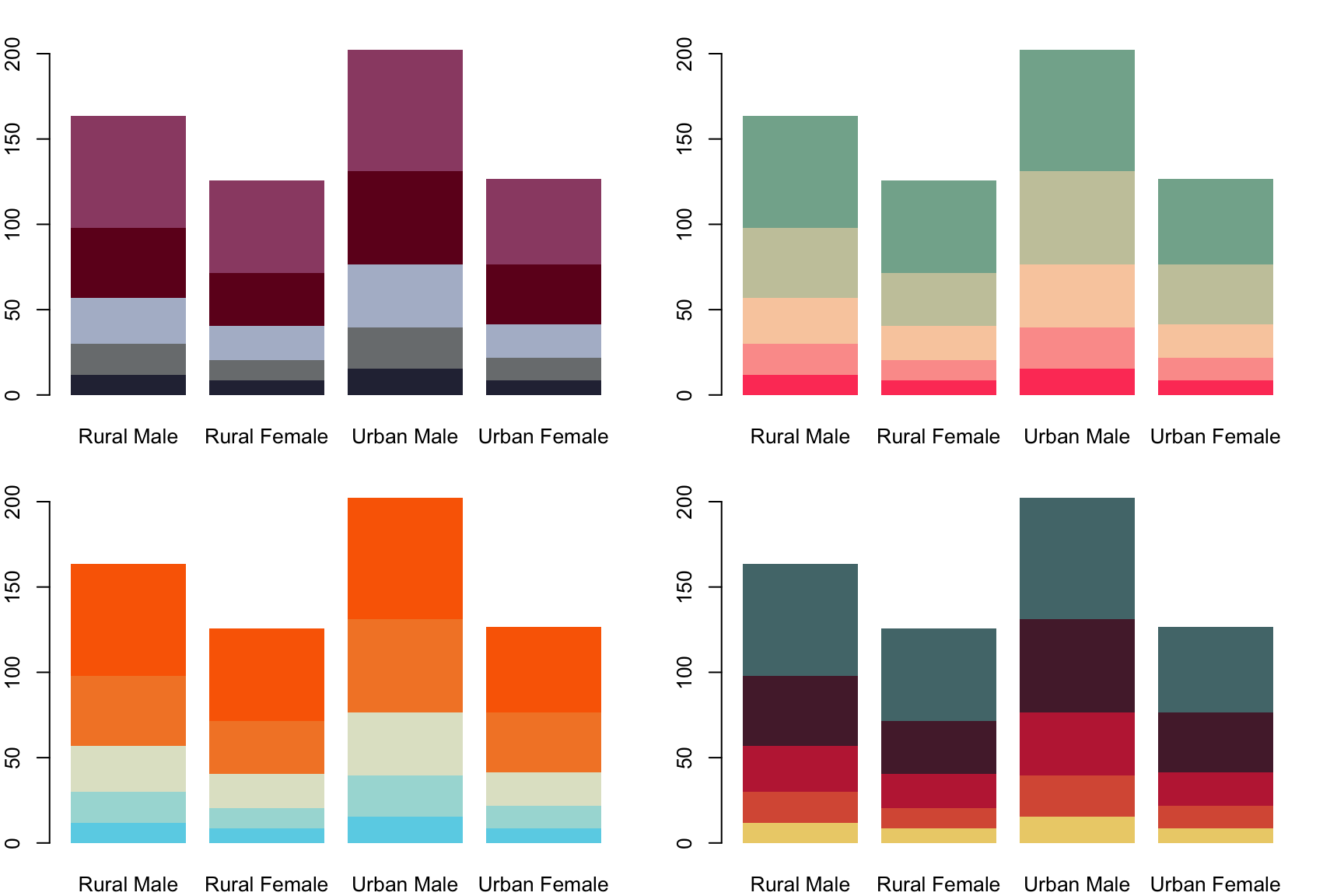

Here’s a simple barplot example using the built-in VADeaths dataset redesigned using four different top color patterns:

library(colourlovers)

palette1 <- clpalette('113451')
palette2 <- clpalette('92095')
palette3 <- clpalette('629637')
palette4 <- clpalette('694737')
layout(matrix(1:4, nrow = 2))
par(mar = c(2, 2, 2, 2))

barplot(VADeaths, col = swatch(palette1)[[1]], border = NA)
barplot(VADeaths, col = swatch(palette2)[[1]], border = NA)
barplot(VADeaths, col = swatch(palette3)[[1]], border = NA)
barplot(VADeaths, col = swatch(palette4)[[1]], border = NA)

The API functionality is broken down into five categories: colors, palettes, patterns, lovers, and statistics. The next sections provide examples of the first three.

Note that the clcolor(), clcolors(), clpalette(), clpalettes(), clpattern(), and clpatterns() functions all have S3 plot() methods. These methods produce either simple plots of colors, palettes, and patterns using rasterImage() (and the png::readPNG() function) or a pie chart of the returned color values (e.g., plot(obj, type = 'pie')).

Additionally the swatch function extracts colors returned by any of those functions to make them easily usable in subsequent graphics calls. For example:

swatch(clcolors('random'))
## [[1]]
## [1] "#88A58D"
swatch(clpalettes('random'))
## [[1]]
## [1] "#FFE7D1" "#D4CEAA" "#74BCA4" "#45A0A5" "#374313"

Get Colors

Two functions retrieve information about individual colors from COLOURlovers. The first, clcolors() (in plural form), searches for colors according a number of named attributes.

clcolors('top')[[1]]
#> Pattern ID:      14
#> Title:           Black
#> Created by user: ninjascience
#> Date created:    2004-12-17 08:36:26
#> Views:           147150
#> Votes:           1511
#> Comments:        1788
#> Hearts:          4.5
#> Rank:            1
#> URL:             http://www.colourlovers.com/color/000000/Black
#> Image URL:
#> Colors:          #000000

The second function, clcolor() (in singular form), retrieves information about a single color based on its six-character hexidecimal representation.

clcolor('6B4106')
#> Pattern ID:      903893
#> Title:           wet dirt
#> Created by user: jessicabrown
#> Date created:    2008-03-17 11:22:21
#> Views:           557
#> Votes:           1
#> Comments:        0
#> Hearts:          0
#> Rank:            0
#> URL:             http://www.colourlovers.com/color/6B4106/wet_dirt
#> Image URL:
#> Colors:          #6B4106

clcolor() automatically removes leading hashes (#) and trailing alpha-transparency values, allowing colors returned grDevices functions to be passed directly to clcolor. For example:

clcolor(hsv(.5, .5, .5))
#> Pattern ID:      34152
#> Title:           H, S & B
#> Created by user: serafim
#> Date created:    2005-12-15 08:07:52
#> Views:           583
#> Votes:           5
#> Comments:        4
#> Hearts:          0
#> Rank:            0
#> URL:             http://www.colourlovers.com/color/408080/H_S_B
#> Image URL:
#> Colors:          #408080
clcolor(rgb(0, 1, 0, .5))
#> Pattern ID:      1513
#> Title:           Primary Green
#> Created by user: il morto
#> Date created:    2005-07-04 09:53:05
#> Views:           4396
#> Votes:           61
#> Comments:        32
#> Hearts:          0
#> Rank:            522
#> URL:             http://www.colourlovers.com/color/00FF00/Primary_Green
#> Image URL:
#> Colors:          #00FF00
clcolor(gray(.5))
#> Pattern ID:      8335
#> Title:           917~choice grey
#> Created by user: DESIGNJUNKEE
#> Date created:    2005-08-29 11:30:26
#> Views:           7963
#> Votes:           45
#> Comments:        16
#> Hearts:          5
#> Rank:            722
#> URL:             http://www.colourlovers.com/color/808080/917~choice_grey
#> Image URL:
#> Colors:          #808080

The response includes RGB and HSV representations of the requested color, a URL for for an image of the color, and COLOURlovers ratings (views, votes, comments, hearts, and rank) for the color.

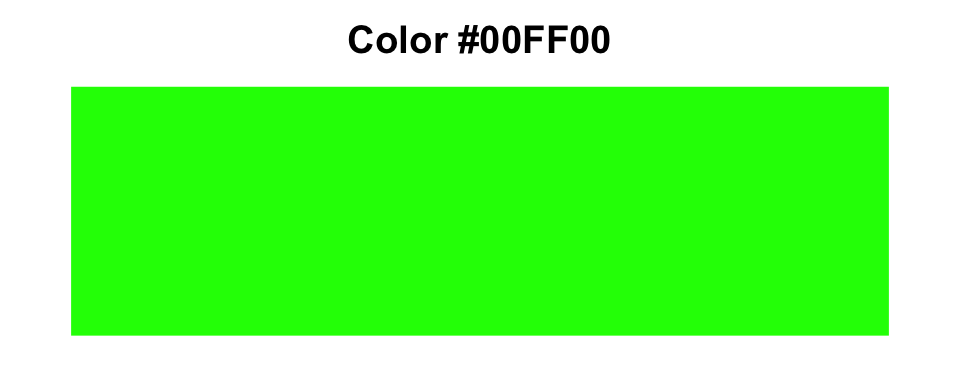

Here’s an example of the image URL at work, using the plot method for a clcolor object:

plot(clcolor('00FF00'))

Get Palettes

Palettes are sets of colors created by COLOURlovers users. They show potentially attractive combinations of colors, and are the most useful aspect of the COLOURlovers API in an R context.

Two functions are provided for using palettes. One, clpalettes (in plural form), searches for palettes by user, hue(s), color(s) (in hexidecimal representation), or keyword(s).

top <- clpalettes('top')

# plot all top palettes (interactively)
plot(top)

# plot them all as pie charts of the included colors
plot(top, type = 'pie')

# extract color swatches from new palettes
swatch(top)

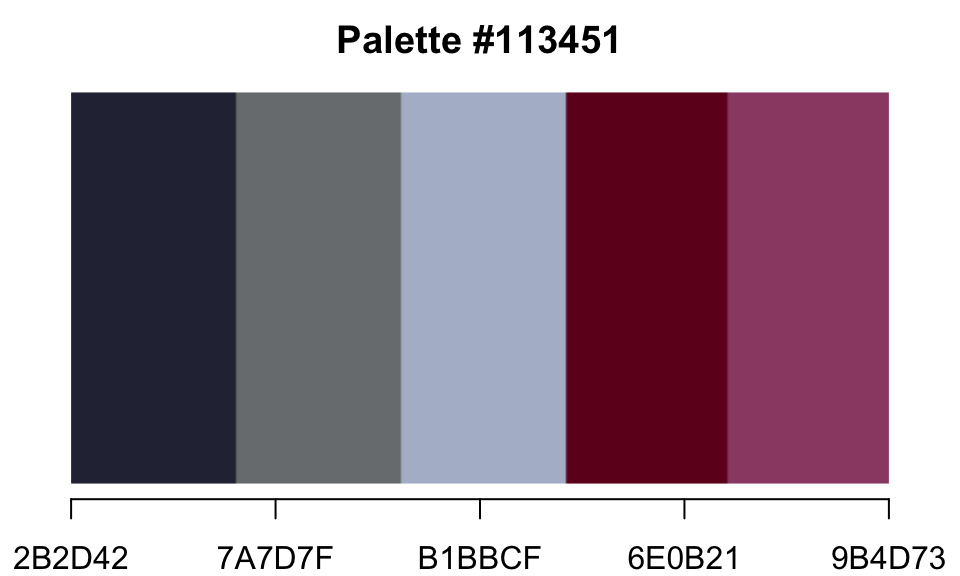

The other function, clpalette() (in singular form), retrieves a pattern by its identifying number. Here’s an example of the image URL at work (credit “Anaconda” (113451) by kunteper):

palette1 <- clpalette('113451')

# plot the palette
plot(palette1)

Get Patterns (Designs)

Patterns are images created on COLOURlovers using a specified palette of colors. They serve as examples of how to use the palette in practice.

Two functions are provided for using patterns. One, clpatterns() (in plural form), searches for patterns according to user, hue(s), color(s) (in hexidecimal representation), or keyword(s).

clpatterns('top')[[1]]
#> Pattern ID:      4370608
#> Title:           0479
#> Created by user: as warning
#> Date created:    2014-07-06 03:13:02
#> Views:           3130
#> Votes:           16777215
#> Comments:        0
#> Hearts:          0
#> Rank:            0
#> URL:             http://www.colourlovers.com/pattern/4370608/0479
#> Image URL:
#> Colors:          #FAF9CD, #002A31, #85A0AB, #BCB203, #322B33

The other function, clpattern() (in singular form), retrieves a pattern by its identifying number.

pattern1 <- clpattern('1451')

# extract colors from the pattern
swatch(pattern1)
#> [[1]]
#> [1] "#52202E" "#1A1313" "#F7F6A8" "#C4F04D"

The response includes the creator’s username, COLOURlovers ratings (views, votes, comments, hearts, and rank), the palette of colors (in hexidecimal representation) used in the pattern, and URLs for the images of the pattern.

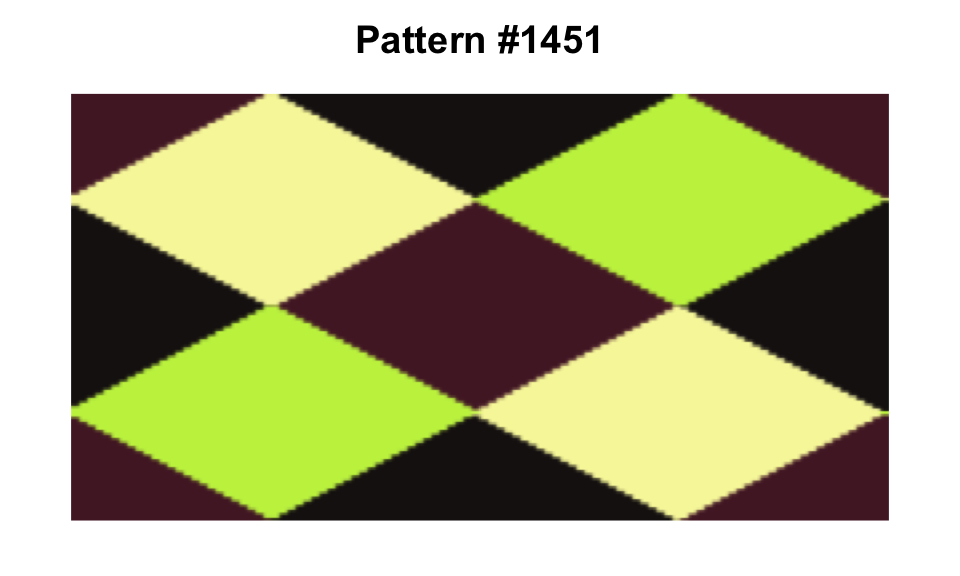

Here’s an example of the image URL at work (credit “Geek Chic” (1451) by _183):

plot(clpattern('1451'))

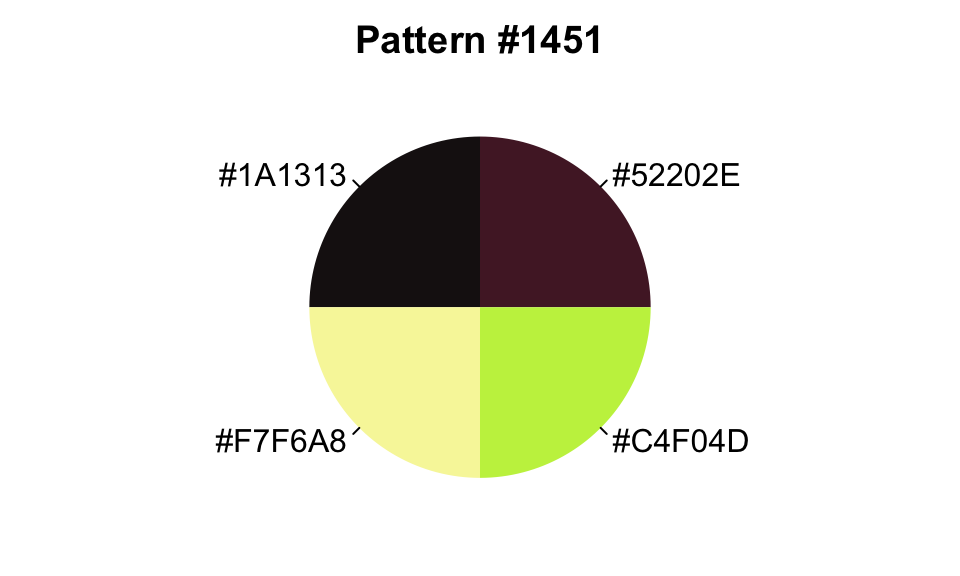

Using plot(clpattern('1451'), type = 'pie'), the plot method extracts the swatch for the pattern (or a palette or color) and displays the results as a pie chart, with each color labeled:

plot(clpattern('1451'), type = 'pie')

License

The colourlovers package is released under GPL-2, while the COLOURlovers community-generated data returned by the API is available under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 license.

Community guidelines

Please note that the ‘colourlovers’ project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms.

News

colourlovers 0.3.0

  • New maintainer: @andrewheiss (#7)
  • Updated clquery() to use the httr package
  • Updated tests to use httptest package so they can reference cached offline API calls instead of making live calls to the API, which makes testing faster and makes CRAN happier

colourlovers 0.2

Significant user-visible changes

  • Replaced import of RJSONIO with jsonlite.
  • Added namespace imports of base packages.
  • Converted README to a knitr executible.
  • Added a test suite.

Documentation

  • Examples in documentation are now tryCatch-wrapped to hopefully avoid any unwanted errors, some of which emerged on OSX Mavericks but were not generally reproducible. (Thanks to Brian Ripley and Christophe Lalanne for assistance) (#2)

Bug fixes

  • Fixed pandoc conversion error in README.md (h/t Kurt Hornik)

colourlovers 0.1

  • Initial release.
