Detect Anomalies Using the Spectral Residual Algorithm

Apply the spectral residual algorithm to data, such as a time series, to detect anomalies. Anomaly scores can be used to determine outliers based upon a threshold or fed into more sophisticated prediction models. Methods are based upon "Time-Series Anomaly Detection Service at Microsoft", Ren, H., Xu, B., Wang, Y., et al., (2019) .

spectralAnomaly

The {spectralAnomaly} package is a simple set of tools for R users to detect anomalies in data, such as a time series, using the ‘Spectral Residual’ method.

Installation

The {spectralAnomaly} can be installed directly from CRAN:

install.packages('spectralAnomaly')

You can also install the latest development version of {spectralAnomaly} like so:

remotes::install_github('al-obrien/spectralAnomaly')

Examples

library(spectralAnomaly)

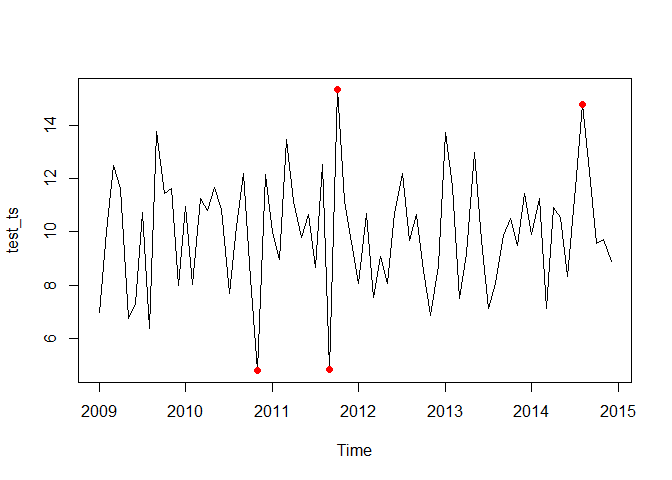

Create a noisy time series with a modest anomaly threshold

test_ts <- ts(rnorm(12*6,10,2), start=c(2009, 1), end=c(2014, 12), frequency=12)
ts_scores <- anomaly_score(test_ts, score_window = 25)
plot(test_ts, type = 'l')
points(test_ts, col = ifelse(ts_scores > quantile(ts_scores, prob = 0.95),'red',NA), pch = 16)

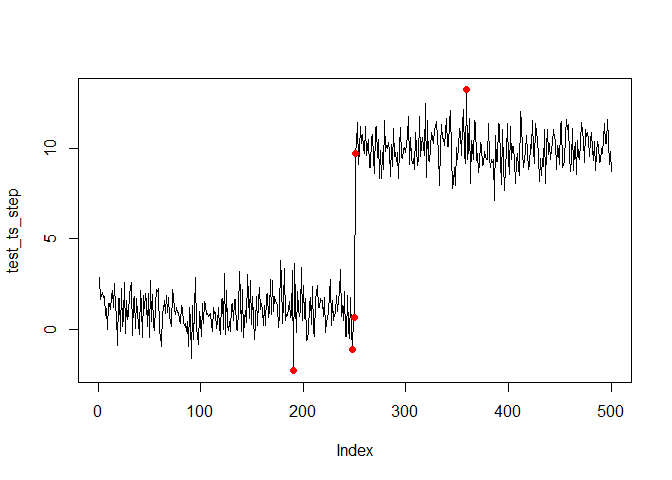

Create a series with a step

test_ts_step <- c(rnorm(1, 1, n=250),
                  rnorm(10, 1, n=250))
ts_scores <- anomaly_score(test_ts_step, score_window = 100)
plot(test_ts_step, type = 'l')
points(test_ts_step, col = ifelse(ts_scores > quantile(ts_scores, prob = 0.99),'red',NA), pch = 16)

References

1. Time-Series Anomaly Detection Service at Microsoft
2. ML-based Anomaly Detection
3. Saliency Detection
4. anomalydetector
