Sequential Full Factorial-Based Latin Hypercube Design

Gives design points from a sequential full factorial-based Latin hypercube design, as described in Duan, Ankenman, Sanchez, and Sanchez (2015, Technometrics, ).


Travis-CI BuildStatus CRAN_Status_Badge

This R package provides a class that generates experiment sFFLHD designs. Sequential full factorial-based Latin hypercube design were created by Duan, Ankenman, Sanchez, and Sanchez (2015, Technometrics).

To create a new design you use the function sFFLHD$new and must give in the number of dimensions, D, and the batch size/number of levels per factor, L. An example is shown below (the last line can be repeated when run in console to see how new batches are added).

library(sFFLHD)
#> Loading required package: DoE.base
#> Loading required package: grid
#> Loading required package: conf.design
#>
#> Attaching package: 'DoE.base'
#> The following objects are masked from 'package:stats':
#>
#>     aov, lm
#> The following object is masked from 'package:graphics':
#>
#>     plot.design
#> The following object is masked from 'package:base':
#>
#>     lengths
set.seed(0)
s <- sFFLHD$new(D=2,L=3)

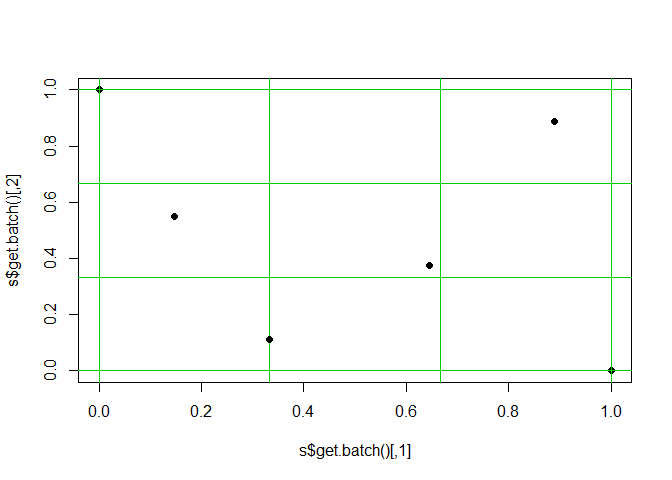

plot(s$get.batch(),xlim=0:1,ylim=0:1,pch=19)
abline(h=(0:(s$Lb))/s$Lb,v=(0:(s$Lb))/s$Lb,col=3);points(s$get.batch(),pch=19)

By default the new points are selected using maximin distance optimization to spread them out. This is why points will end up near corners. This option will slow down the code a little but generally not noticeably compared to what the design is used for. If set to FALSE then the points are randomly placed within their small grid box.

News

sFFLHD 0.1.2

Fixing issue with README (image moved to tools folder).

sFFLHD 0.1.0

This is the first version of this package. I had written the function before but am now putting it into its own package for others to use.

Accepted by CRAN on 8/26/2016: https://cran.r-project.org/web/packages/sFFLHD/index.html

sFFLHD 0.1.1

Moved DoE.design to Depends since the entire package needs to be loaded. I'd rather not do this, but it's the only way to get it to work.

Accepted by CRAN on 9/21/2016

sFFLHD 0.1.1.9000

In development.

Reference manual

It appears you don't have a PDF plugin for this browser. You can click here to download the reference manual.

install.packages("sFFLHD")

0.1.2 by Collin Erickson, 2 years ago


https://github.com/CollinErickson/sFFLHD


Report a bug at https://github.com/CollinErickson/sFFLHD/issues


Browse source code at https://github.com/cran/sFFLHD


Authors: Collin Erickson


Documentation:   PDF Manual


Task views: Design of Experiments (DoE) & Analysis of Experimental Data


GPL-3 license


Imports methods, stats, conf.design, R6

Depends on DoE.base

Suggests testthat


See at CRAN
