CET Perceptually Uniform Colour Maps

Collection of perceptually uniform colour maps made by Peter Kovesi (2015) "Good Colour Maps: How to Design Them" at the Centre for Exploration Targeting (CET).


Project Status: Active - The project has reached a stable, usablestate and is being activelydeveloped. Travis-CI BuildStatus CRAN_Status_Badge CRAN RStudio mirrordownloads

The cetcolor package is designed to bring to R the 56 colour maps created by Peter Kovesi that avoid points of locally high colour contrast leading to the perception of false anomalies in your data when there is none. The colour maps have been designed to avoid this phenomenon by having uniform perceptual contrast over their whole range.

Installation

The cetcolor package is available on both CRAN and GitHub. The CRAN version is considered stable while the GitHub version is in a state of development and may break.

You can install the stable version of the cetcolor package with:

install.packages("cetcolor")

For the development version, you can opt for:

install.packages("devtools")
devtools::install_github("coatless/cetcolor")

Sample Usage

# Load the Library
library("cetcolor")

# Get RGB Hexadecimals for graphing
cet_pal(5, name = "blues")
#> [1] "#F1F1F1" "#C0D3EB" "#93B5DD" "#7197C1" "#3B7CB2"

# Sample use with ggplot2
library("ggplot2")

ggplot(faithfuld, aes(waiting, eruptions)) +
  geom_raster(aes(fill = density)) +
  theme_bw() + theme(panel.grid=element_blank()) -> g

library("gridExtra")

# Frequently used colour maps have "nicknames" see ?cet_color_maps

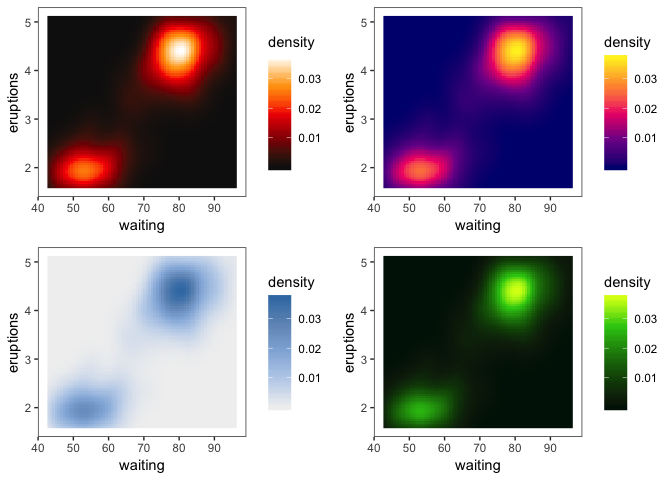

grid.arrange(
  g + scale_fill_gradientn(colours = cet_pal(5, name = "fire")),
  g + scale_fill_gradientn(colours = cet_pal(5, name = "inferno")),
  g + scale_fill_gradientn(colours = cet_pal(5, name = "blues")),
  g + scale_fill_gradientn(colours = cet_pal(5, name = "kgy")),
  ncol = 2, nrow = 2
)

# Show a panel of possible values (without nicknames)

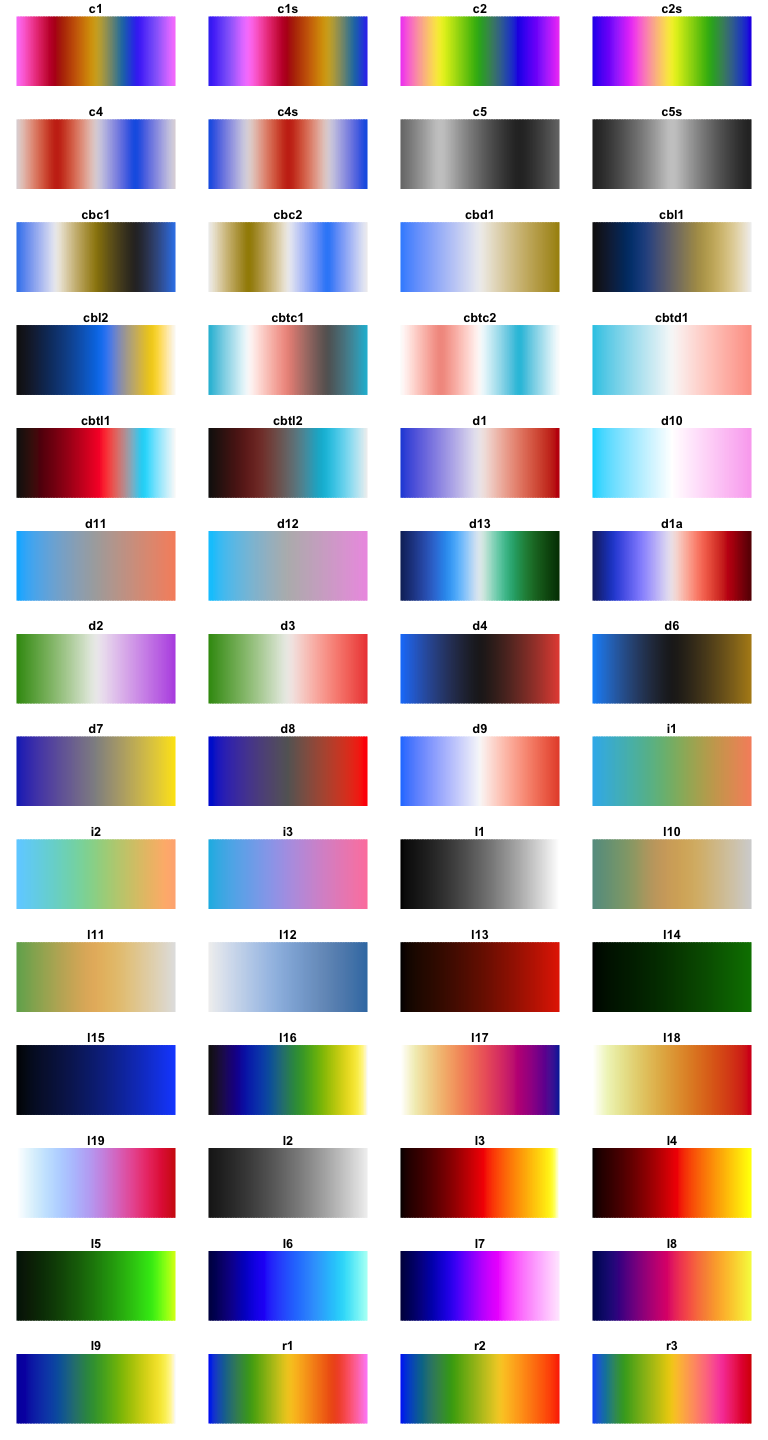

display_cet_all()

References

CET

R Colour Palettes

  • viridis (Source)
    • Provides MATLAB perceptually uniform colour maps in a manner that is similar to this package.
  • RColorBrewer (Source)
    • Function interface naming, e.g. cet_pal(n, name), and colour map displays.
  • scales and ggplot2
    • Proper ways to interface colour palettes with ggplot2 as shown for RColorBrewer.

Future

  • Allow for n > 256.
  • Provide hooks for ggplot2 gradient and discrete scales
  • Port over the Peter’s generation code from Julia / MATLAB to R.

License

CC BY-SA 4.0

News

cetcolor 0.2.0

New

  • Added new color maps to pre-existing types
    • Linear
      • l3, long: linear_kryw_0-100_c71_n256
      • l4, long: linear_kry_0-97_c73_n256
      • l9, long: linear_bgyw_20-98_c66_n256
      • l14, long: linear_ternary-green_0-46_c42_n256
      • l16, long: linear_kbgyw_5-98_c62_n256
      • l17, long: linear_worb_100-25_c53_n256
      • l18, long: linear_wyor_100-45_c55_n256
      • l19, long: linear_wcmr_100-45_c42_n256
    • Divergent
      • d1a, long: diverging_bwr_20-95_c54_n256
      • d13, long: diverging_bwg_20-95_c41_n256
  • Added new colourmap palettes for users with colour blindness
    • cbl1, long: linear-protanopic-deuteranopic_kbjyw_5-95_c25_n256
    • cbl2, long: linear-protanopic-deuteranopic_kbw_5-98_c40_n256
    • cbd1, long: diverging-protanopic-deuteranopic_bwy_60-95_c32_n256
    • cbc1, long: cyclic-protanopic-deuteranopic_bwyk_16-96_c31_n256
    • cbc2, long: cyclic-protanopic-deuteranopic_wywb_55-96_c33_n256
    • cbtl1, long: linear-tritanopic_krjcw_5-98_c46_n256
    • cbtl2, long: linear-tritanopic_krjcw_5-95_c24_n256
    • cbtd1, long: diverging-tritanopic_cwr_75-98_c20_n256
    • cbtc1, long: cyclic-tritanopic_cwrk_40-100_c20_n256
    • cbtc2, long: cyclic-tritanopic_wrwc_70-100_c20_n256
  • Added new naming scheme to access elements.

Changes

  • Renamed old palettes to use the new shortnaming scheme. Please switch from using the long palette names to the short names.
    • c1 = cyclic_mrybm_35-75_c68_n256
    • c1s = cyclic_mrybm_35-75_c68_n256_s25
    • c2 = cyclic_mygbm_30-95_c78_n256
    • c2s = cyclic_mygbm_30-95_c78_n256_s25
    • c4 = cyclic_wrwbw_40-90_c42_n256
    • c4s = cyclic_wrwbw_40-90_c42_n256_s25
    • c5 = cyclic_grey_15-85_c0_n256
    • c5s = cyclic_grey_15-85_c0_n256_s25
    • d1 = diverging_bwr_40-95_c42_n256
    • d2 = diverging_gwv_55-95_c39_n256
    • d3 = diverging_gwr_55-95_c38_n256
    • d4 = diverging_bkr_55-10_c35_n256
    • d6 = diverging_bky_60-10_c30_n256
    • d7 = diverging-linear_bjy_30-90_c45_n256
    • d8 = diverging-linear_bjr_30-55_c53_n256
    • d9 = diverging_bwr_55-98_c37_n256
    • d10 = diverging_cwm_80-100_c22_n256
    • d11 = diverging-isoluminant_cjo_70_c25_n256
    • d12 = diverging-isoluminant_cjm_75_c23_n256
    • r1 = rainbow_bgyrm_35-85_c69_n256
    • r2 = rainbow_bgyr_35-85_c72_n256
    • r3 = diverging-rainbow_bgymr_45-85_c67_n256
    • i1 = isoluminant_cm_70_c39_n256
    • i2 = isoluminant_cgo_80_c38_n256
    • i3 = isoluminant_cgo_70_c39_n256
    • l1 = linear_grey_0-100_c0_n256
    • l2 = linear_grey_10-95_c0_n256
    • l5 = linear_green_5-95_c69_n256
    • l6 = linear_blue_5-95_c73_n256
    • l7 = linear_bmw_5-95_c86_n256
    • l8 = linear_bmy_10-95_c71_n256
    • l10 = linear_gow_60-85_c27_n256
    • l11 = linear_gow_65-90_c35_n256
    • l12 = linear_blue_95-50_c20_n256
    • l13 = linear_ternary-red_0-50_c52_n256
    • l15 = linear_ternary-blue_0-44_c57_n256
  • Documentation switched from using Rd format to using Markdown in Roxygen2.

Deprecation

  • Several of the initial color palettes have been deprecated. These palettes will be phased out within the year. Please find a new palette.
    • diverging-isoluminant_cjm_75_c24_n256
    • diverging-rainbow_bgymr_45-85_c67_n256
    • diverging_gkr_60-10_c40_n256
    • rainbow_bgyr_35-85_c73_n256
    • rainbow_bgyrm_35-85_c71_n256
    • linear_bgy_10-95_c74_n256
    • linear_bgyw_15-100_c67_n256
    • linear_bgyw_15-100_c68_n256
    • linear_bmw_5-95_c89_n256
    • linear_bmy_10-95_c78_n256
    • linear_kry_5-95_c72_n256
    • linear_kry_5-98_c75_n256
    • linear_kryw_5-100_c64_n256
    • linear_kryw_5-100_c67_n256
    • linear_ternary-green_0-46_c42_n256

cetcolor 0.1.0

Features

  • 51 perceptually uniform colour maps by Peter Kovesi
  • Nicknamed frequently used colour maps.
  • Colour map accessor functions similar to RColorBrewer
  • Vignette displaying the colour maps within R.
